Stainless Steel Glass Clamp Glass Adapter Standoffs 2 PK
Stainless Steel Glass Clamp Glass Adapter Standoffs 2 PK
Stainless Steel Glass Clamp Glass Adapter Standoffs 2 PK
Stainless Steel Glass Clamp Glass Adapter Standoffs 2 PK
Stainless Steel Glass Clamp Glass Adapter Standoffs 2 PK
Stainless Steel Glass Clamp Glass Adapter Standoffs 2 PK

Stainless Steel Glass Clamp Glass Adapter Standoffs 2 PK

GA0.000.000.PMT.030

Regular price $53.32 Sale price $39.99 Save 25%
/
Shipping calculated at checkout.

Height:
Quantity:
Only 4834 items in stock!

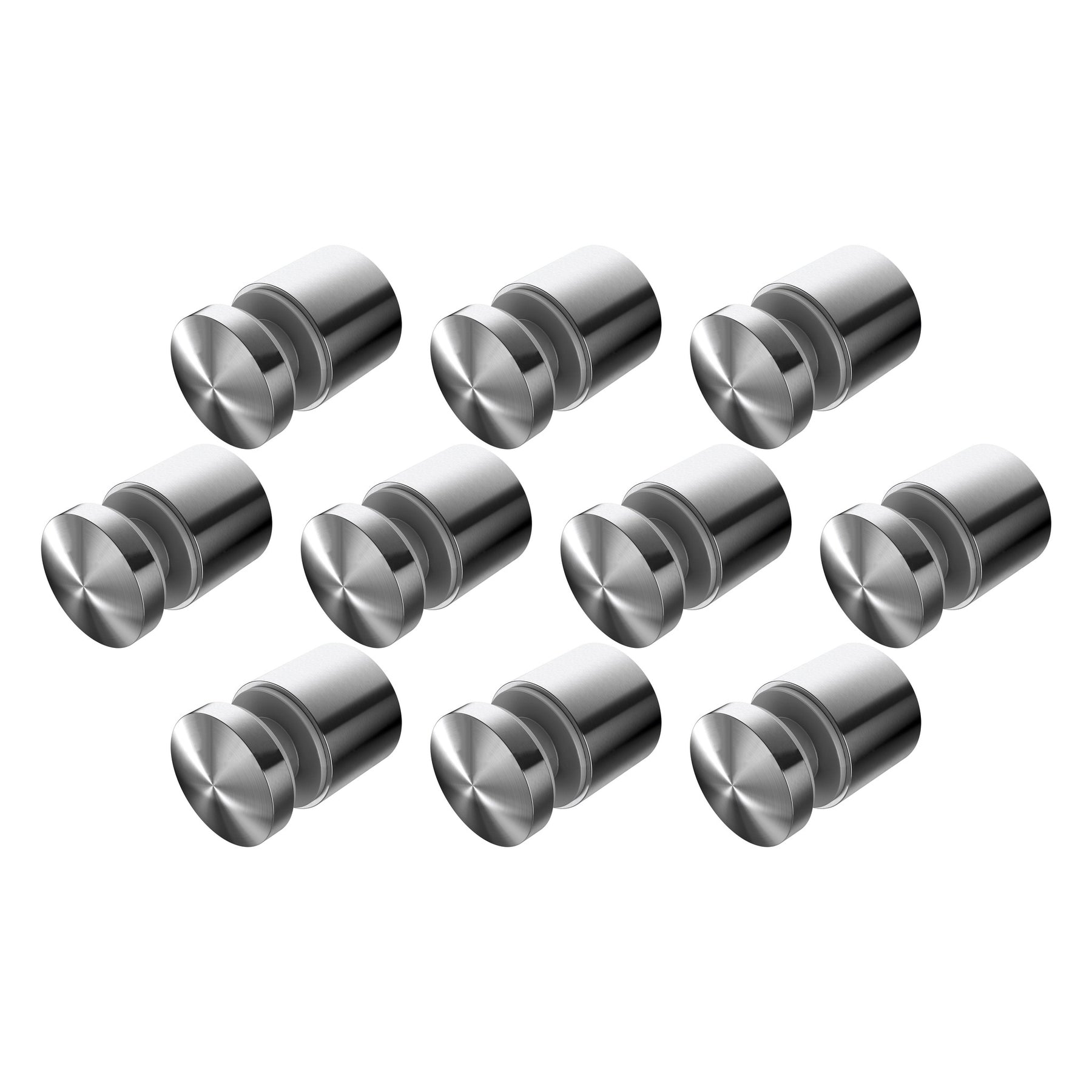

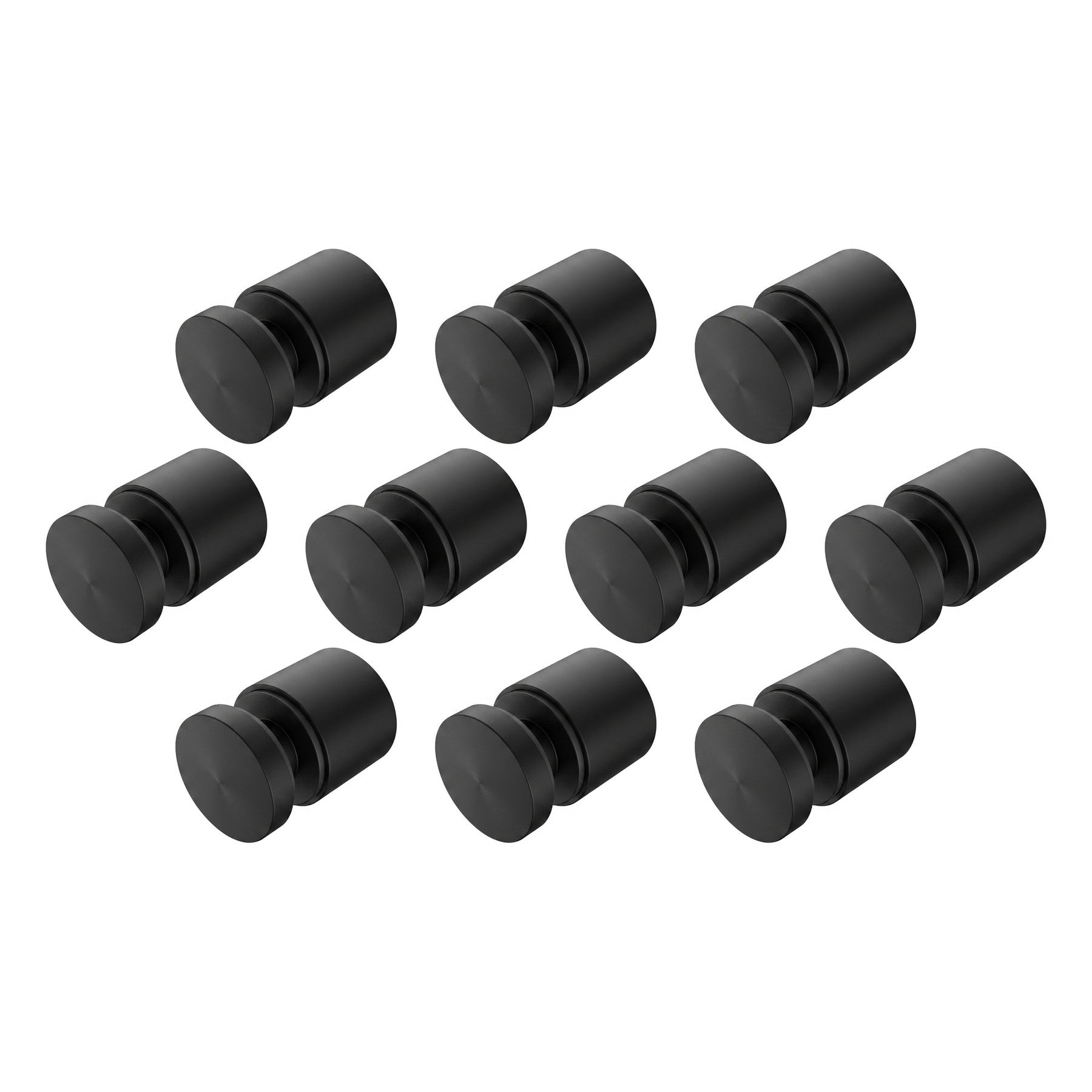

ANSI 316 Stainless Steel Glass Adapter Standoffs connect a glass panel to a wall with a simple, modern, and floating look. This adapter is designed to work with 1/4", 3/8", 1/2", 5/8" or 3/4" glass thickness.

  • Material: Stainless Steel AISI 316
  • Length: 1-3/16"
  • Diameter: 2"
  • Item Shape: Round

Clients' projects:

Overview

These instructions will provide step-by-step installation guidelines for installing the Glass Adapter. The Glass adapter comes with 2 round rubber gaskets, a standoff column (30/40 mm), and the mounting sleeve (you will need to purchase the connection screw separately). Glass Adapters should be installed at a maximum distance of every 4 feet.

Caution: Wear protective ANSI approved safety glasses, working gloves, and mask at all times

Tools Required

  1. Drilling tool for substrate
  2. 1/4” drill bit
  3. The holes require on glass are 1” in diameter.

Instructions

  1. When using a 3/8” lag screw, spot drill using 1/4” drill bit, different mounting surfaces require different methods.
  2. Begin with only the mounting sleeve with the appropriate screw
  3. Twist the standoff column (#3) onto the sleeve.
  4. Insert the gasket #4, place the glass in place, then gasket #5, and then place cap #6 and screw in over the glass. The hole size on the glass is 1” in diameter.
