Handrail Bracket - Event Horizon
HBWA.016

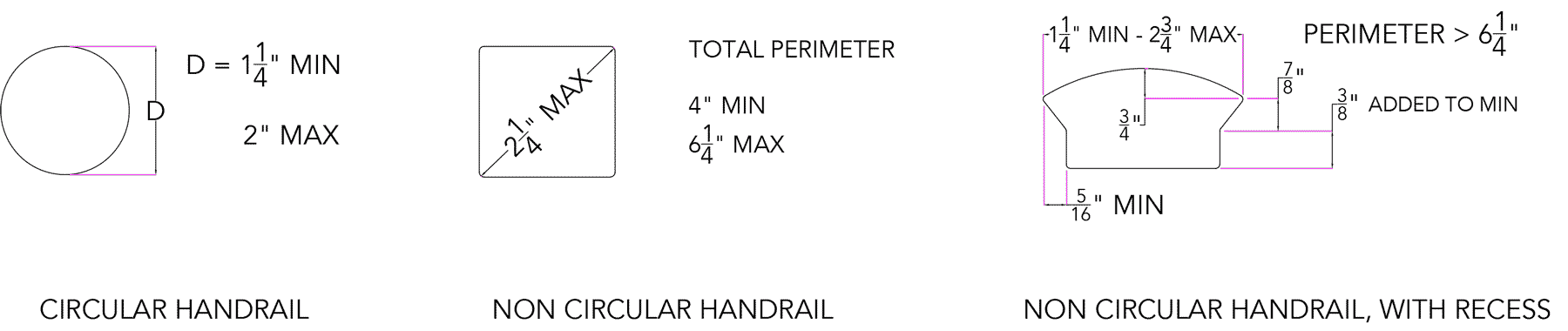

Regular price $28.00 Sale price $19.60 Save $8.40The Event Horizon Stainless Steel Handrail Bracket is a stylish railing component with futuristic elements. Recommended for use in indoor and outdoor locations, the AISI 316 stainless steel handrail bracket provides a secure platform for square or tube railings. Suitable for compliance with ADA requirements, a curved design with three circular openings can be found on the surface of the unit.
Customers are encouraged to call their local city to get information about their local building codes. Local building codes supersede national building codes. Inline Design is providing this information in an advisory capacity only and is not liable for any code non-compliance.

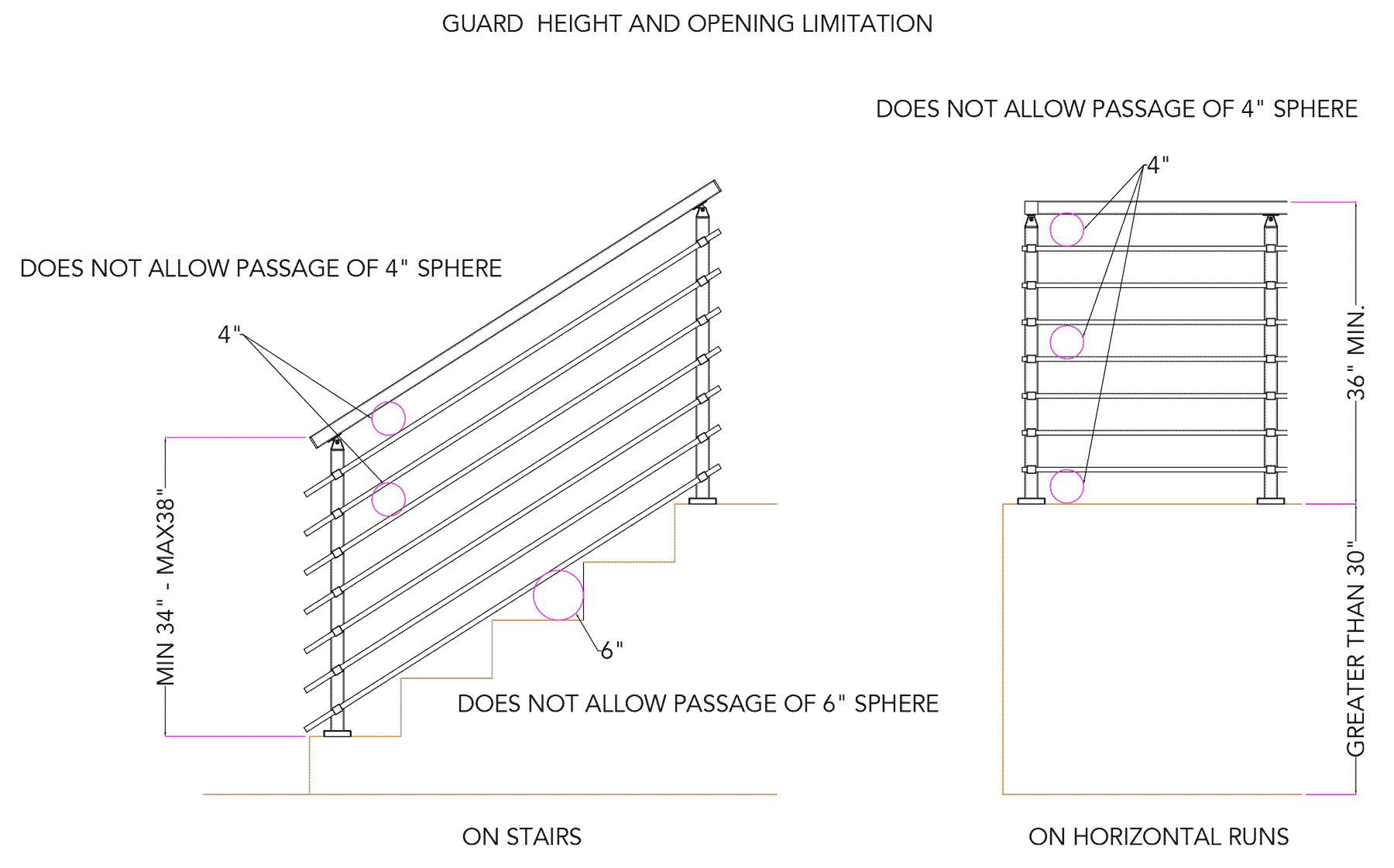

Adult Height Requirements:

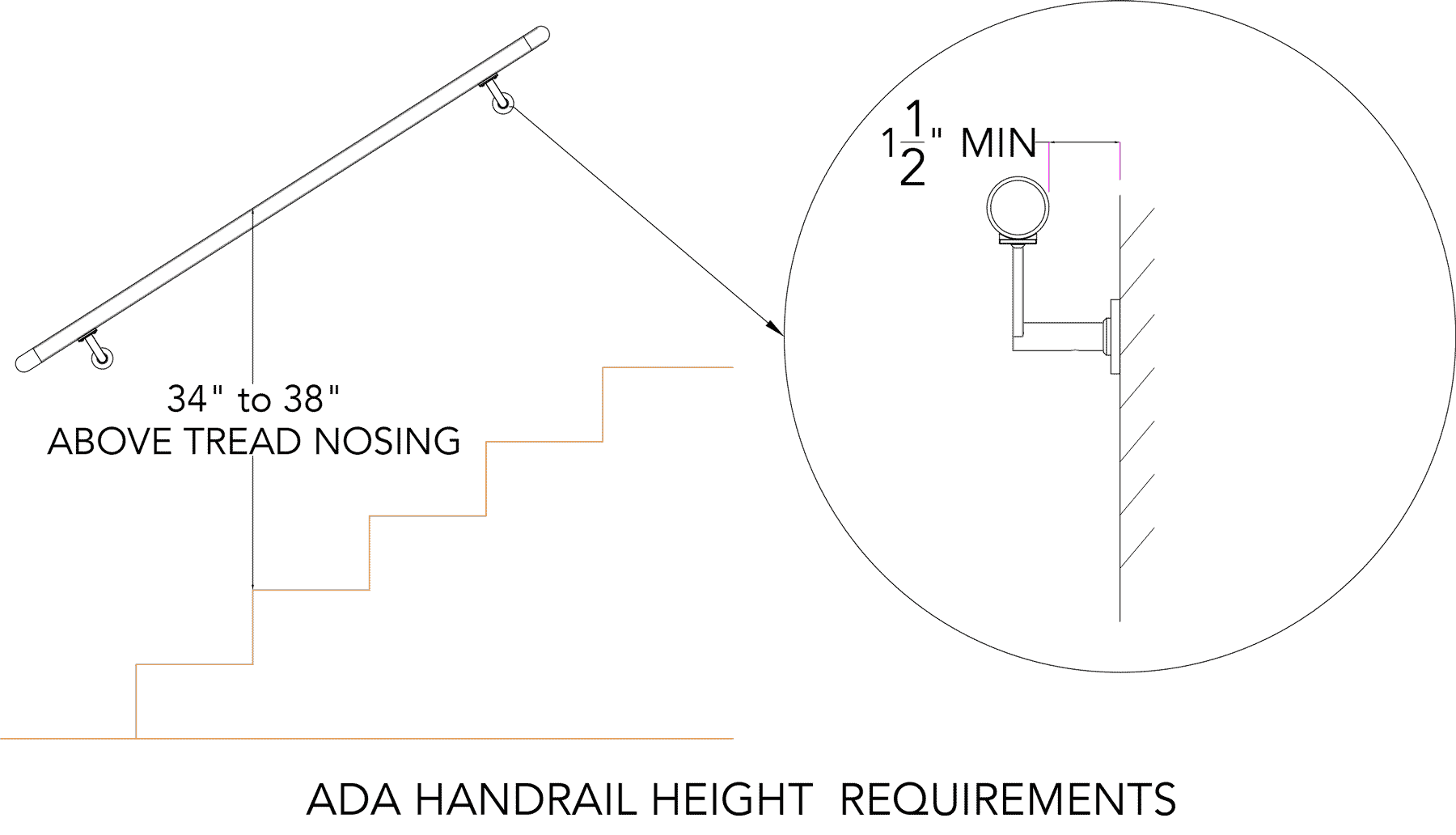

Top of gripping surfaces of handrails shall be 34 inches (865 mm) minimum and 38 inches (965 mm) maximum vertically above walking surfaces, stair nosings, and ramp surfaces. Handrails shall be at a consistent height above walking surfaces, stair nosings, and ramp surfaces.
- Height from Surface 34" - 38"
- Consistent height Across Run
Children Height Requirements:
When children are the principal users in a building or facility (e.g., elementary schools), a second set of handrails at an appropriate height can assist them and aid in preventing accidents. A maximum height of 28 inches (710 mm) measured to the top of the gripping surface from the ramp surface or stair nosing is recommended for handrails designed for children. Sufficient vertical clearance between upper and lower handrails, 9 inches (230 mm) minimum, should be provided to help prevent entrapment.
- Height from Surface Max 28"
- Vertical Clearance between handrails Min 9"
- Consistent height Across Run
Reference:
Shop our Handrail Bracket Collection
The Event Horizon Stainless Steel Handrail Bracket is a stylish railing component with futuristic elements. Recommended for use in indoor and outdoor locations, the ANSI 316 stainless steel handrail bracket provides a secure platform for square or tube railings. Suitable for compliance with ADA requirements, a curved design with three circular openings can be found on the surface of the unit.
This corrosion-resistant product can be installed on handrail tubing/top rails (wood or steel). Mounting to flat surfaces is facilitated by two openings on the circular mounting plate and two M5 screws (included). Railing components are secured on the platform of the bracket via two mounting holes. ANSI 316 stainless steel construction ensures an extremely durable handrail bracket that can withstand corrosive substances, such as saltwater, rain and cleaning solutions.
- (1) Handrail Bracket - HBWA.016
- (2) M5 x 0.8mm x 12mm Pan-Head Screw
- (1) Round Saddle Adapter
Overview
These instructions will provide step-by-step installation guidelines for installing the Stainless Steel
Handrail Wall Bracket Event Horizon, HBWA.016 into sheetrock, wood, or drywall surfaces
This bracket comes with a round saddle adapter to attach to round tubing and 2x M5 screws to attach to a handrail
Caution: Wear protective ANSI approved safety glasses, working gloves and breathing mask all the times.
Tools Required
- Stud-finder
- Handheld drill
- 3/16” drill bit
- [Not Provided] 1x 3/8” mounting wall screw or bolt
Parts List:
Installation
- Using a stud-finder, locate a stud and spot drill using 1/8” drill bit (true for wood or steel/metal stud)
- Lift and tape flange base cover to expose the 1/4” screws on wall flange;
- Position bracket at desired orientation; use selected wall mounting screws (not provided) to secure the bracket to the mounting surface
Note: If using a round handrail, position the round saddle adapter on top of the flat saddle before attaching handrails.
NOTE: If the bracket doesn’t align properly you can pound it out using a 1” rod from the bottom of the post. Be careful not to hit any of the tube threading while inserting the rod. Do this over a piece of cloth so that they bracket does not get scratched when it is pounded out.
Downloads:
TIP SHEET - INSTALLING STAINLESS STEEL HANDRAILS
NOTE: A small amount of surface corrosion is not uncommon after some exposure to weather or salty conditions; we recommend using our passivation solution or a stainless steel polish to prevent surface corrosion; more information available on our Engineering Specification Page
