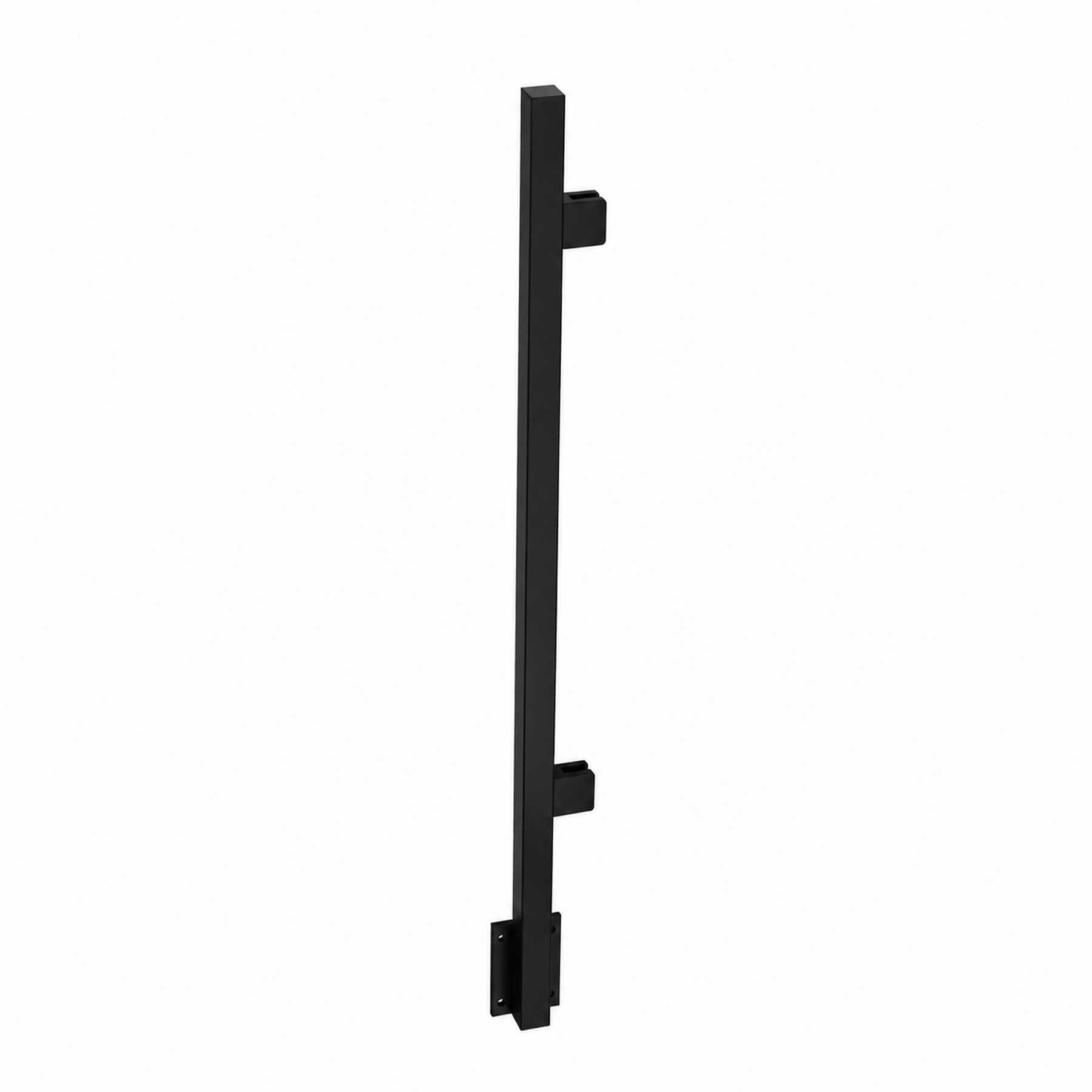

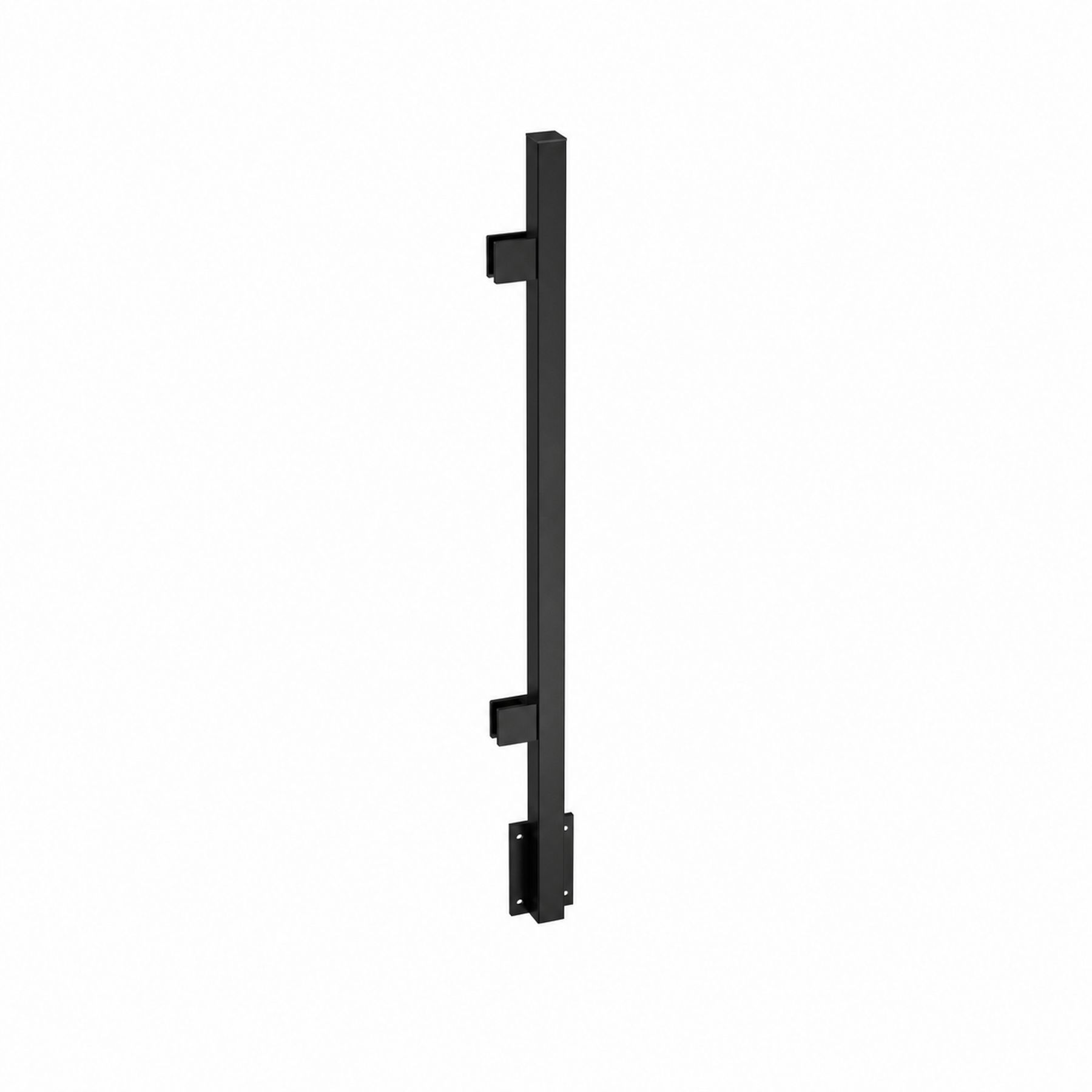

Glass Railing Square Fascia Post

Glass Railing Systems Square Fascia Mount Post with Square Glass Clamps is a part of our Chicago Square Style Glass Railing System. This version does not have a top rail mounting hardware.

IMAGES GALLERY

• Sacramento, CA
• Austin, TX

Details

• Material: ANSI 316 Stainless Steel

• Profile Size: 1.57x1.57" or 40x40mm
• Post Thickness: Gauge 12 or 0.102" or 2.6mm
• Finish: ASTM A480 No 4 linearly textured Satin Finish
• Heavy Duty Construction
• Easy to Install and Sturdy Upon Completion
• Perfect for Wet or Dry, Indoor or Outdoor
• Meets ADA, Residential and Commercial Codes Requirements
• Suitable for Balconies, Decks, Porches, and Stairs

What is included in the kit?

• (1) Post Pre drilled and tapped (M8 x 1.25mm)
• (1) Square End Cap
• (1) Square Base Cover

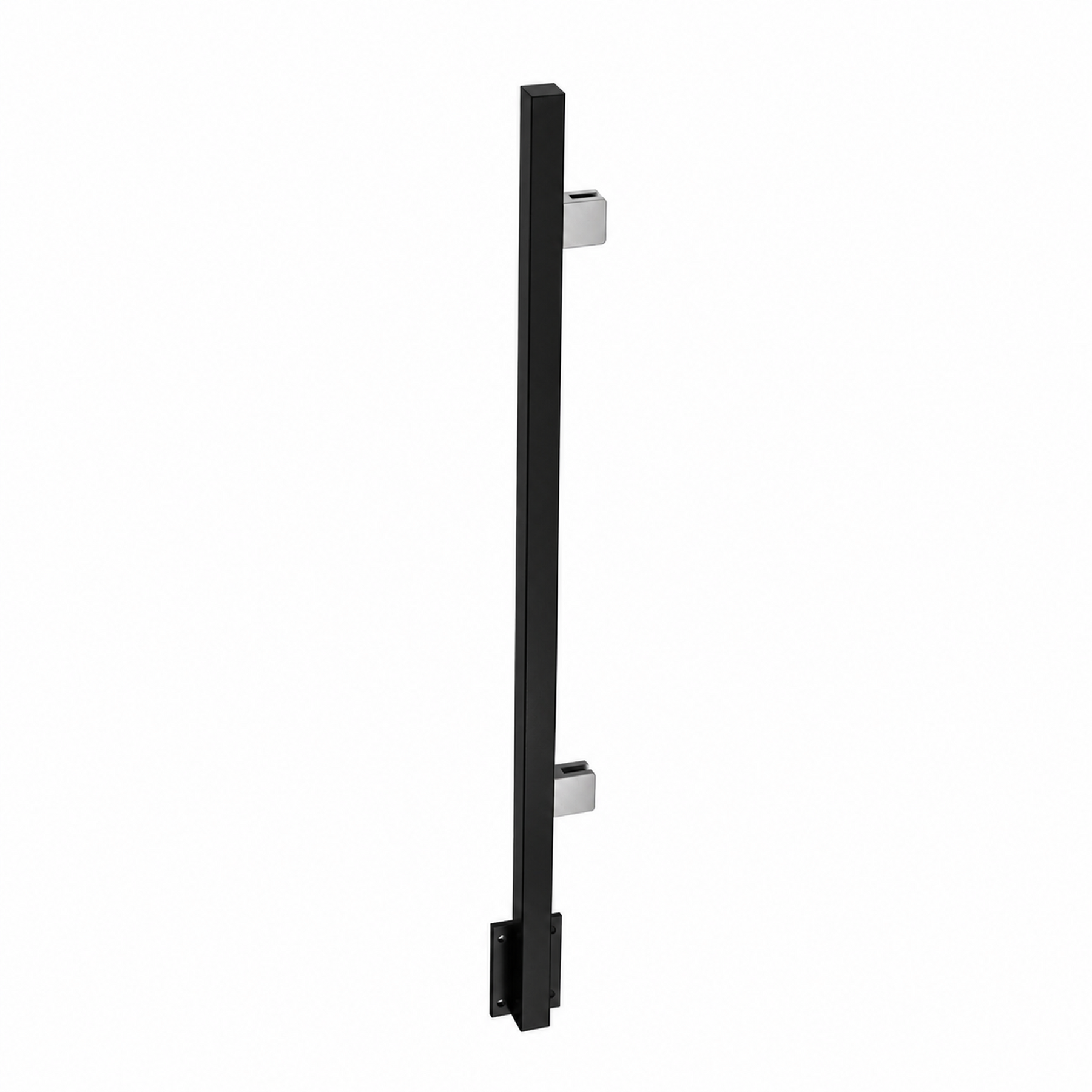

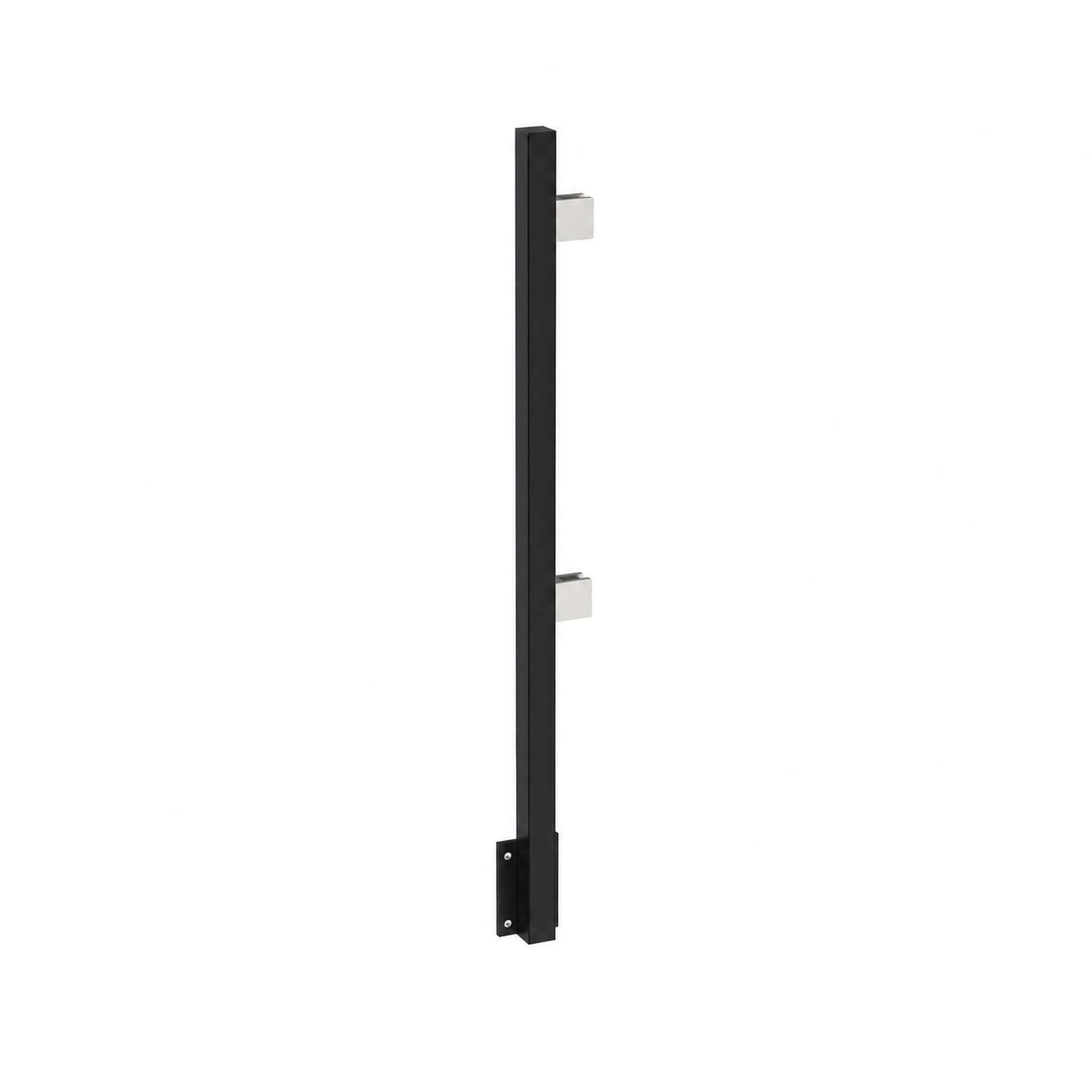

• (4) Square Glass Clamps for Middle Post or (2) for End Post
• Optional (1) Square Pivot Flange at the bottom for Angle Post
• (1) Fascia Plate:

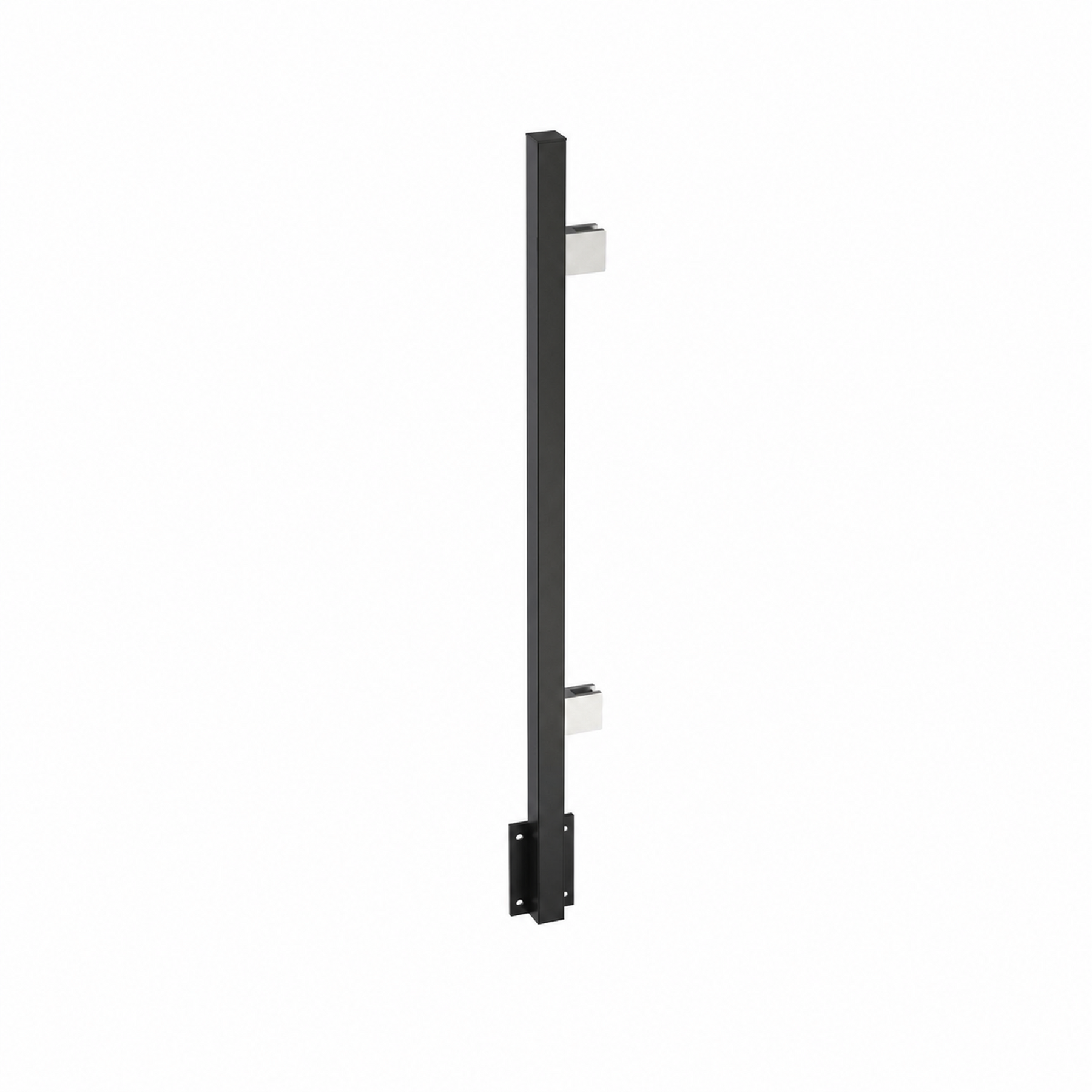

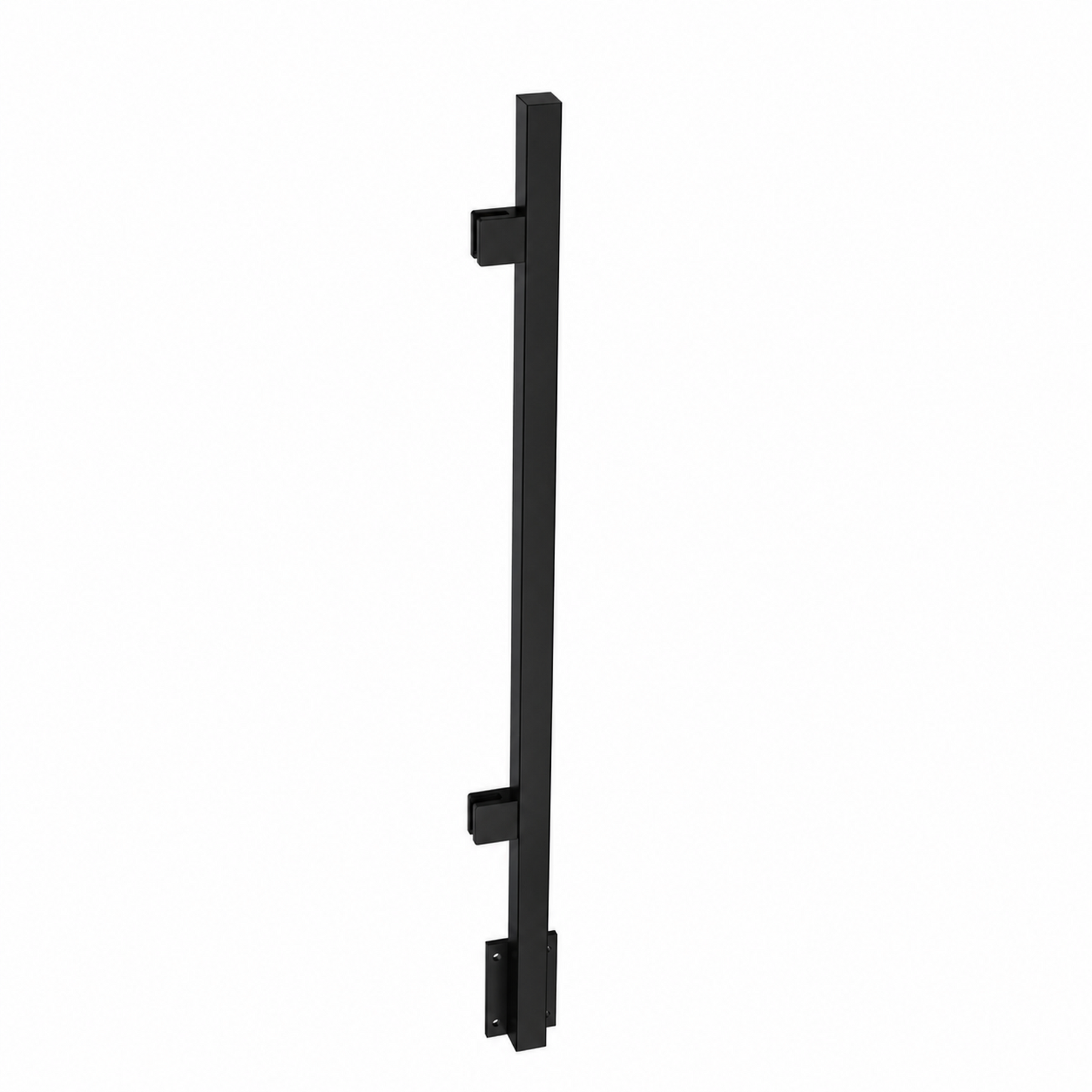

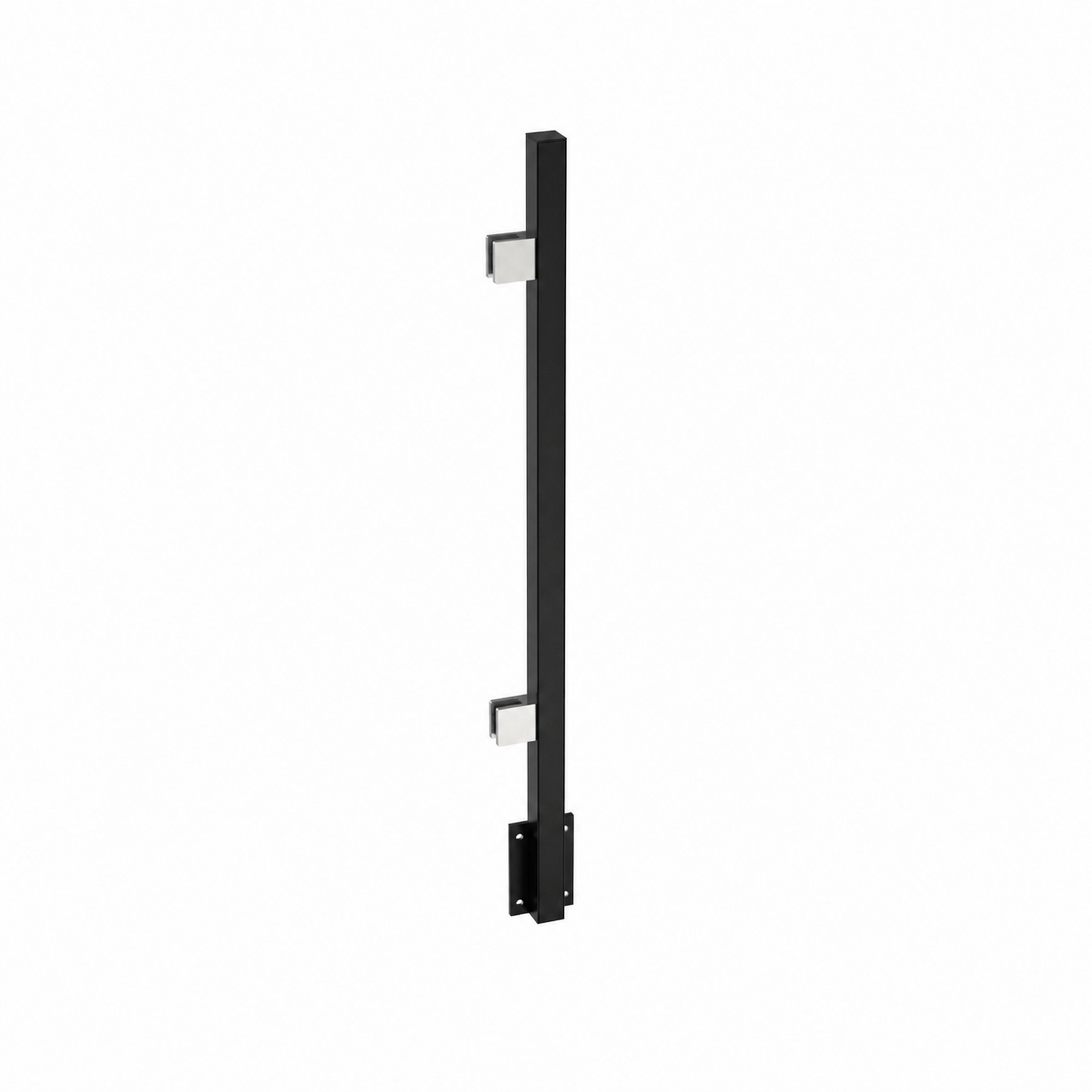

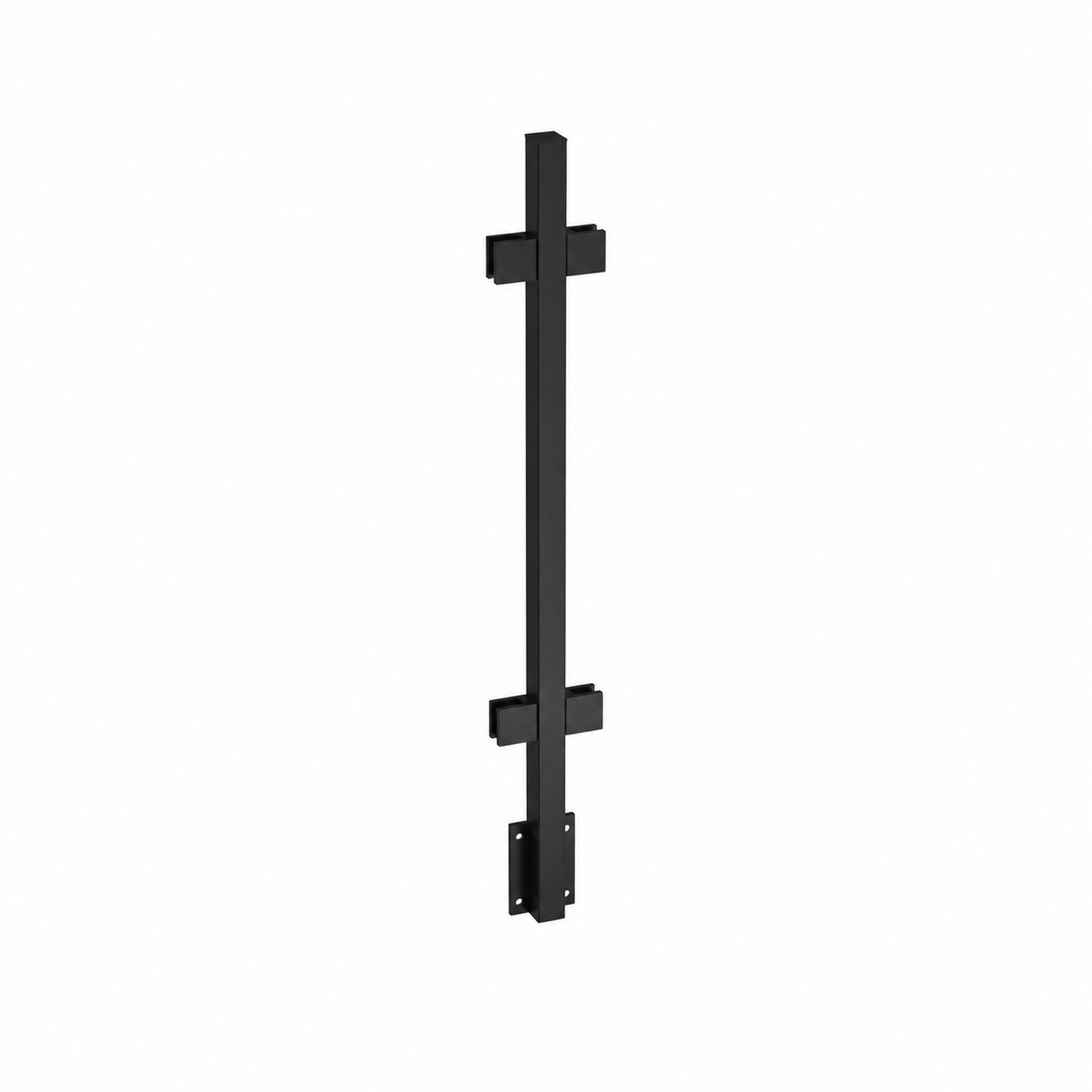

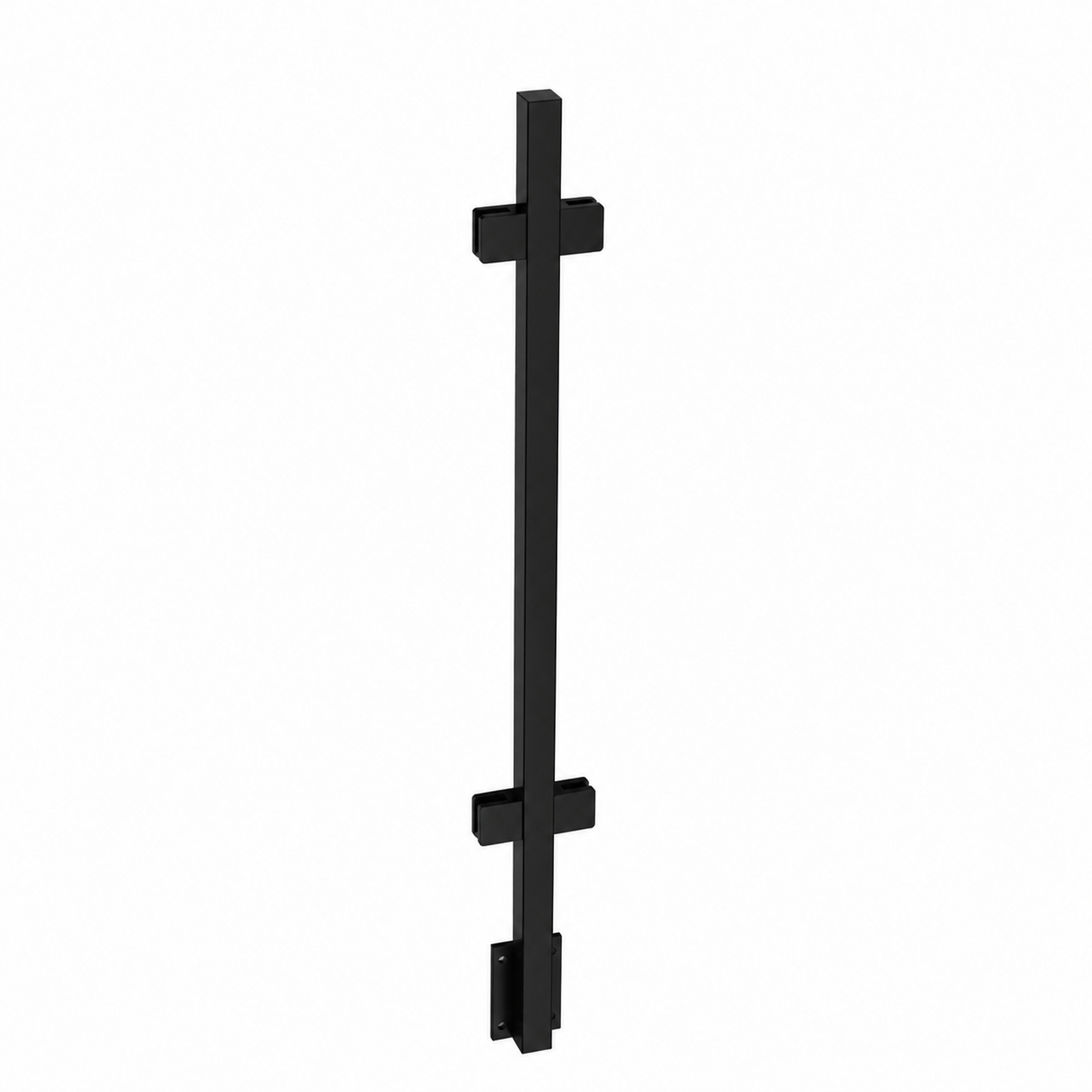

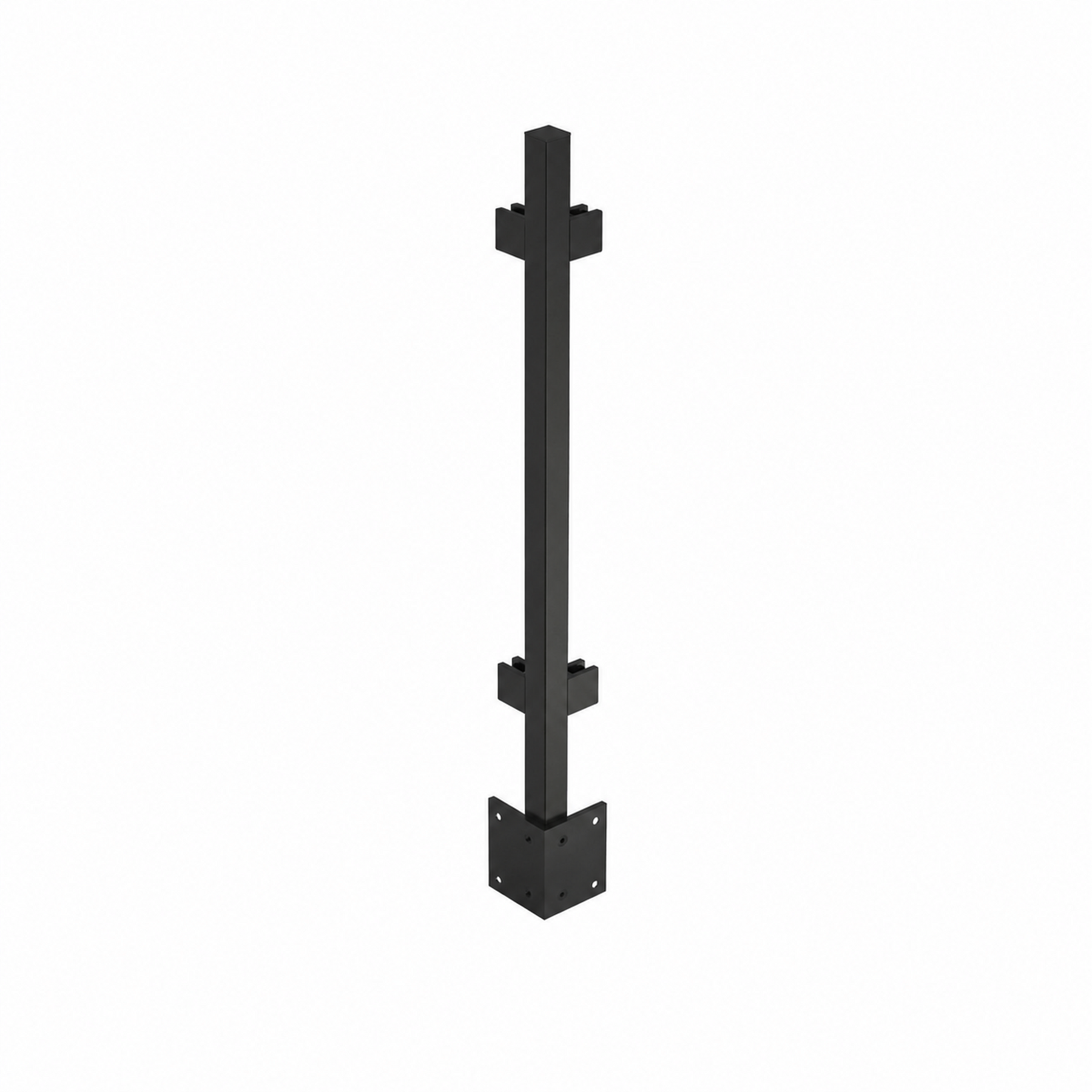

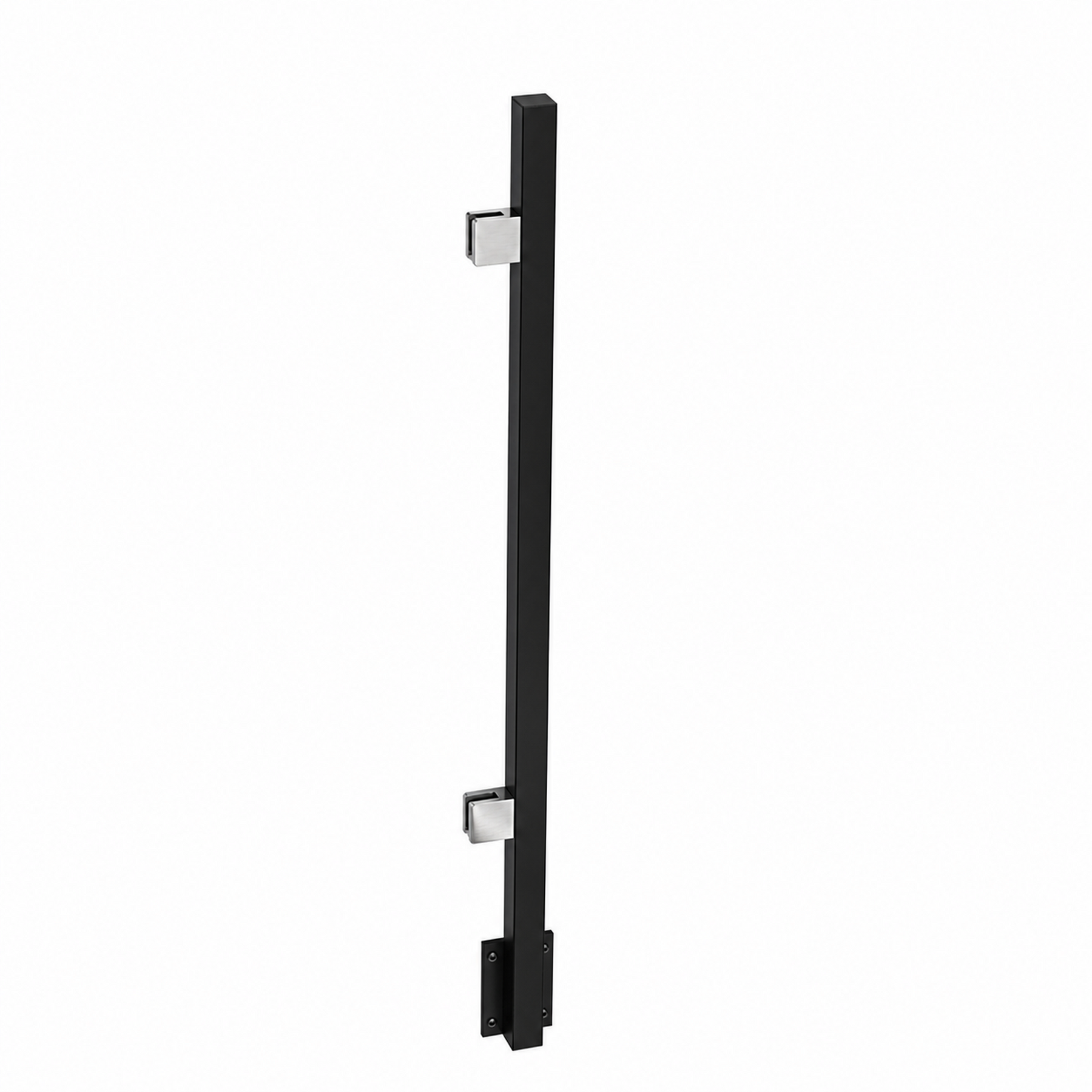

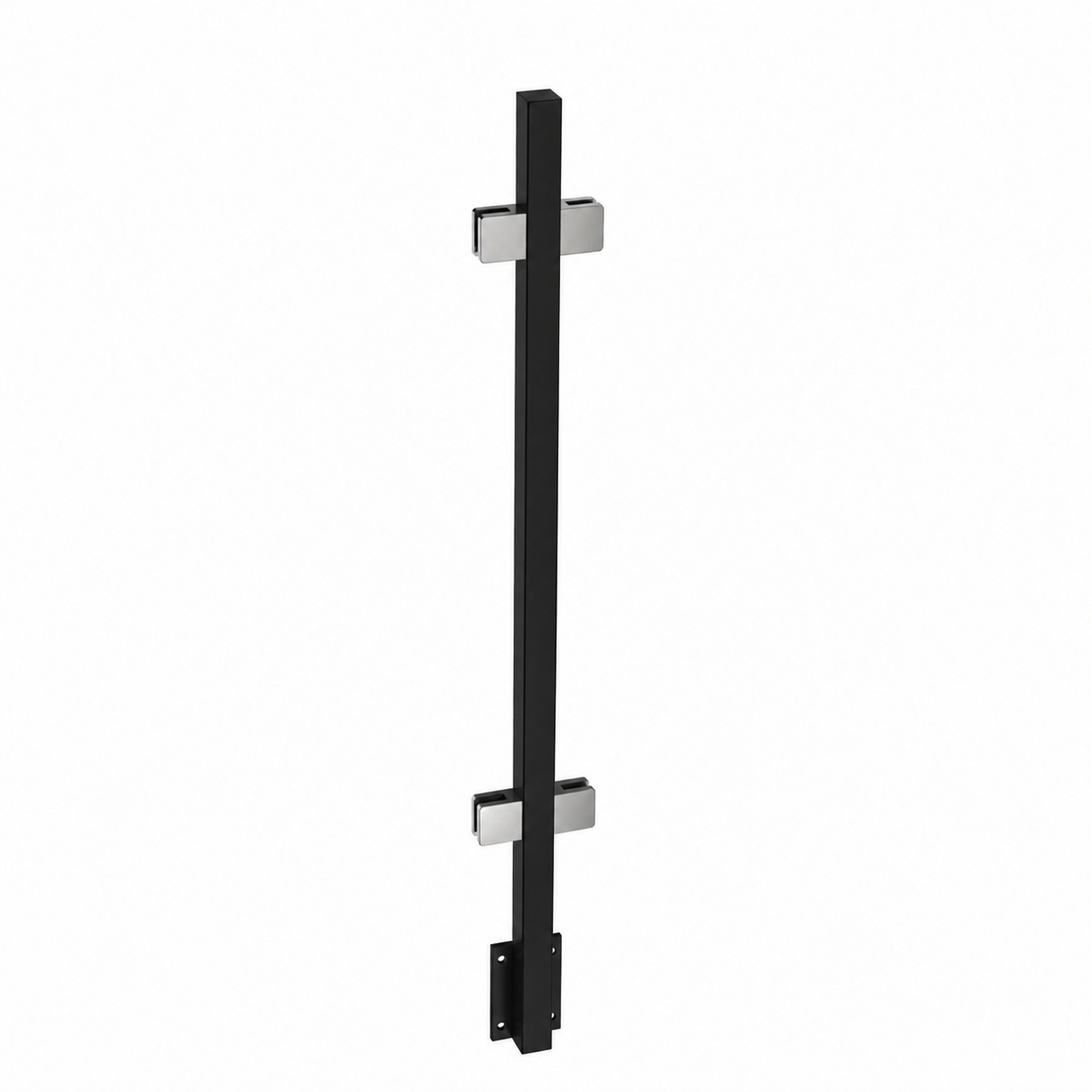

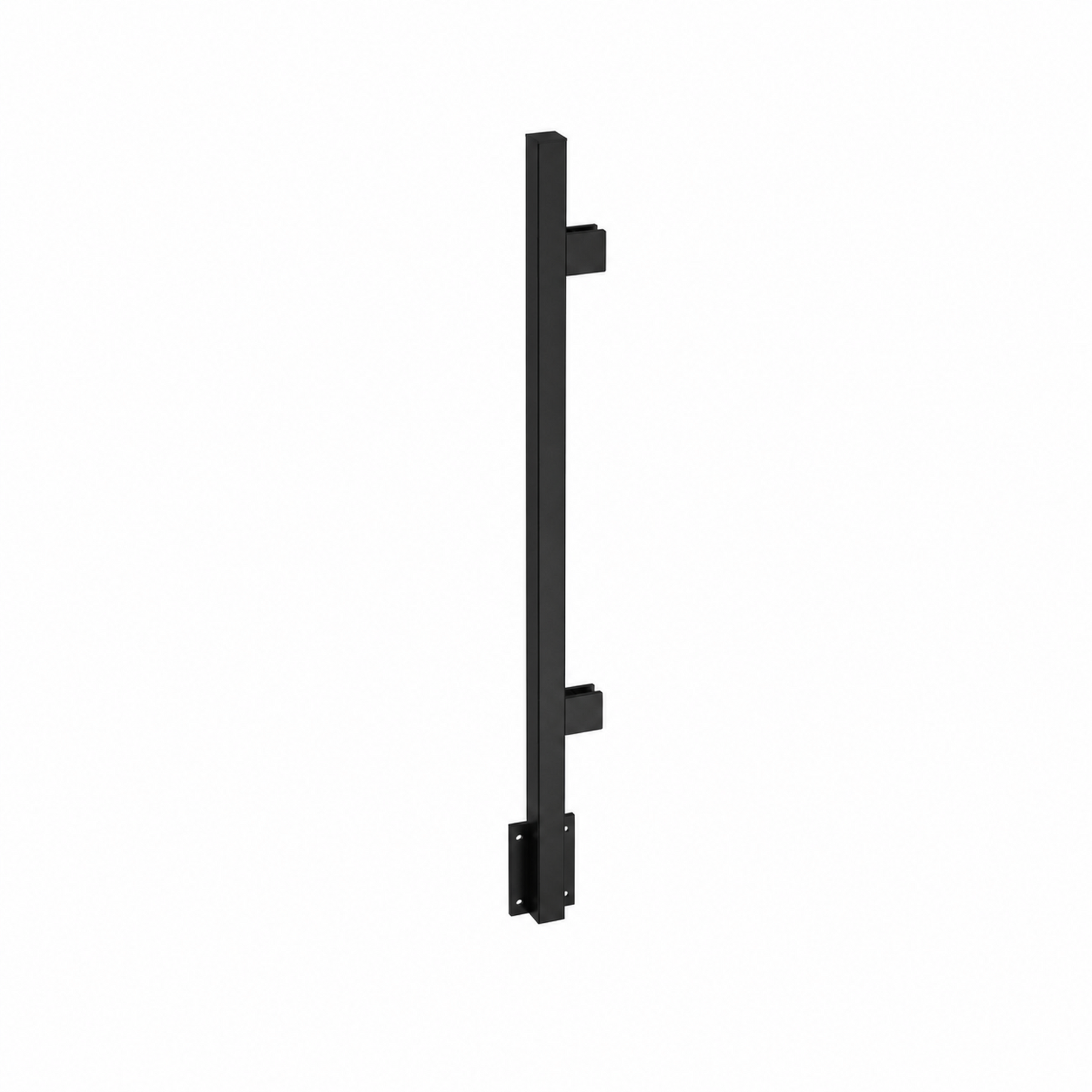

  • Flat for Middle Posts or End Post

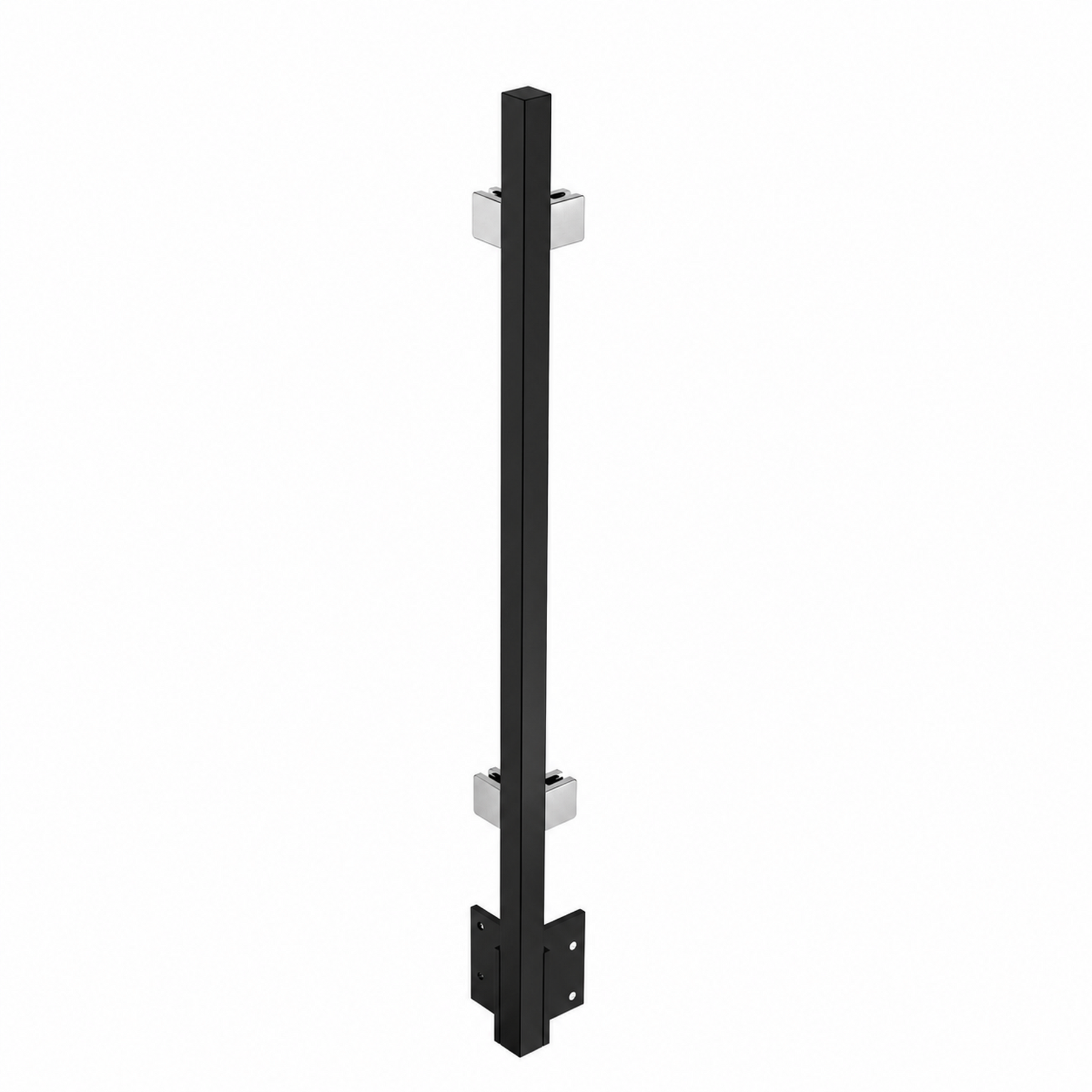

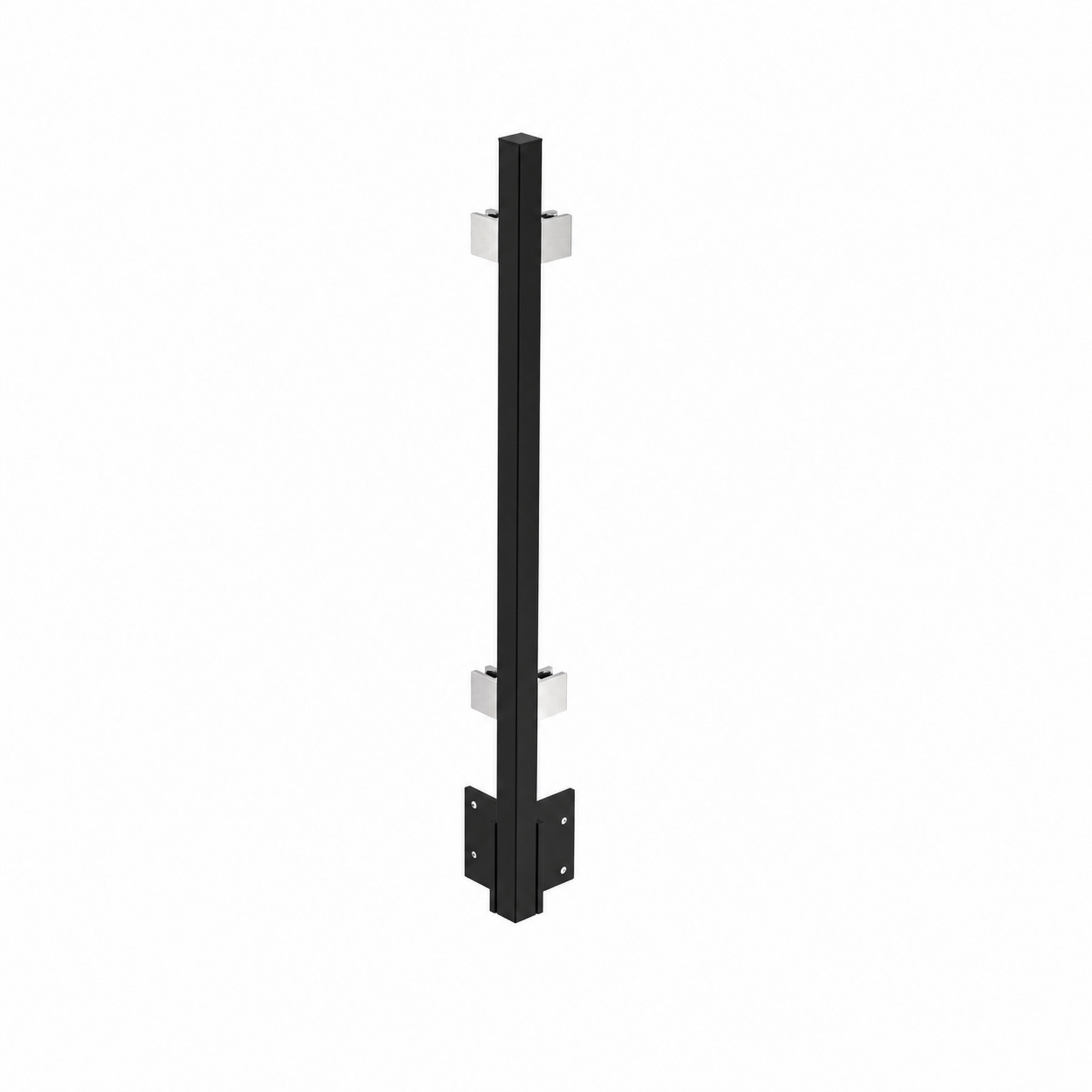

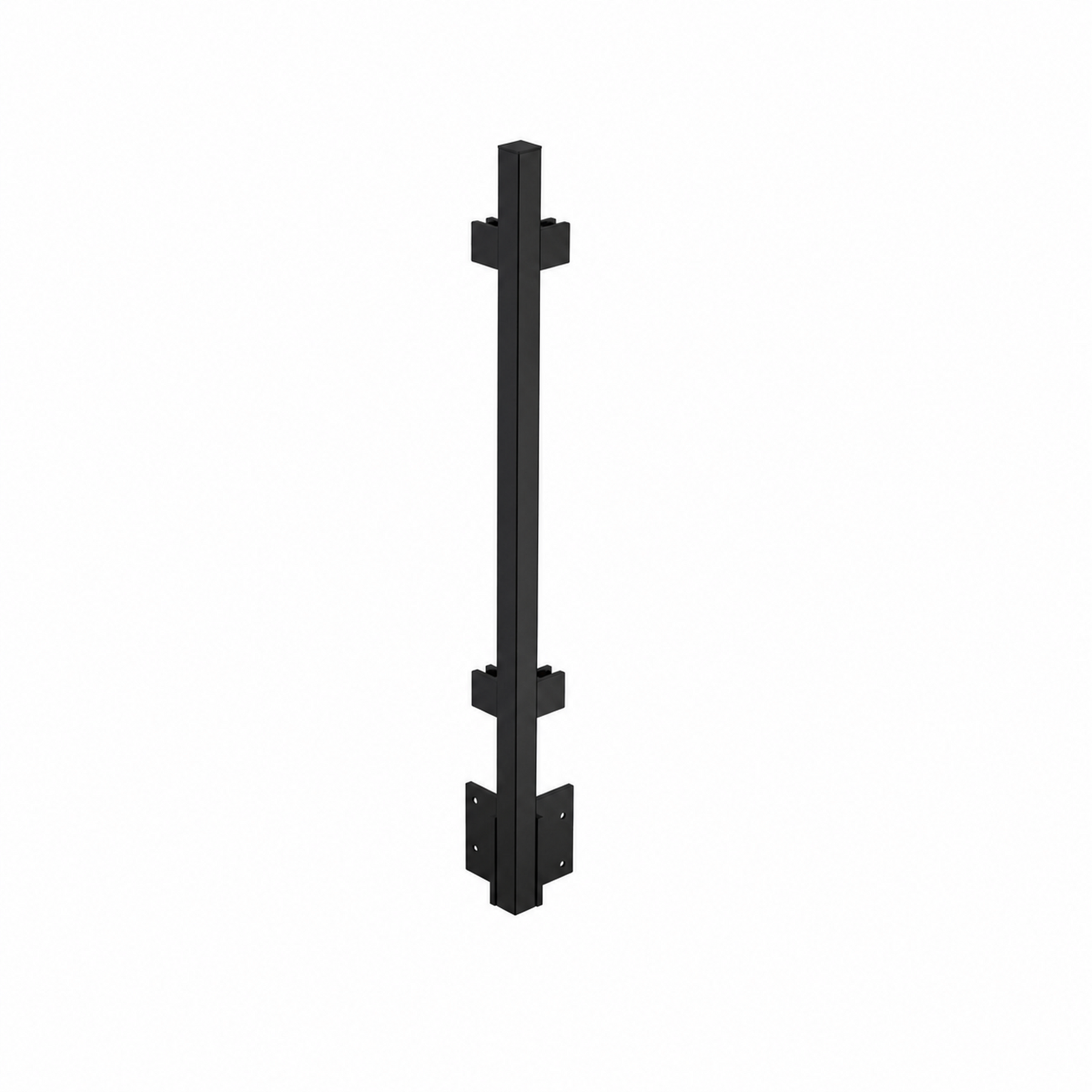

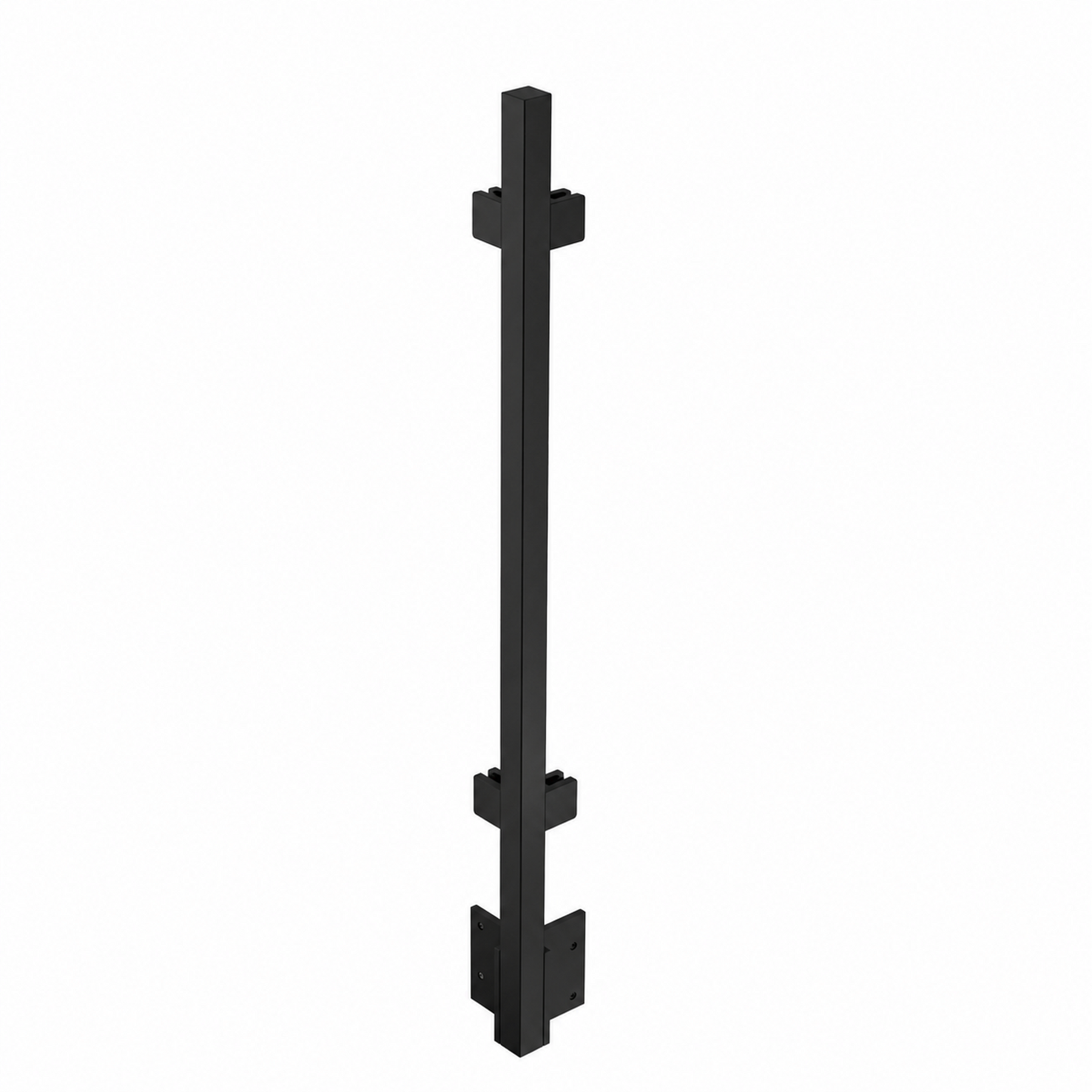

  • Outside Corner for Outside Corner Post

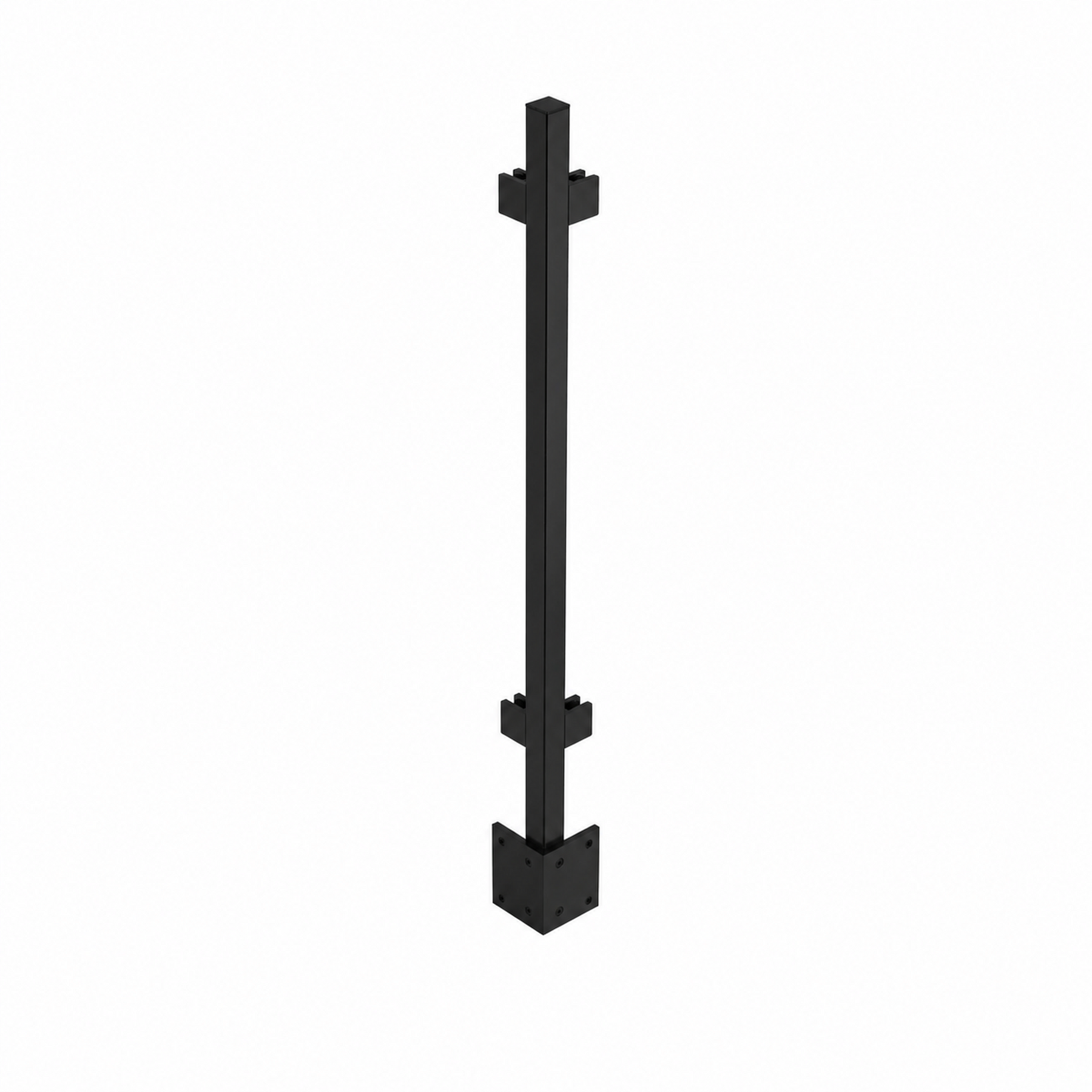

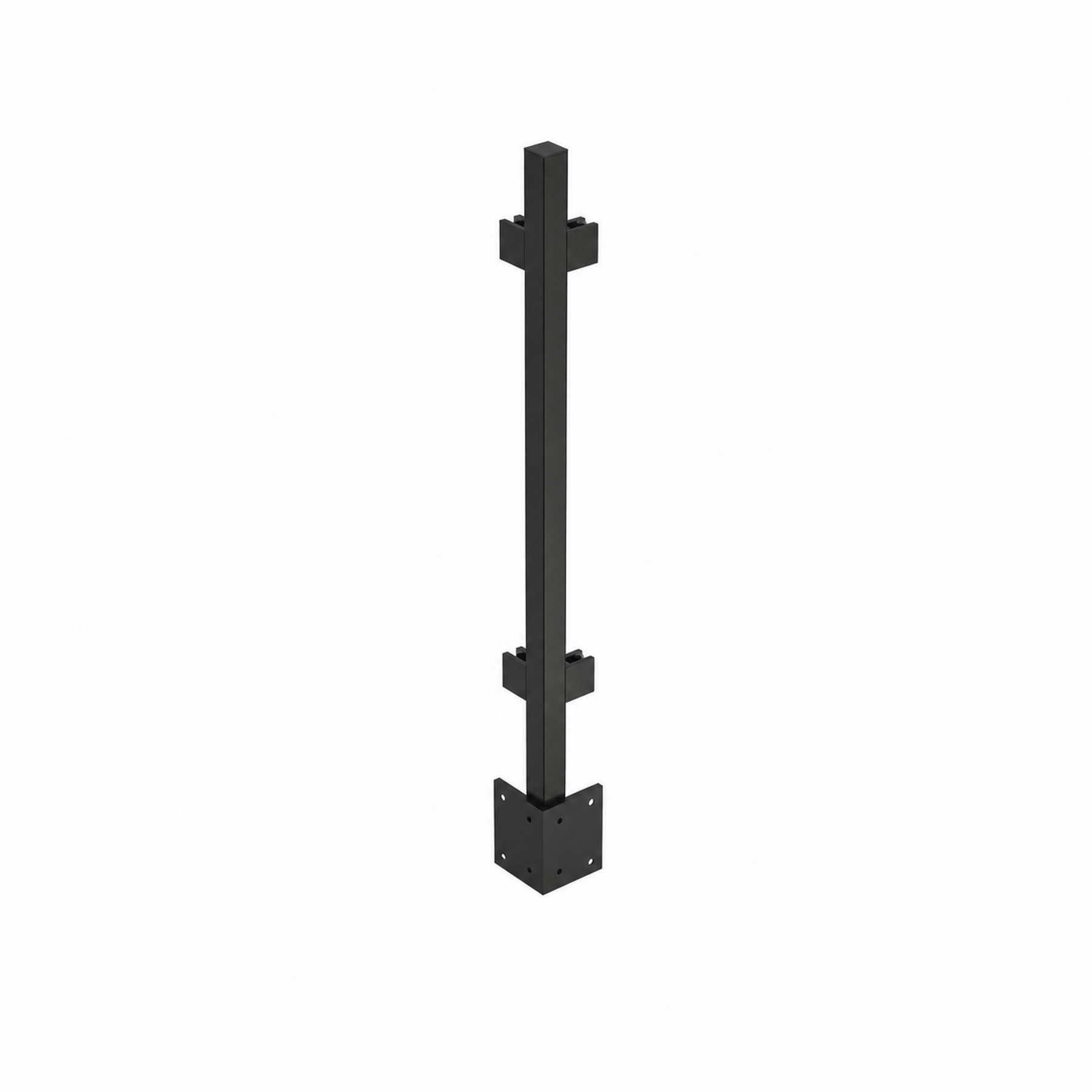

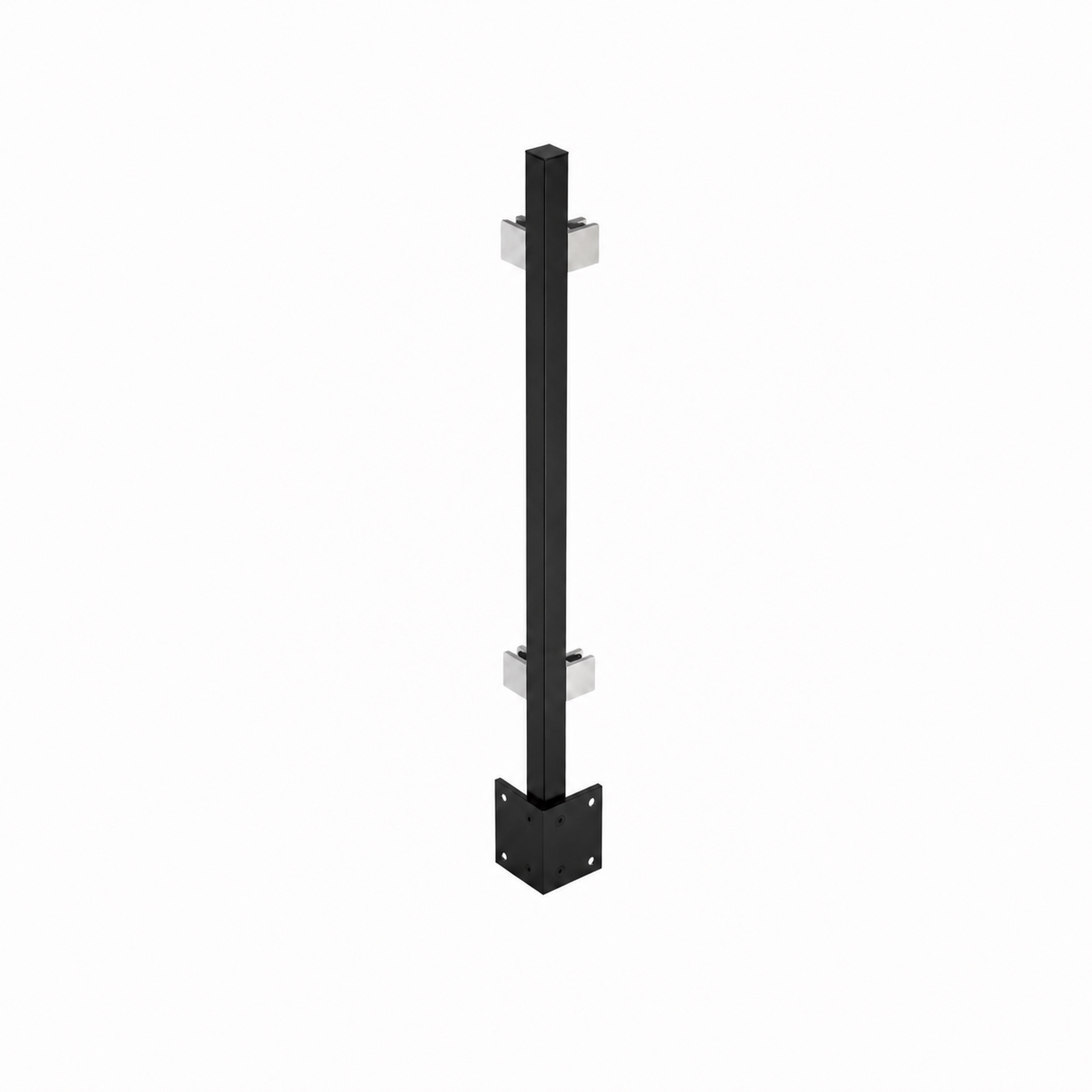

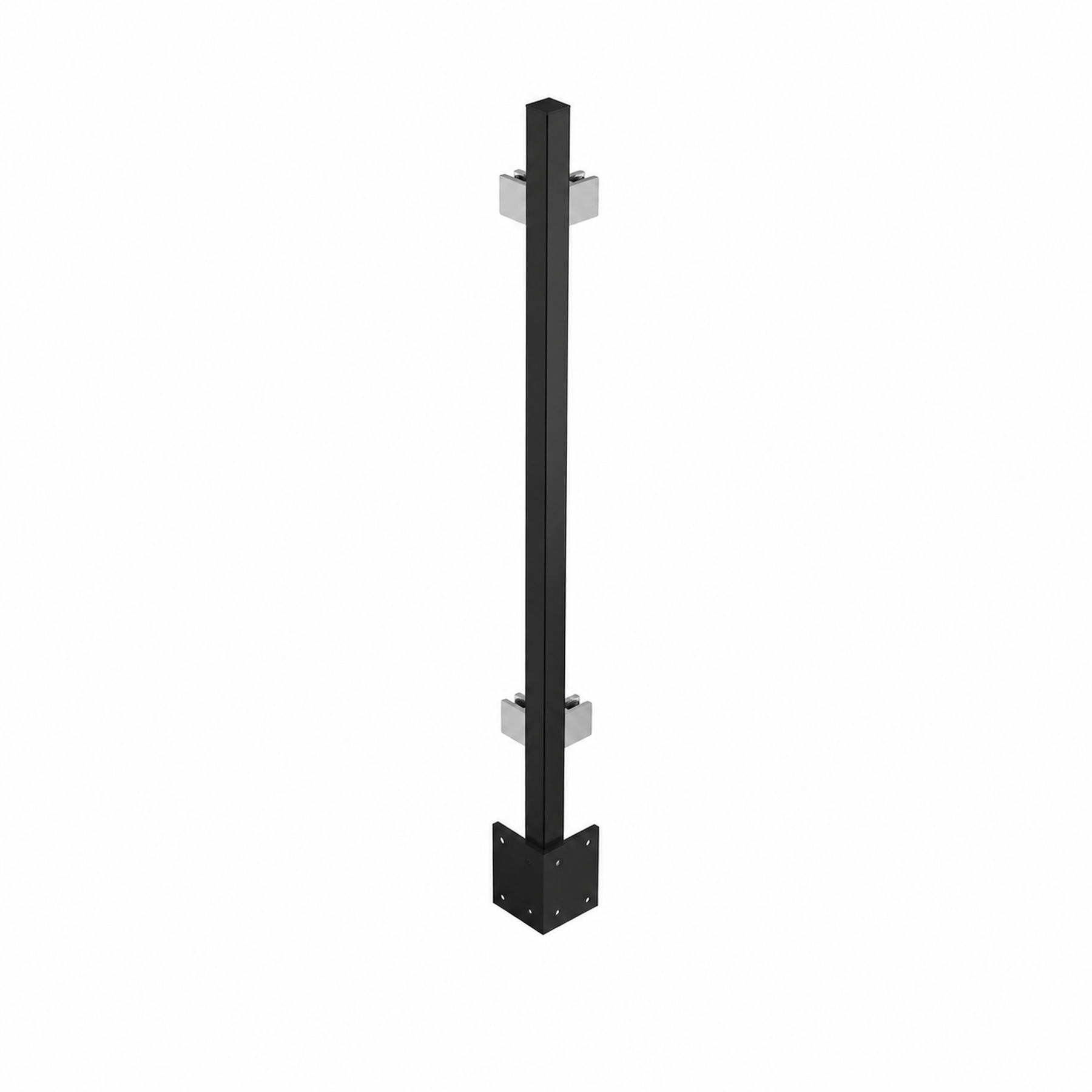

  • Inside Corner for Inside Corner Post

Links & Downloadable materials

• Installation PDF
• Installation YouTube Video
• Chicago Square Drawings

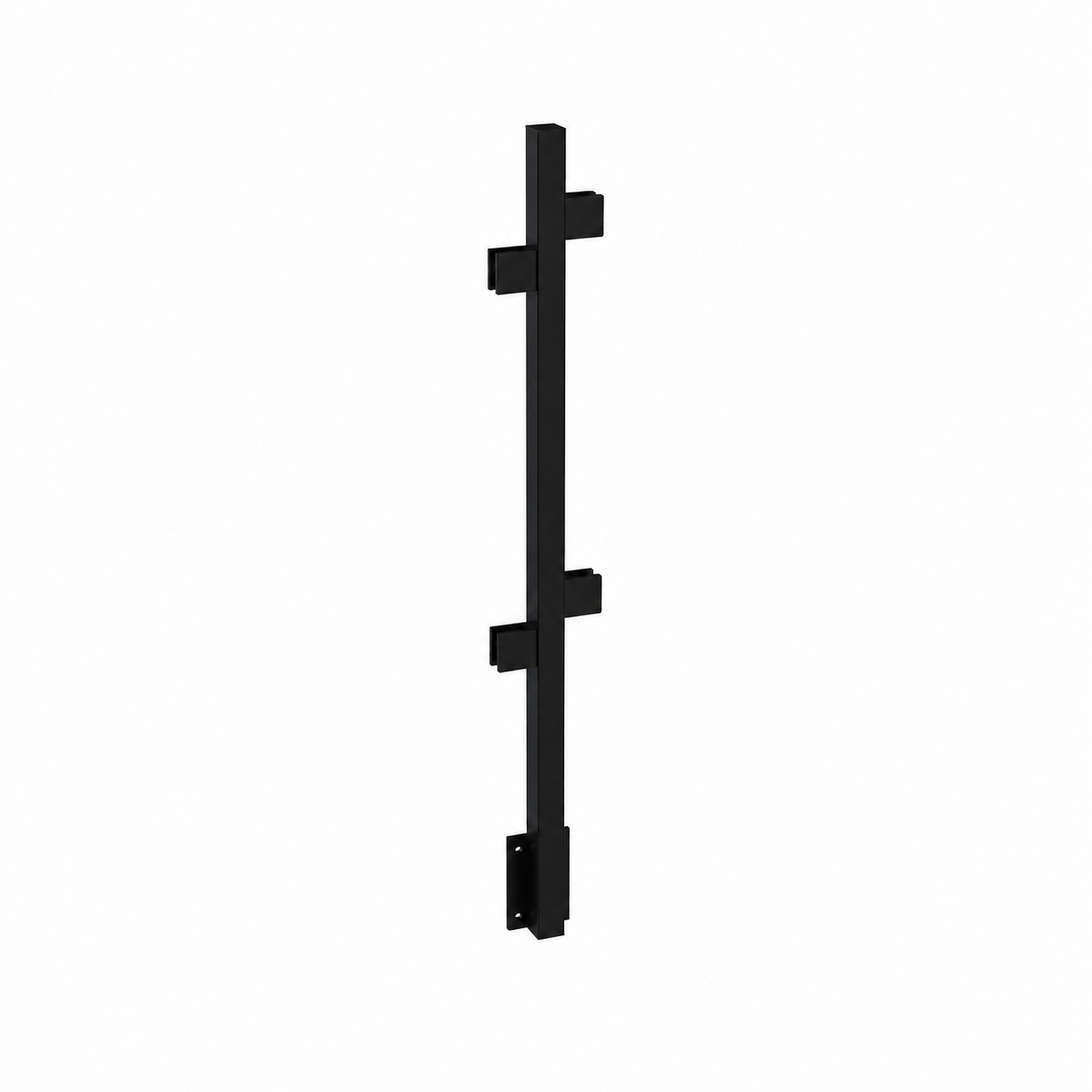

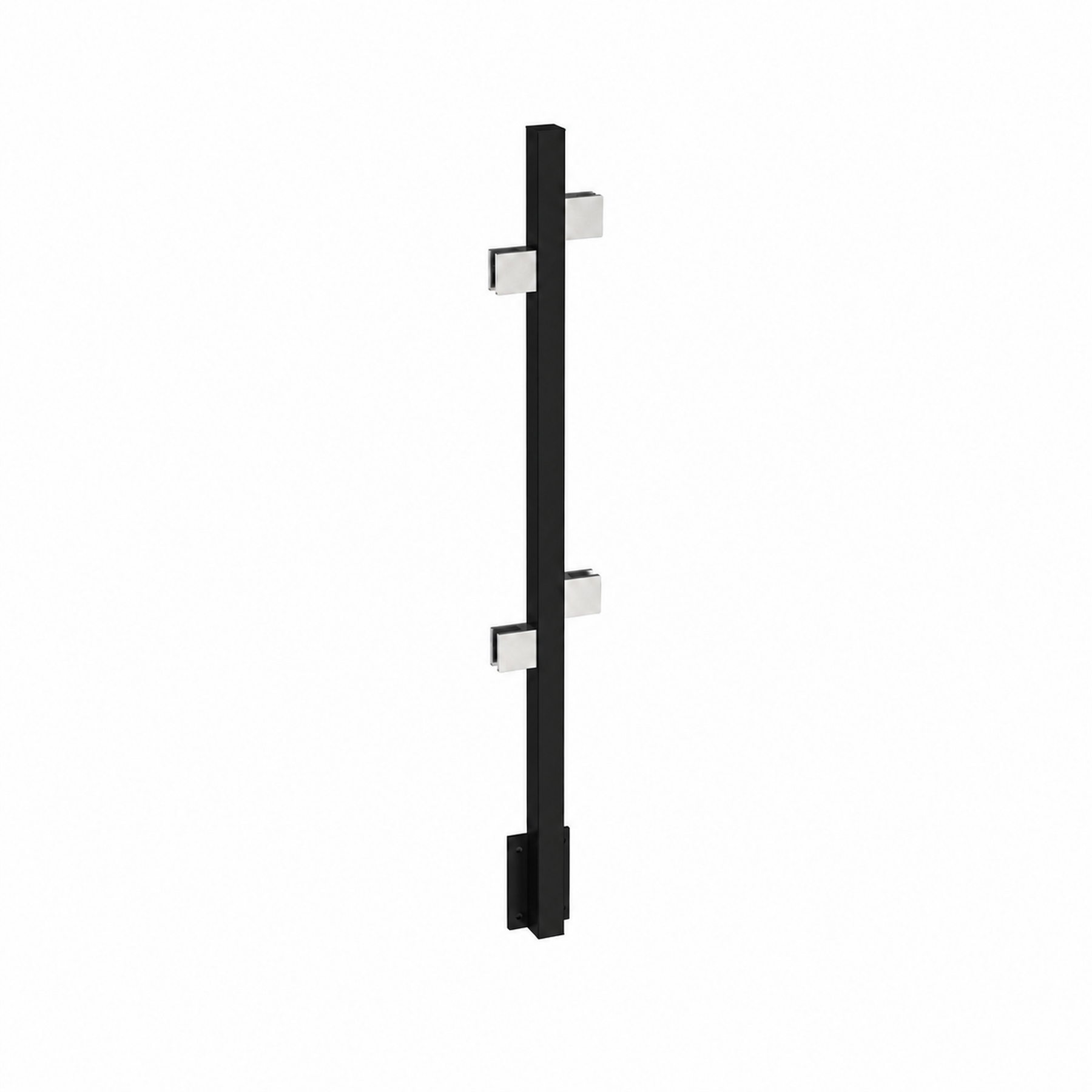

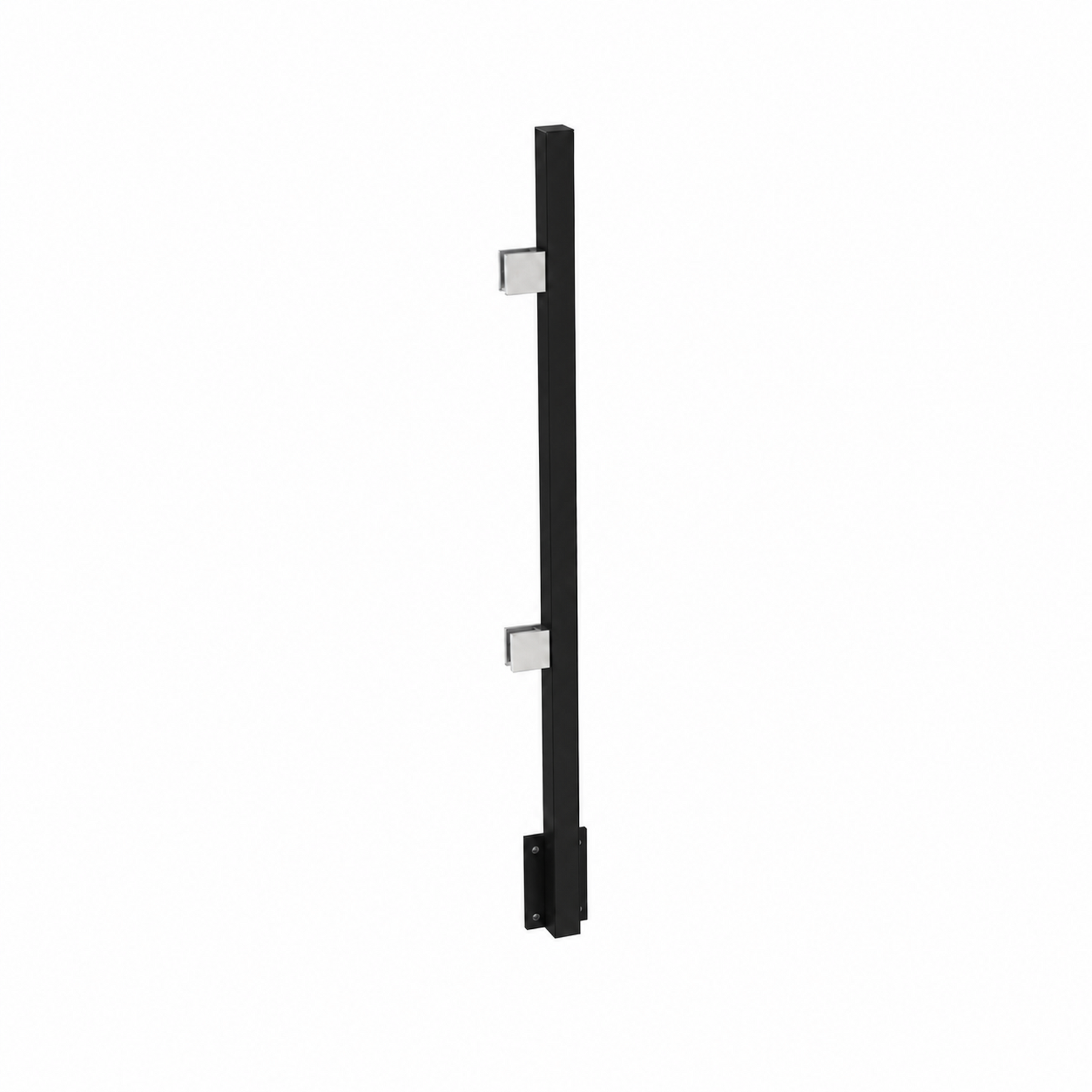

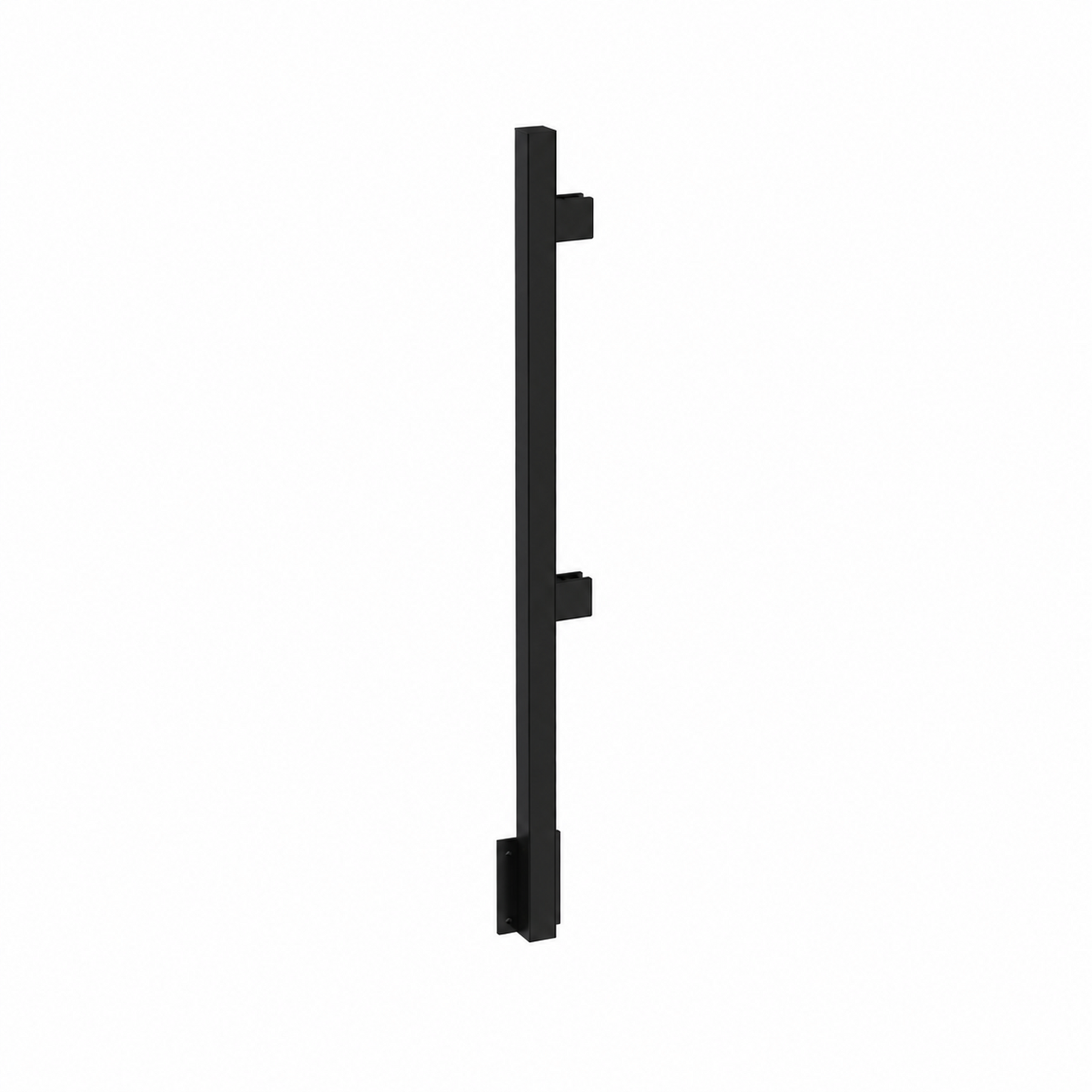

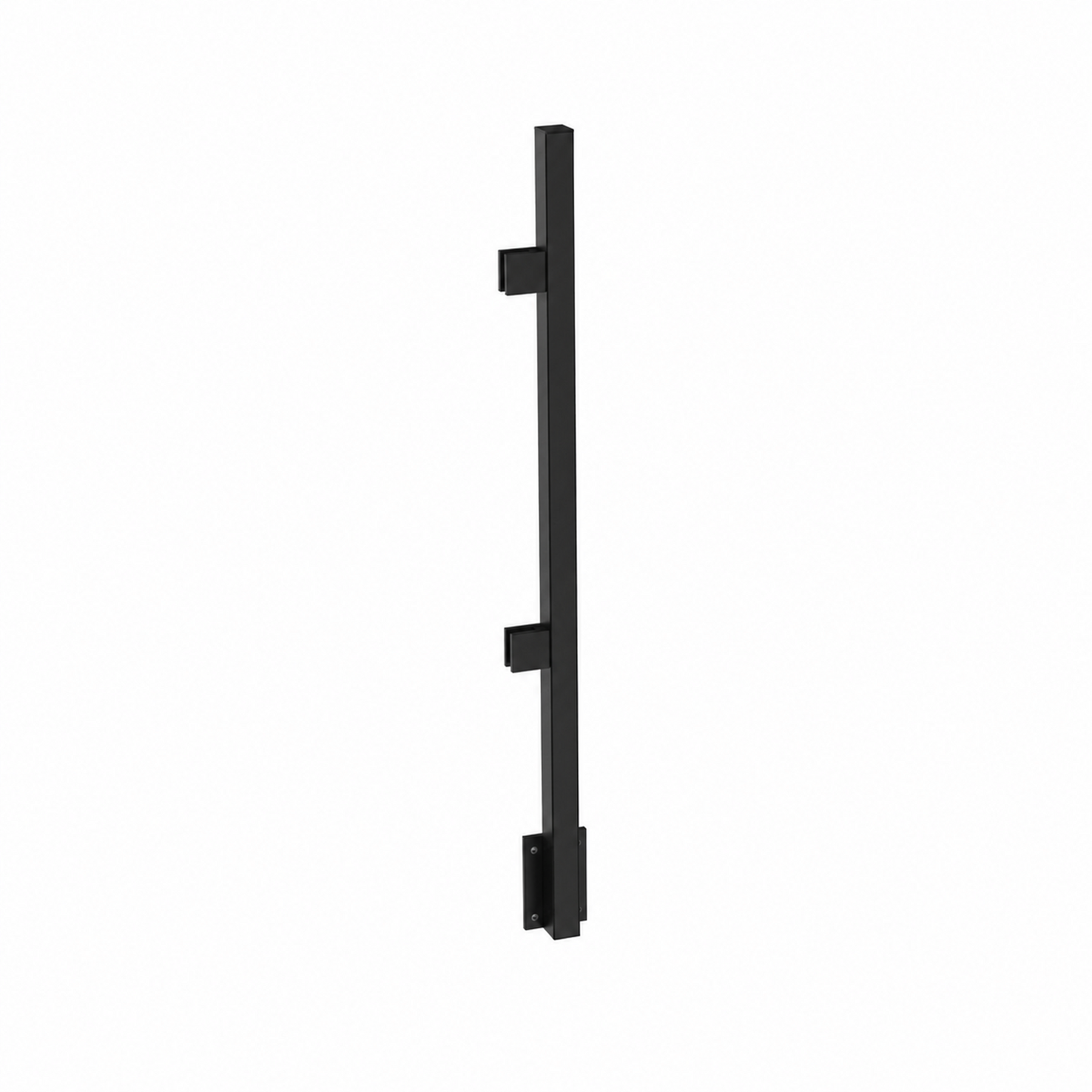

• Stair Installation
• Installation YouTube Video
• Stair Details

• Stair Post Placement

Note: Due to the variety of floor surfaces, customers must supply the connecting hardware for the base, i.e. screws, bolts, anchor bolts, etc. Stair Posts and other Custom Posts require an additional fee of $49.99 per Glass Post and $59.99 per Cable Post to account for Custom Post fabrication and CAD Drawings specific to the customer field measurements when necessary. Custom fabrication requires a minimum of 1-2 weeks for production.

Please refer to the following document for Mounting Options

More Info on Handrail Height Requirements

More Information on ANSI 316 Stainless Steel
