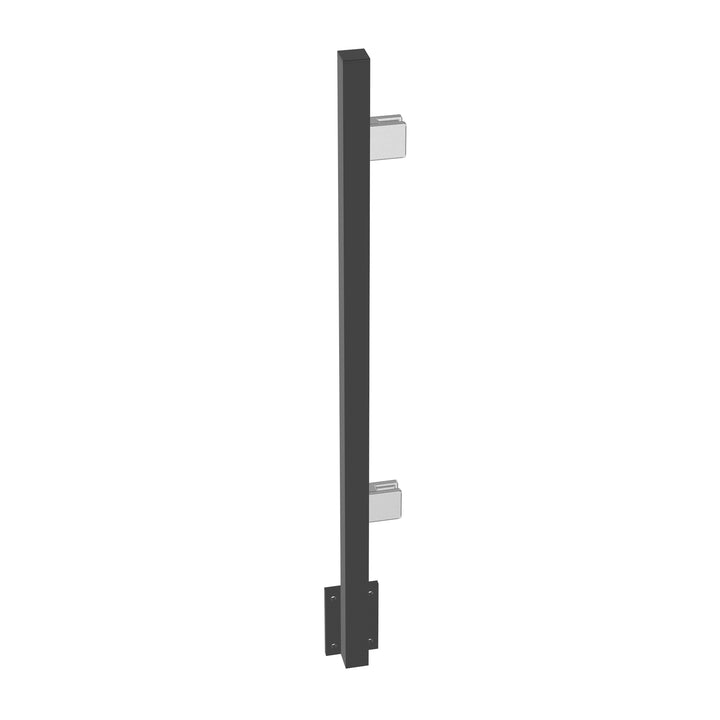

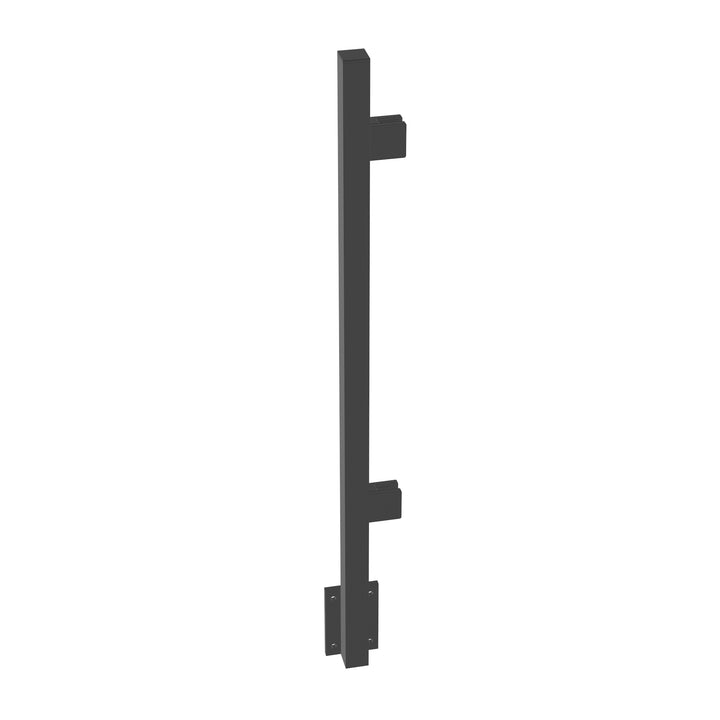

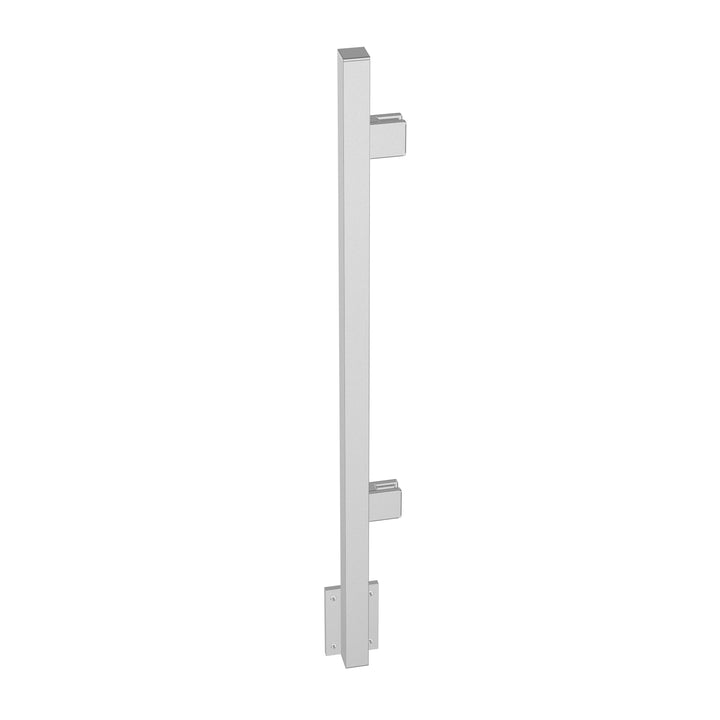

Glass Railing Square Fascia Mount Post
GLS.SQU.FSC.36.RGT
Regular price $229.70 Sale price $149.31 Save 35%/
Shipping calculated at checkout.

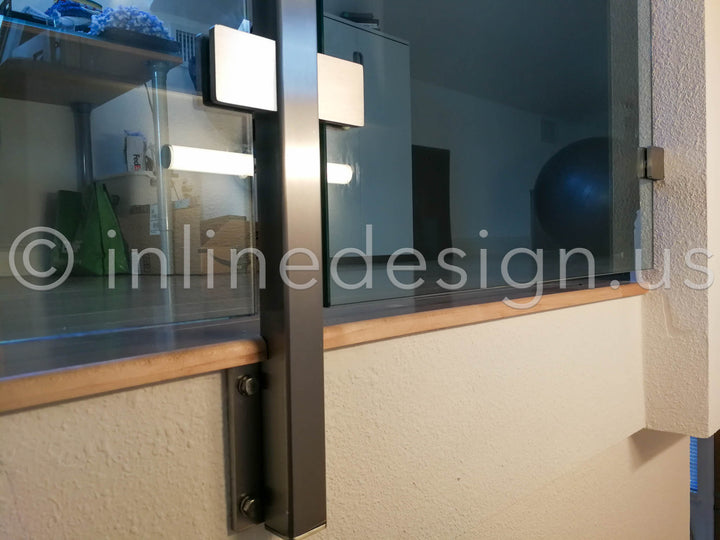

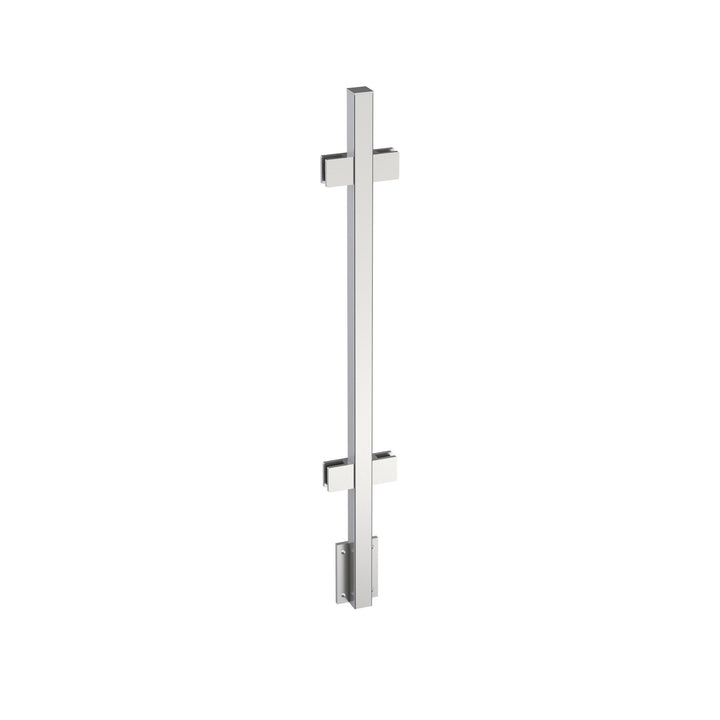

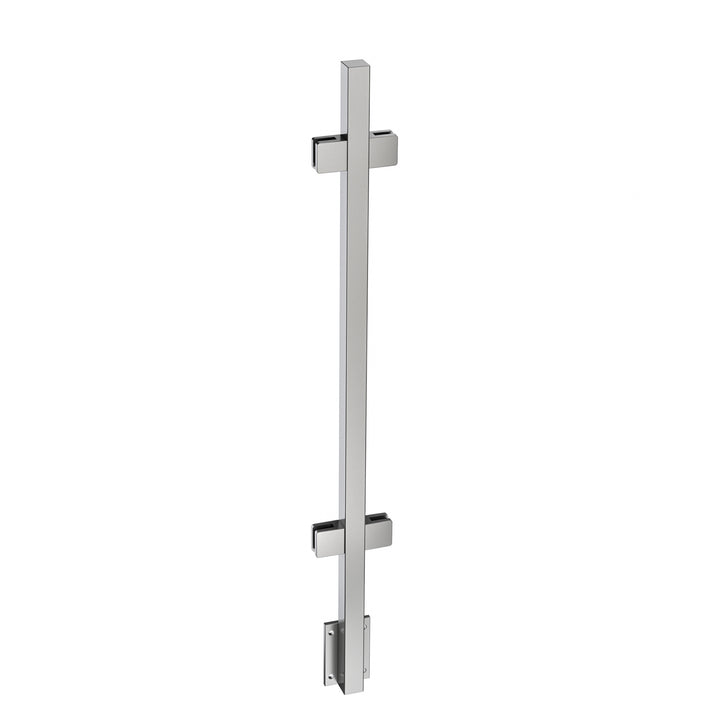

Glass Railing Systems Square Fascia Mount Post with Square Glass Clamps is a part of our Chicago Square Style Glass Railing System. This version does not have a top rail mounting hardware.
IMAGES GALLERY
Details

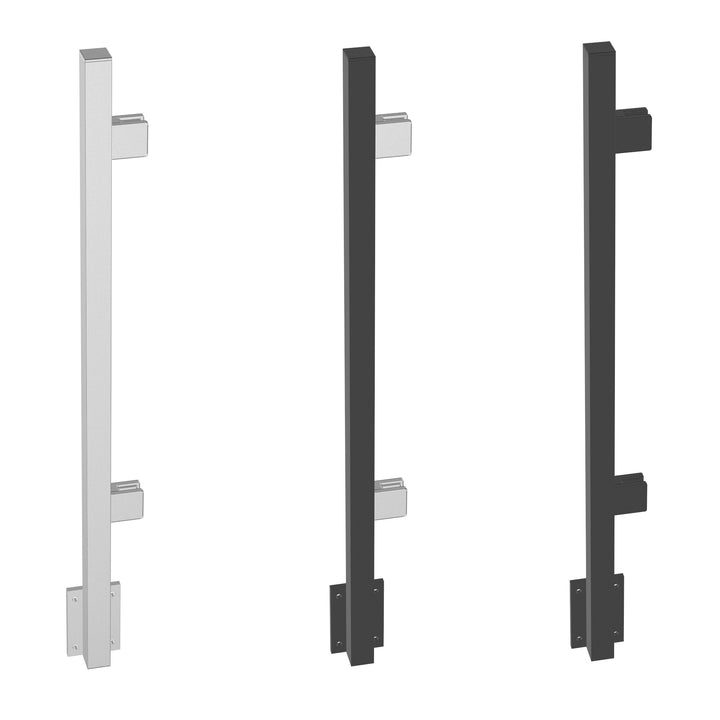

- Stainless Steel AISI 316 (Satin SS), AISI 304 (Black PC) for outdoor and indoor areas
- Profile Size: 1.57x1.57" or 40x40mm
- Post Thickness: Gauge 12 or 0.102" or 2.6mm
- Glass Thickness: 3/8", 1/2" or 9/16" Tempered or Laminated
- Finish: ASTM A480 No 4 linearly textured Satin Finish
- Heavy Duty Construction
- Easy to Install and Sturdy Upon Completion
- Perfect for Wet or Dry, Indoor or Outdoor
- Meets ADA, Residential and Commercial Codes Requirements
- Suitable for Balconies, Decks, Porches, and Stairs
What is included in the kit?
-
(1) Post Pre drilled and tapped (M8 x 1.25mm)
-
(1) Square End Cap
-

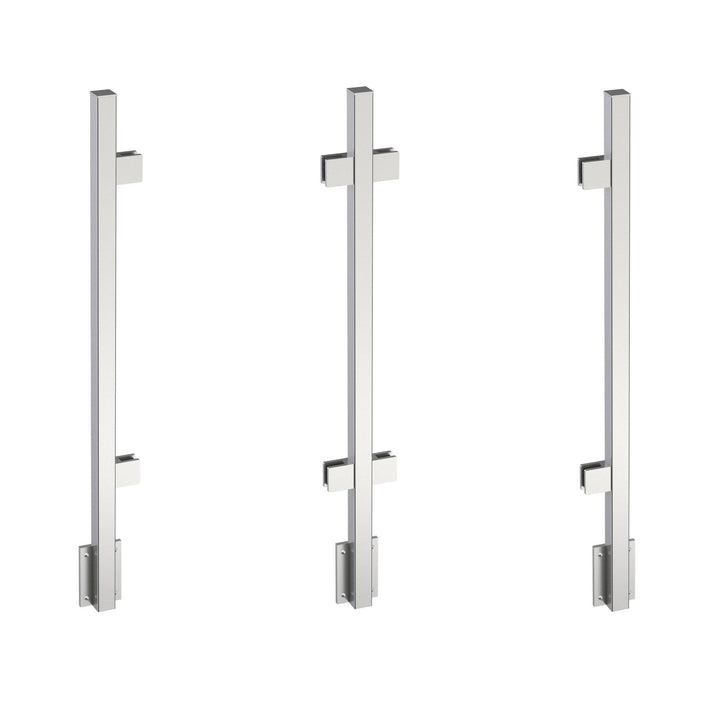

(4) Square Glass Clamps for Middle Post or (2) for End Post
- Optional (1) Square Pivot Flange at the bottom for Angle Post
- (1) Fascia Plate:
Links & Downloadable materials

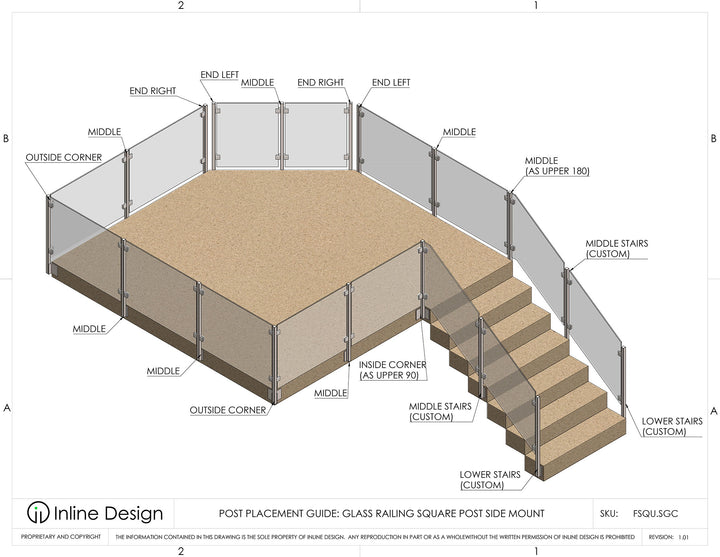

- Post Placement Guide & Engineering Specs
- Modular Railing System
- Posts Drawing
- Installation PDF
- Installation YouTube Video
- Chicago Square Drawings
-
Stair Details

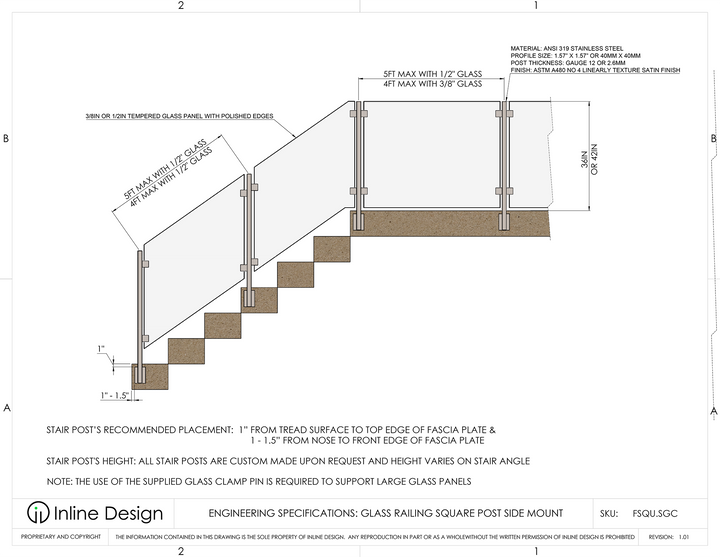

- Stair Post Placement
- Mounting Options
Note: Due to the variety of floor surfaces, customers must supply the connecting hardware for the base, i.e. screws, bolts, anchor bolts, etc. Stair Posts and other Custom Posts require an additional fee to account for Custom Post fabrication and CAD Drawings specific to the customer field measurements when necessary. Custom fabrication requires a minimum of 1-2 weeks for production.
Please refer to the following document for Mounting Options
*Glass must be provided by a local vendor *
