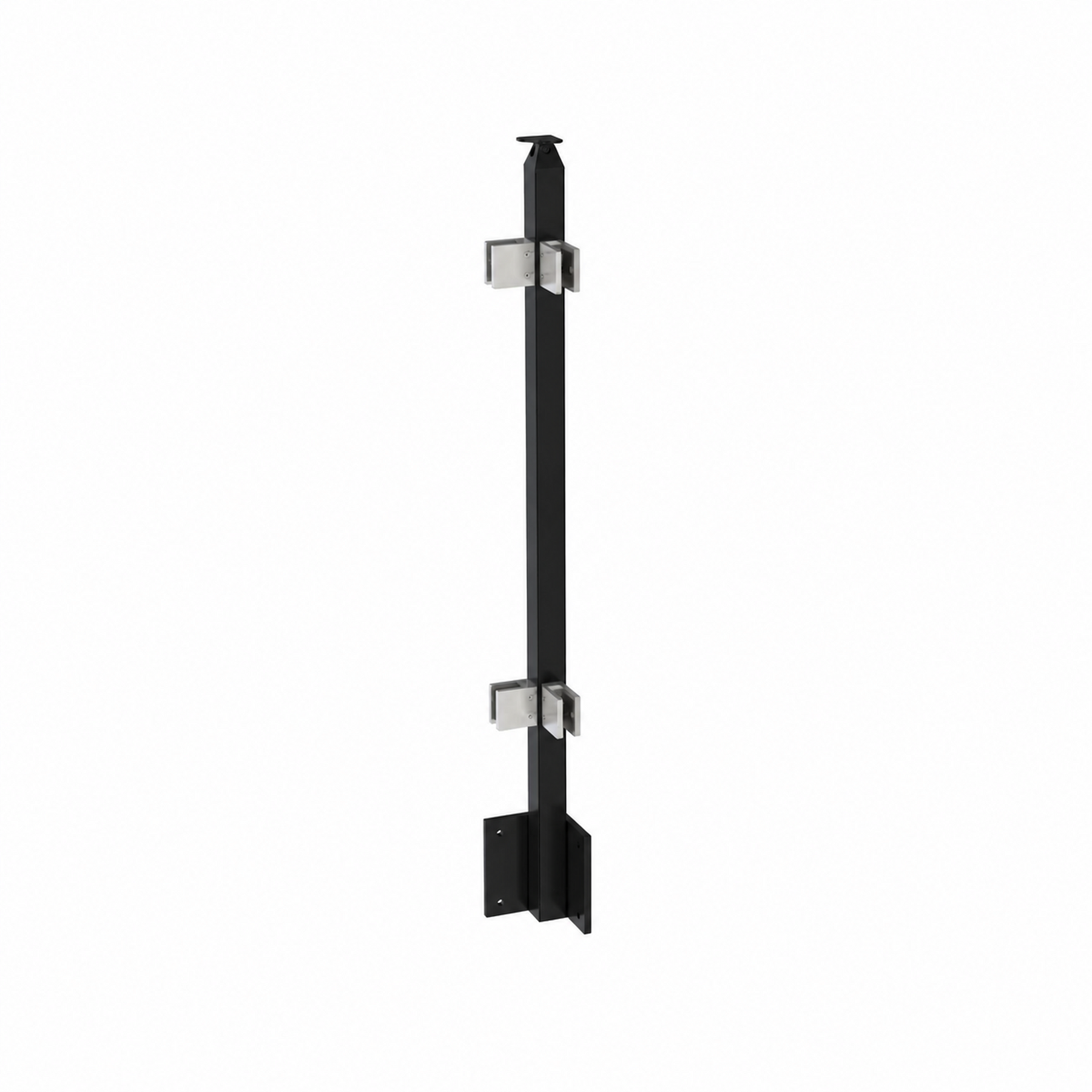

The Glass Railing Square Fascia Mount Post with Handrail Bracket is part of Inline Design’s
Chicago Square Style Glass Railing System. This version is designed for side-mounted glass railing
installations where the post attaches to the fascia or side face of the structure and includes top hardware for a handrail or top rail.
The post comes with a pyramid handrail bracket and pivotable saddle at the top, allowing round, square, or rectangular
handrail/top rail tubing to be mounted above the glass railing system. Built from a 1.57" x 1.57" / 40 x 40 mm square stainless steel profile
with a 12 gauge / 0.102" / 2.6 mm wall thickness, this post is a heavy-duty option for modern glass railing systems that need
clean square lines, strong post construction, fascia mounting, and integrated handrail support.
Use it for balconies, decks, porches, patios, stairs, landings, terraces, indoor railings, outdoor railings, wet or dry locations,
residential projects, and commercial projects when installed according to local code, approved mounting conditions, glass requirements,
and project-specific engineering.
Glass panels are purchased separately. This post system is designed for use with compatible tempered or laminated glass panels. Verify glass thickness, panel height, panel width, local code requirements, and project-specific engineering before ordering glass.
Compatible Glass Warehouse glass panels at Home Depot
Quick Product Highlights
| Fascia / Side Mount |
Mounts to the side face of the structure using the required fascia mounting plate configuration |
| Handrail Support |
Includes pyramid handrail bracket and pivotable saddle for mounting handrail/top rail tubing above the post |
| Heavy-Duty Post |
40 x 40 mm square post with 12 gauge / 2.6 mm wall thickness |
| Glass Clamp System |
Includes square glass clamps based on selected post type: right, left, middle, corner, or stair configuration |
| Finish Options |
316 Satin Stainless Steel and Black Matte Powder Coat options |
| Glass Compatibility |
For 3/8", 1/2", or 9/16" tempered or laminated glass |
| Important |
Glass panels, handrail/top rail tubing, and fascia mounting anchors are not included |
Project Gallery
Details
| System |
Chicago Square Style Glass Railing System |
| Mount Type |
Fascia mount / side mount installation |
| Top Rail Hardware |
Included with this version: pyramid handrail bracket and pivotable saddle for handrail/top rail tubing |
| Profile Size |
1.57" x 1.57" / 40 x 40 mm |
| Post Thickness |
12 gauge / 0.102" / 2.6 mm heavy-wall construction |
| Glass Thickness |
3/8", 1/2", or 9/16" tempered or laminated glass |
| Satin Stainless Steel |
AISI 316 stainless steel for wet, dry, indoor, outdoor, and coastal environments with routine stainless steel maintenance
|
| Black Matte Powder Coat |
Black Matte powder coat over AISI 304 stainless steel
|
| Finish Standard |
ASTM A480 No. 4 linearly textured satin finish for satin stainless steel options
|
| Handrail Compatibility |
Designed for round, square, or rectangular handrail/top rail tubing installed above the post |
| Post Preparation |
Pre-drilled and tapped M8 x 1.25 mm for square glass clamps |
| Construction |
Heavy-duty construction, sturdy upon completion, and designed for straightforward installation |
| Installation |
Side mount installation to approved fascia, framing, concrete, steel, blocking, or other structural substrates using project-specific anchors |
| Code References |
Designed for guardrail systems installed according to applicable
IBC,
IRC, and
ASTM E2358
requirements, subject to project layout, anchoring, glass type, post spacing, handrail/top rail continuity, and engineering review
|
Available Configurations
| Heights |
36" and 42" |
| Post Types |

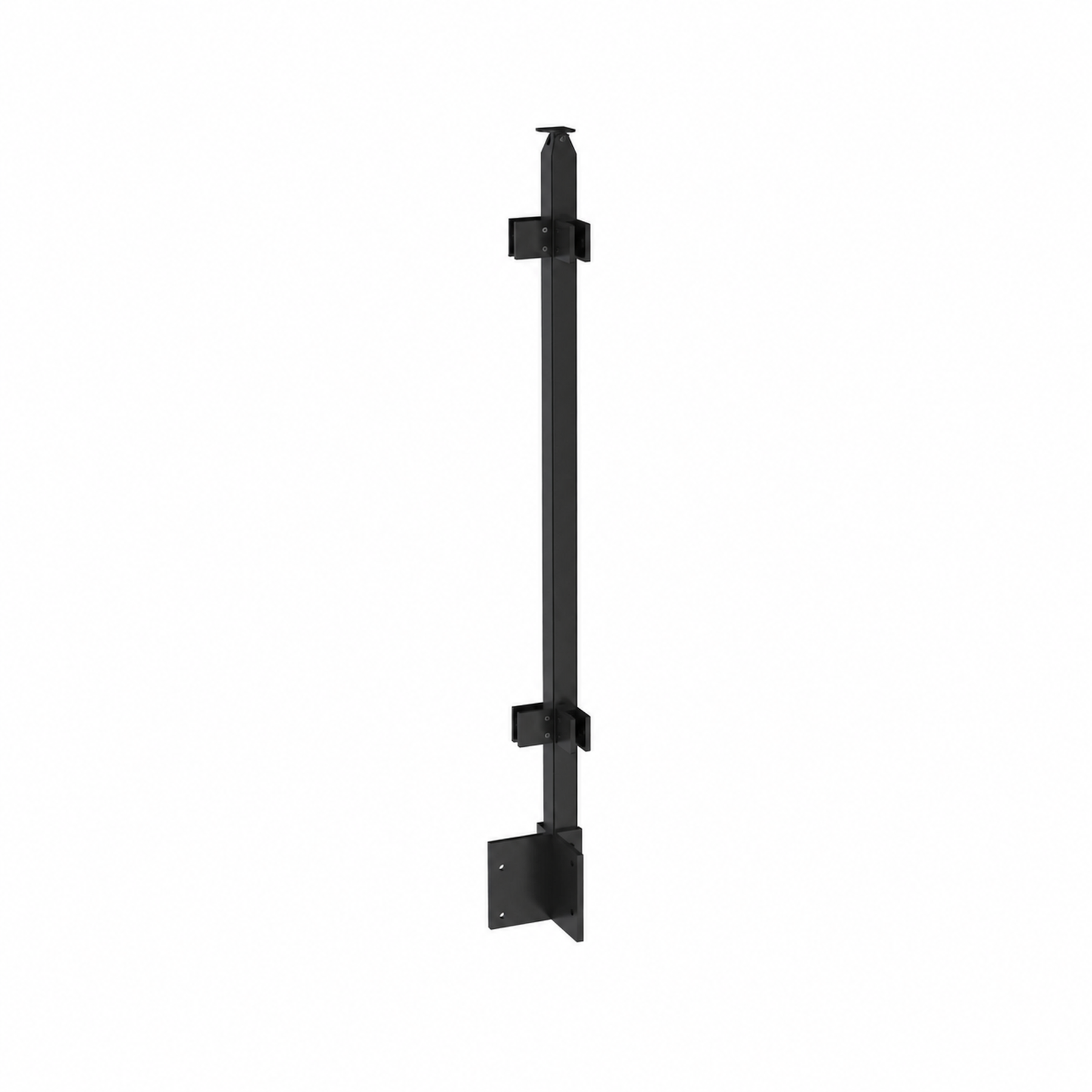

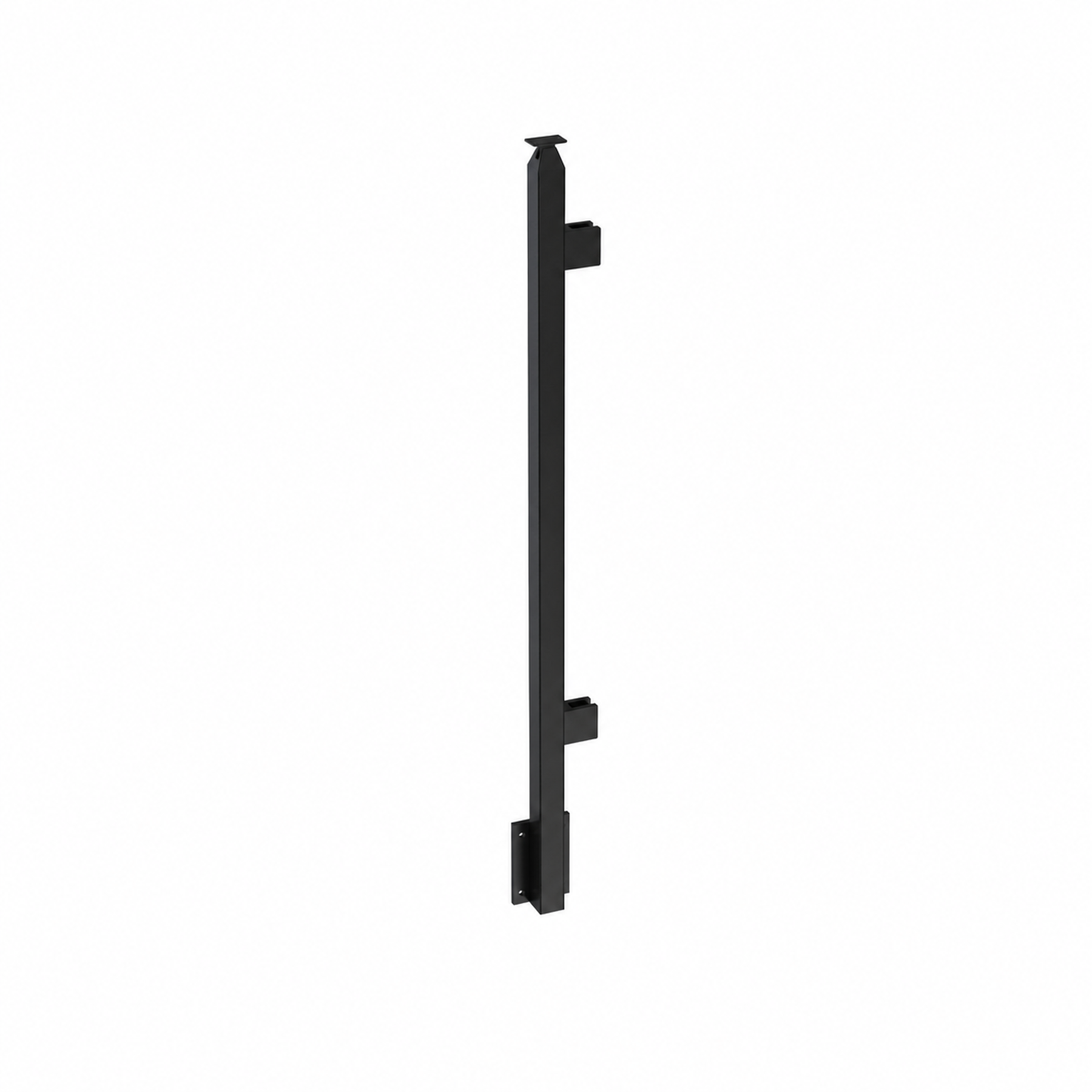

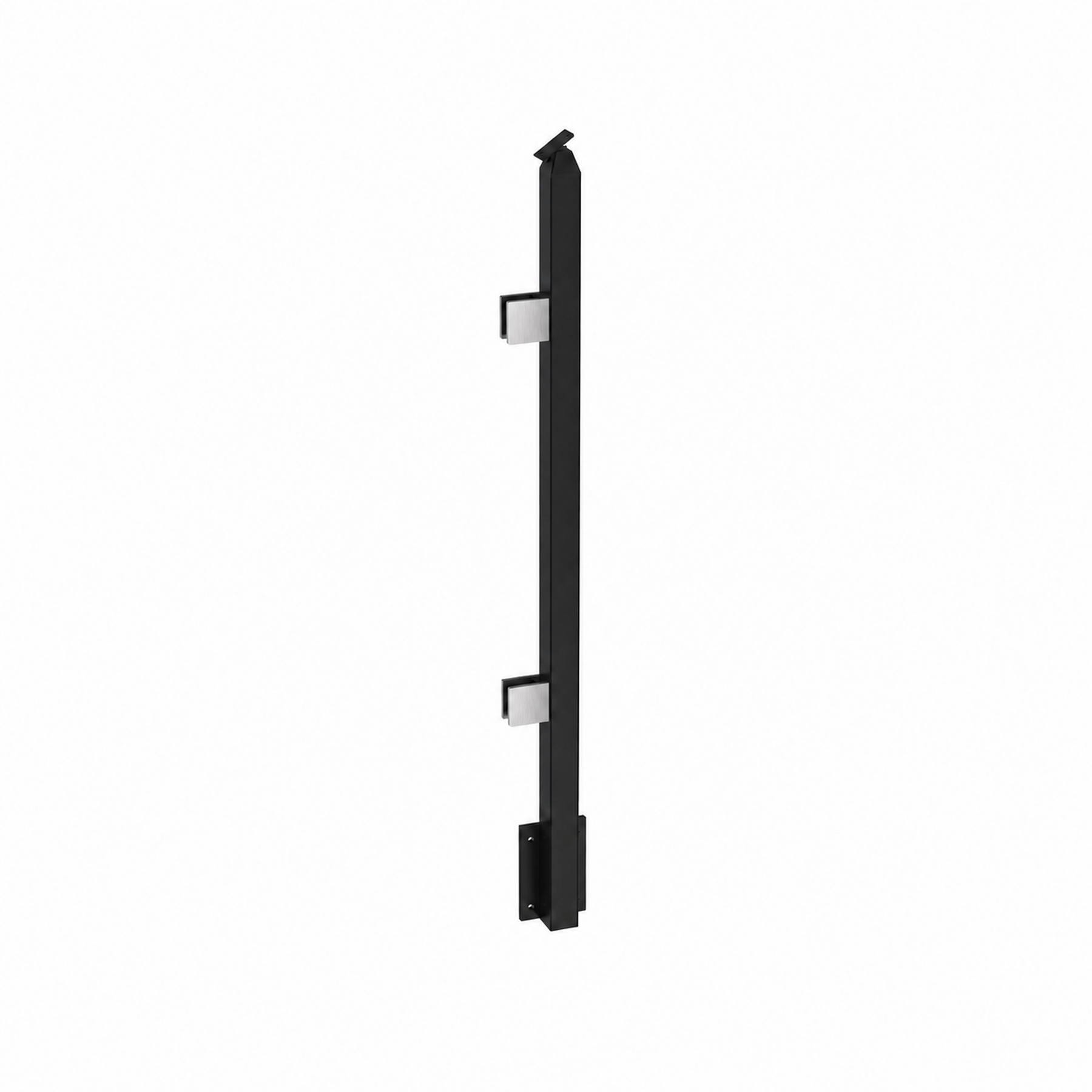

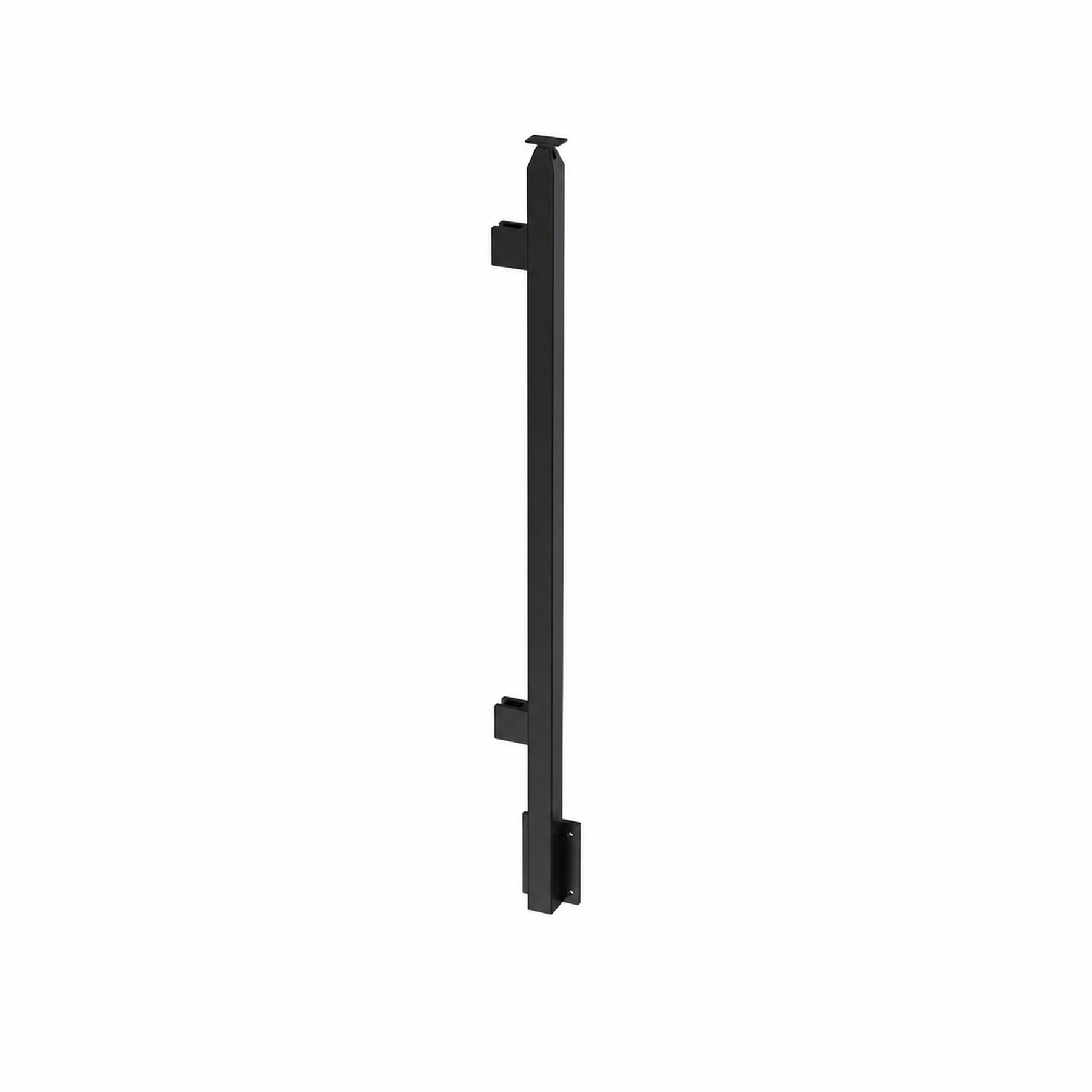

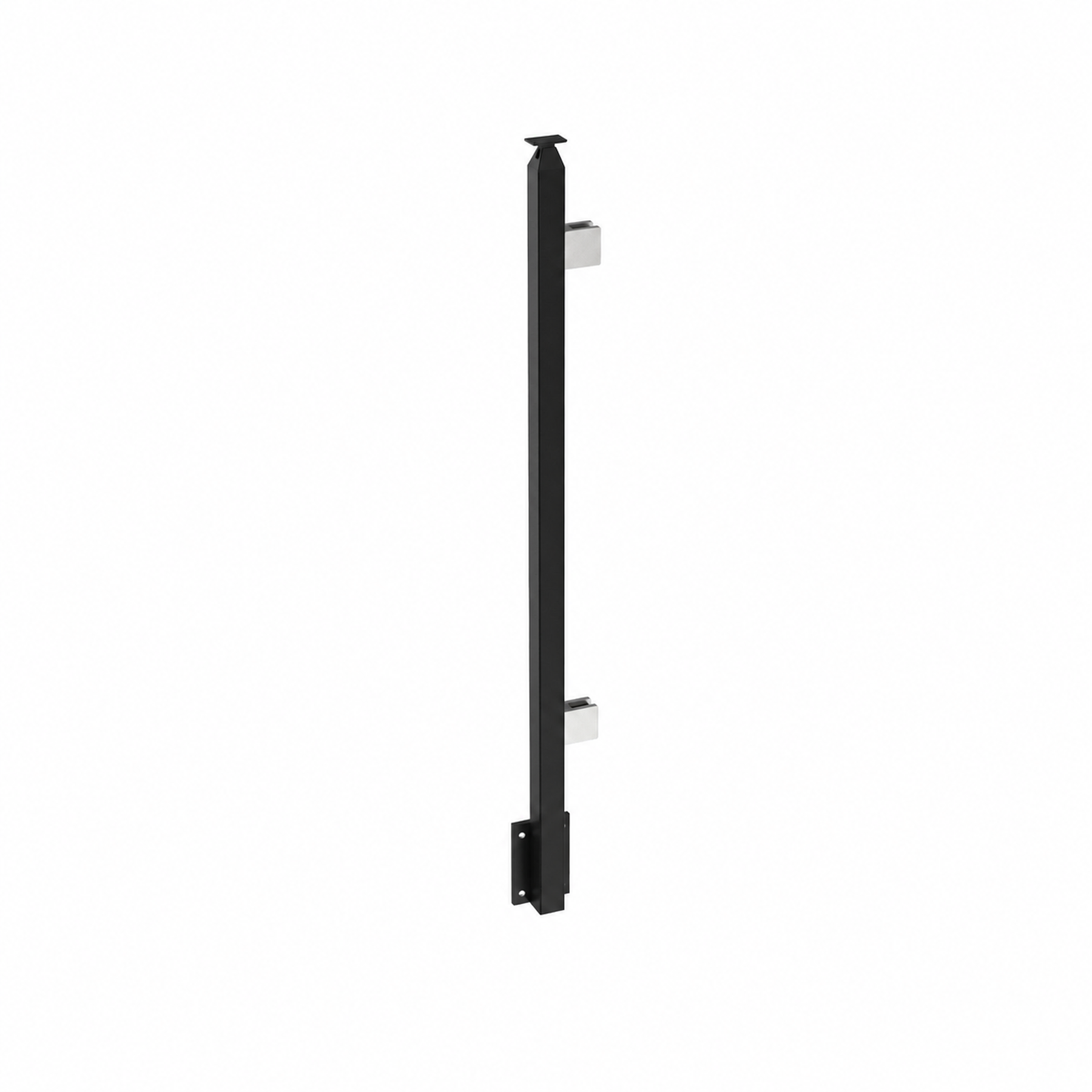

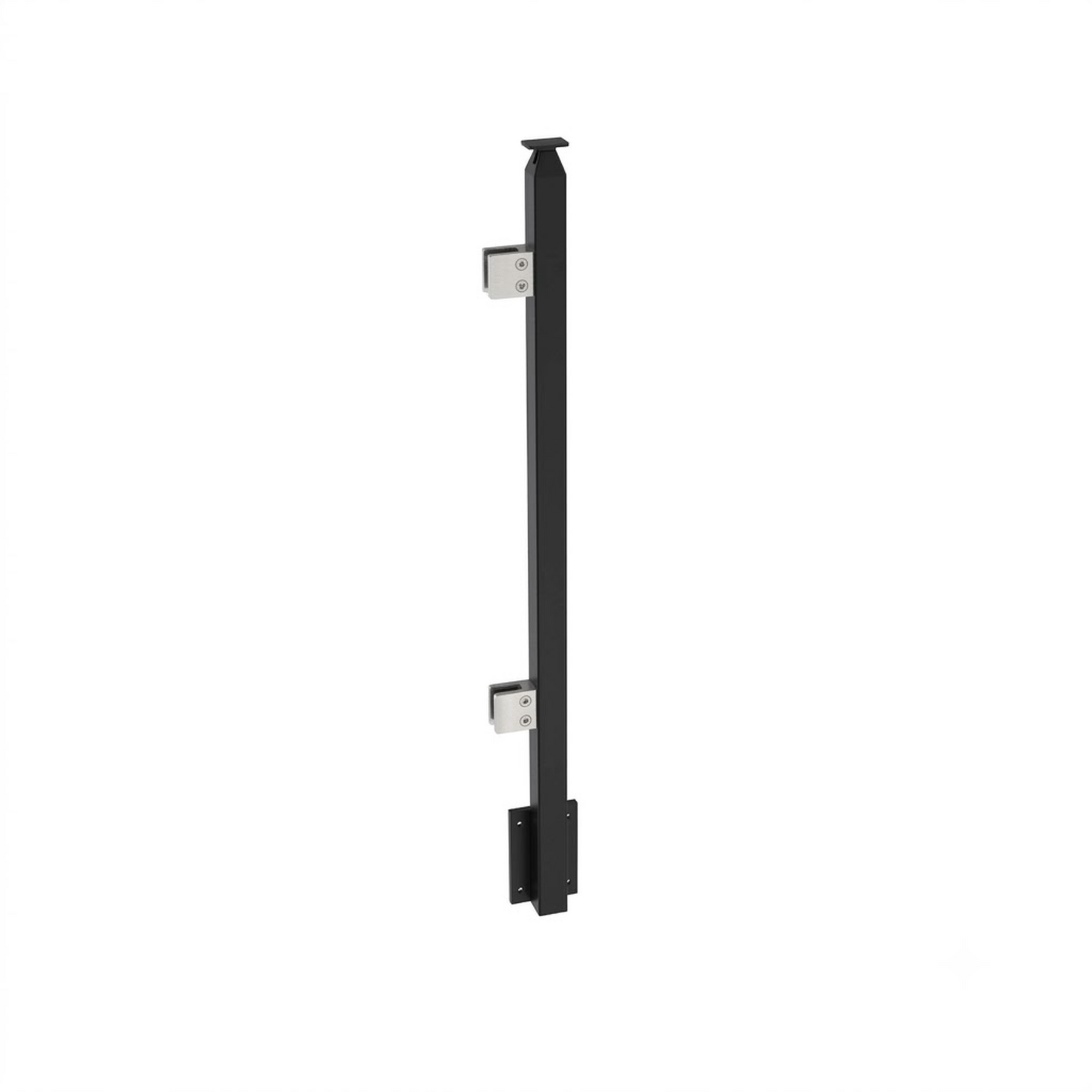

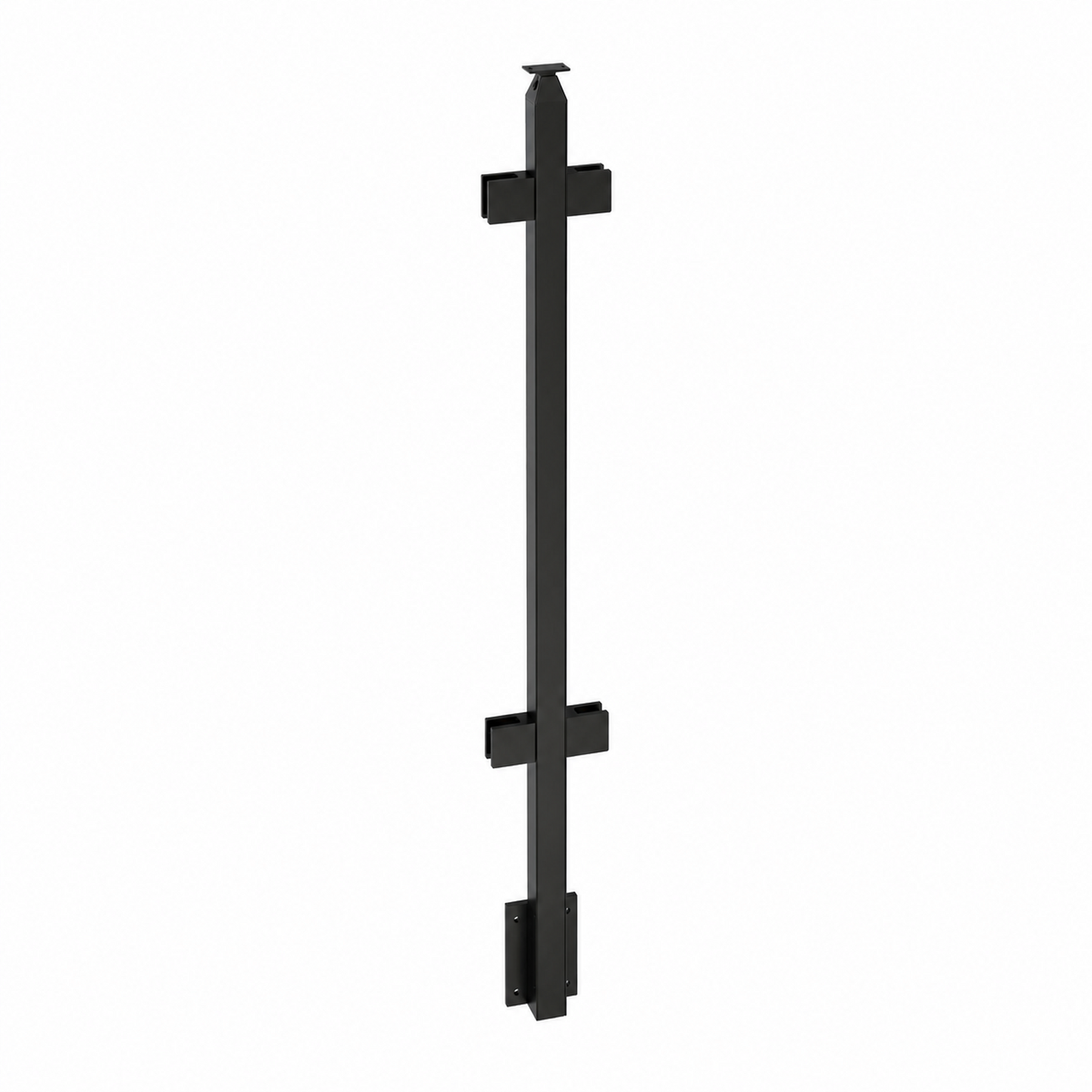

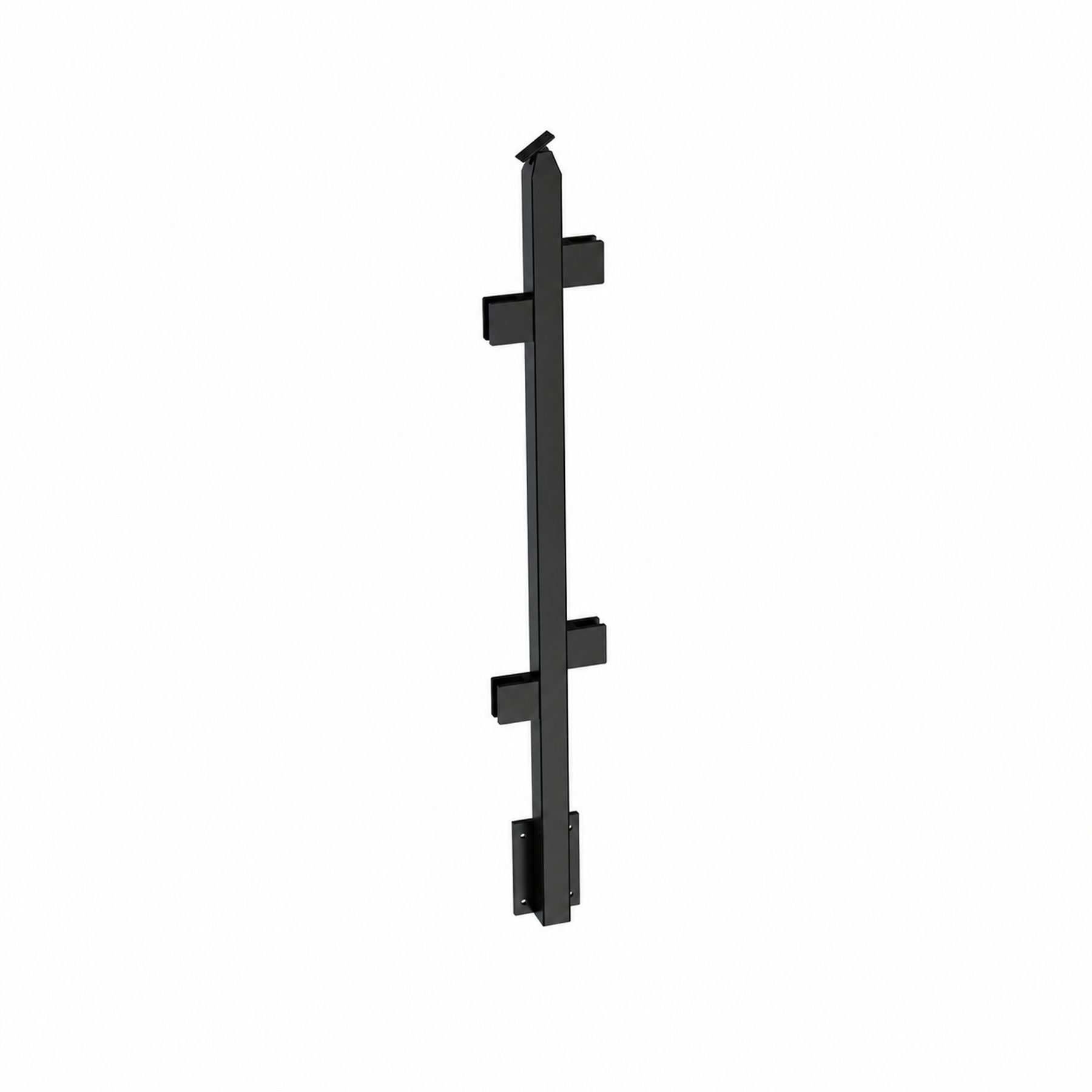

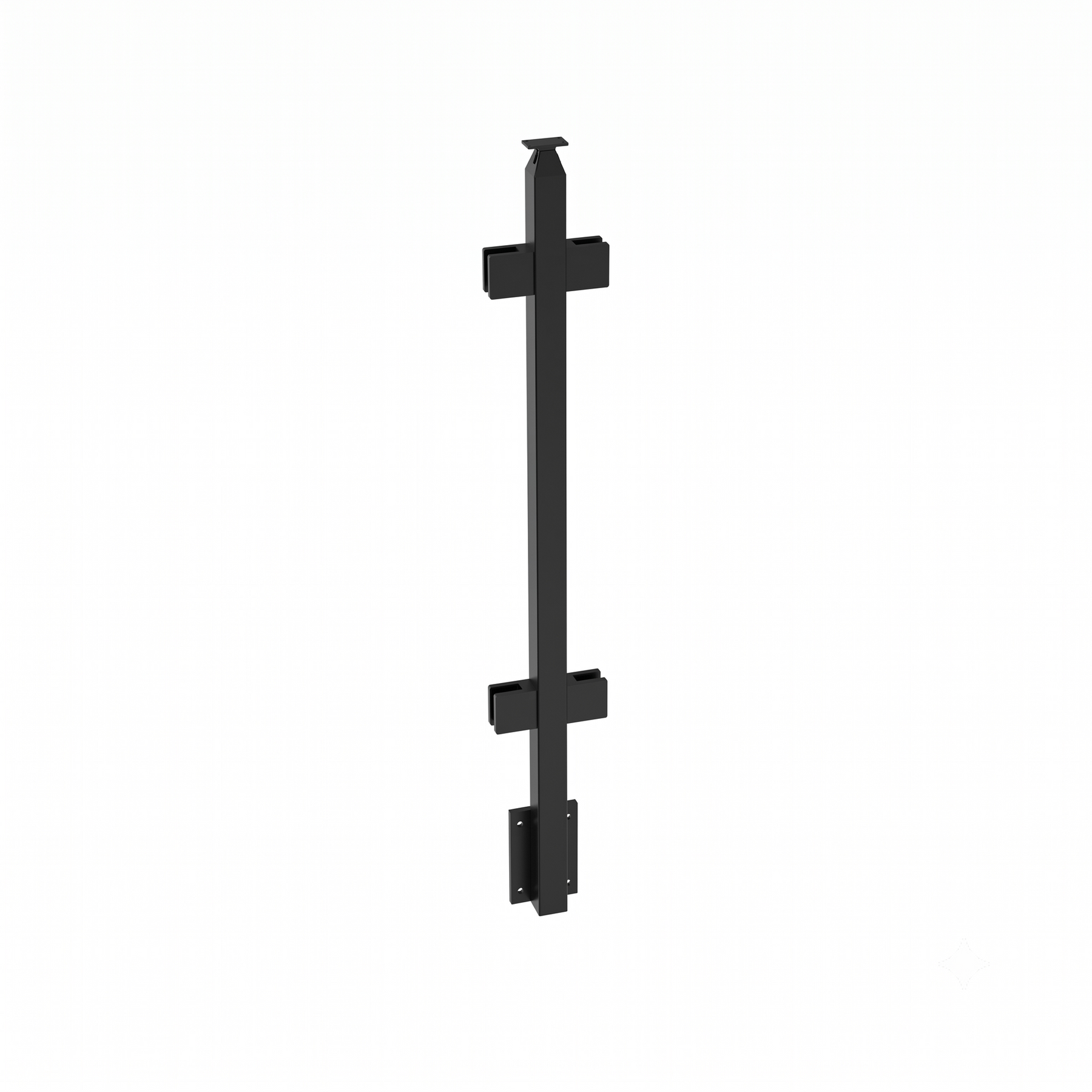

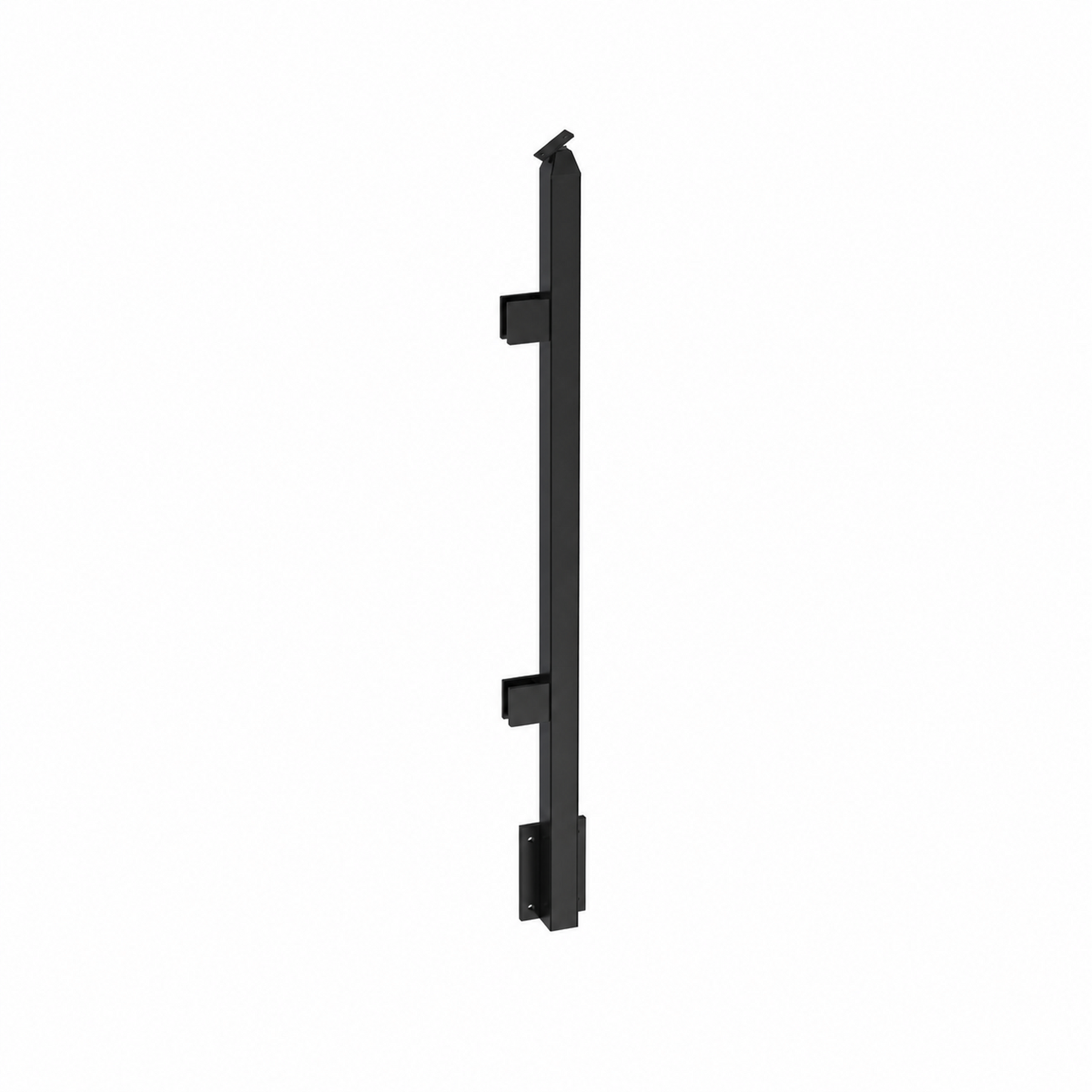

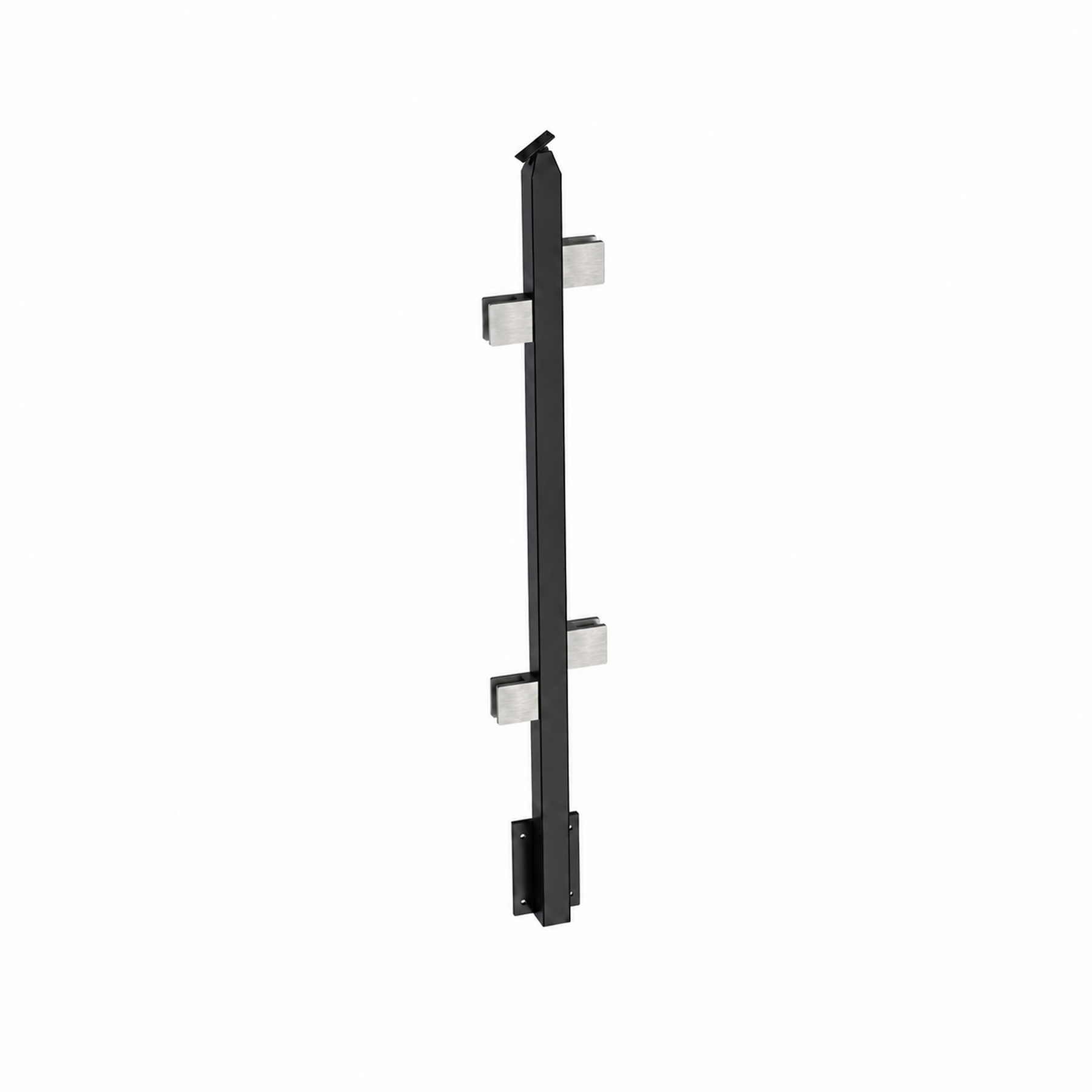

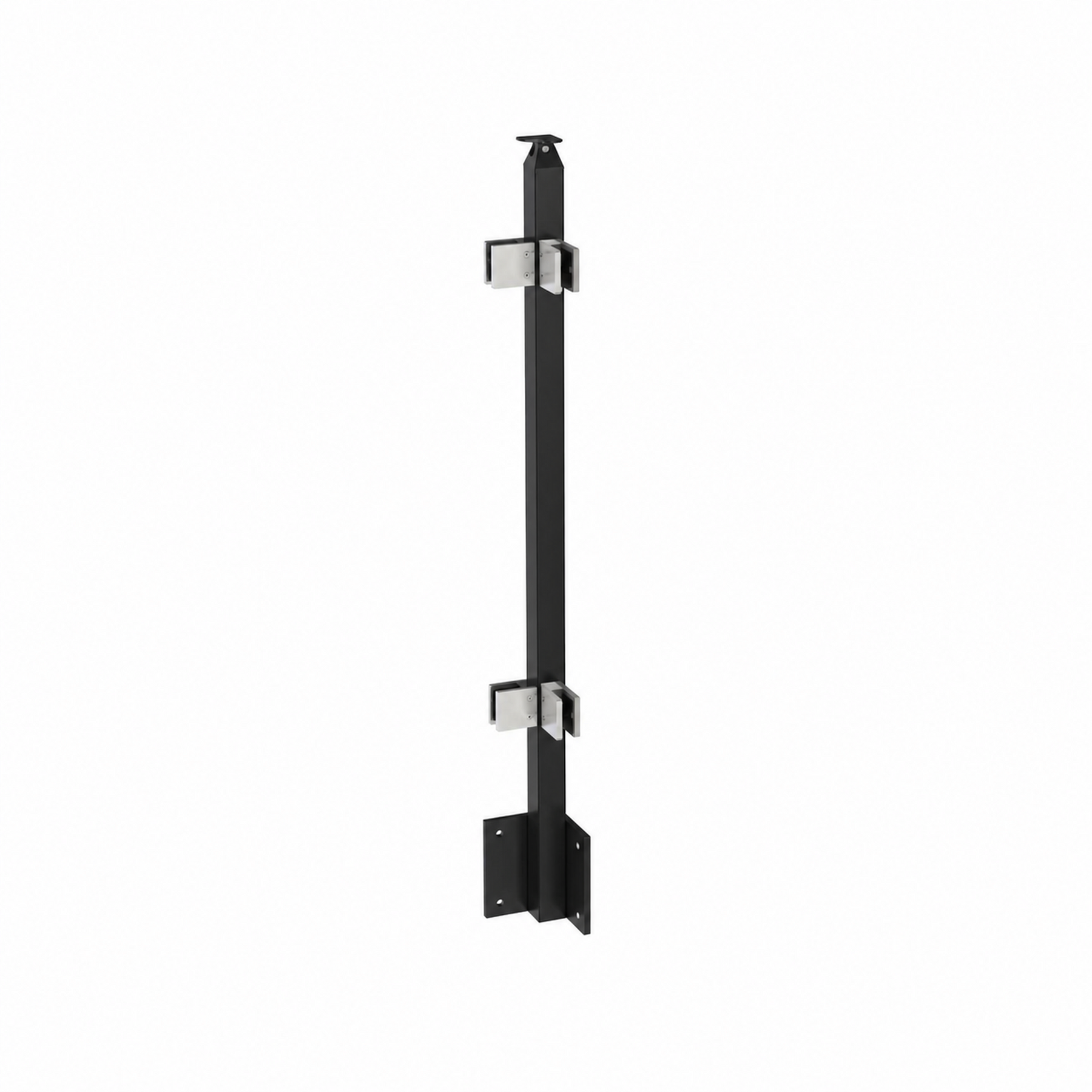

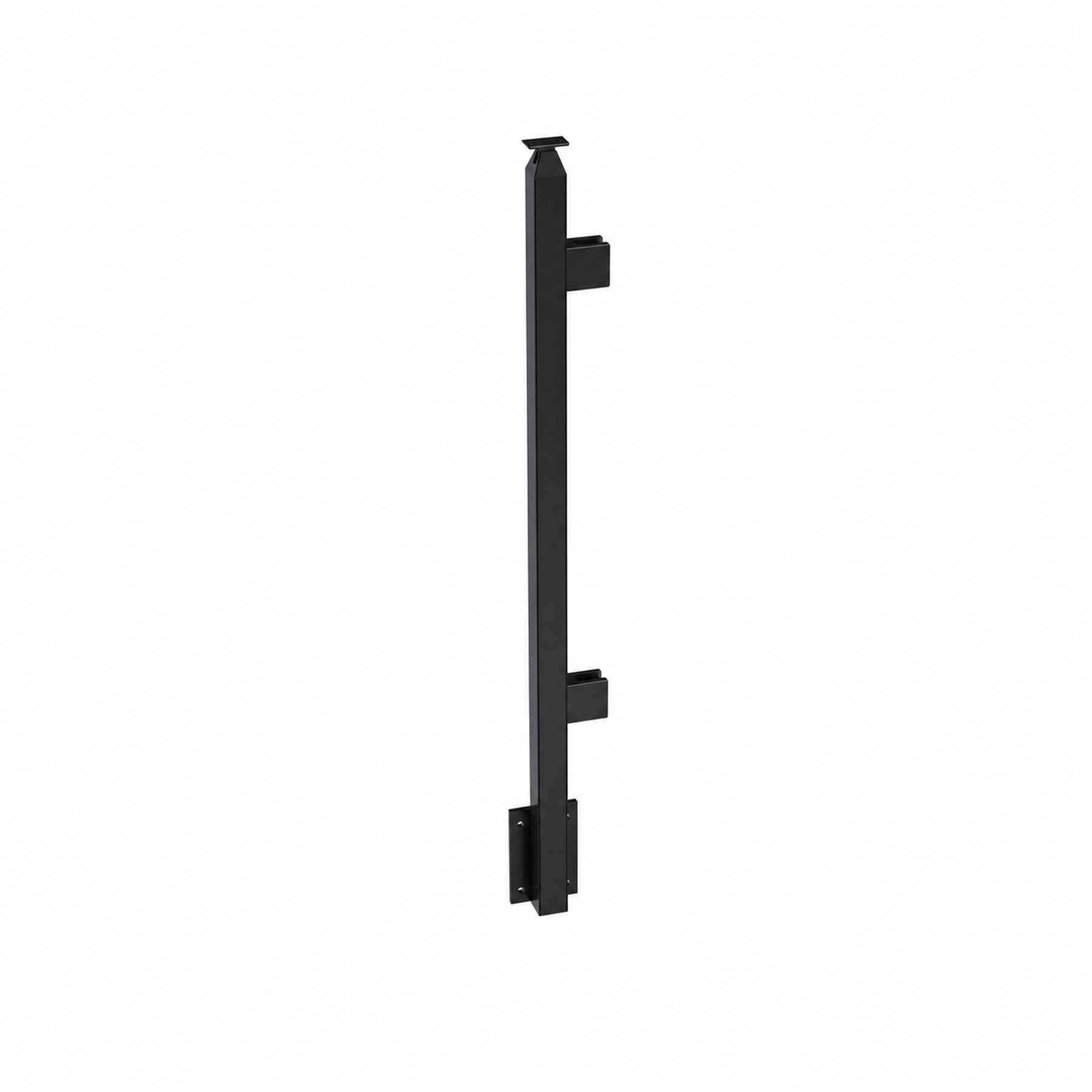

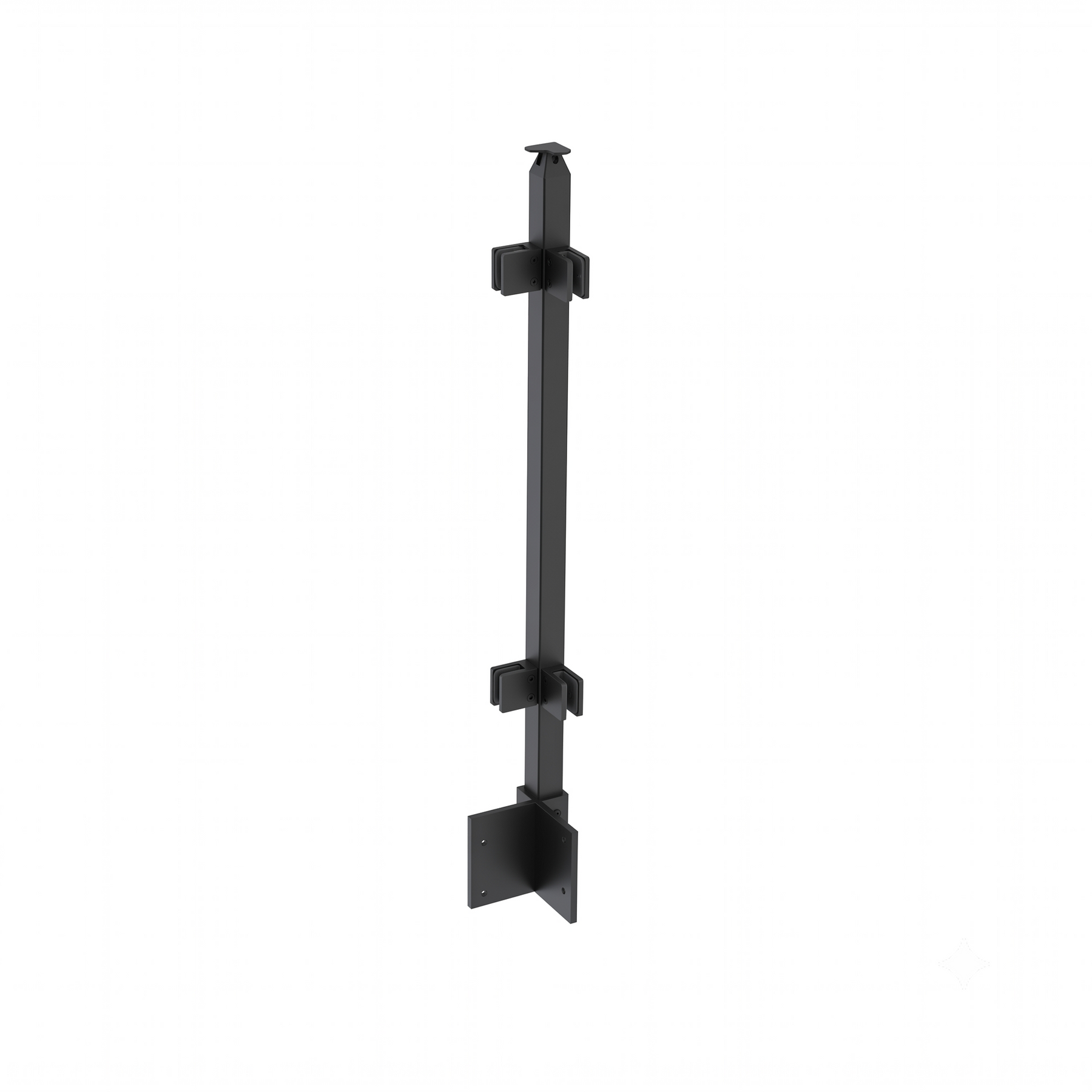

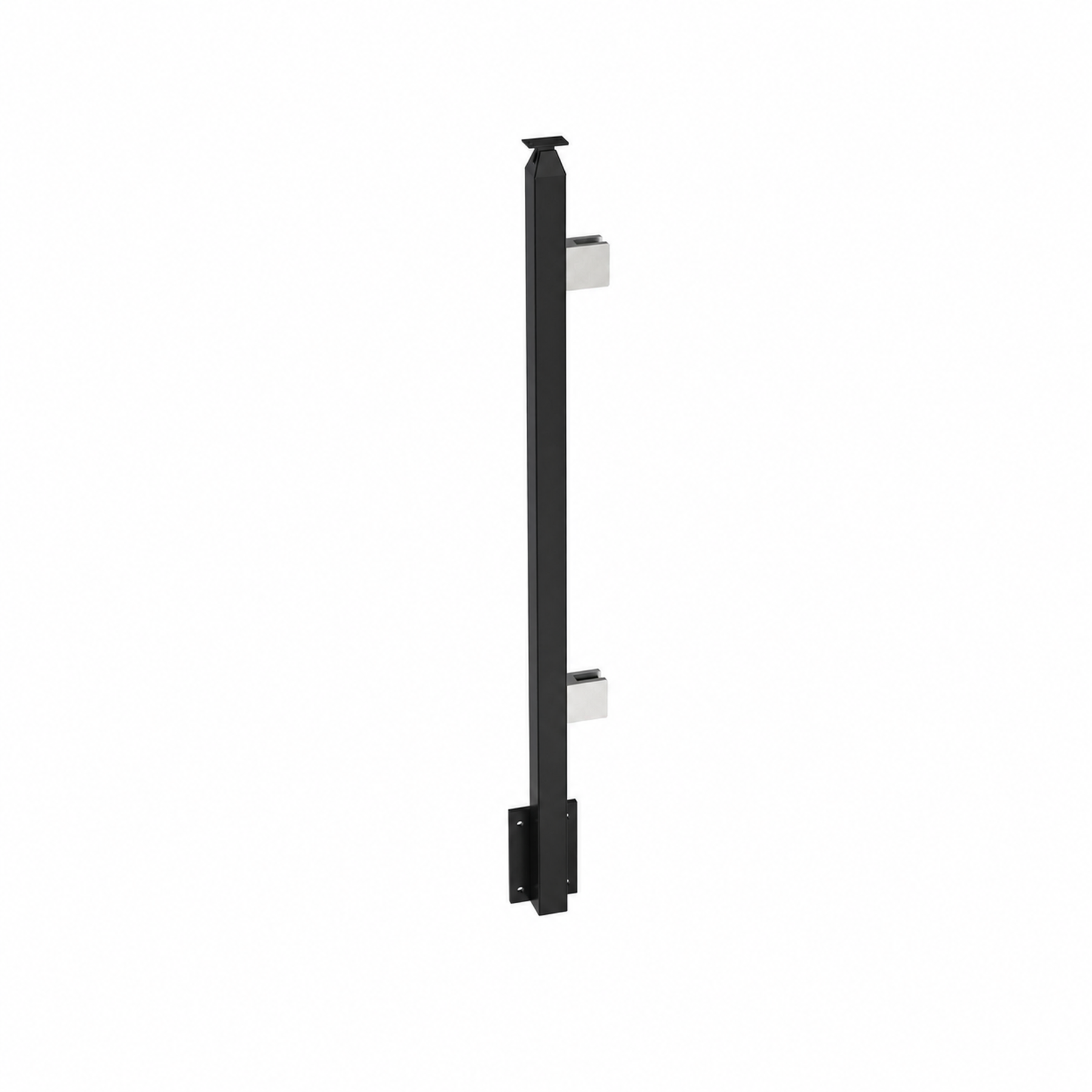

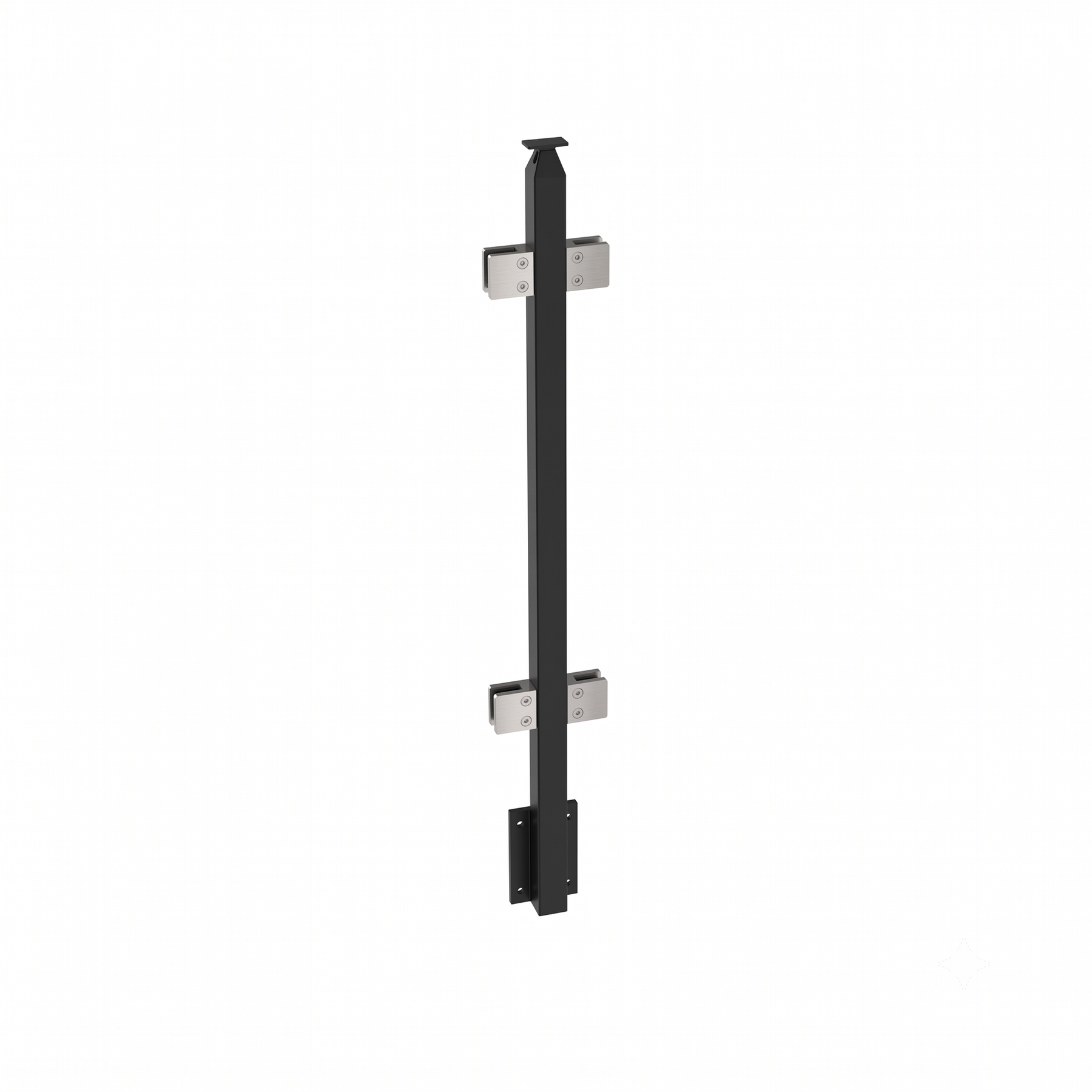

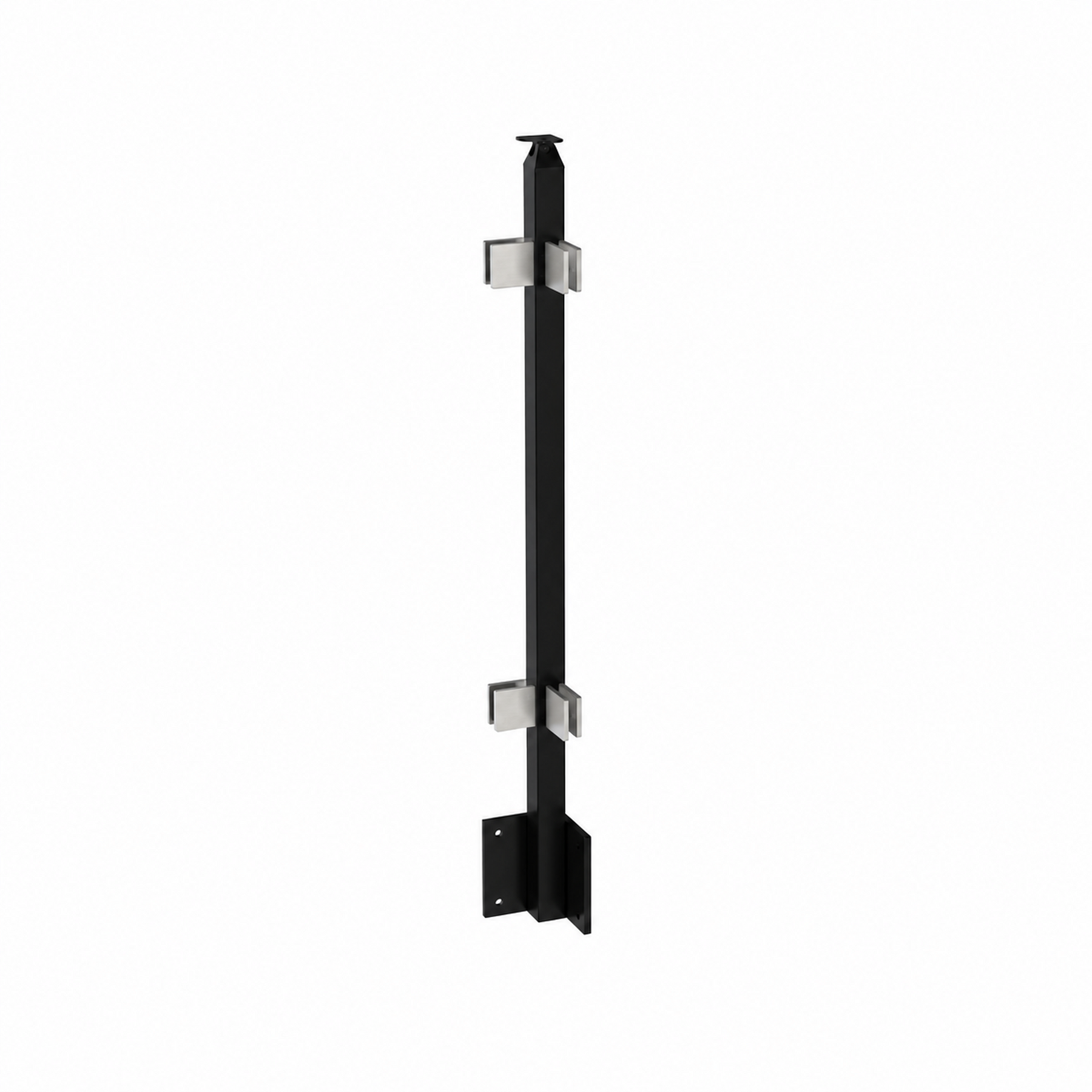

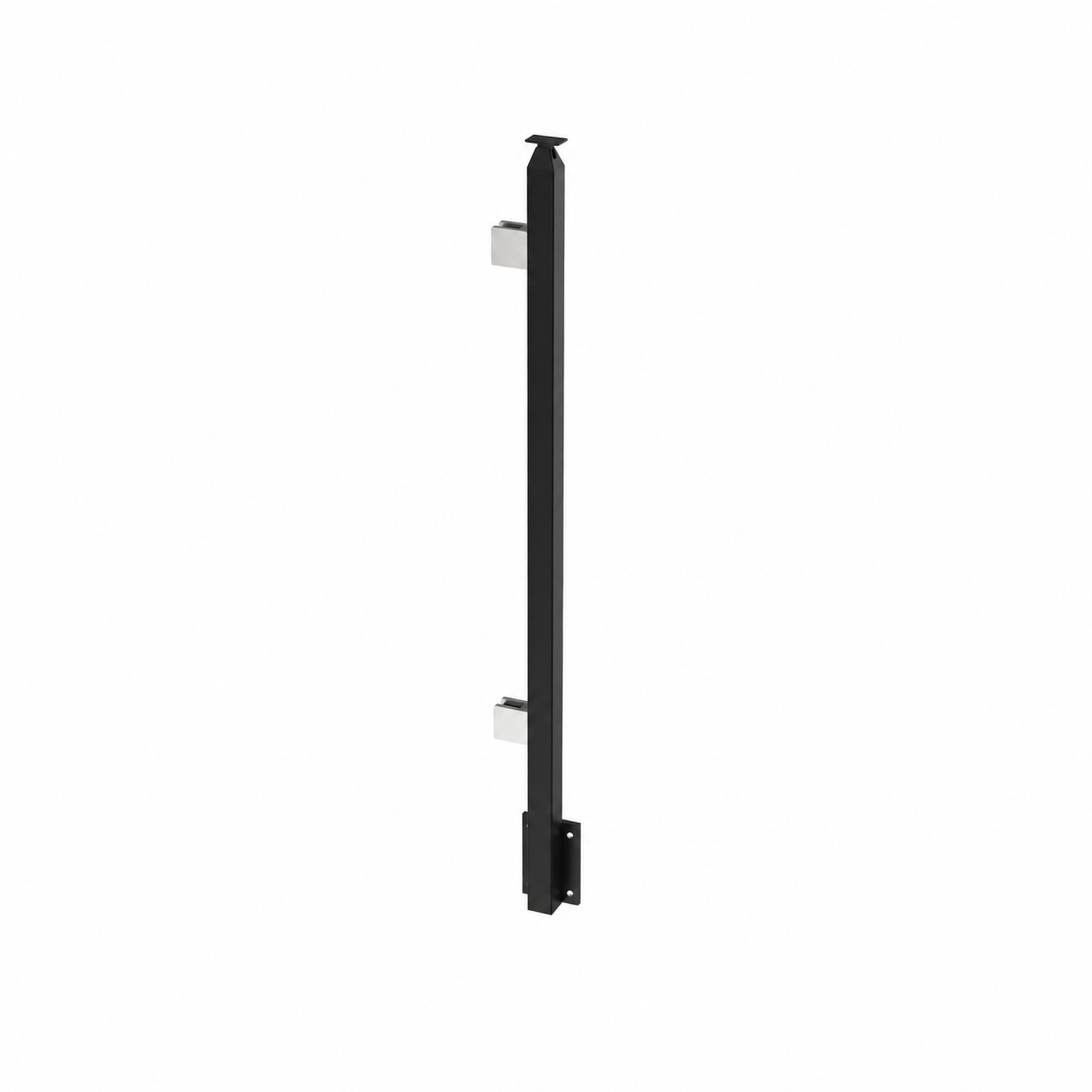

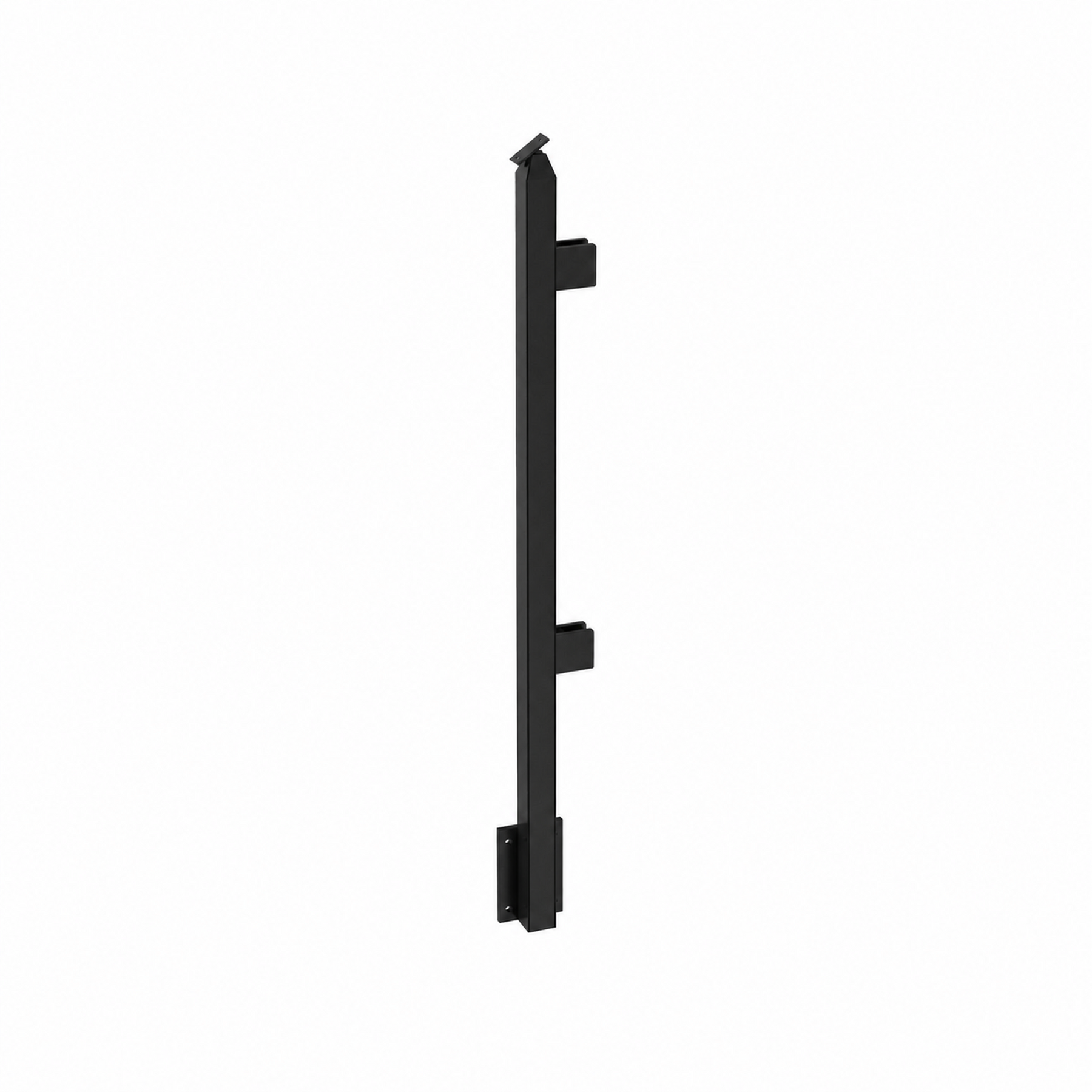

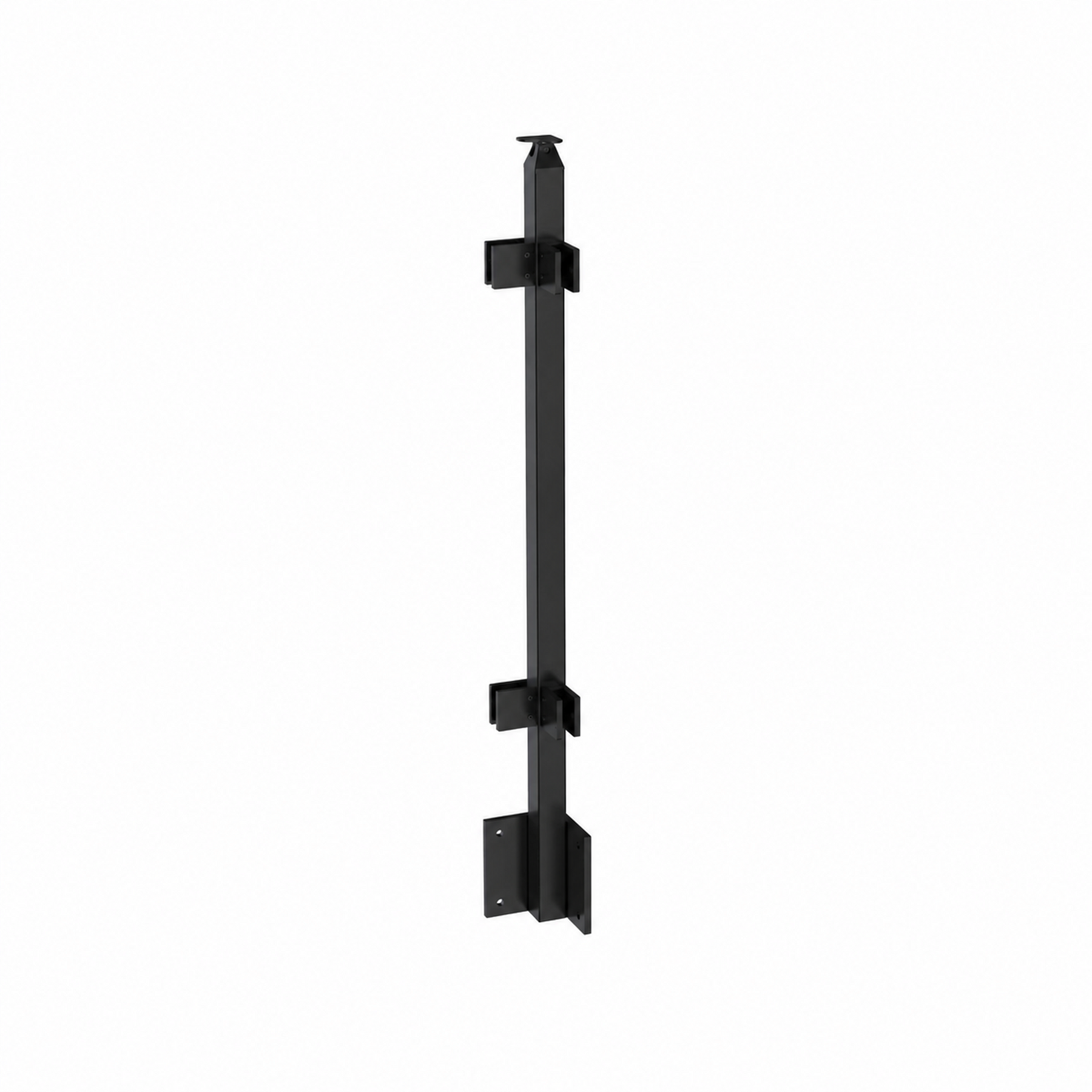

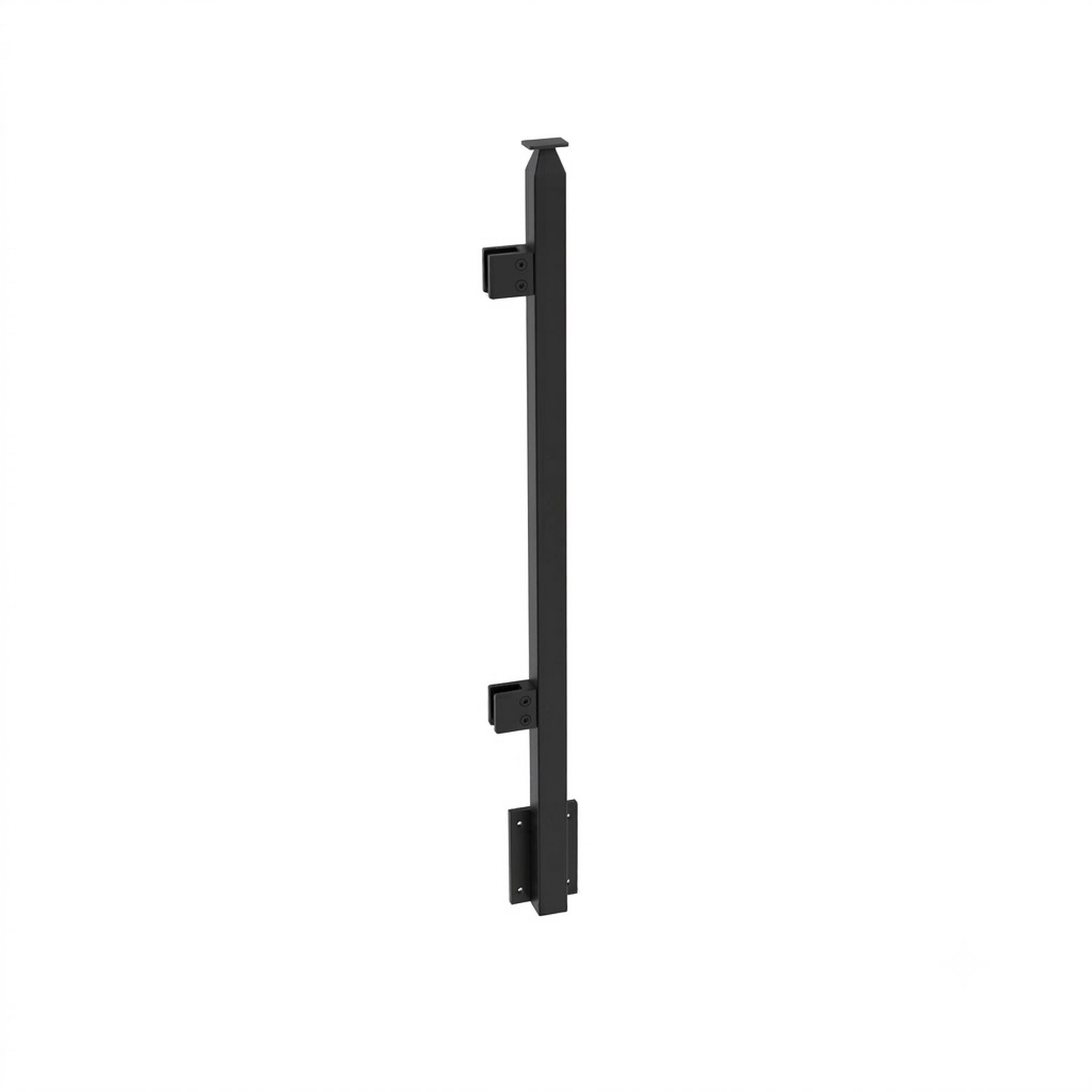

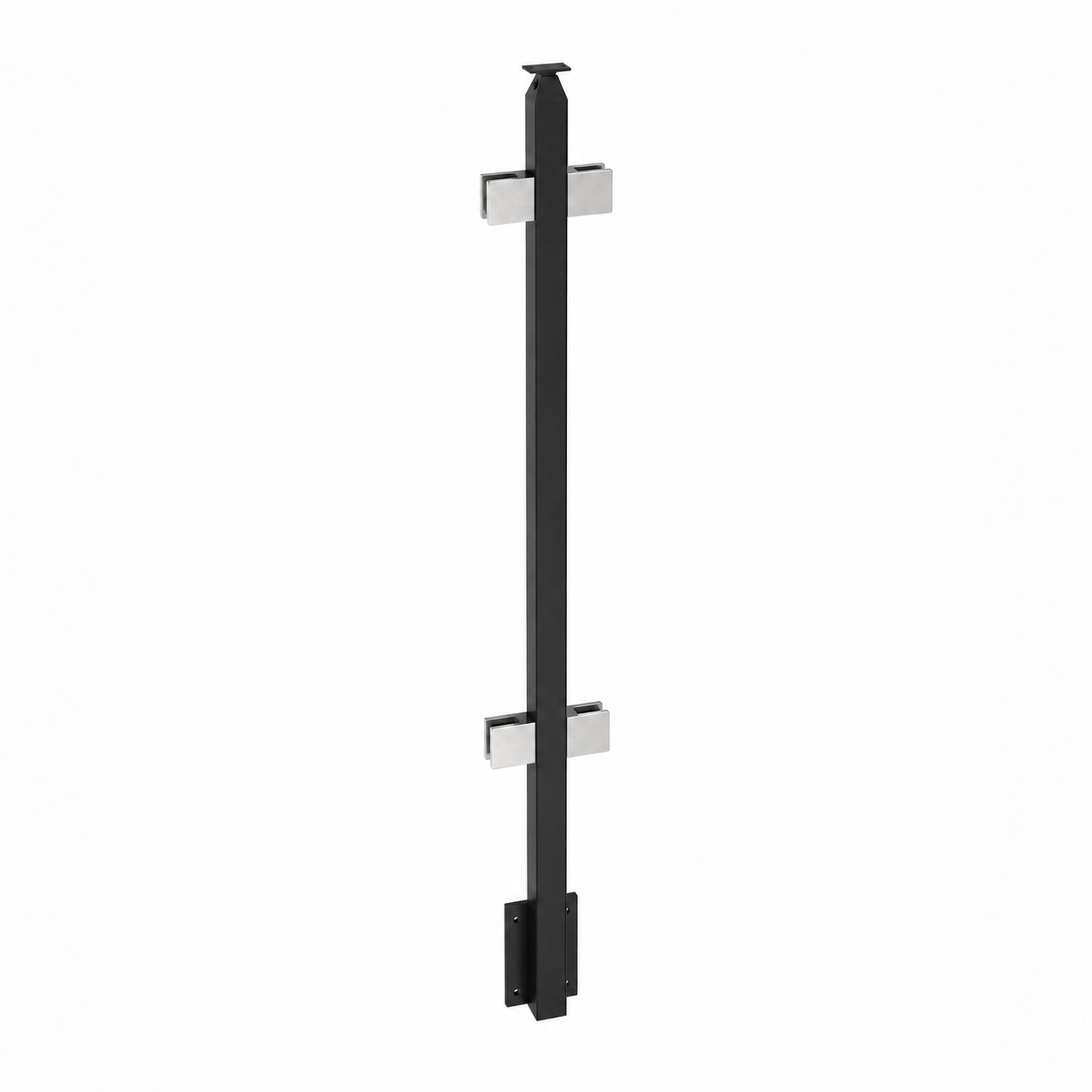

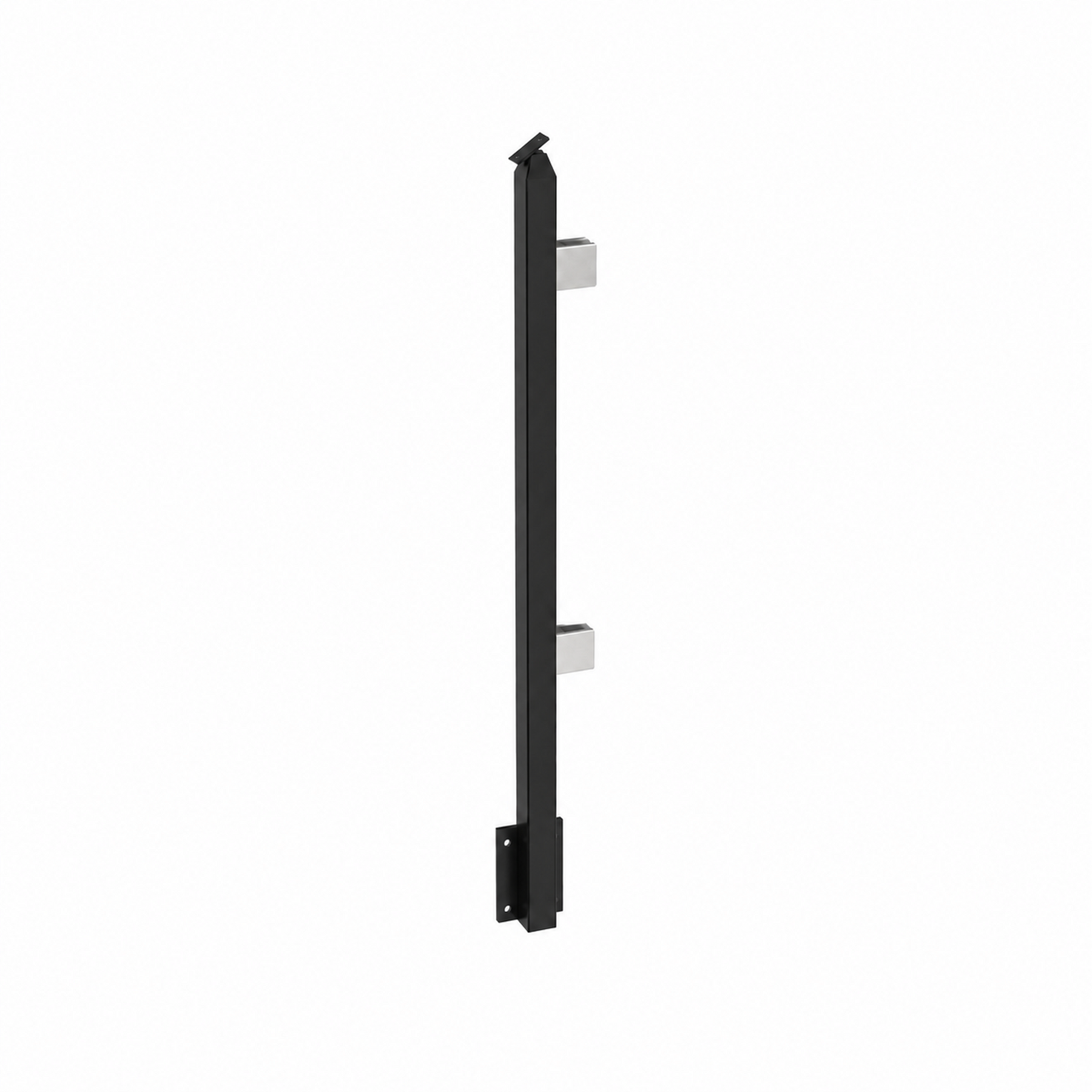

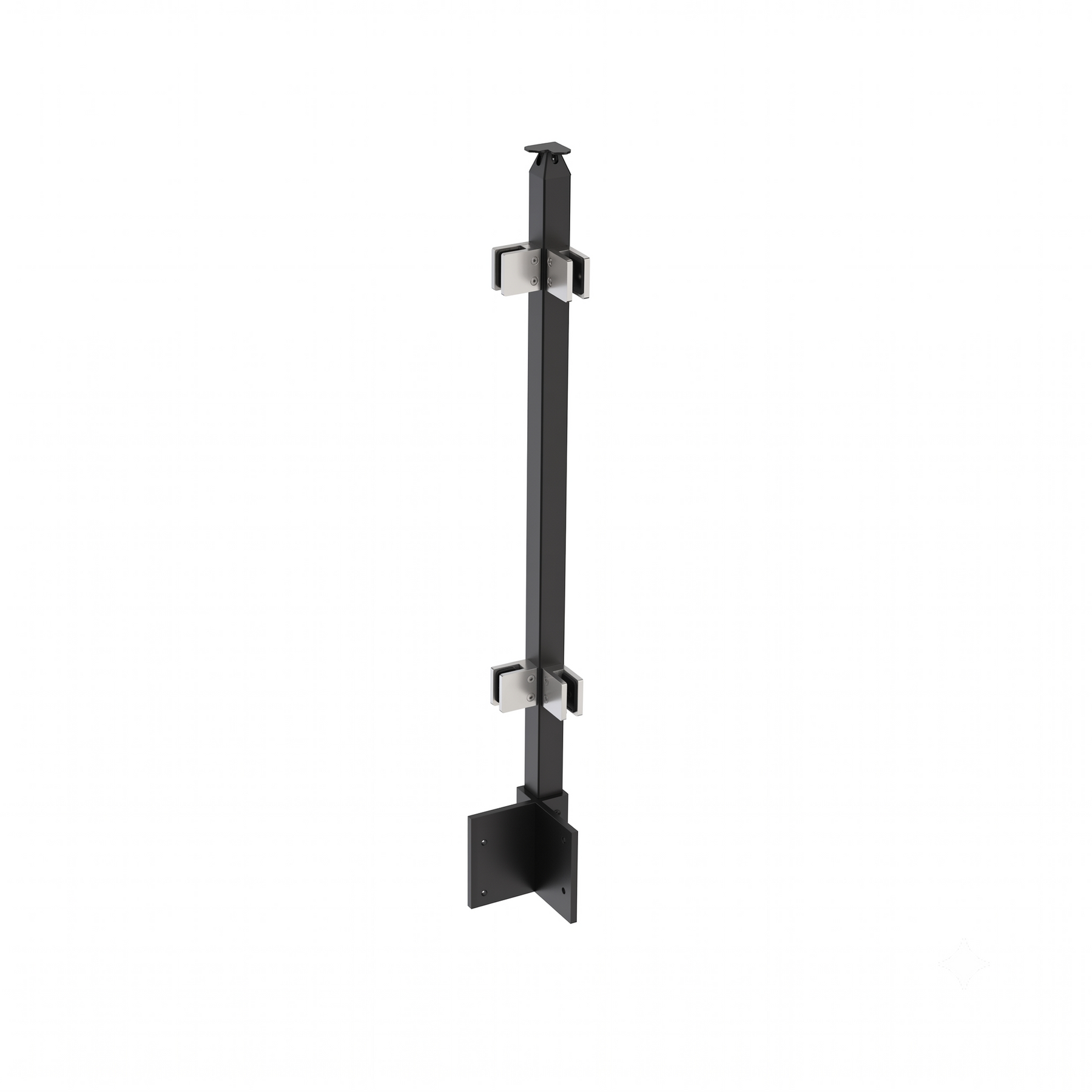

Right, Left, Middle, Outside Corner, Inside Corner, Stair Lower, Stair Middle, and Stair Upper |
| Finish Options |
316 Satin Stainless Steel; Black Matte Powder Coat over 304 SS Post Only; Black Matte Powder Coat over 304 SS Post & Glass Clamps |
What Is Included in the Kit?
Important Installation Notes
-
Glass panels are not included. Glass must be provided by a local vendor.
-
Handrail/top rail tubing is not included. Select compatible round, square, or rectangular tubing based on the project design.
-
Fascia mounting anchors are not included. Due to the variety of mounting surfaces, customers must supply the appropriate connecting hardware, including screws, bolts, anchor bolts, or other project-specific fasteners.
- Anchor selection must be based on the mounting surface, including fascia framing, concrete, steel, wood blocking, or other approved structural substrates.
- Stair posts and other custom posts require an additional fee to account for custom post fabrication and CAD drawings specific to the customer field measurements when necessary.
- Custom fabrication requires a minimum of 1–2 weeks for production.
- Handrail height, top rail layout, guardrail height, glass type, post spacing, fascia plate location, anchoring, and other structural requirements must be verified against local code and project-specific engineering.
- For coastal or high-corrosion environments, stainless steel must be cleaned and maintained regularly.
Handrail Bracket M6 Screw Direction Disclaimer
The direction of the M6 screw on the handrail bracket may vary. The M6 screw that secures the saddle on top of the post may be positioned either on the inside or the outside face. This orientation is random and depends on the production batch. We cannot guarantee a specific direction, and mixing post batches may result in variation. This does not affect structural performance.
