Glass Railing Round Surface Mount Post with Handrail Bracket
GLS.RND.SUR.HND.STR.LOW
Regular price $214.38 Sale price $117.91 Save 45%

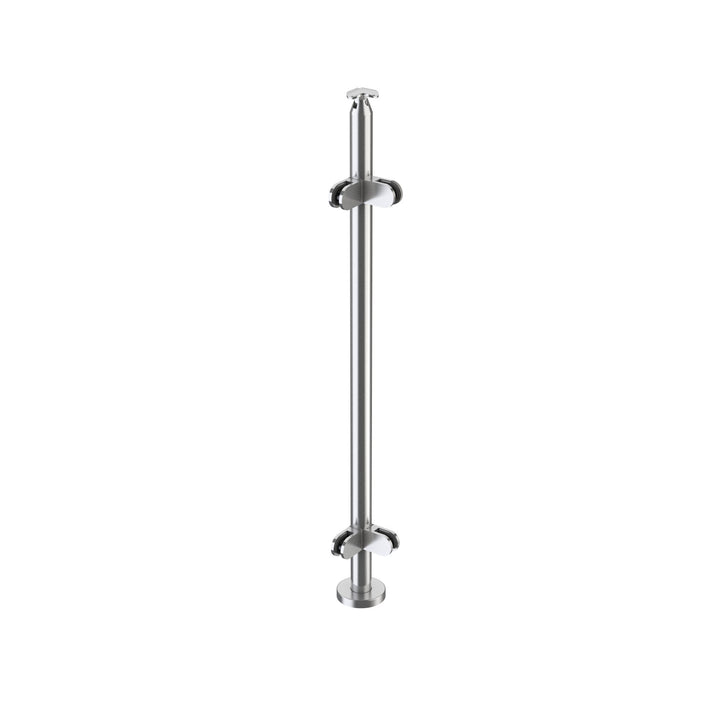

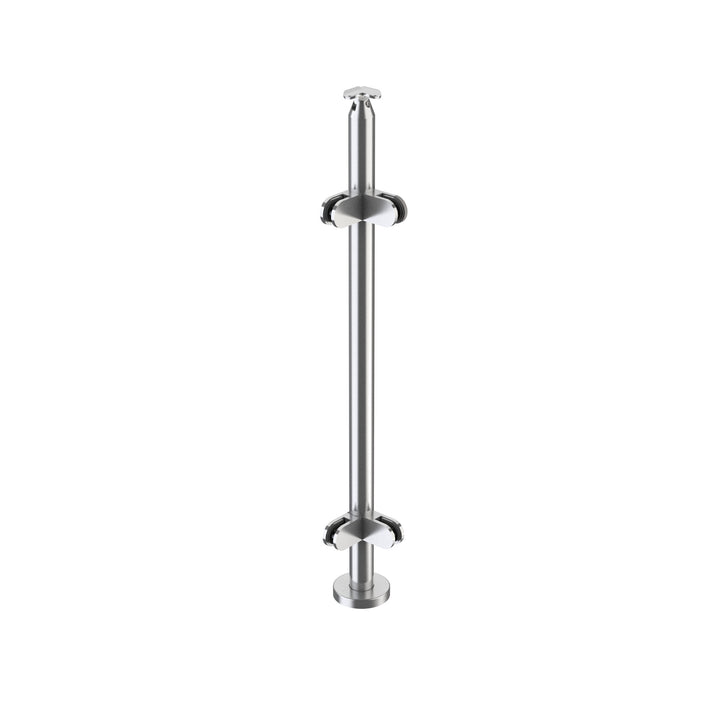

Glass Railing Systems Round Surface Mount Post for Handrail with Round Glass Clamps is a part of our Virginia Round Style Glass Railing System. This version does have a top rail mounting hardware. The post comes with a pivotable saddle attached to a cone shaped bracket to mount a handrail or top rail tubing.
Images Gallery
Details
- Stainless Steel AISI 316 (Satin SS), AISI 304 (Black PC) for outdoor and indoor areas
- Profile Size: 1.67" or 5/8" or 42.4mm Outside Diameter
- Post Thickness: Gauge 12 or 0.102" or 2.6mm
- Glass Thickness: 3/8", 1/2" or 9/16" Tempered or Laminated
-

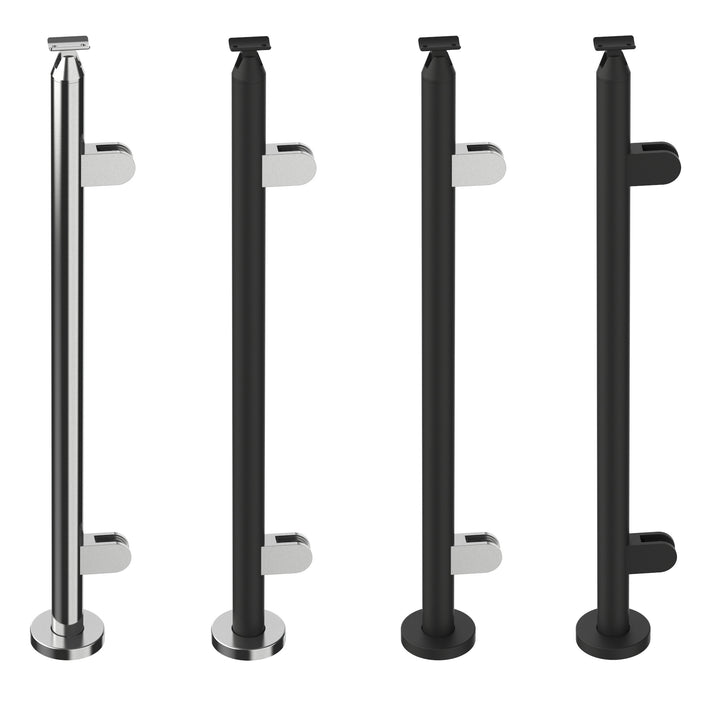

Finish: Satin Stainless Steel & Sand Black Matte Powder Coat
-
SS Finish: ASTM A480 No 4 linearly textured Satin Finish
- Heavy Duty Construction
- Easy to Install and Sturdy Upon Completion
- Perfect for Wet or Dry, Indoor or Outdoor Spaces
- Meets ADA, Residential and Commercial Codes Requirements
- Suitable for Balconies, Decks, Porches, and Stairs
What is included in the kit?
-
(1) Post Pre drilled and tapped (M8 x 1.25mm)
- (1) Cone Handrail Bracket
-
(1) Round End Cap
-
(1) Round Base Cover
-

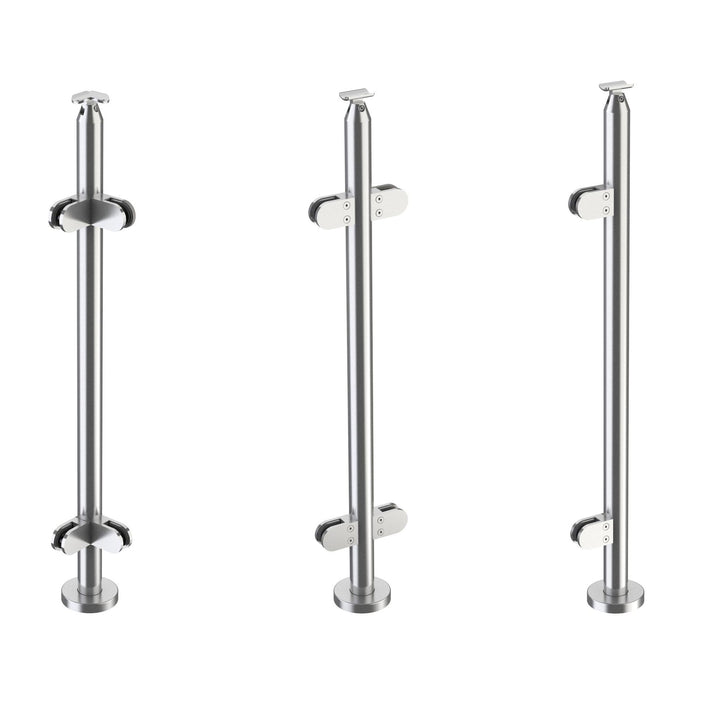

(4) [for Middle Post] or (2) [for End Post] Round Glass Clamps
- Optional (1) Round Pivot Flange at the bottom for Angle Post
Links & Downloadable materials
- Post Placement Guide & Engineering Specs
- Modular Railing System
- Posts Detailed Drawings
- Installation PDF
- Installation YouTube Video
- Virginia Round Drawings
- Stair Installation
- Installation YouTube Video
-

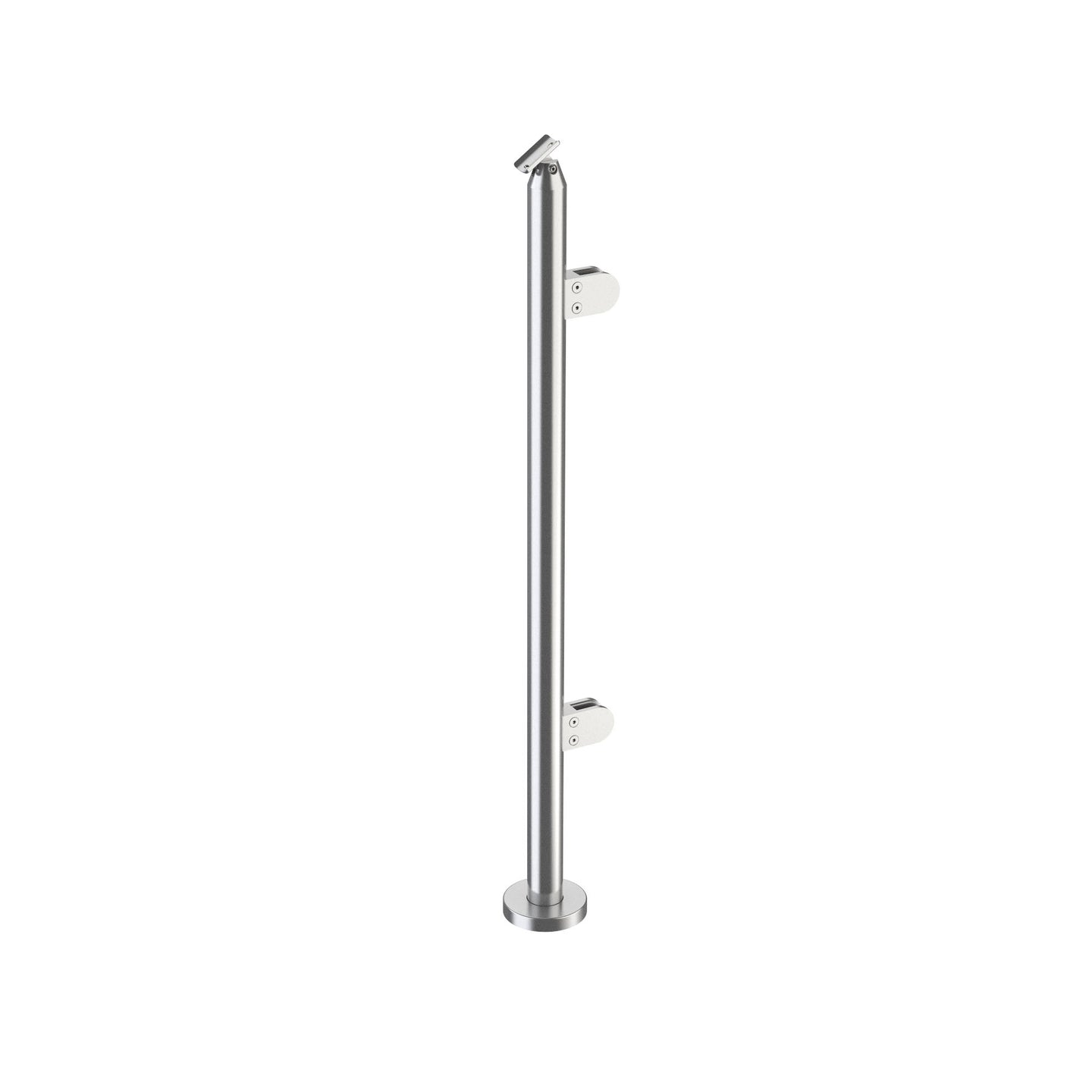

Stair Details
- Stair Post Placement
Note: Due to the variety of floor surfaces, customers must supply the connecting hardware for the base, i.e. screws, bolts, anchor bolts, etc. Stair Posts and other Custom Posts require an additional fee to account for Custom Post fabrication and CAD Drawings specific to the customer field measurements when necessary. Custom fabrication requires a minimum of 1-2 weeks for production.
Please refer to the following document for Mounting Options
Disclaimer Direction of the M6 screw on the handrail bracket may vary. The M6 screw that secures the saddle on top of the post may be positioned either on the inside or the outside face. This orientation is random and depends on the production batch. We cannot guarantee a specific direction, and mixing of post batches may result in variation. This does not affect structural performance.
