The Glass Railing Round Fascia Mount Post with Round Glass Clamps is part of Inline Design’s
Virginia Round Style Glass Railing System. This version is designed for side-mounted glass railing
installations where the post attaches to the fascia or side face of the structure instead of mounting on top of the walking surface.
Built from a 1.67" / 42.4 mm outside-diameter round stainless steel profile with a
12 gauge / 0.102" / 2.6 mm wall thickness, this post is a heavy-duty option for modern glass railing
systems that need strong post construction, a clean round profile, and matching round glass clamps.
Use it for balconies, decks, porches, patios, stairs, landings, terraces, indoor railings, outdoor railings,
wet or dry locations, residential projects, and commercial projects when installed according to local code,
approved mounting conditions, glass requirements, and project-specific engineering.
Glass panels are purchased separately. This post system is designed for use with compatible tempered or laminated glass panels. Verify glass thickness, panel height, panel width, local code requirements, and project-specific engineering before ordering glass.
Compatible Glass Warehouse glass panels at Home Depot
Quick Product Highlights
| Fascia / Side Mount |
Mounts to the side face of the structure for projects where surface mounting on top of the walking surface is not preferred |
| No Top Rail Hardware |
Designed for clamp-mounted glass railing layouts without a handrail bracket or top rail support mounted on top of the post |
| Heavy-Duty Round Post |
1.67" / 42.4 mm outside diameter with 12 gauge / 2.6 mm wall thickness |
| Glass Clamp System |
Includes round glass clamps based on selected post type: right, left, middle, corner, or stair configuration |
| Finish Options |
316 Satin Stainless Steel and Black Matte Powder Coat options |
| Glass Compatibility |
For 3/8", 1/2", or 9/16" tempered or laminated glass |
| Important |
Glass panels and fascia mounting anchors are not included |
Project Gallery
Details
| System |
Virginia Round Style Glass Railing System |
| Mount Type |
Fascia mount / side mount installation |
| Top Rail Hardware |
Not included with this version |
| Profile Size |
1.67" / 42.4 mm outside diameter round post |
| Post Thickness |
12 gauge / 0.102" / 2.6 mm heavy-wall construction |
| Glass Thickness |
3/8", 1/2", or 9/16" tempered or laminated glass |
| Satin Stainless Steel |
AISI 316 stainless steel for wet, dry, indoor, outdoor, and coastal environments with routine stainless steel maintenance
|
| Black Matte Powder Coat |
Black Matte powder coat over AISI 304 stainless steel
|
| Finish Standard |
ASTM A480 No. 4 linearly textured satin finish for satin stainless steel options
|
| Post Preparation |
Pre-drilled and tapped M8 x 1.25 mm for round glass clamps |
| Construction |
Heavy-duty construction, sturdy upon completion, and designed for straightforward installation |
| Installation |
Side mount installation to approved fascia, framing, concrete, steel, blocking, or other structural substrates using project-specific anchors |
Available Configurations
| Heights |
36" and 42" |
| Post Types |

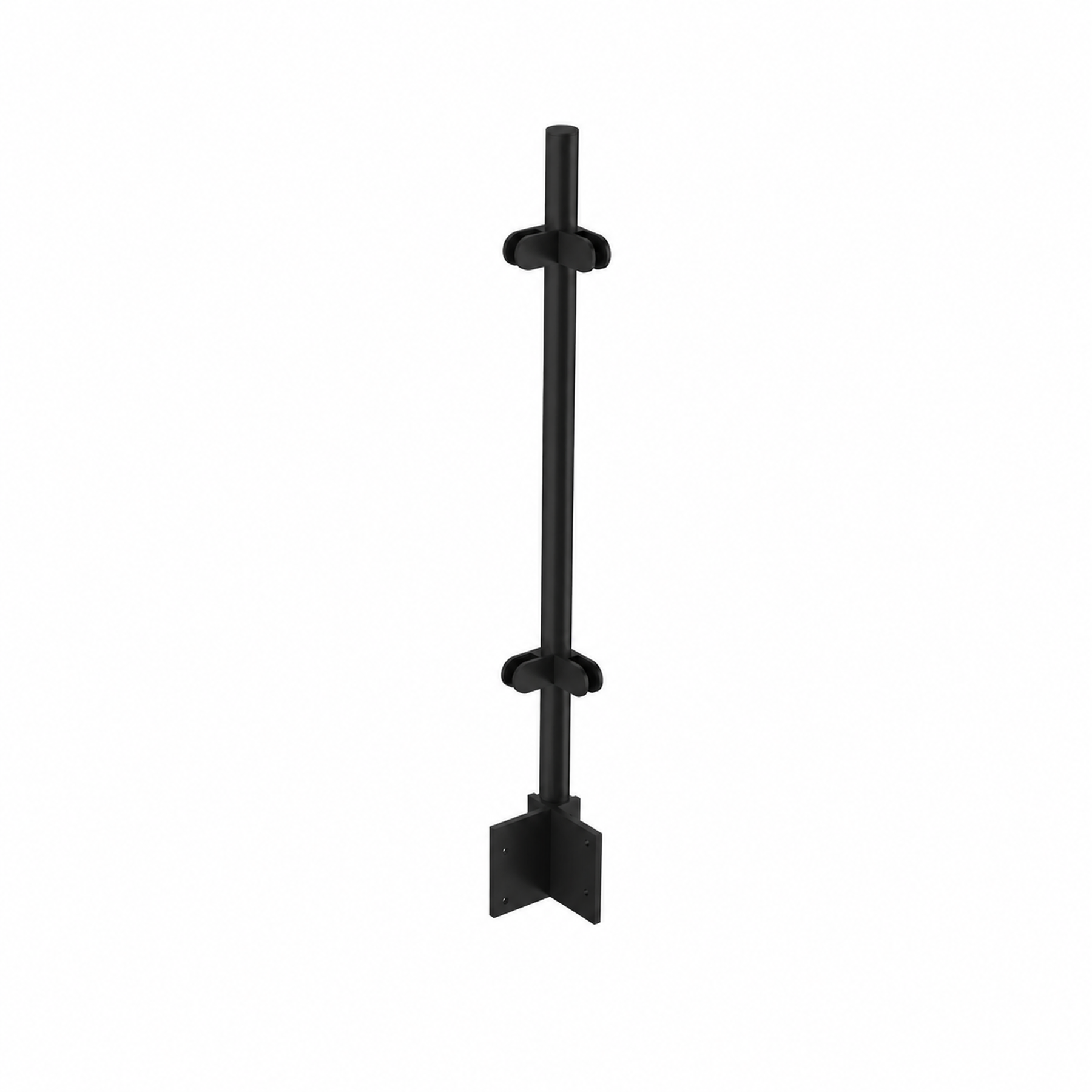

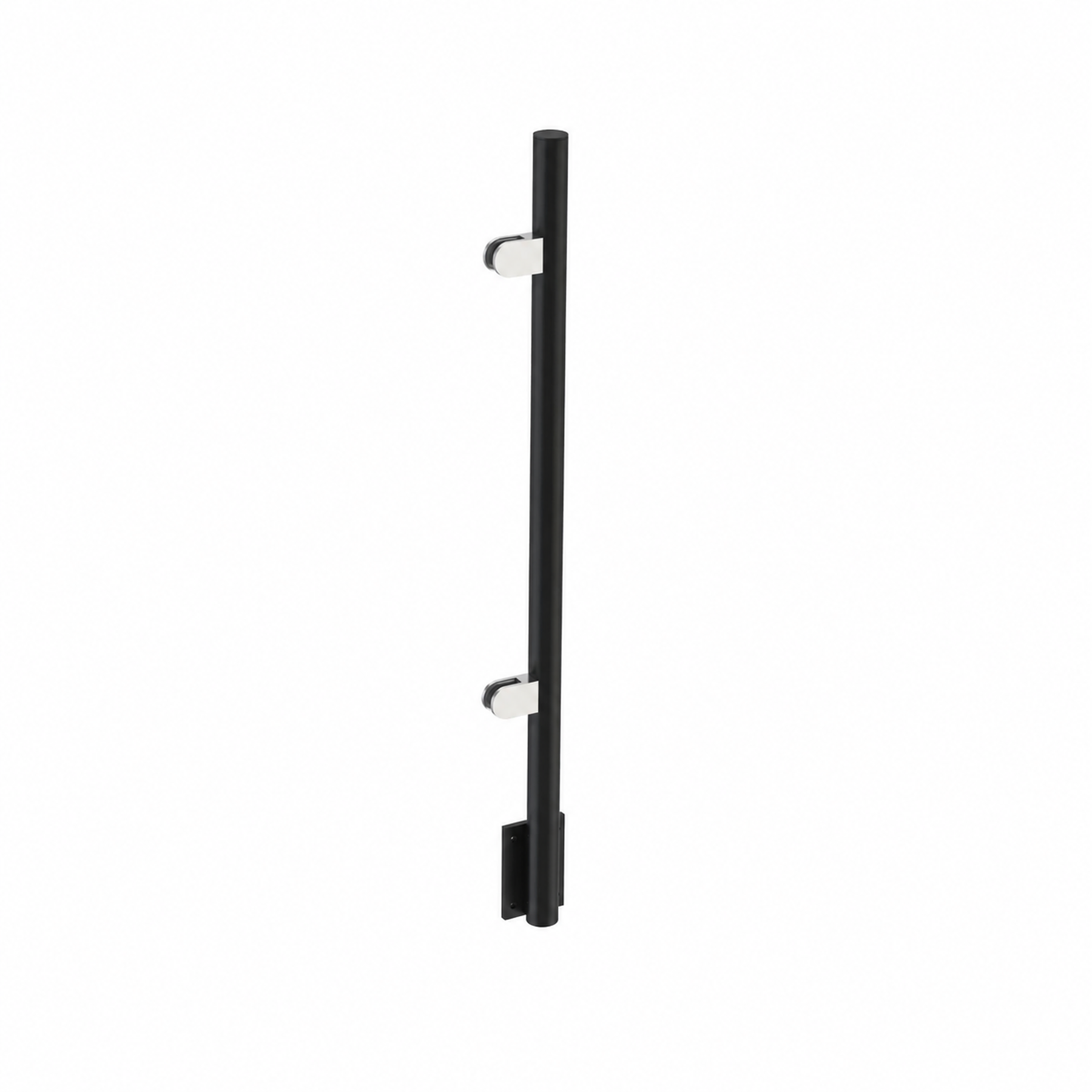

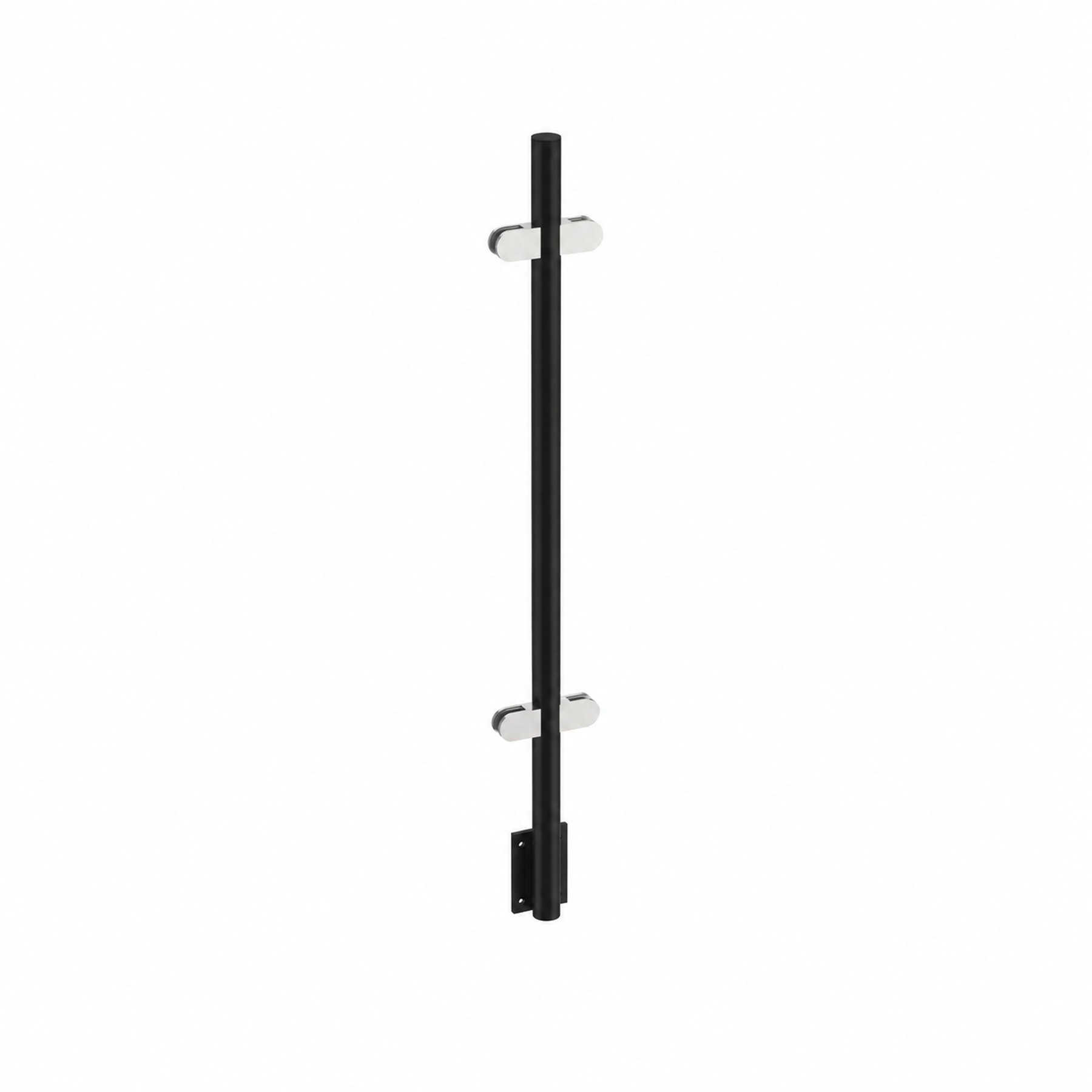

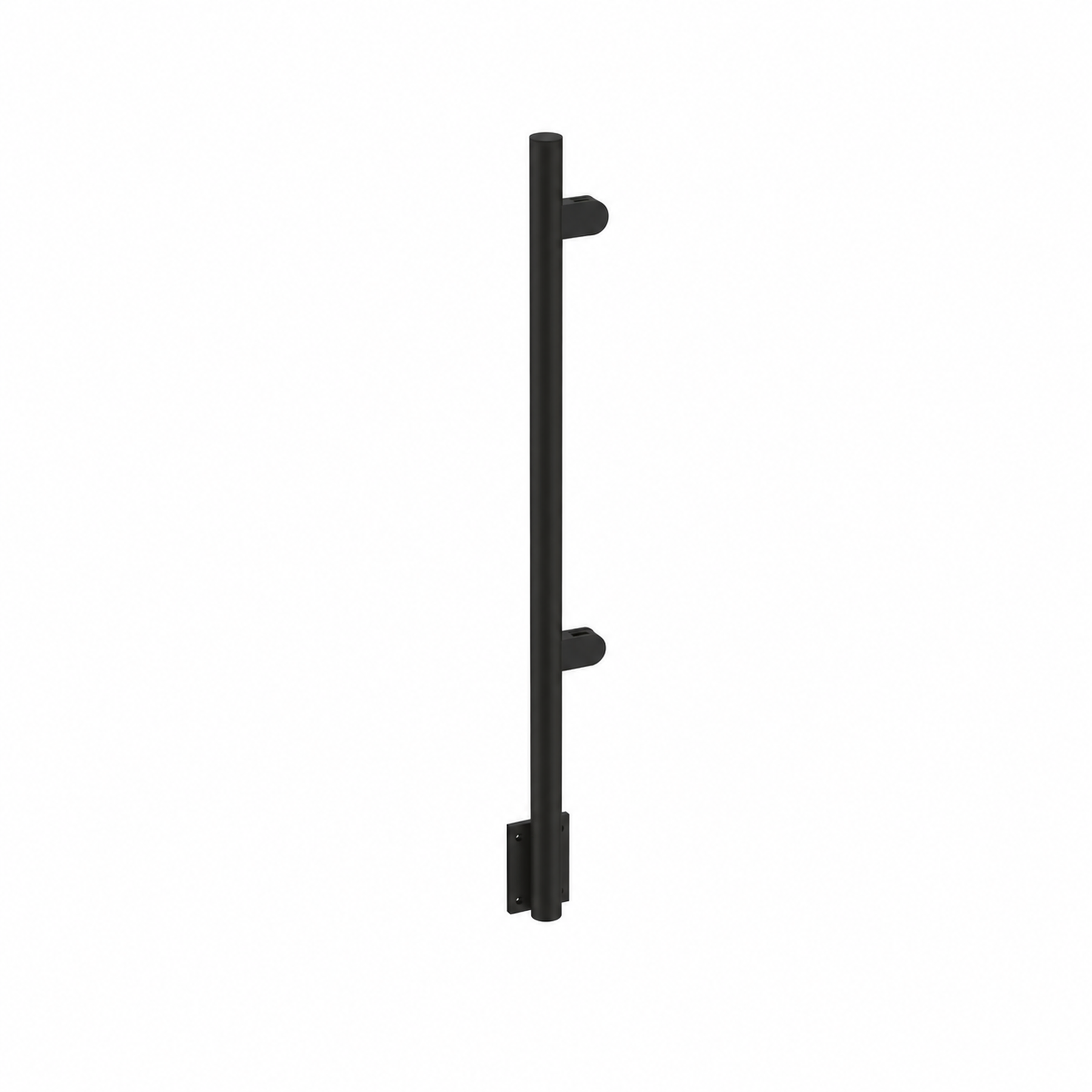

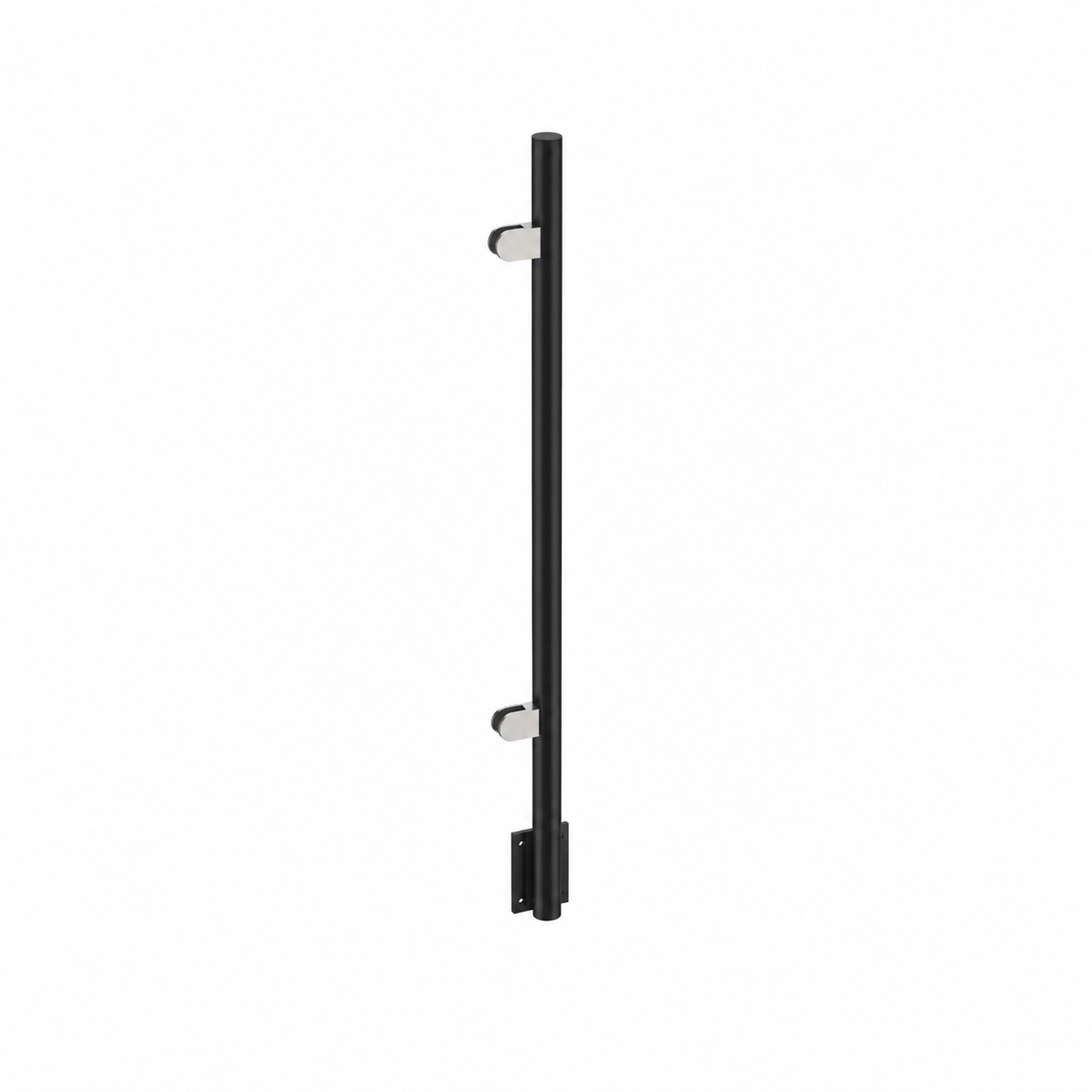

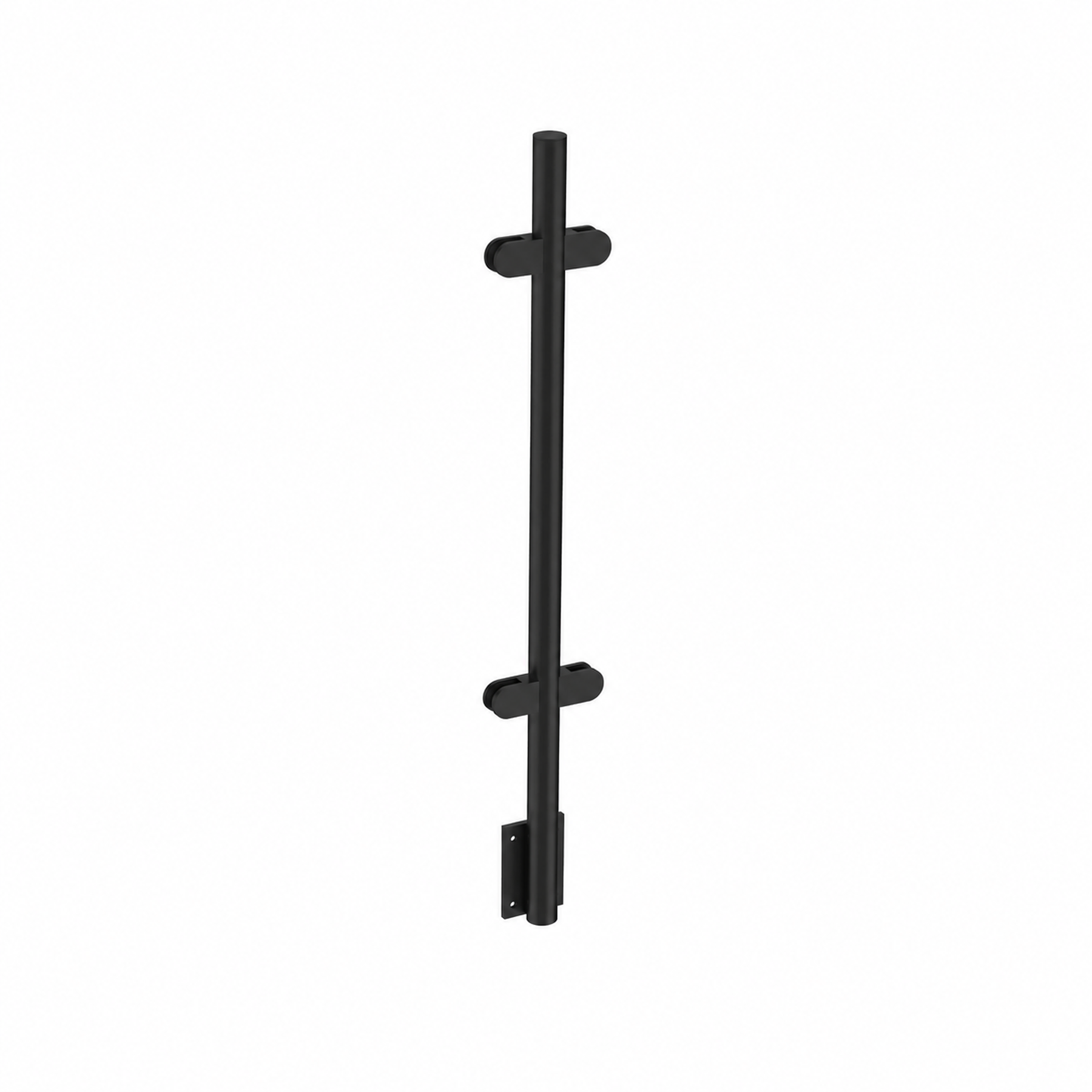

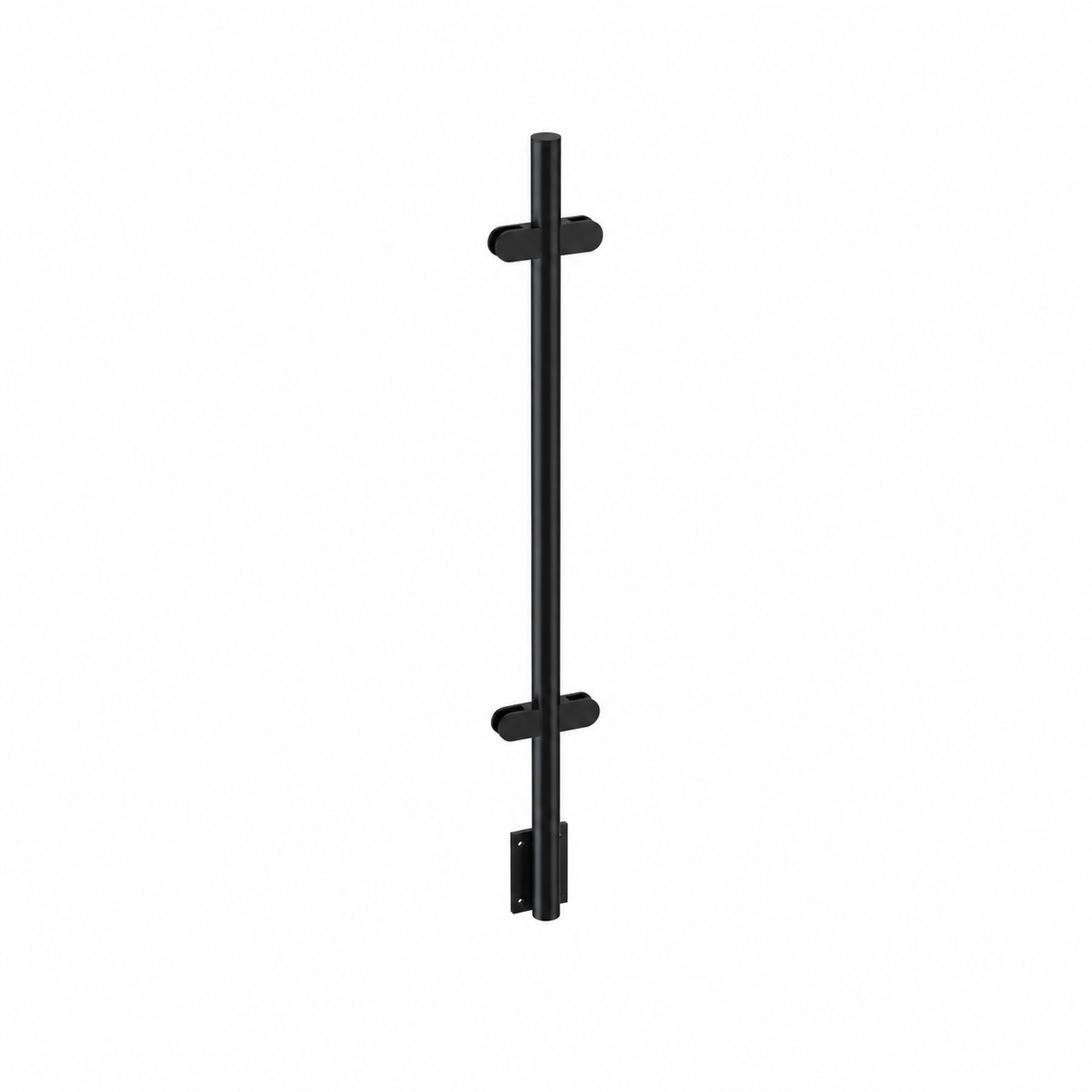

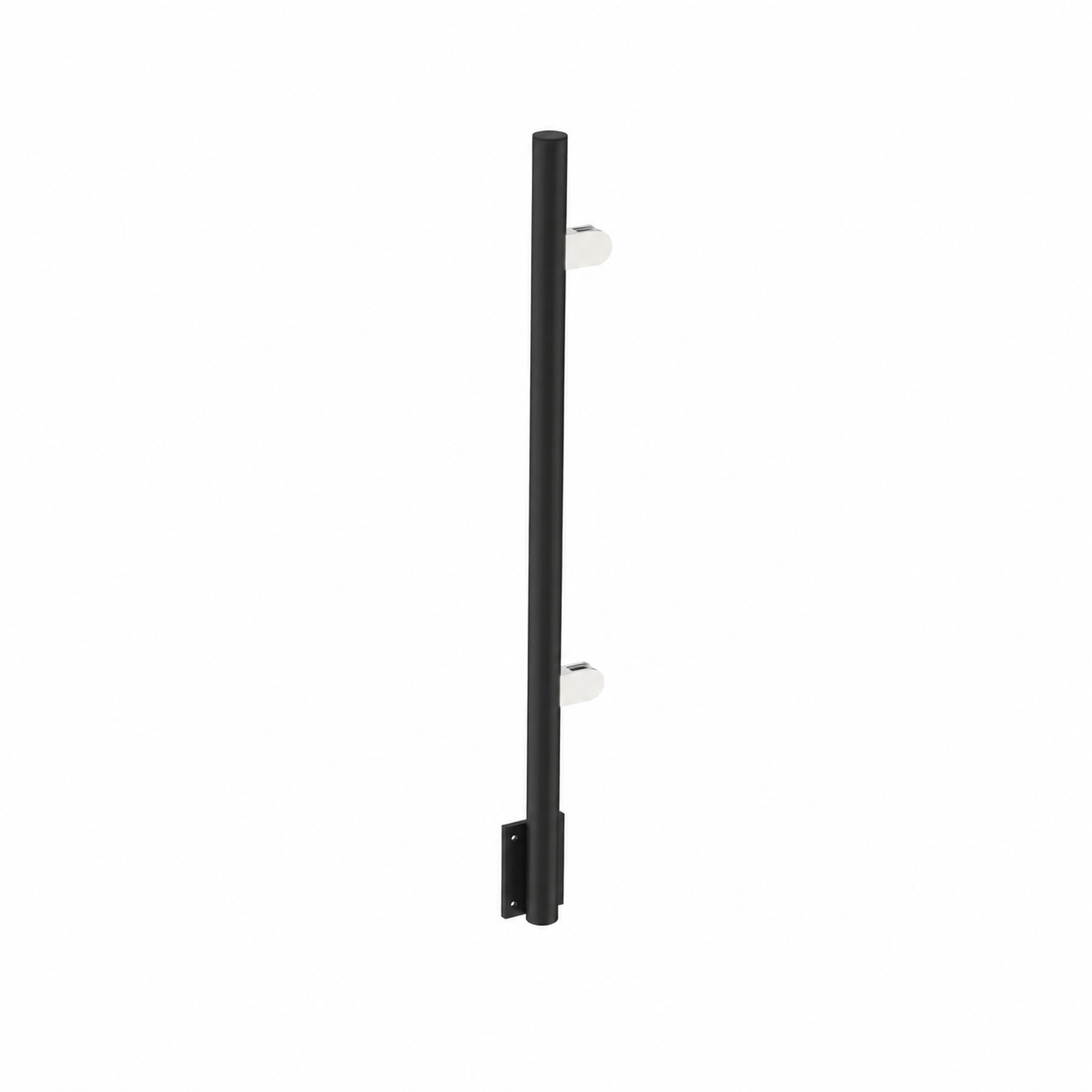

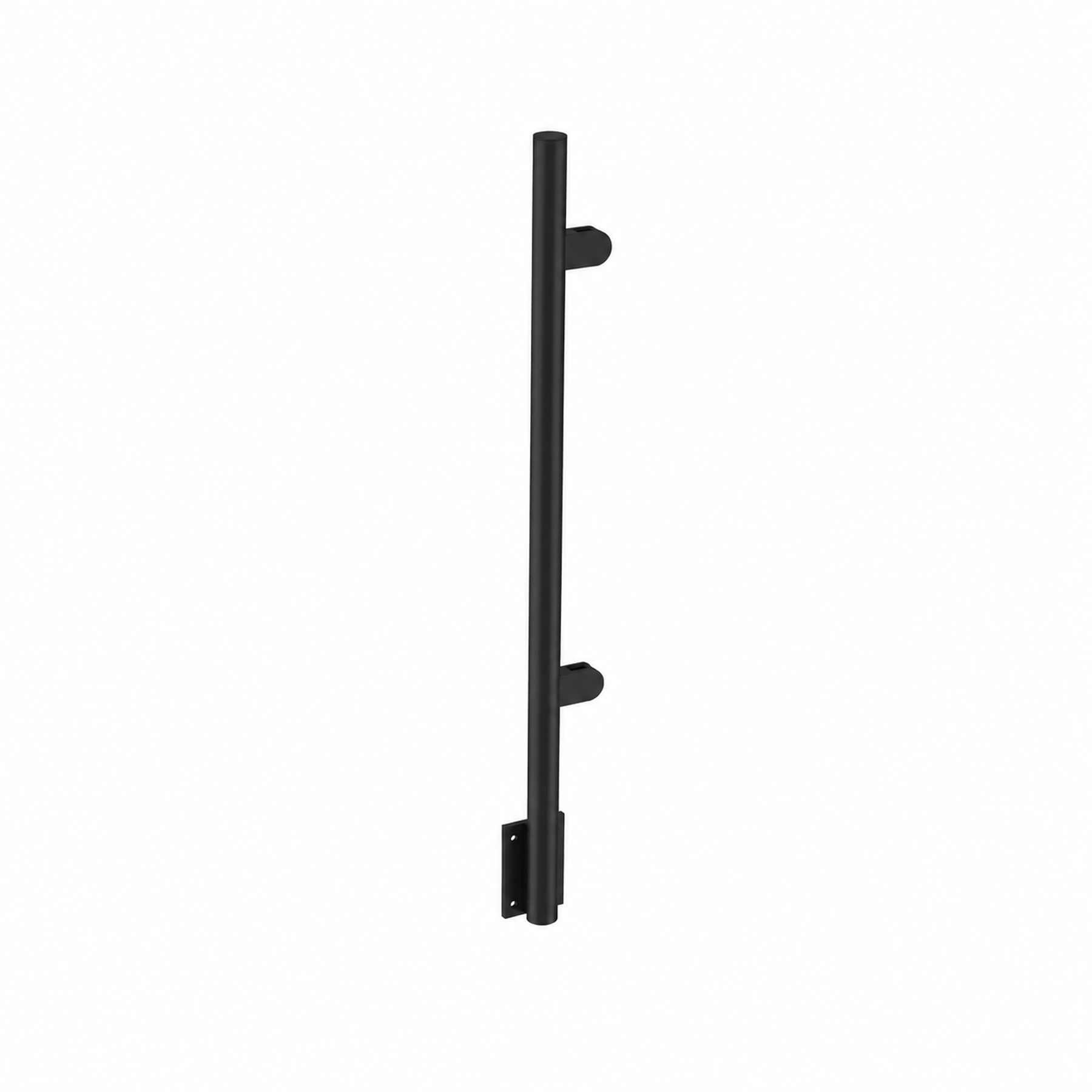

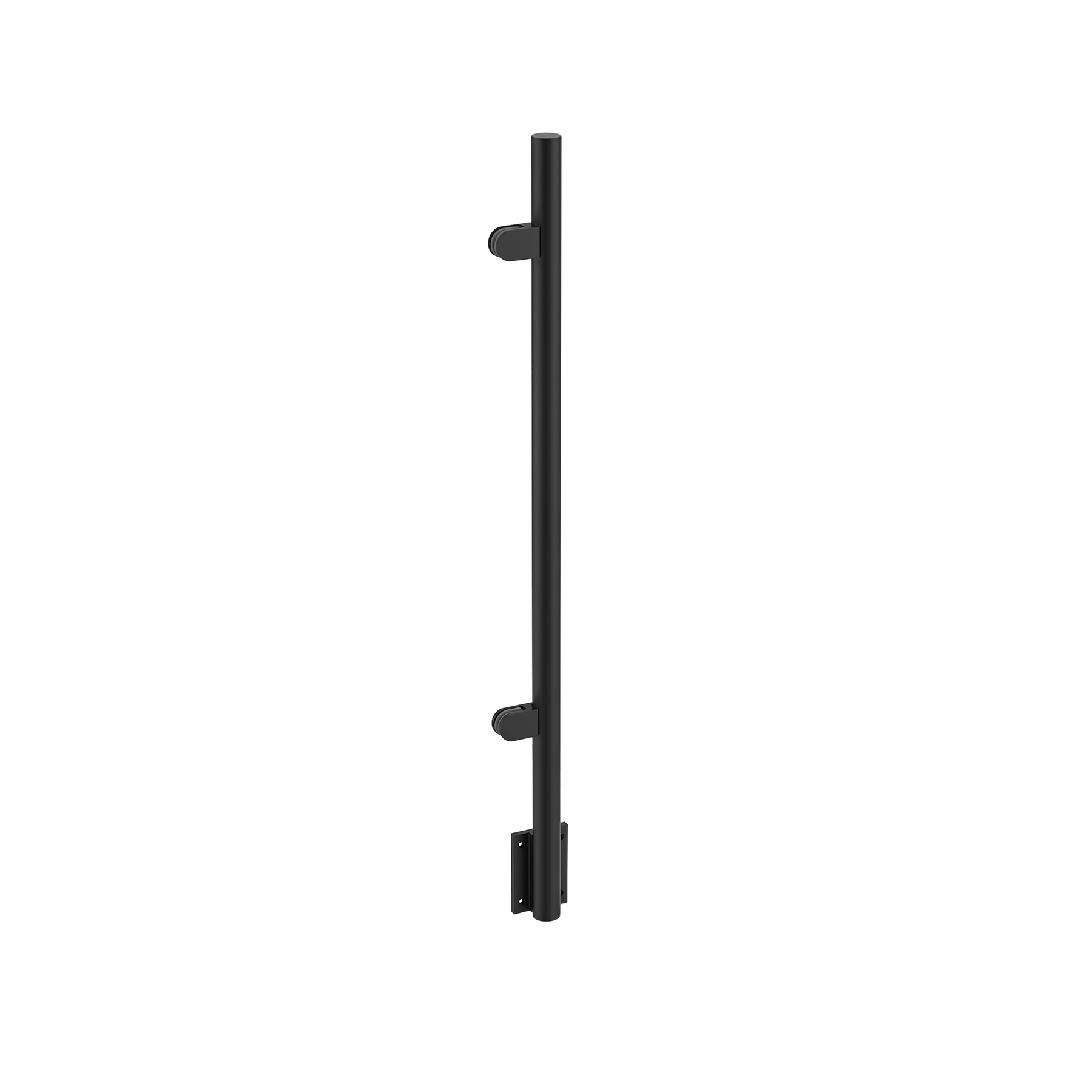

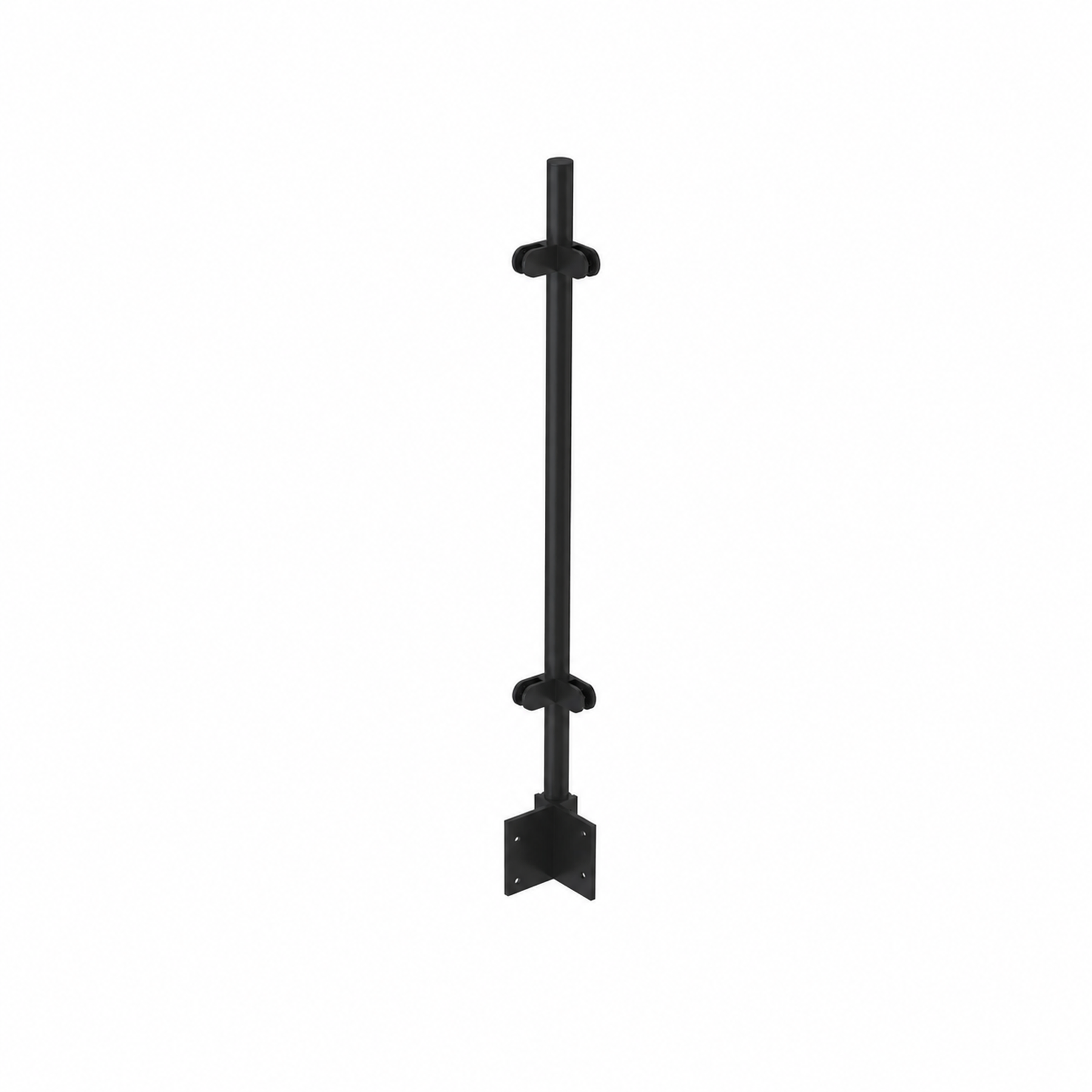

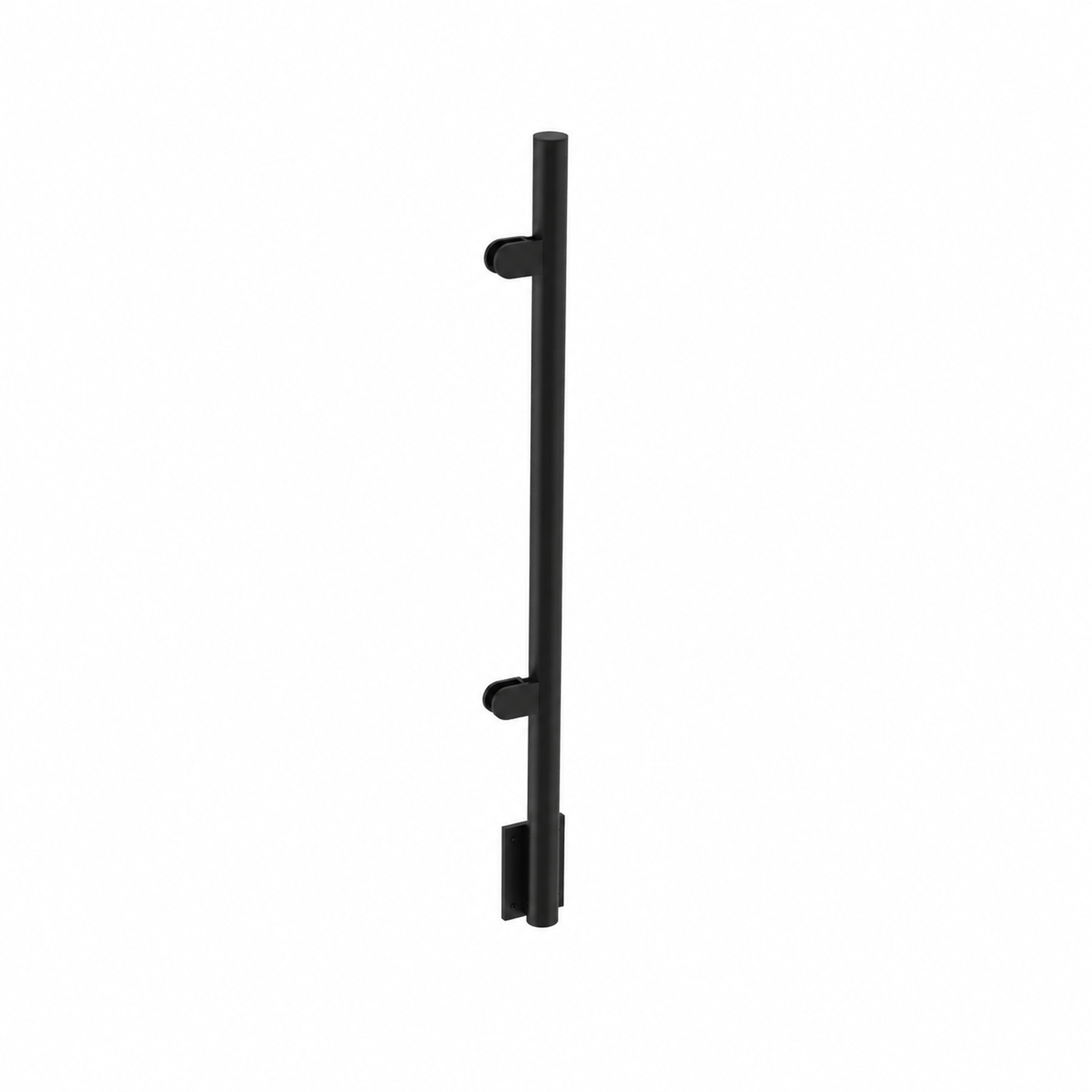

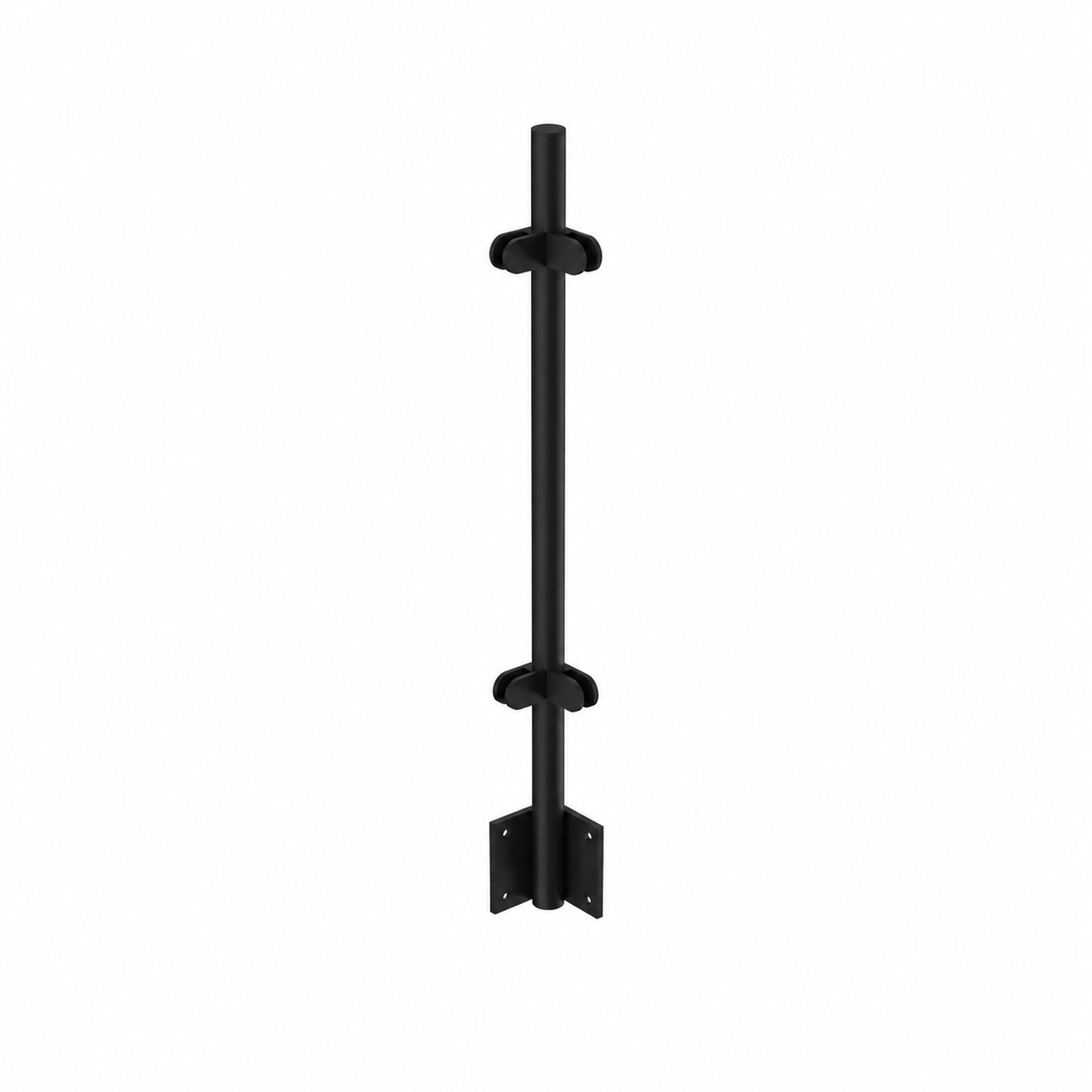

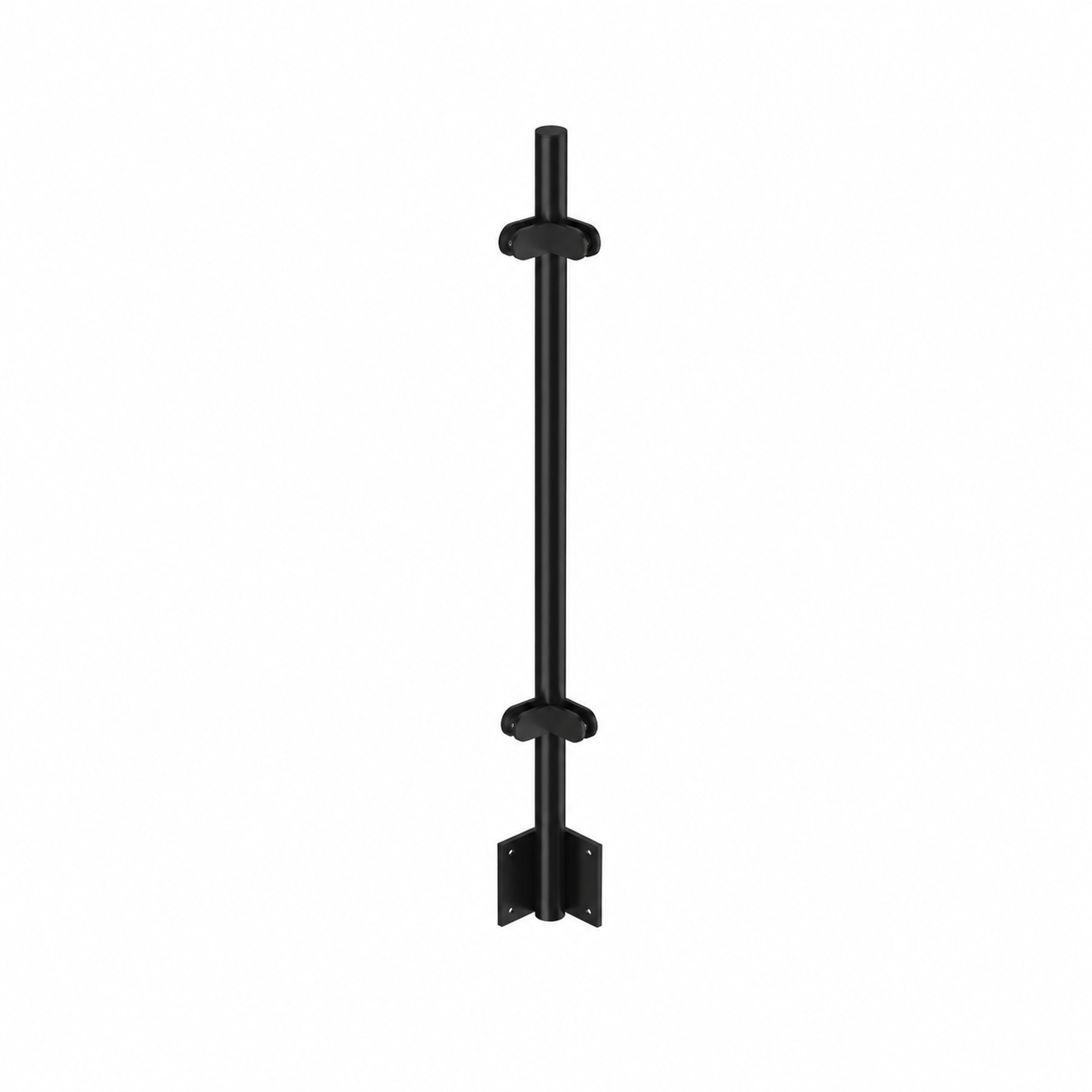

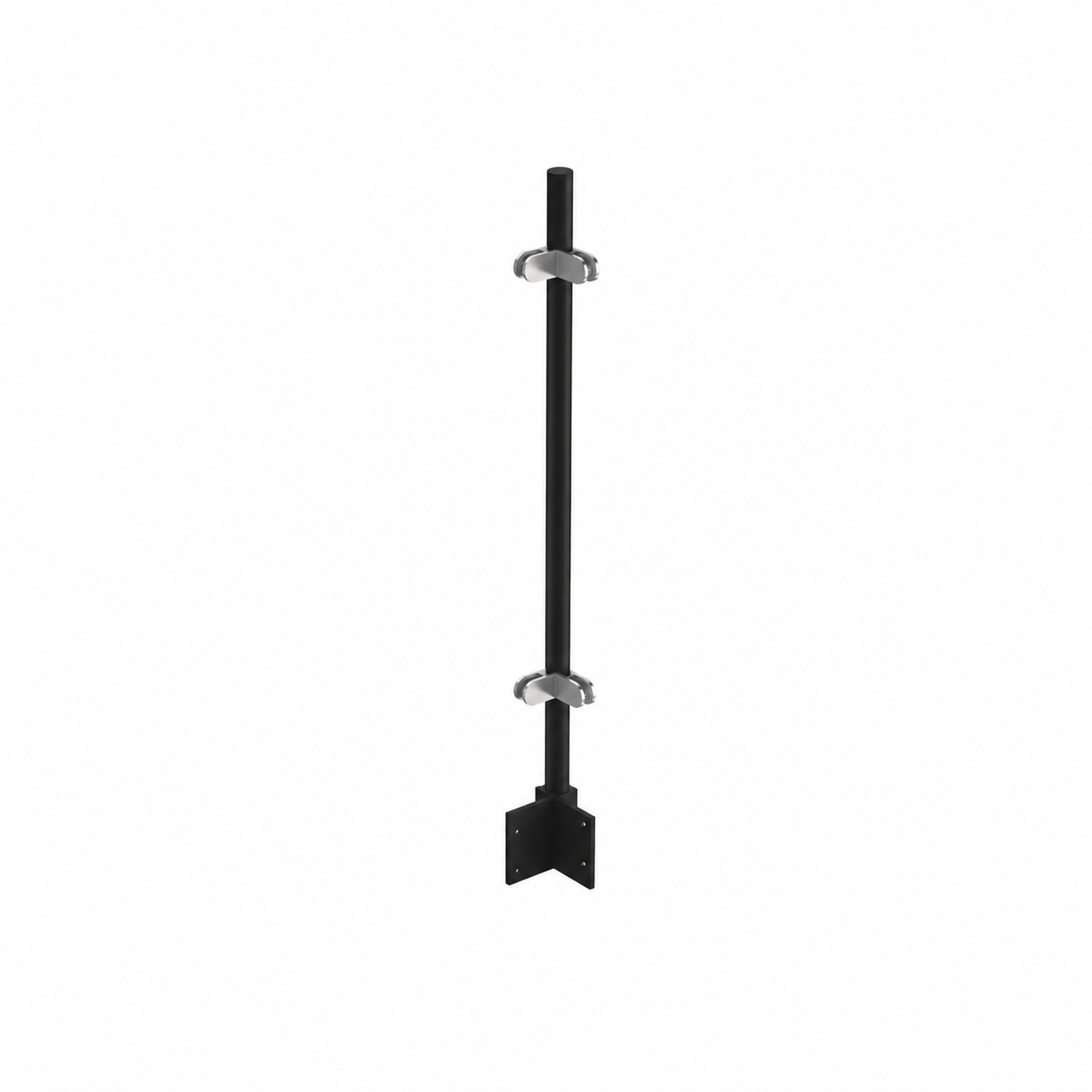

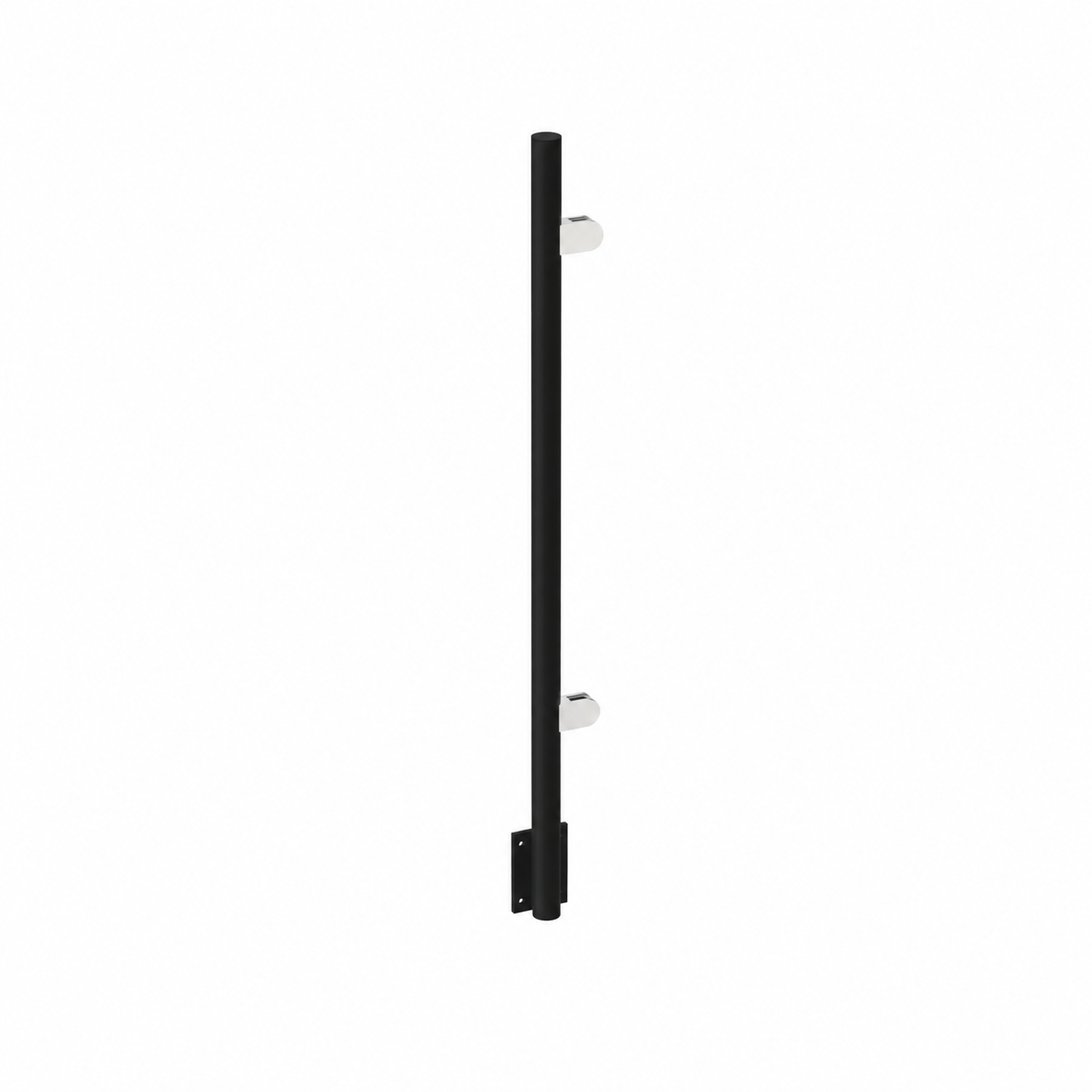

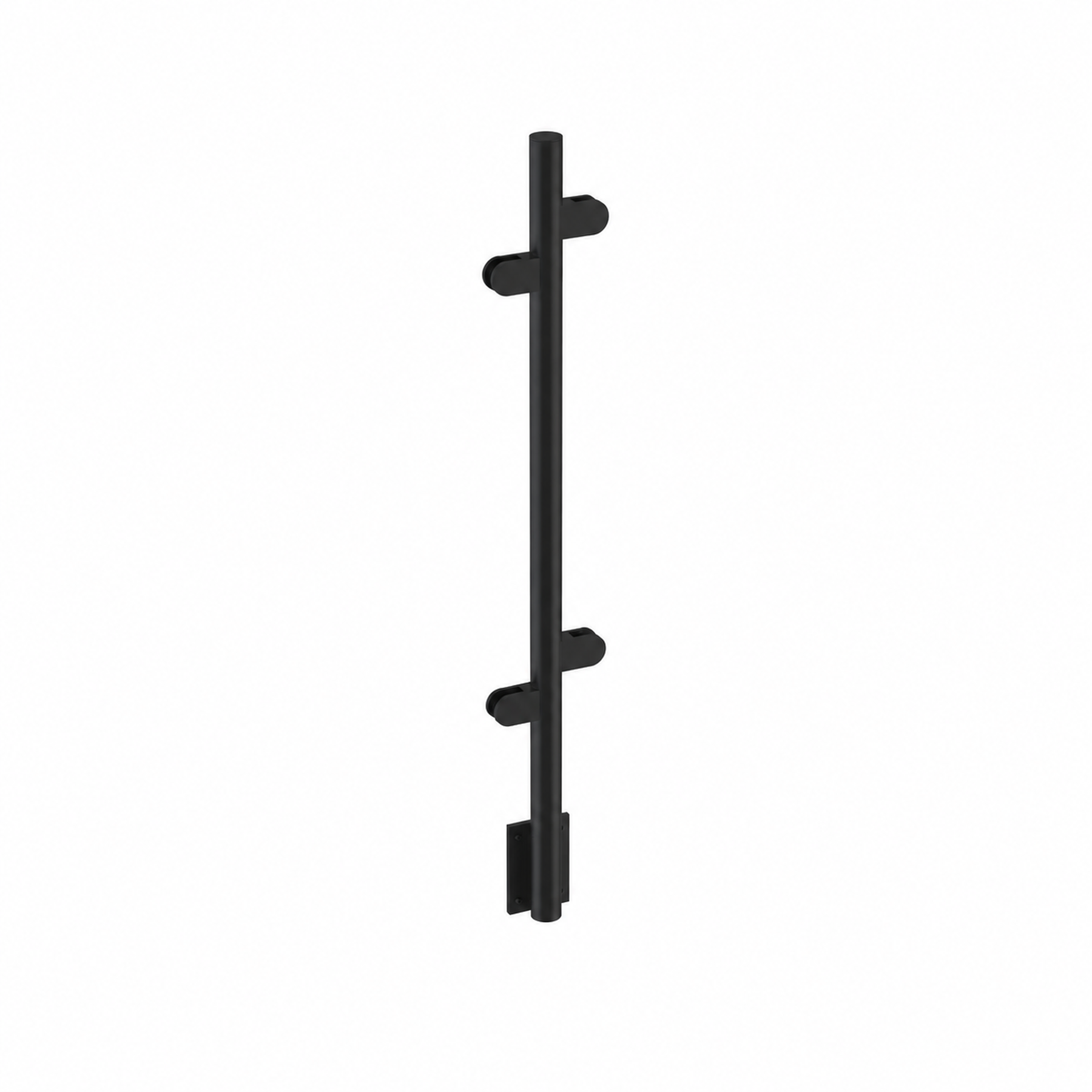

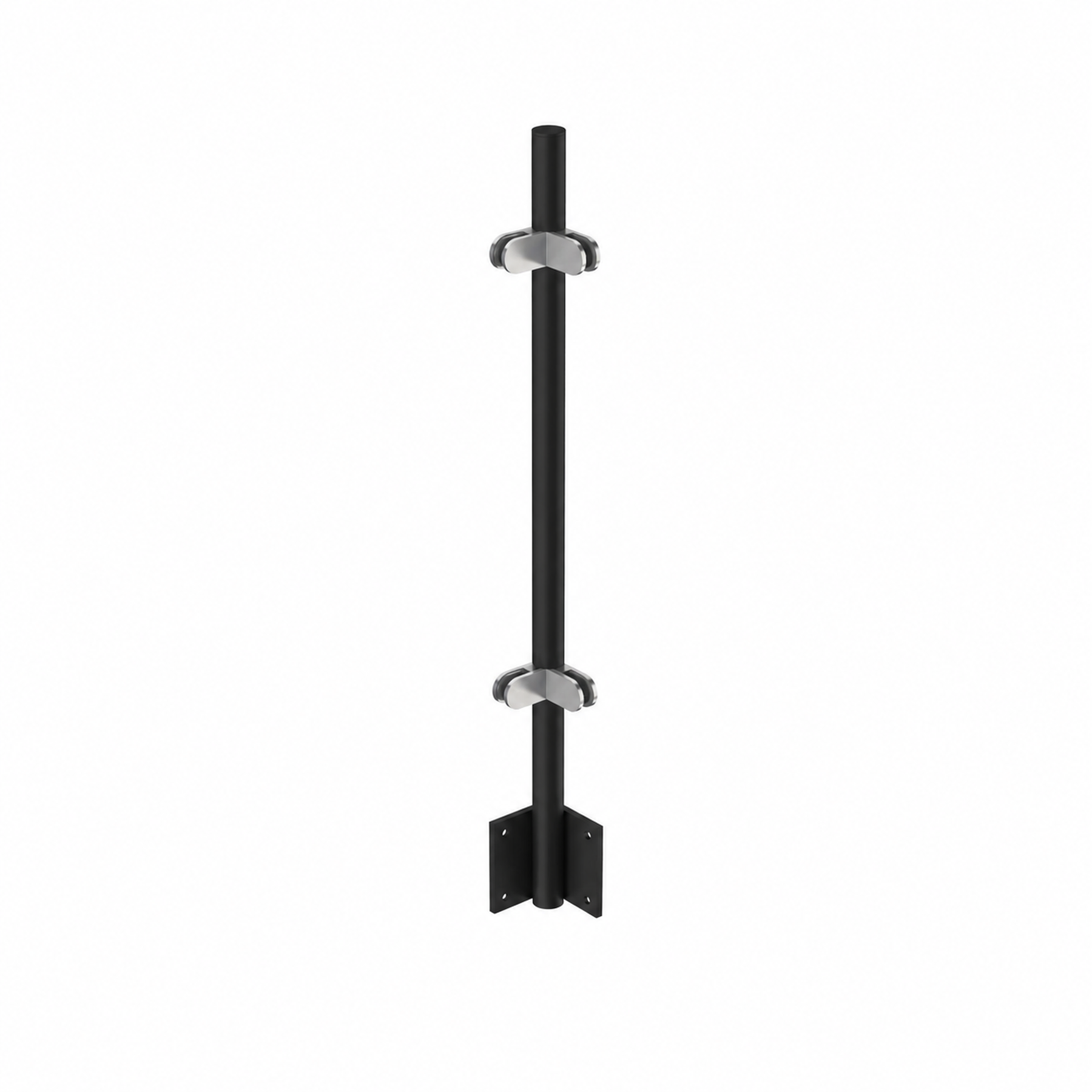

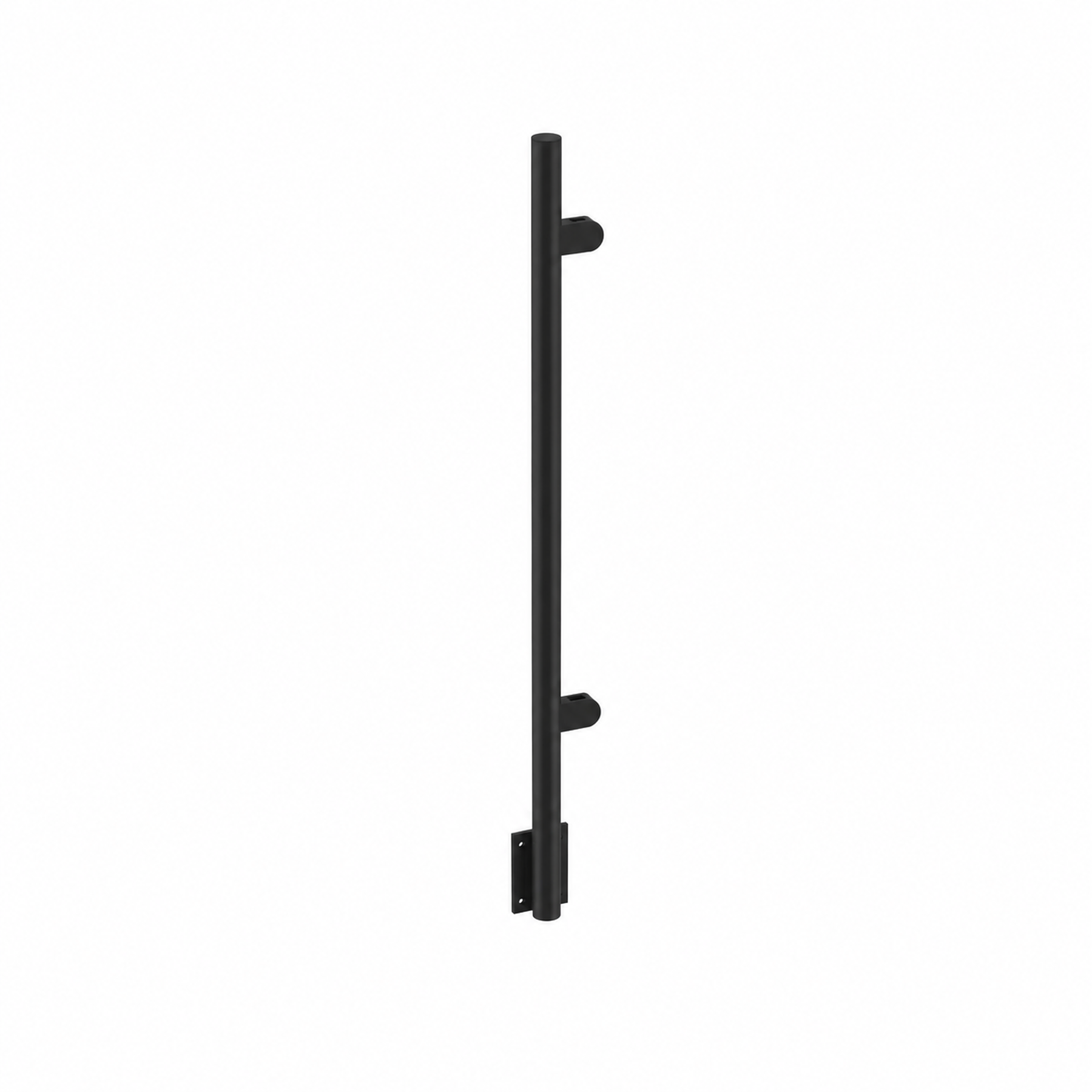

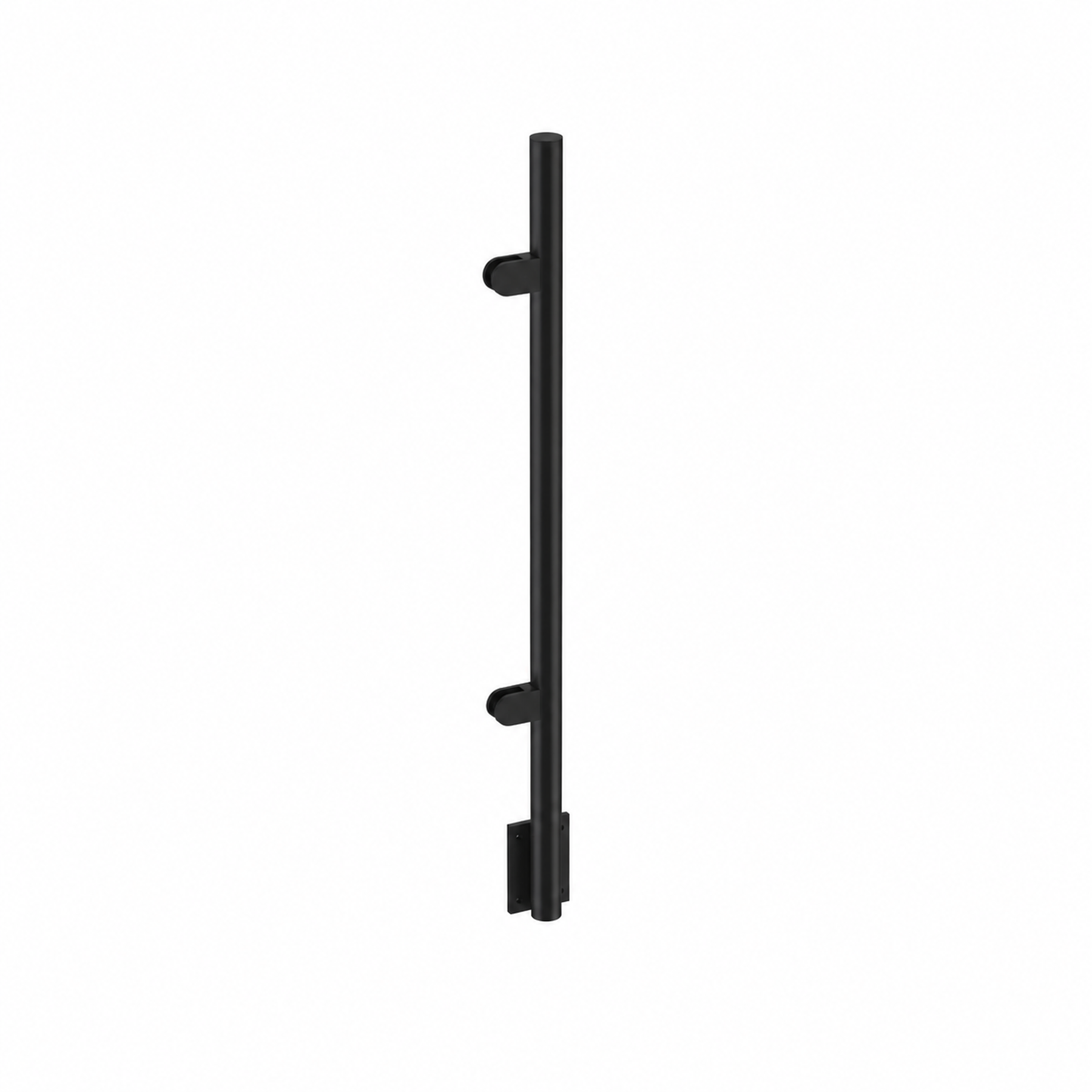

Right, Middle, Left, Outside Corner, Inside Corner, Stair Lower, Stair Middle, and Stair Upper |
| Finish Options |

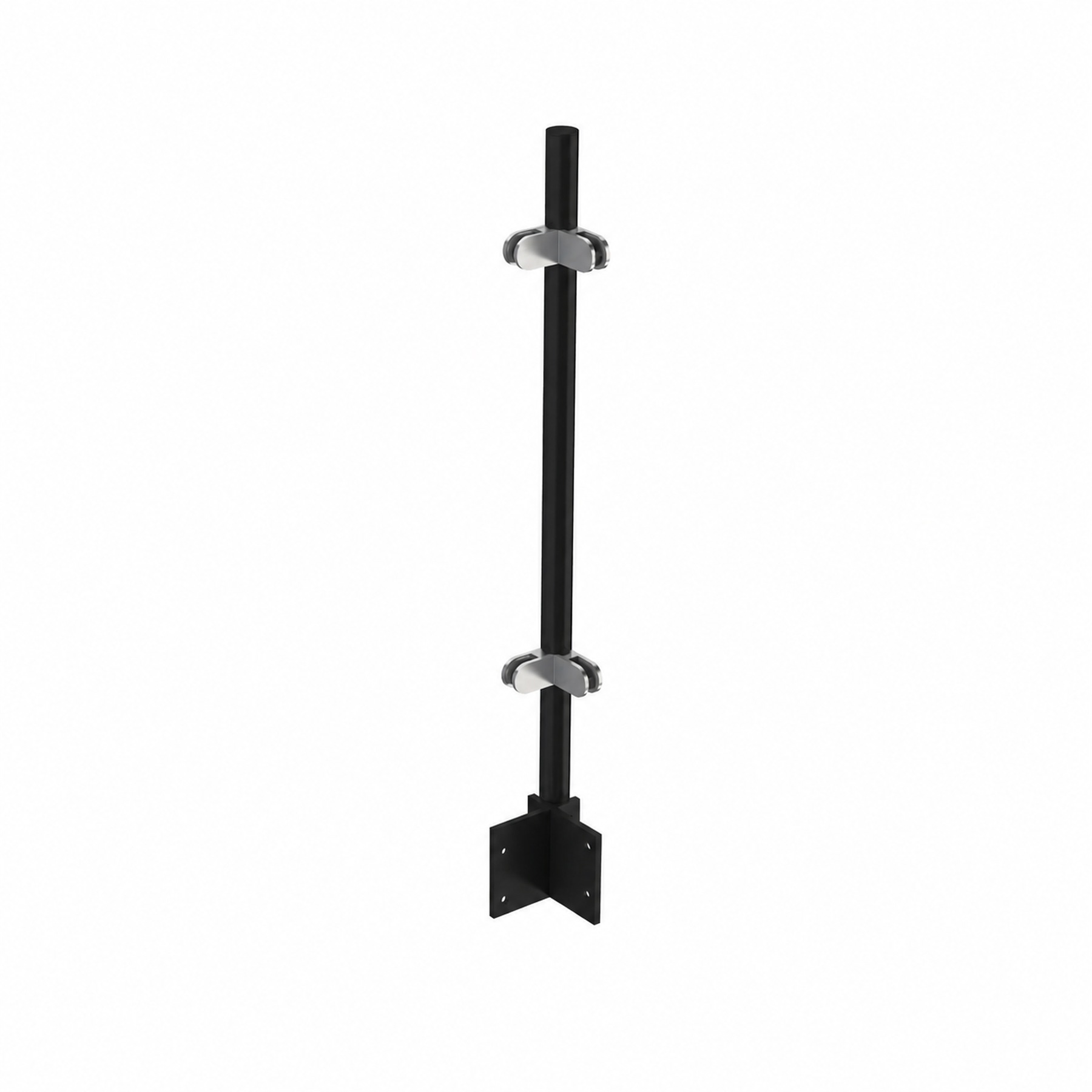

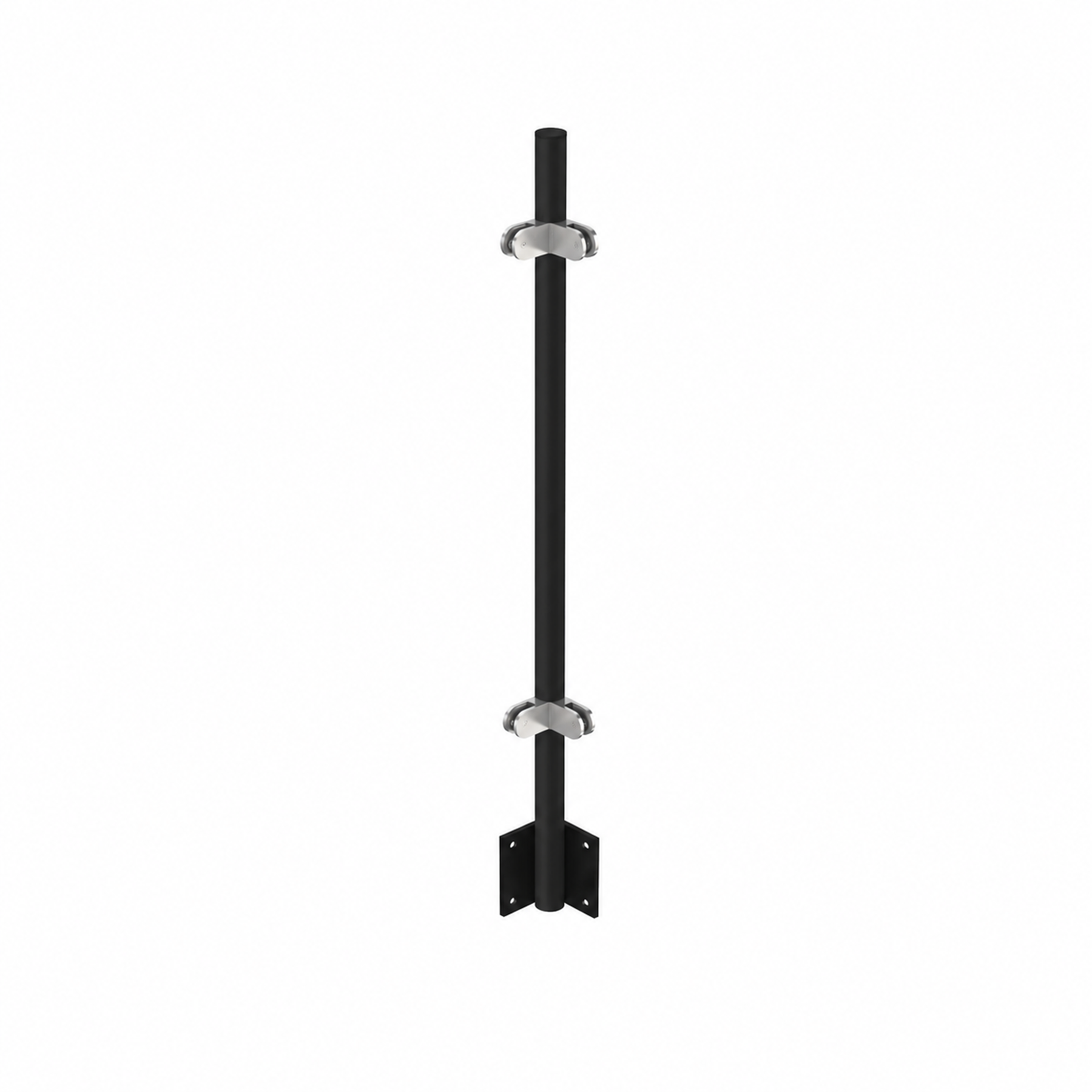

Black Matte Powder Coat over 304 SS; 316 Satin Stainless Steel; Black Matte Powder Coat over 304 SS & Glass Clamps |
What Is Included in the Kit?
Important Installation Notes
-
Glass panels are not included. Glass must be provided by a local vendor.
-
Fascia mounting anchors are not included. Due to the variety of mounting surfaces, customers must supply the appropriate connecting hardware, including screws, bolts, anchor bolts, or other project-specific fasteners.
- Anchor selection must be based on the mounting surface, including fascia framing, concrete, steel, wood blocking, or other approved structural substrates.
- Stair posts and other custom posts require an additional fee to account for custom post fabrication and CAD drawings specific to the customer field measurements when necessary.
- Custom fabrication requires a minimum of 1–2 weeks for production.
- Guardrail height, glass type, post spacing, fascia location, anchoring, and other structural requirements must be verified against local code and project-specific engineering.
- For coastal or high-corrosion environments, stainless steel must be cleaned and maintained regularly.
