Glass Clamp - Square Clamp for Round Tubing

  • Img 9316
  • Gcsr.217.167
  • Notch square clamp
Glass Clamp - Square Clamp for Round Tubing

Customer Reviews

Average rating:

(based upon 0 reviews)

Write your own review

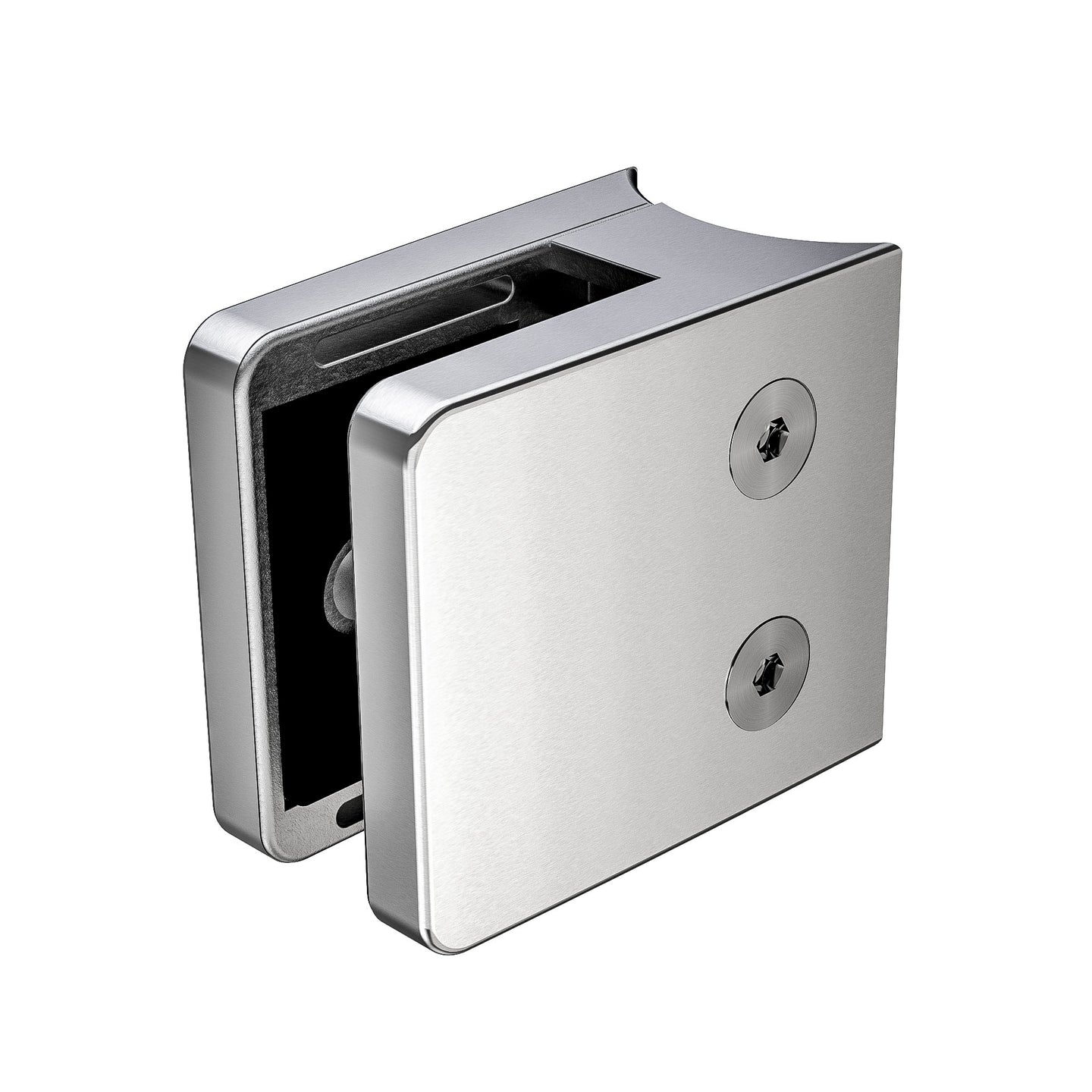

The Stainless Steel Square Glass Clamp for Round Tubing is a part of our Chicago Round style glass railing system. This stainless steel square glass clamp secures to a round tube to ensure a railing system that is sleek in design, easy to install and still safe and sturdy upon completion.

  • Stainless Steel
  • Square shape 2.17" x 2.17"
  • Secures a round tube of  Ø 1.67"
  • Suitable for Glass Thickness of 3/8" thru 1/2"
  • Satined/Brushed Finish
  • Stainless Steel AISI 316

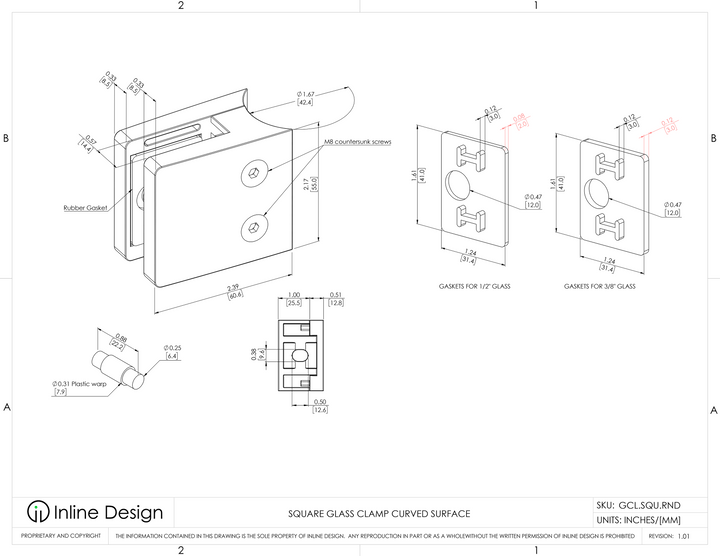

This clamp comes with a safety pin for the glass panels. Using the safety pin is highly recommended. Glass thicknesses vary depending on the glass manufacturer. Inline Design is not liable for any slippage for failing to use the glass safety pin. Please refer the drawing for notch dimensions to use the glass safety pin.

For a complete look at our Chicago Round system click on the following link: Chicago Round

For installation instruction, click the links below:

 Notch Specs for Square Clamp PDF

Installation PDF         Installation YouTube Video


Was $20.00
Save $4.00 (20%)

SKU: GCSR.217.167
