Stainless Steel Square Pivot Flange

Name: Stainless Steel Square Pivot Flange
Brand: Inline Design
SKU: PVT.FLG.SQR
Price: 92.46 USD
Availability: InStock

PVT.FLG.SQR

$123.28 $92.46 Save 25%

Shipping calculated at checkout.

Quantity

[{"id":36606836605091,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"PVT.FLG.SQR","requires_shipping":true,"taxable":true,"featured_image":{"id":20925942169763,"product_id":5764891967651,"position":2,"created_at":"2021-01-20T08:07:32-08:00","updated_at":"2021-01-20T08:07:32-08:00","alt":null,"width":1955,"height":1955,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0481\/5798\/2883\/products\/0_18_22bdbb7a-adbc-48ef-a2e1-4c4868f67af4.jpg?v=1611158852","variant_ids":[36606836605091]},"available":true,"name":"Stainless Steel Square Pivot Flange","public_title":null,"options":["Default Title"],"price":9246,"weight":948,"compare_at_price":12328,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":13100591841443,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1955,"width":1955,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0481\/5798\/2883\/products\/0_18_22bdbb7a-adbc-48ef-a2e1-4c4868f67af4.jpg?v=1611158852"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

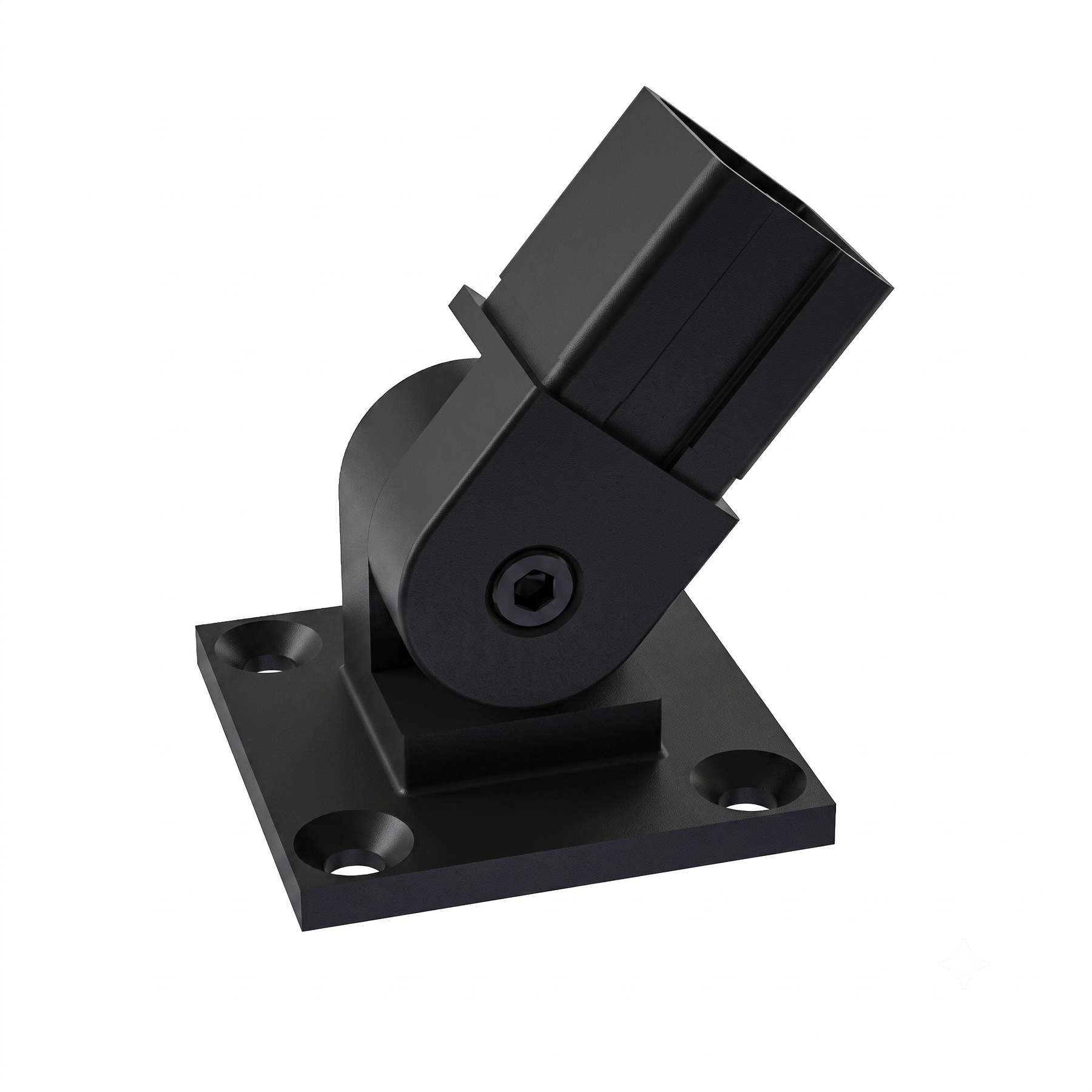

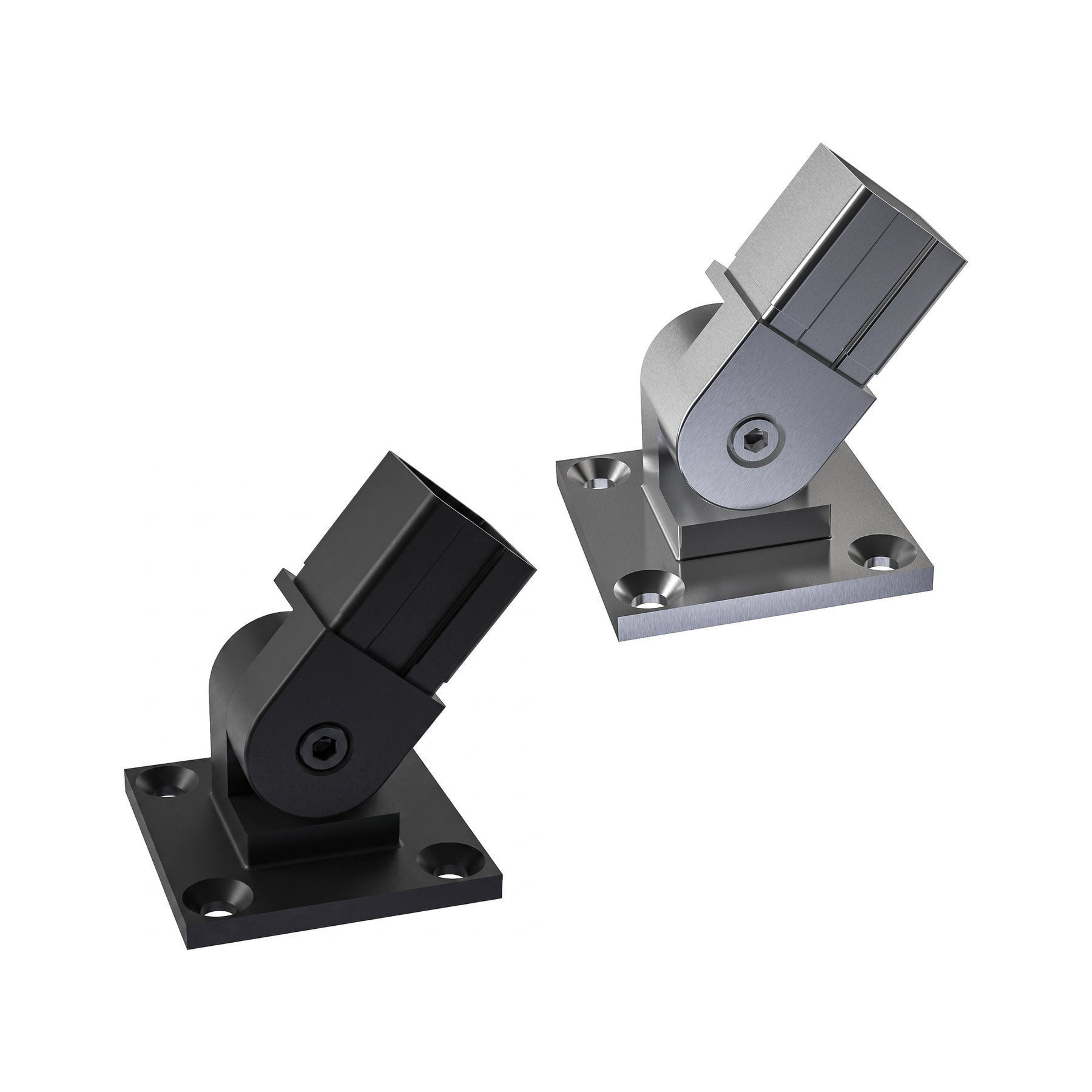

Stainless Steel Square Pivot Flange for 1.57" square tubing of gauge 14. This flange is used for installing posts on inclined surfaces like stairs stringer or for connecting handrails to inclined surfaces.

Projects Gallery

Our Flush angles and handrail tube fittings are design to have a seamless transition to our posts and and handrail tubes. Designed for a flush fit to provide you with a simple and clean way to join tubes together to meet meet the structural strength requirements for handrail, guardrails and ADA rails.

Installation is quick and easy, simply glue the ends with a high strength epoxy glue (i.e. JBWeld) and insert into your tube and leave to set

Round Tubing

Tube Outside diameter: 1.67”
Tube Inside diameter: 1.57”
Tube thickness: 0.102"
Dimensional Drawing

Square Tubing

Tube Outside dimensions: 1.57" x 1.57"
Tube Inside dimensions: 1.47” x 1.47”
Tube thickness: 0.102"
Dimensional Drawing

What is included in the kit?

(1) Fitting or Flush Angle or Fitting

Details:

Supports ADA requirements
For Commercial or Residential
ANSI 316 Stainless Steel
Finish ASTM A480 No 4 linearly textured satin finish

Links & Downloadable materials:

Square Fittings:

Flush Angle 90º Female/Male - FA2.090.157 - Dimensional Drawing
Flush Angle 90º Male/Male - FA.090.157 - Dimensional Drawing
Flush Angle 180º - FA.180.157 - Dimensional Drawing
Flush Angle - Adjustable - FAA.000.157 - Dimensional Drawing
Pivot Flange - PVT.FLG.SQR - Dimensional Drawing
Base Flange Sleeve - BFS.167.000 - Dimensional Drawing
Wall Flange - SFL.157.000 - Dimensional Drawing
Base Cover - BC.157.001 - Dimensional Drawing

Round Fittings:

Flush Angle 90º Male/Male - FA2.090.167 - Dimensional Drawing
Flush Angle 90º Female/Male - FA3.090.167 - Dimensional Drawing
Flush Angle 135º - FA.135.167 - Dimensional Drawing
Flush Angle - 180º - FA.180.167 - Dimensional Drawing
Flush Angle Adjustable - FAA.000.167 - Dimensional Drawing
Pivot Flange - PF.167.000 - Dimensional Drawing
Wall Flange - WF.167.000 - Dimensional Drawing
Base Cover - BC.167.000 - Dimensional Drawing
Round Tube Adapter - TAD.167.001 - Dimensional Drawing
