Tip Sheet - Installing Handrail Bracket - Pyramid

Overview

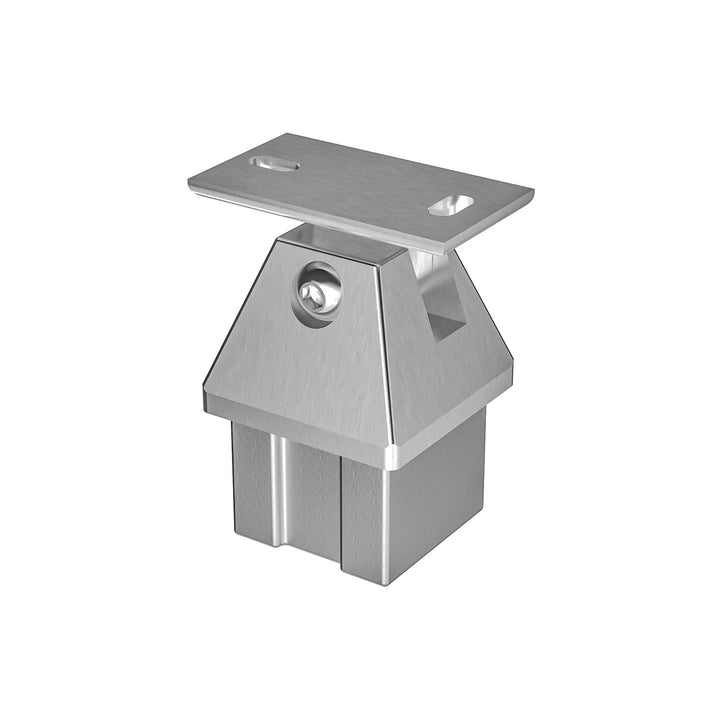

These instructions will provide step-by-step installation guidelines for installing the Stainless Steel Handrail Bracket Square Pyramid into a square tube steel post. This bracket's intended used is for our cable, glass, or bar railing system.

Caution: Wear protective ANSI approved safety glasses, working gloves and breathing mask all the times.


Tools Required

1)  JB Weld glue (found at any local hardware store)
2)  Weighted rubber hammer
3)  Thick piece of steel
4)  Pyramid Handrail Bracket - Link

Installation Instructions

  1. Remove the saddle from bracket
  2. Apply JBWeld to the inside of the post
  3. Align the bracket
  4. Pound the bracket lightly into the post with a rubber hammer just enough to slightly stabilize it
  5. Slide in a thick piece of steel like shown in the picture and tap this introduced piece mallet until it is completely inserted.

NOTE: If the bracket doesn’t align properly you can pound it out using a 1” rod from the bottom of the post. Be careful not to hit any of the tube threading while inserting the rod. Do this over a piece of cloth so that they bracket does not get scratched when it is pounded out.



Downloads:

 Download Instructions


NOTE: A small amount of surface corrosion is not uncommon after some exposure to weather or salty conditions; we recommend using our passivation solution or a stainless steel polish to prevent surface corrosion; more information available on our Engineering Specs Page
