Square Wall Flange

Name: Square Wall Flange
Brand: Inline Design Group
SKU: SFL.157.000
Price: 30.0 USD
Availability: InStock

SFL.157.000

$30.00

Shipping calculated at checkout.

Quantity

[{"id":36606834901155,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"SFL.157.000","requires_shipping":true,"taxable":true,"featured_image":{"id":19453471031459,"product_id":5764891541667,"position":2,"created_at":"2020-10-13T10:28:05-07:00","updated_at":"2020-10-13T10:28:05-07:00","alt":null,"width":1955,"height":1955,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0481\/5798\/2883\/products\/square-flange_ceef9d75-5dff-4dc5-9f83-e6ccd1cb1aa4.jpg?v=1602610085","variant_ids":[36606834901155]},"available":true,"name":"Square Wall Flange","public_title":null,"options":["Default Title"],"price":3000,"weight":680,"compare_at_price":3000,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":11627224531107,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1955,"width":1955,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0481\/5798\/2883\/products\/square-flange_ceef9d75-5dff-4dc5-9f83-e6ccd1cb1aa4.jpg?v=1602610085"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

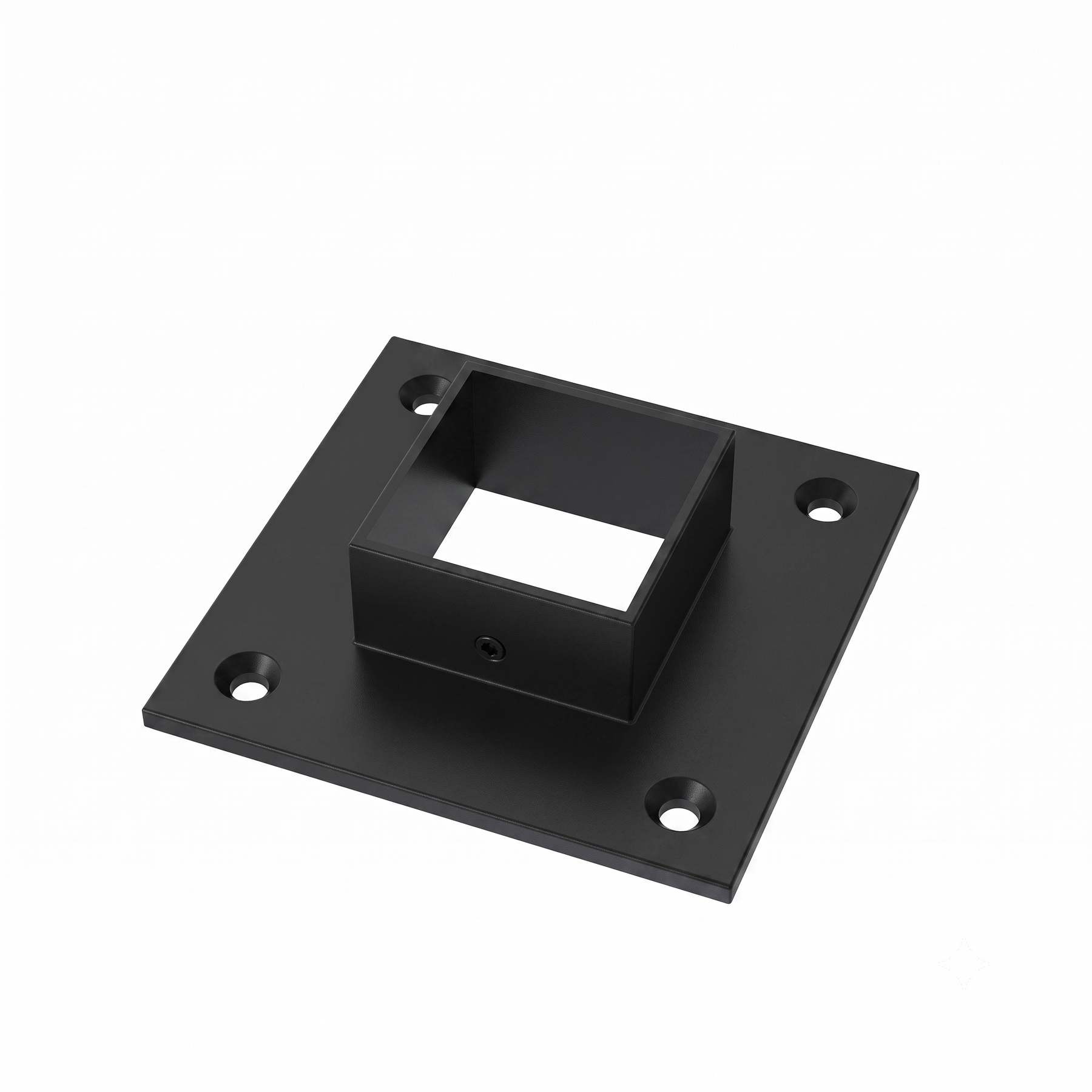

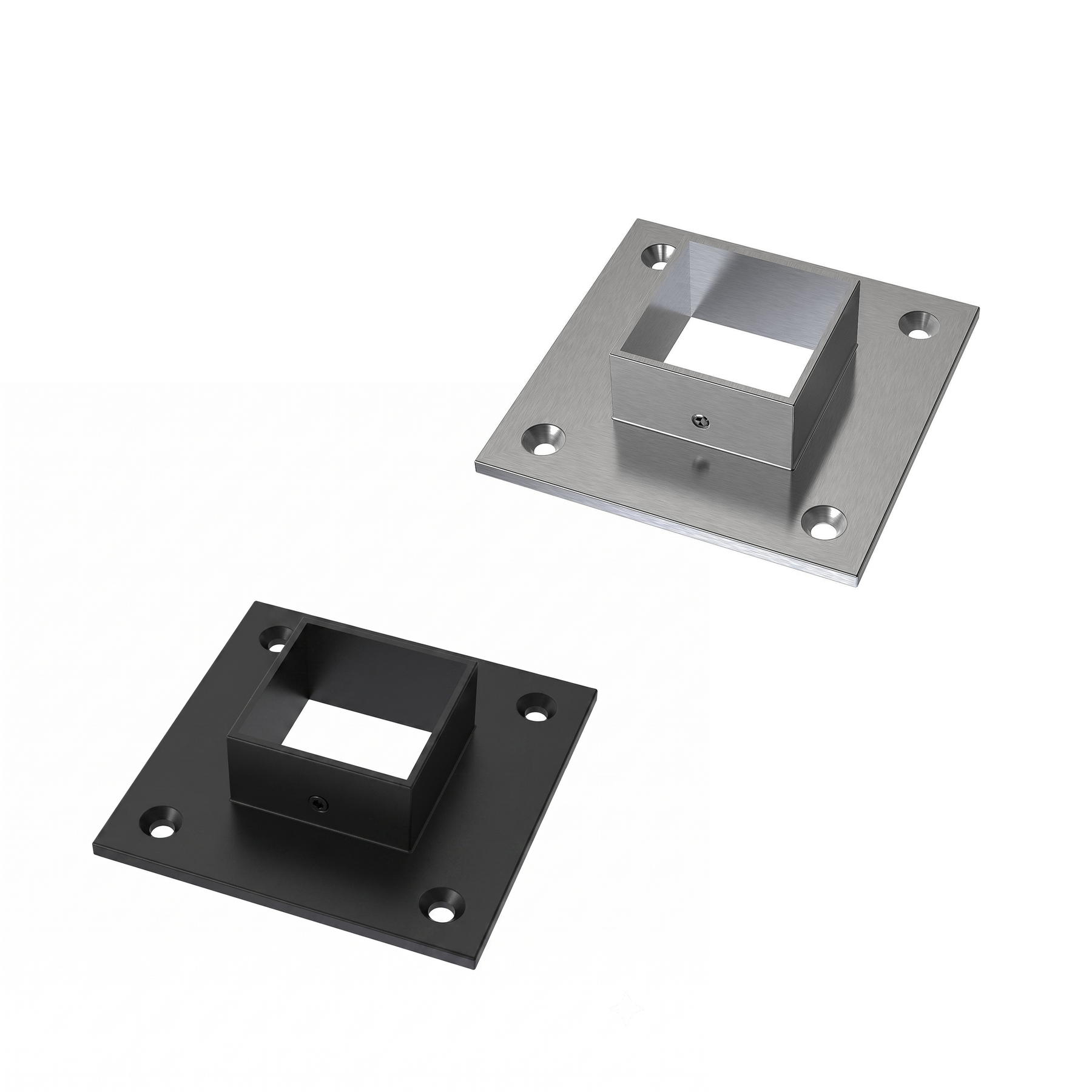

Stainless Steel Square Wall Flange for square posts or handrails of size 1.57" Dimension of the flange: 3.125" x 3.125”. This flange is used for installing posts and handrails on flat surfaces like balconies or decks. If the base cover is needed, please refer to the Stainless Steel Pivot Flange for Square tubing or the Stainless Steel Base Flange for Square tubing

Our Flush angles and handrail tube fittings are design to have a seamless transition to our posts and and handrail tubes. Designed for a flush fit to provide you with a simple and clean way to join tubes together to meet meet the structural strength requirements for handrail, guardrails and ADA rails.

Installation is quick and easy, simply glue the ends with a high strength epoxy glue (i.e. JBWeld) and insert into your tube and leave to set

Round Tubing

Tube Outside diameter: 1.67”
Tube Inside diameter: 1.57”
Tube thickness: 0.102"
Dimensional Drawing

Square Tubing

Tube Outside dimensions: 1.57" x 1.57"
Tube Inside dimensions: 1.47” x 1.47”
Tube thickness: 0.102"
Dimensional Drawing

What is included in the kit?

(1) Fitting or Flush Angle or Fitting

Details:

Supports ADA requirements
For Commercial or Residential
ANSI 316 Stainless Steel
Finish ASTM A480 No 4 linearly textured satin finish
