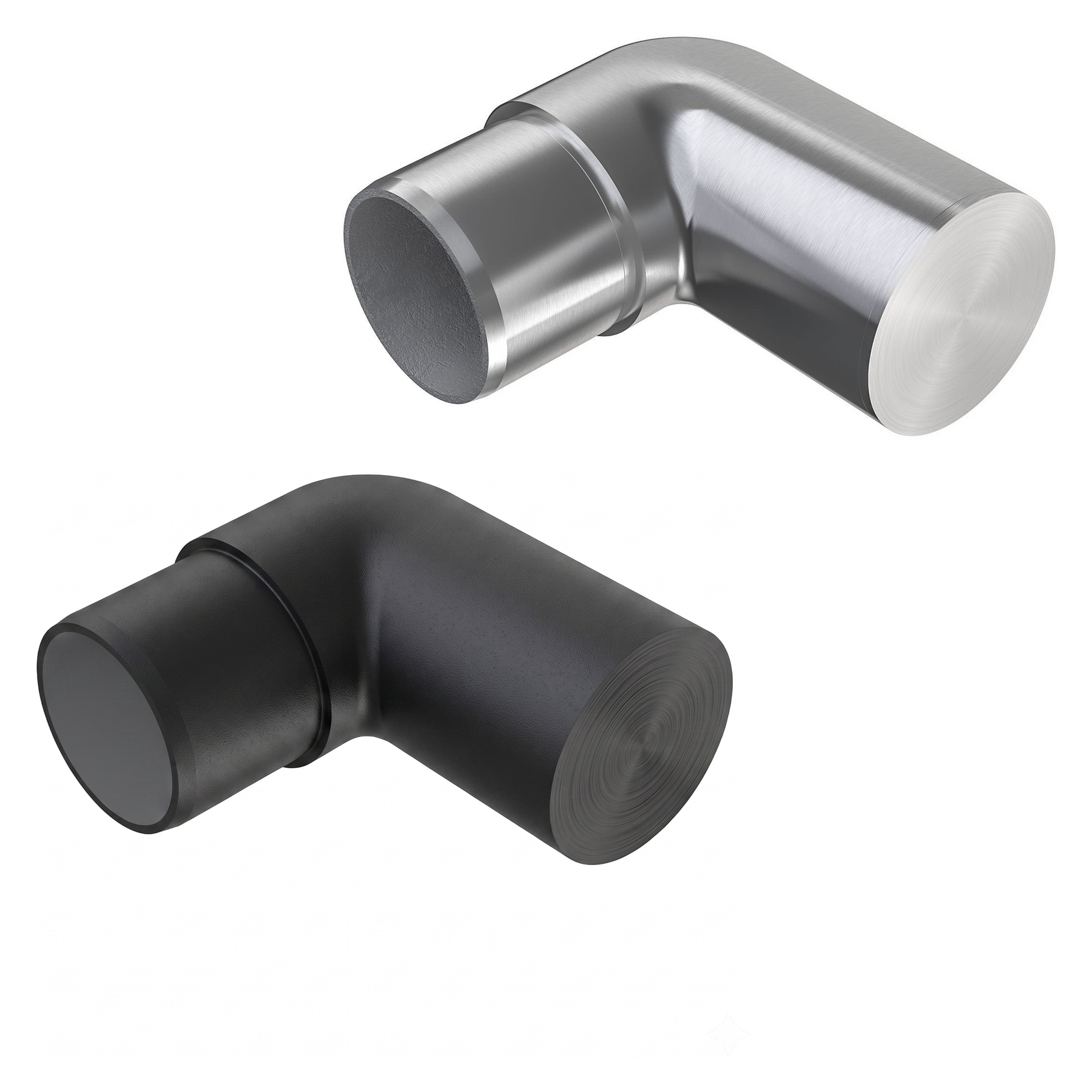

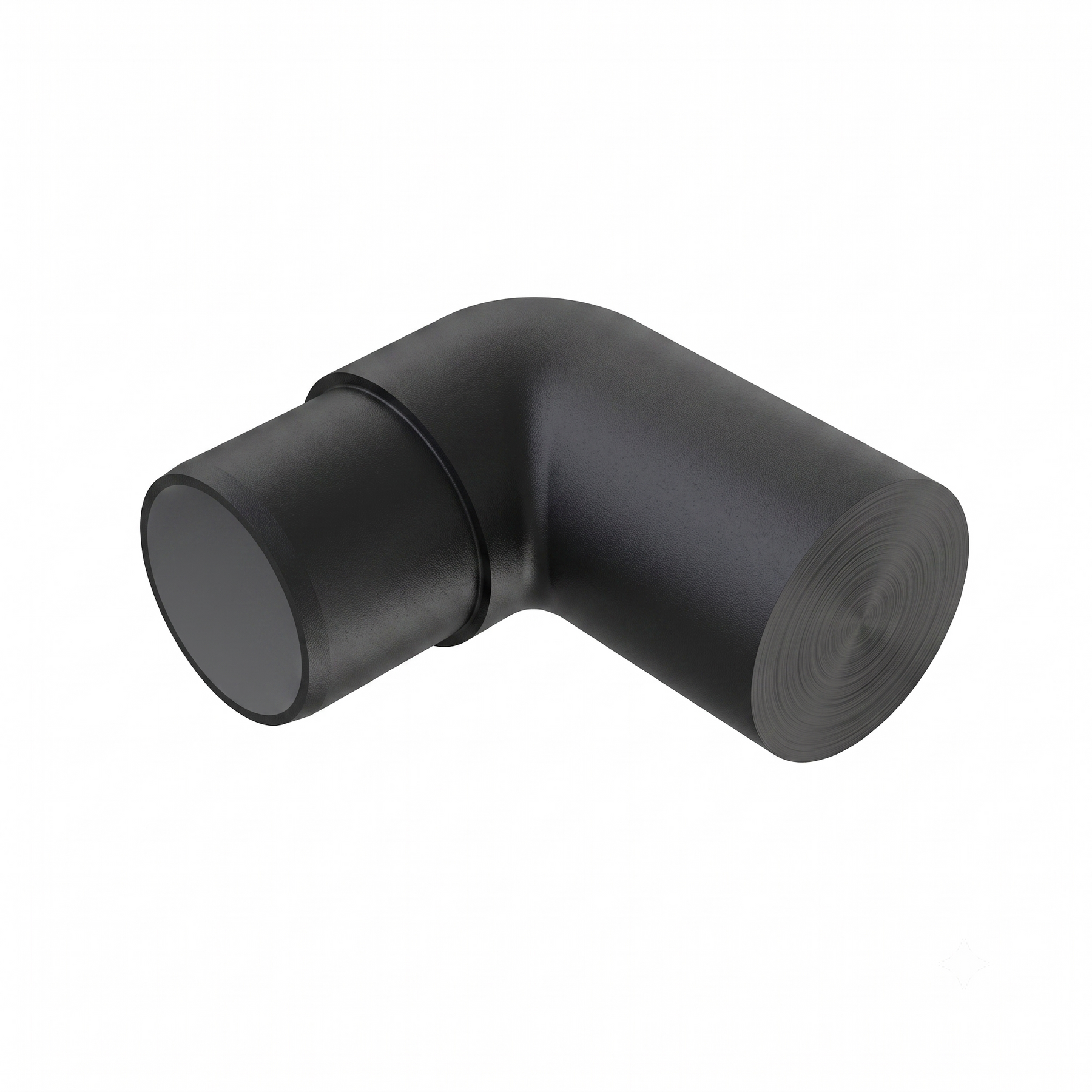

Round End Cap - 90 degree Wall Return

Name: Round End Cap - 90 degree Wall Return
Brand: Inline Design
SKU: FA5.090.167
Price: 37.0 USD
Availability: InStock

FA5.090.167

$37.00

Shipping calculated at checkout.

Quantity

[{"id":36607644762275,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"FA5.090.167","requires_shipping":true,"taxable":true,"featured_image":{"id":20925937942691,"product_id":5765104402595,"position":2,"created_at":"2021-01-20T08:07:18-08:00","updated_at":"2021-01-20T08:07:18-08:00","alt":null,"width":1955,"height":1955,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0481\/5798\/2883\/products\/stainless-steel-90-degree-flush-angle-elbow-round_d579fb15-68d6-4803-b0a5-3ff70c45a350.jpg?v=1611158838","variant_ids":[36607644762275]},"available":true,"name":"Round End Cap - 90 degree Wall Return","public_title":null,"options":["Default Title"],"price":3700,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":13100587581603,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1955,"width":1955,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0481\/5798\/2883\/products\/stainless-steel-90-degree-flush-angle-elbow-round_d579fb15-68d6-4803-b0a5-3ff70c45a350.jpg?v=1611158838"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

A streamlined look is achieved with the use of flush fittings. Our component options ensure simple assembly and flexibility to accommodate any project. Our full line of flush fittings feature a 1" long sleeve for added strength and maximize the coverage when using epoxy adhesive. Made of ANSI 316 Stainless Steel the Flush Angle 90º round wall return for 1.67" round gauge 12 tubing.

Our Flush angles and handrail tube fittings are design to have a seamless transition to our posts and and handrail tubes. Designed for a flush fit to provide you with a simple and clean way to join tubes together to meet meet the structural strength requirements for handrail, guardrails and ADA rails.

Installation is quick and easy, simply glue the ends with a high strength epoxy glue (i.e. JBWeld) and insert into your tube and leave to set

Round Tubing

Tube Outside diameter: 1.67”
Tube Inside diameter: 1.57”
Tube thickness: 0.102"
Dimensional Drawing

Square Tubing

Tube Outside dimensions: 1.57" x 1.57"
Tube Inside dimensions: 1.47” x 1.47”
Tube thickness: 0.102"
Dimensional Drawing

What is included in the kit?

(1) Fitting or Flush Angle or Fitting

Details:

Supports ADA requirements
For Commercial or Residential
ANSI 316 Stainless Steel
Finish ASTM A480 No 4 linearly textured satin finish

Links & Downloadable materials:

Square Fittings:

Flush Angle 90º Female/Male - FA2.090.157 - Dimensional Drawing
Flush Angle 90º Male/Male - FA.090.157 - Dimensional Drawing
Flush Angle 180º - FA.180.157 - Dimensional Drawing
Flush Angle - Adjustable - FAA.000.157 - Dimensional Drawing
Pivot Flange - PVT.FLG.SQR - Dimensional Drawing
Base Flange Sleeve - BFS.167.000 - Dimensional Drawing
Wall Flange - SFL.157.000 - Dimensional Drawing
Base Cover - BC.157.001 - Dimensional Drawing

Round Fittings:

Flush Angle 90º Male/Male - FA2.090.167 - Dimensional Drawing
Flush Angle 90º Female/Male - FA3.090.167 - Dimensional Drawing
Flush Angle 135º - FA.135.167 - Dimensional Drawing
Flush Angle - 180º - FA.180.167 - Dimensional Drawing
Flush Angle Adjustable - FAA.000.167 - Dimensional Drawing
Pivot Flange - PF.167.000 - Dimensional Drawing
Wall Flange - WF.167.000 - Dimensional Drawing
Base Cover - BC.167.000 - Dimensional Drawing
Round Tube Adapter - TAD.167.001 - Dimensional Drawing
