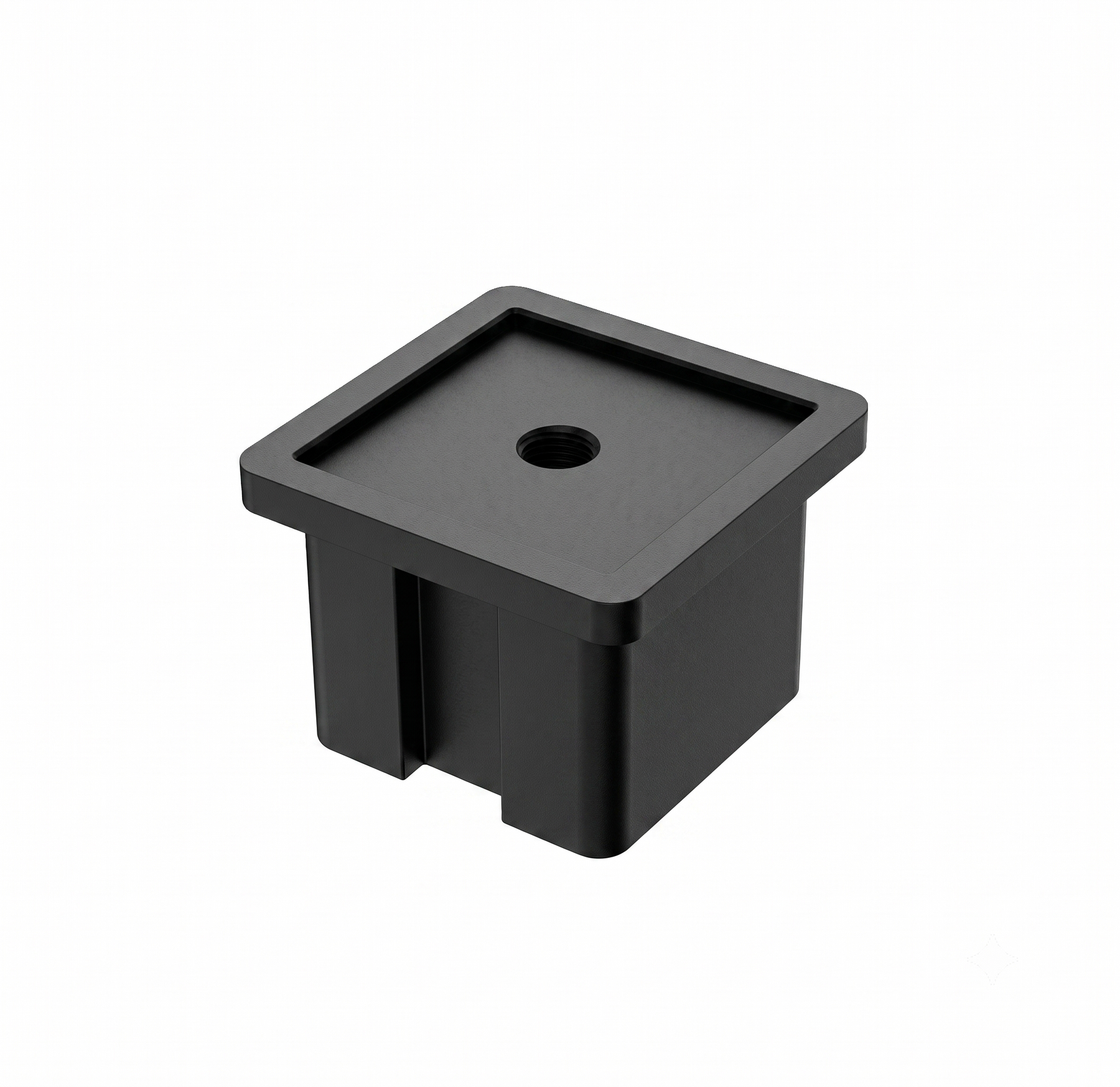

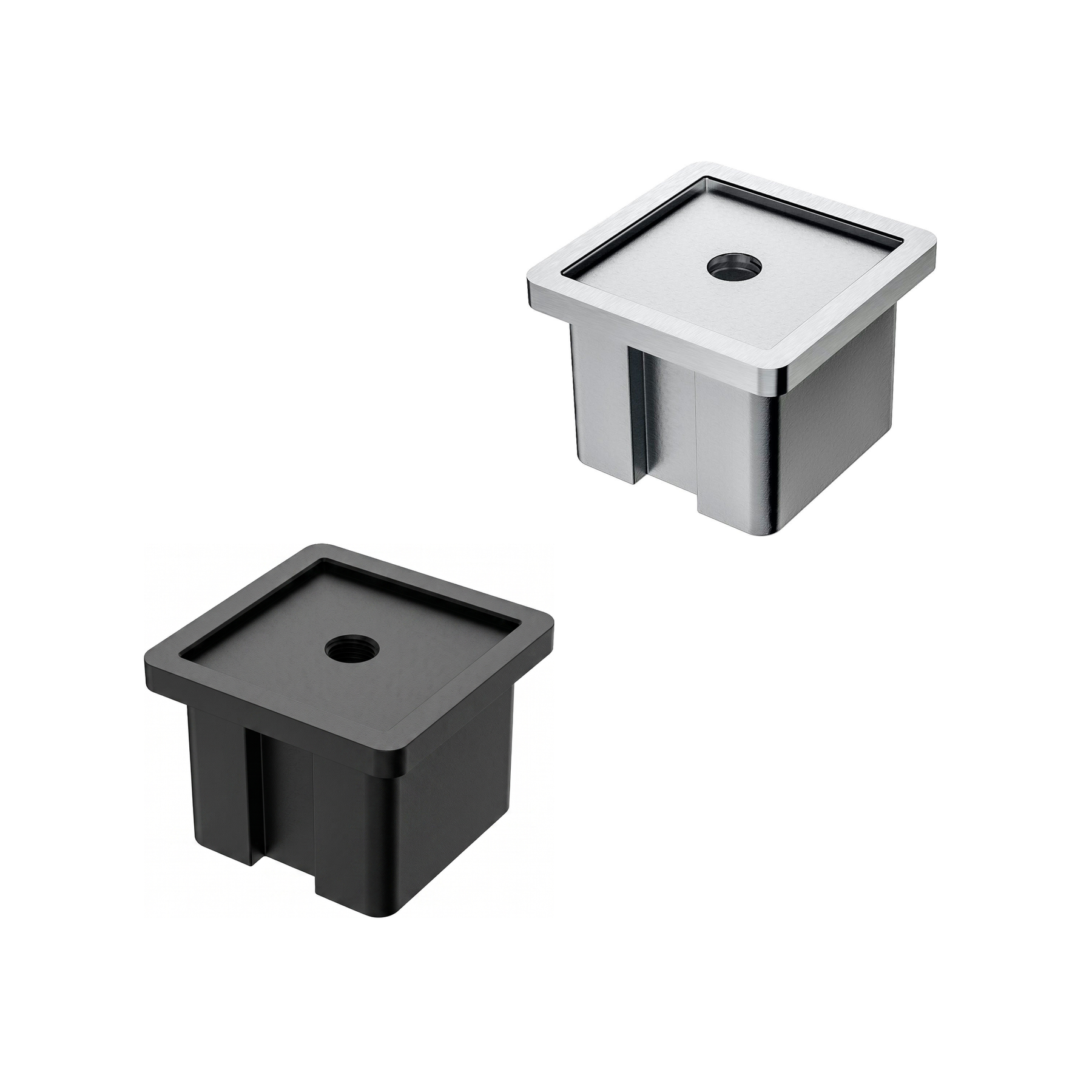

Square End Cap with M8 Thread for 1.57" Tubing - Stainless Steel 316
EC.SQU.026.HOL
Regular price $16.34 Sale price $14.86 Save 9%A streamlined look is achieved with the use of flush fittings. Our component options ensure simple assembly and flexibility to accommodate any project. Made of AISI 316 Stainless Steel the Round End cap with a M8 threaded hole is design to seamlessly 1.57” x 1.57” gauge 12 handrail tubing
Details
- Material: AISI 316 Stainless Steel
- Finish: ASTM A480 No 4 linearly textured Satin Finish
Downloadable Material
Explore our range of modern railing systems including cable railing systems, glass railing systems, and stainless steel railings — perfect for indoor and outdoor applications.
Our Flush angles and handrail tube fittings are design to have a seamless trAISItion to our posts and and handrail tubes. Designed for a flush fit to provide you with a simple and clean way to join tubes together to meet meet the structural strength requirements for handrail, guardrails and ADA rails.
Installation is quick and easy, simply glue the ends with a high strength epoxy glue (i.e.,JBWeld) and insert into your tube and leave to set
- Tube Outside diameter: 1.67”
- Tube Inside diameter: 1.57”
- Tube thickness: 0.102"
- Dimensional Drawing
- Tube Outside dimensions: 1.57" x 1.57"
- Tube Inside dimensions: 1.47” x 1.47”
- Tube thickness: 0.102"
- Dimensional Drawing
- (1) Fitting or Flush Angle or Fitting
