Square Barebone Posts for Custom Railing Fabrication
Inline Design Square Barebone Posts are fabrication-ready railing posts supplied without predrilled holes for railing infill hardware. They give fabricators and design professionals the flexibility to determine the hole pattern, fitting locations, infill system, and handrail configuration required for each project.
These posts are intended for custom applications where a standard predrilled post does not match the architectural design, installation conditions, or selected railing system.
Applications
Square Barebone Posts can be fabricated for:
- Custom cable railing systems
- Custom glass railing systems
- Bar railing and specialty infill systems
- Stainless steel or wood handrail configurations
- Mixed-material railing systems
- Replacement or extension posts requiring a custom hole pattern
- Residential decks, balconies, porches, stairs, and interior railings
- Commercial, hospitality, and architectural railing projects
- Surface-mounted and fascia-mounted installations
- End, middle, inside-corner, and outside-corner locations
Intended Users
These posts are designed primarily for:
- Railing and metal fabricators
- General contractors and builders
- Architects and interior designers
- Professional railing installers
- Architectural metal contractors
- Experienced installers equipped to drill and fabricate stainless steel
These are not predrilled, plug-and-play railing posts. The installer or fabricator is responsible for drilling, fitting placement, final fabrication, anchoring, and installation according to the project drawings and applicable building-code requirements.
Available Configurations
-
Nominal railing heights: 36" and 42"
-
Post profile: 1 9/16" square, nominal 40 × 40 mm
-
Post wall thickness: 2.6 mm
- Surface Mount

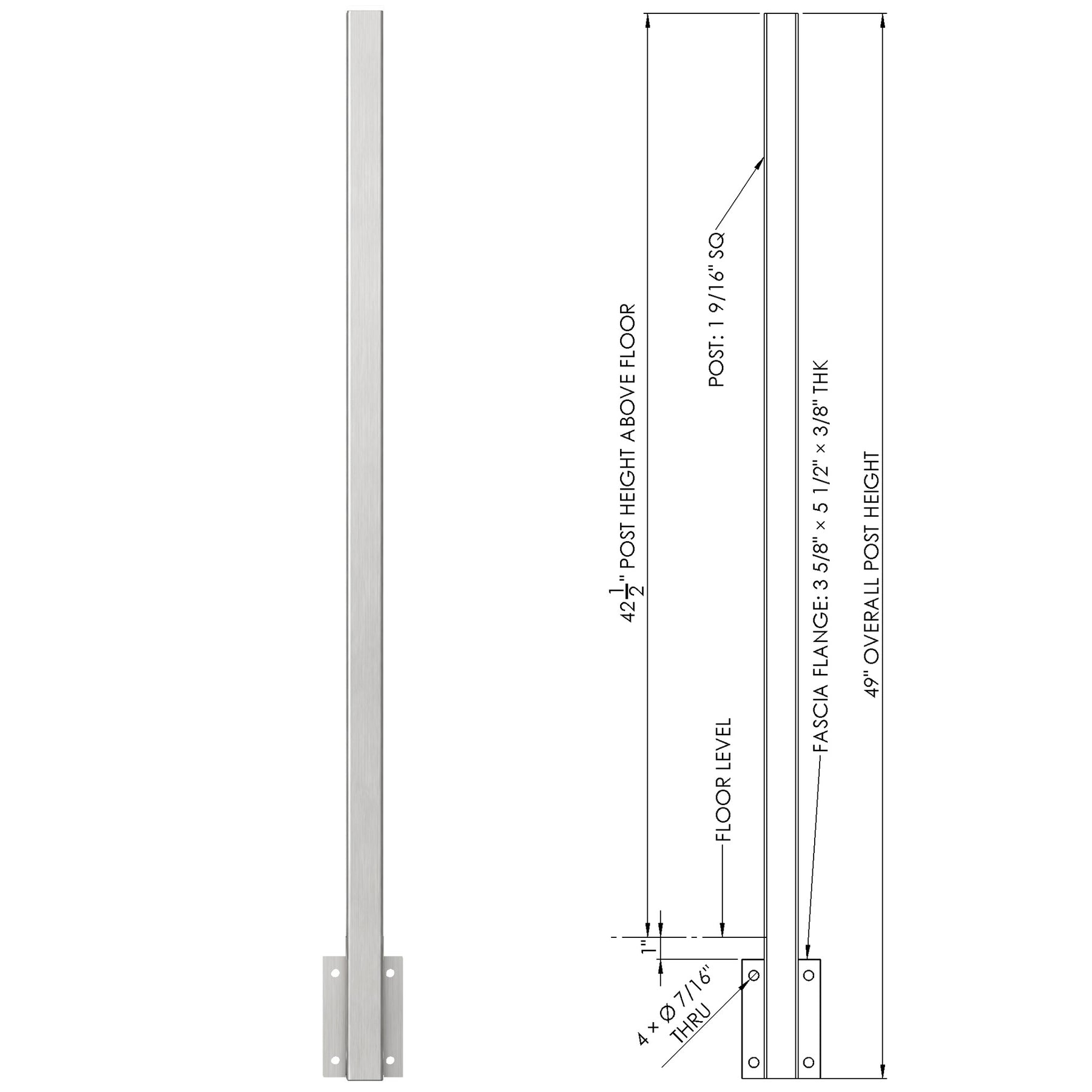

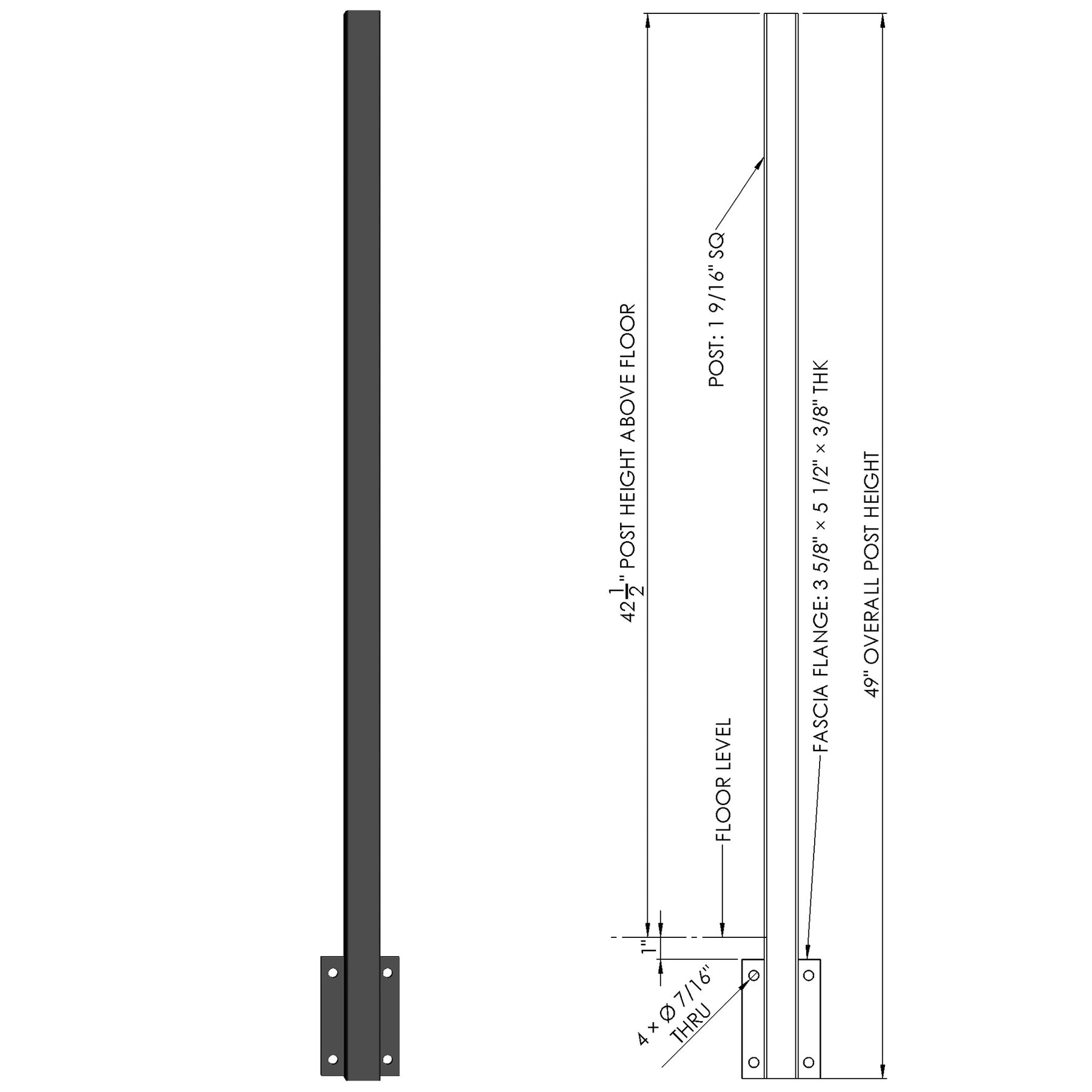

- Straight Fascia Mount for end or middle locations

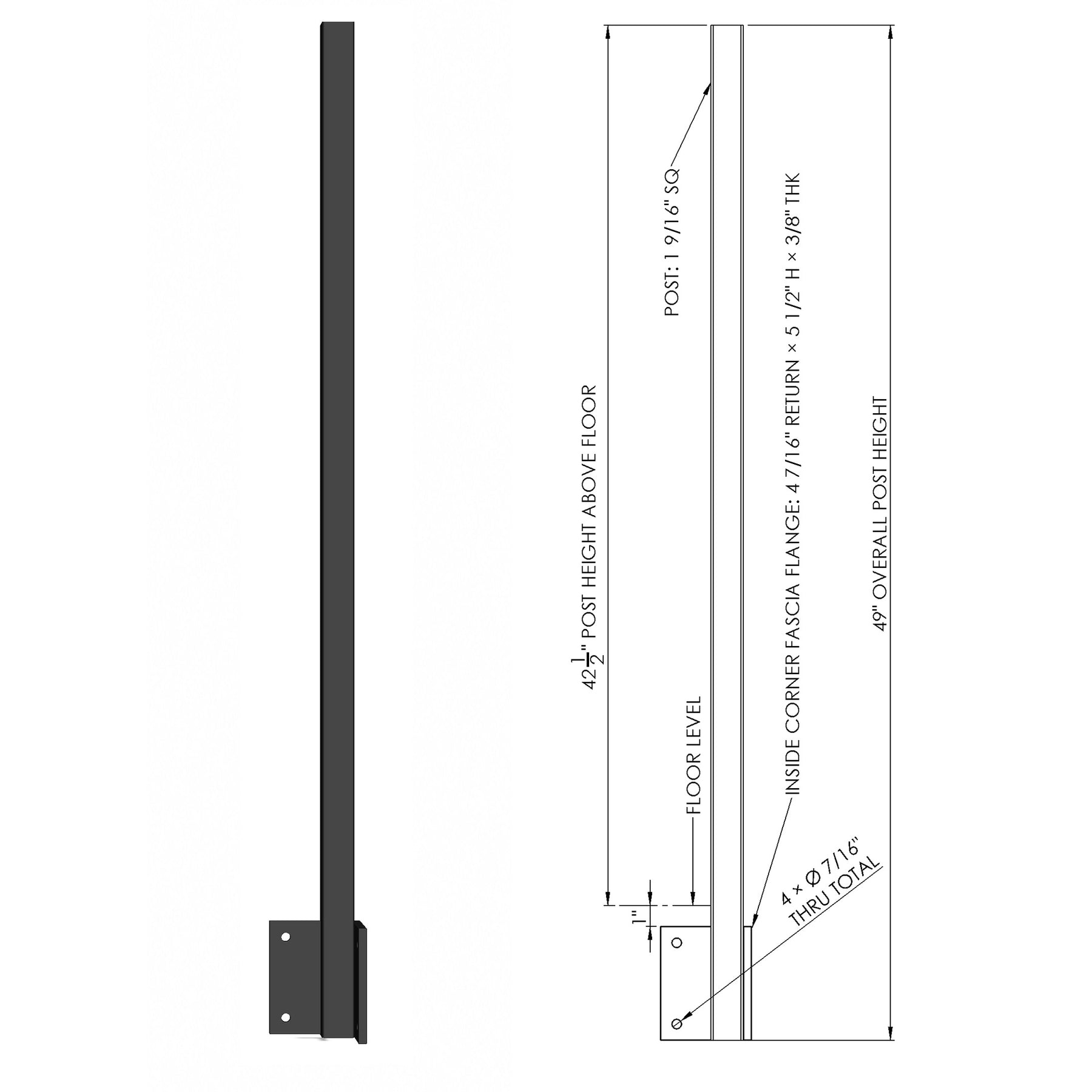

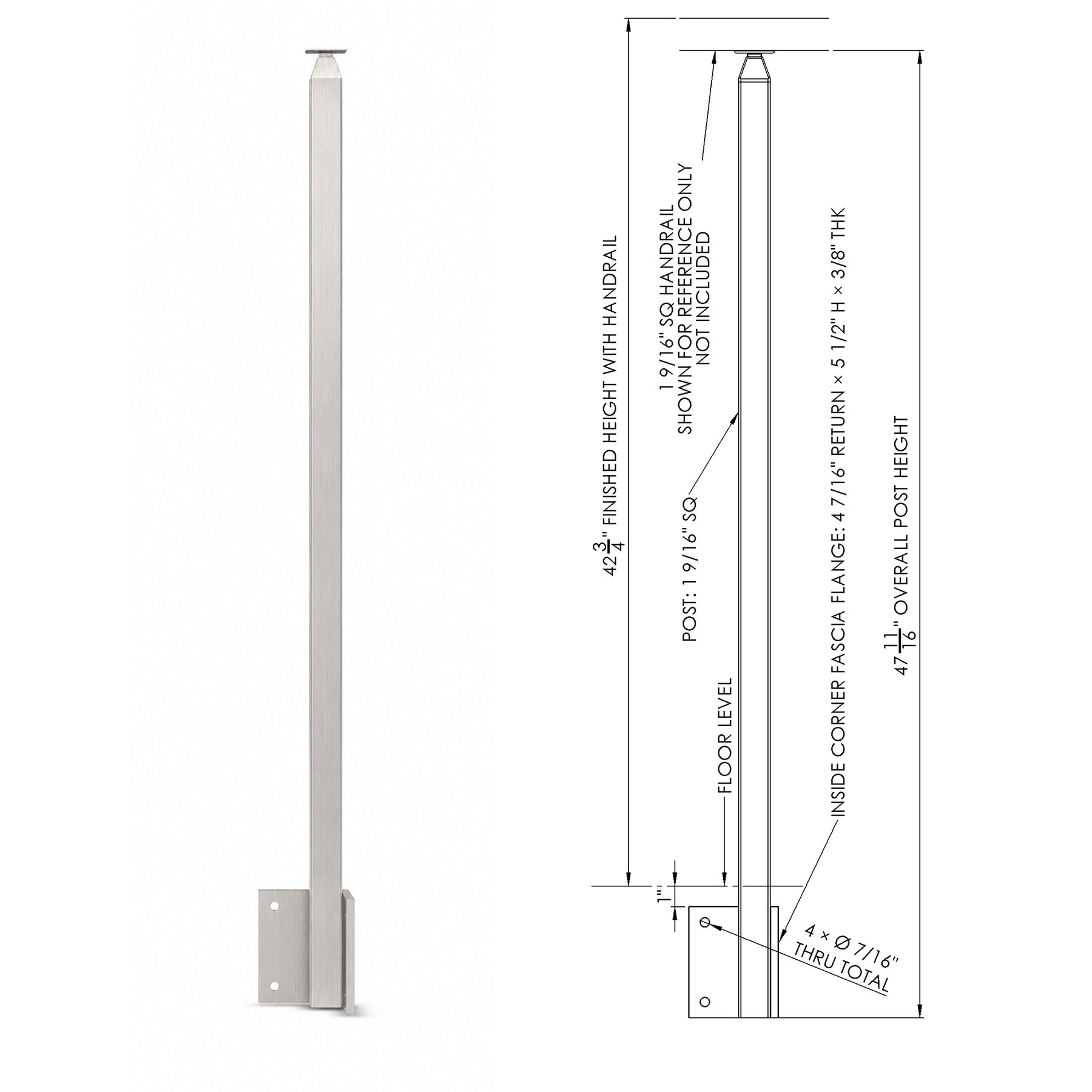

- Inside-Corner Fascia Mount
- Outside-Corner Fascia Mount
- Available with or without an adjustable pyramid handrail bracket
Materials and Finishes
-
Satin finish: AISI 316 stainless steel with a satin brushed finish
-
Black Matte finish: AISI 304 stainless steel with a black matte powder-coated finish
Mounting and Height Information

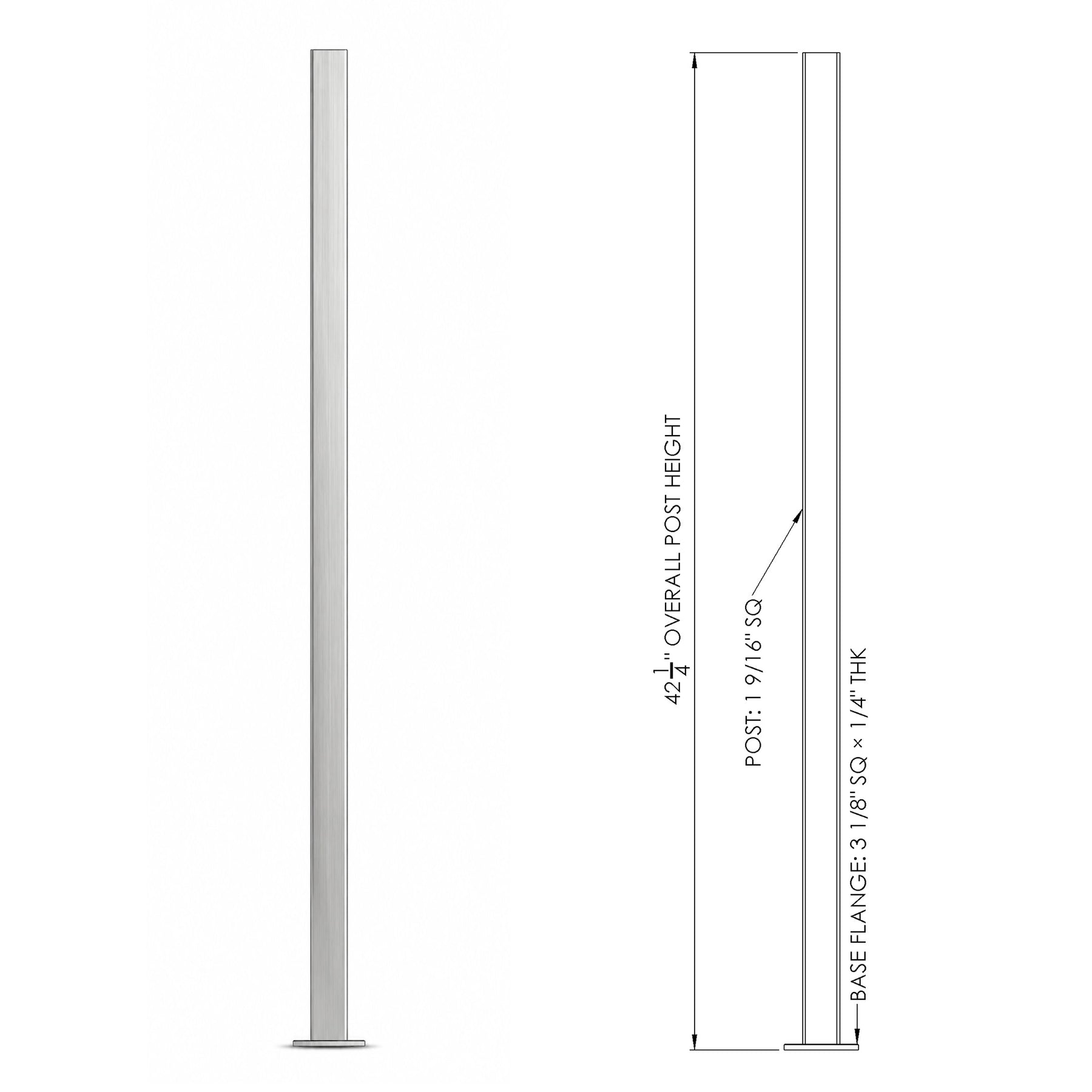

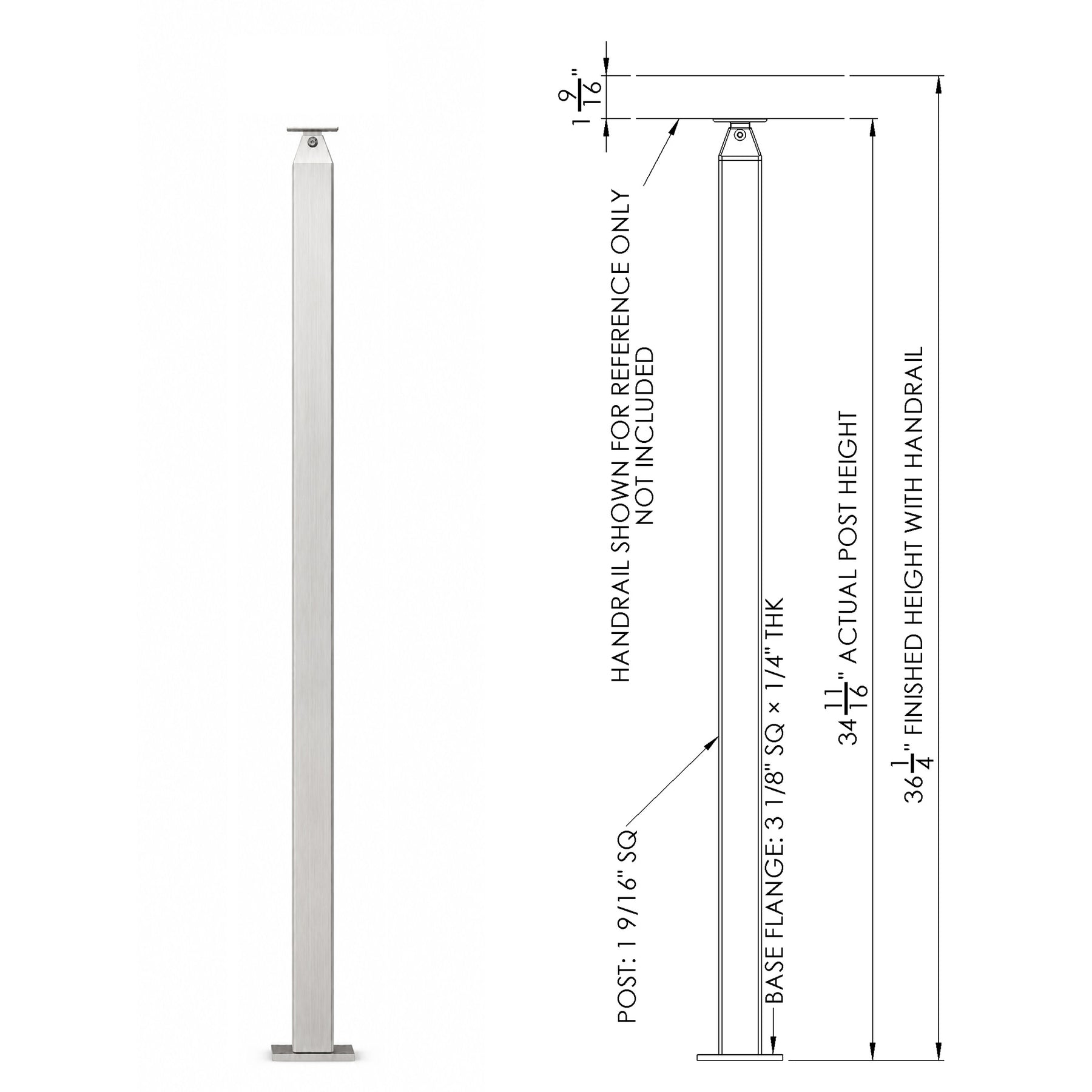

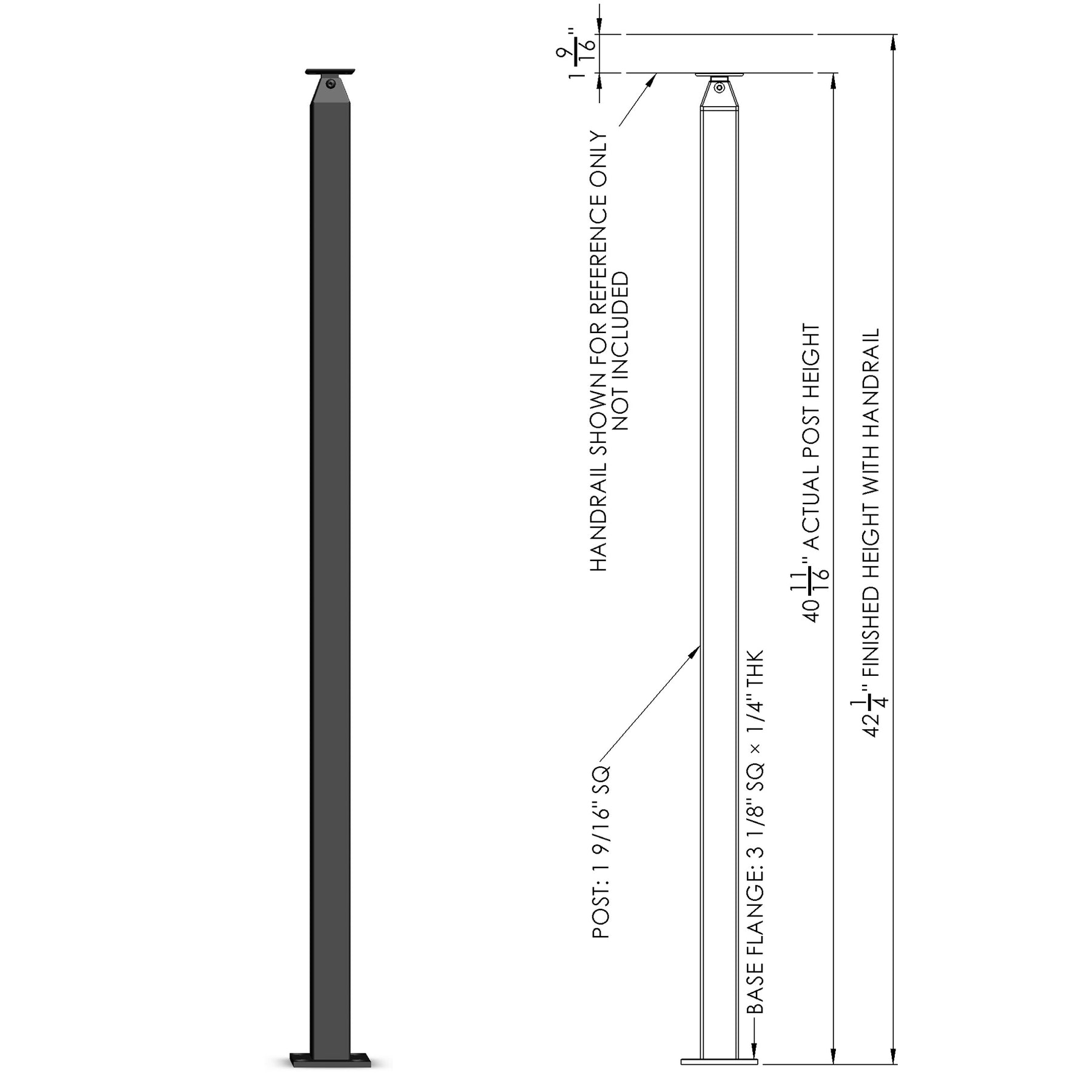

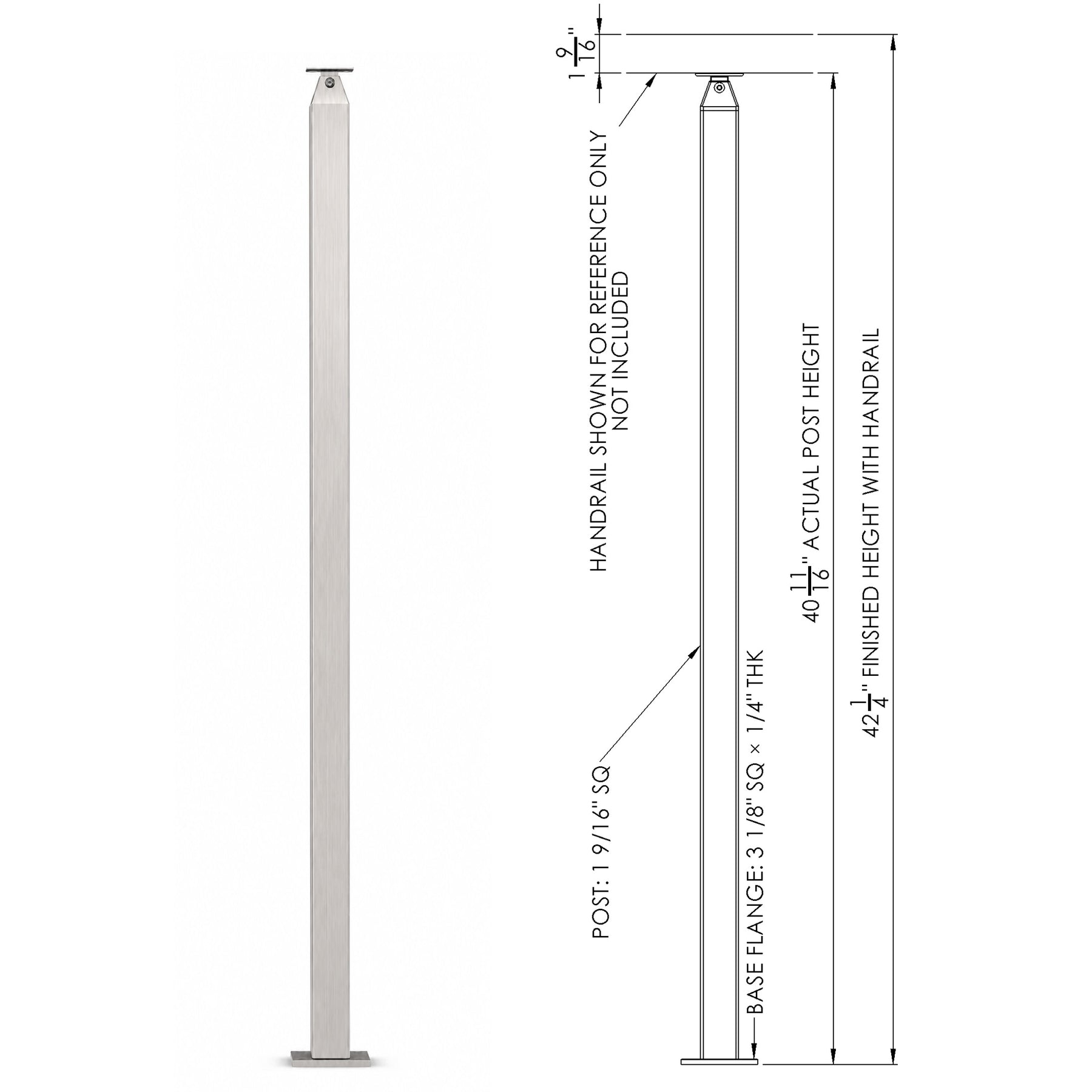

Surface-mount posts include the post and welded base flange.
Fascia-mount posts include the post and the selected straight, inside-corner, or outside-corner fascia flange.

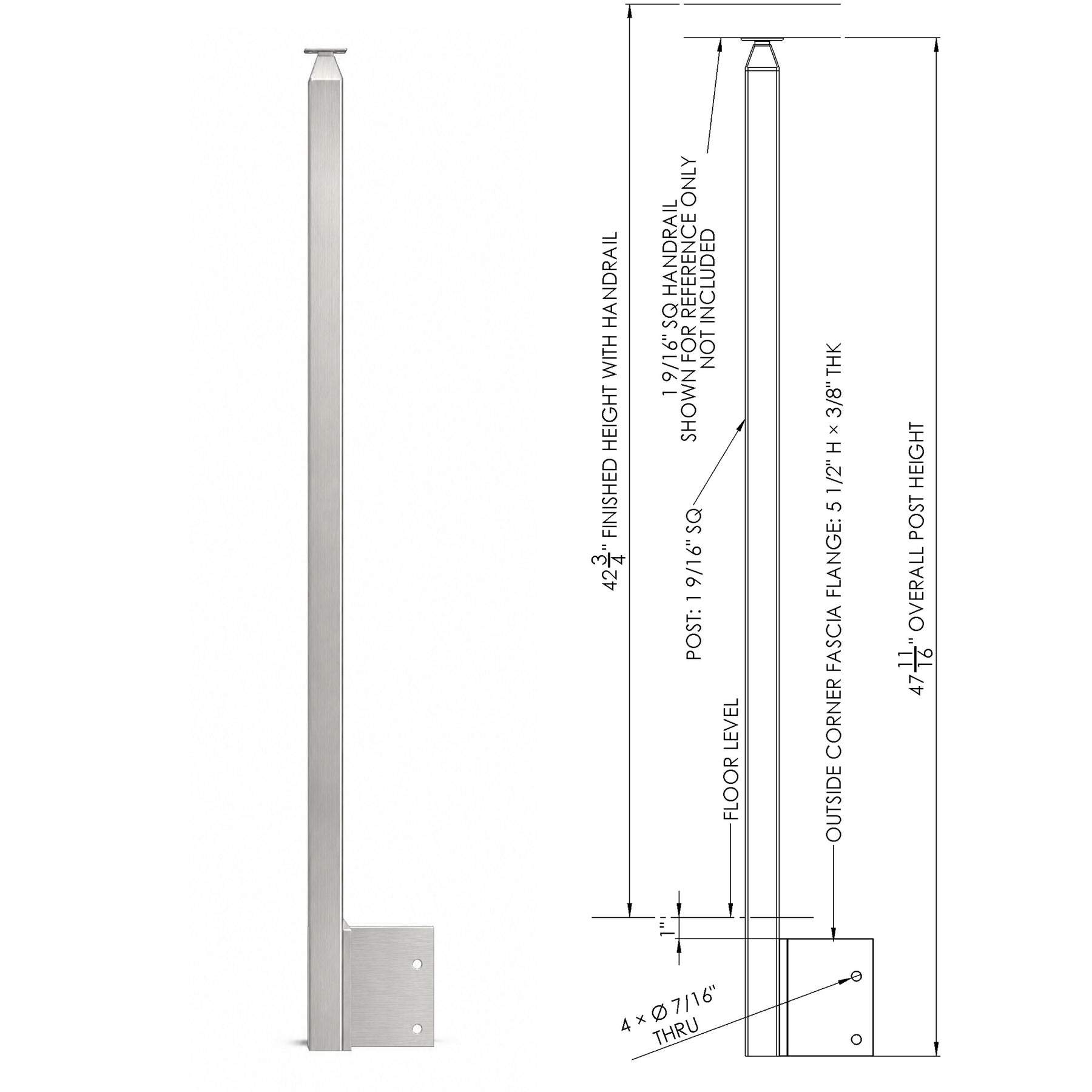

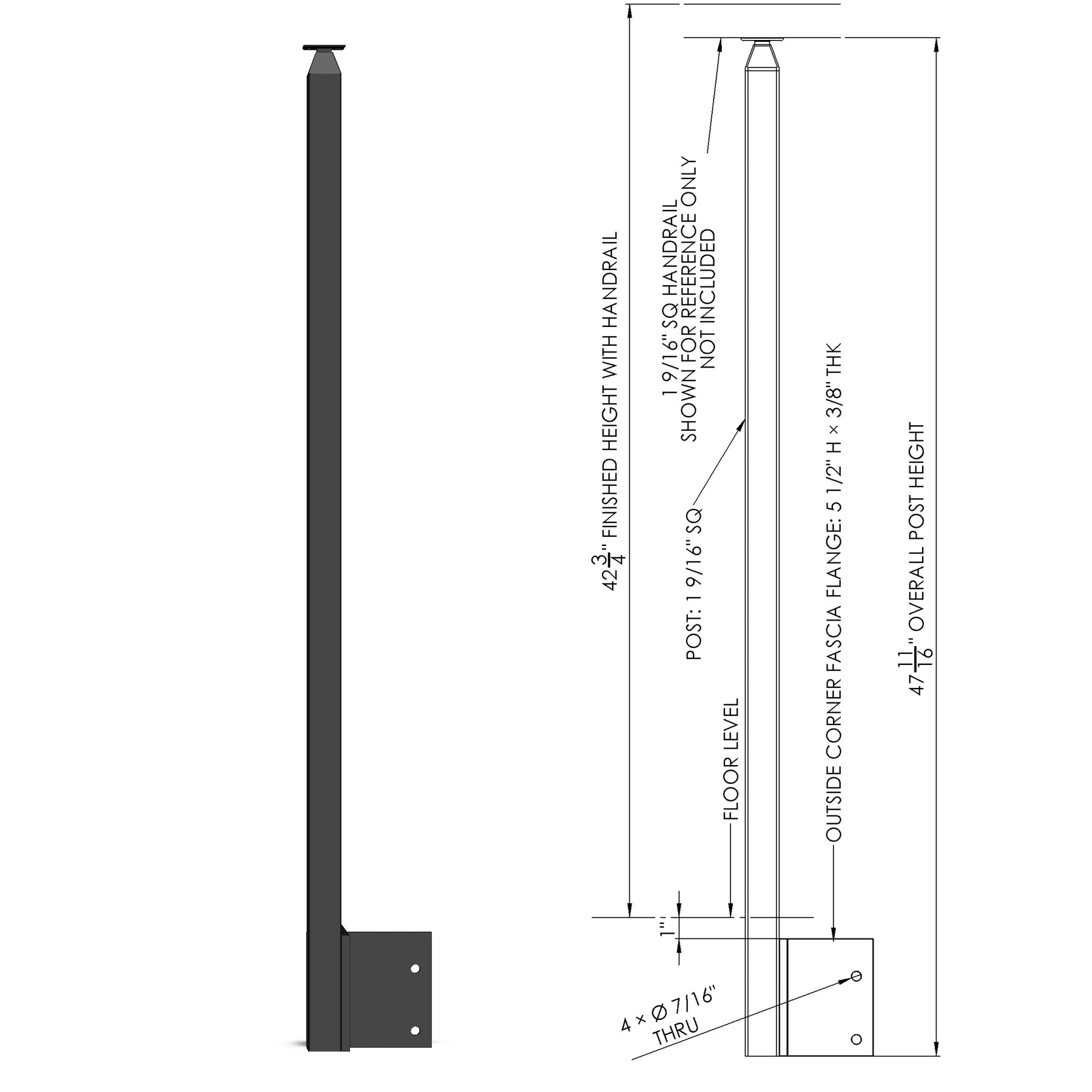

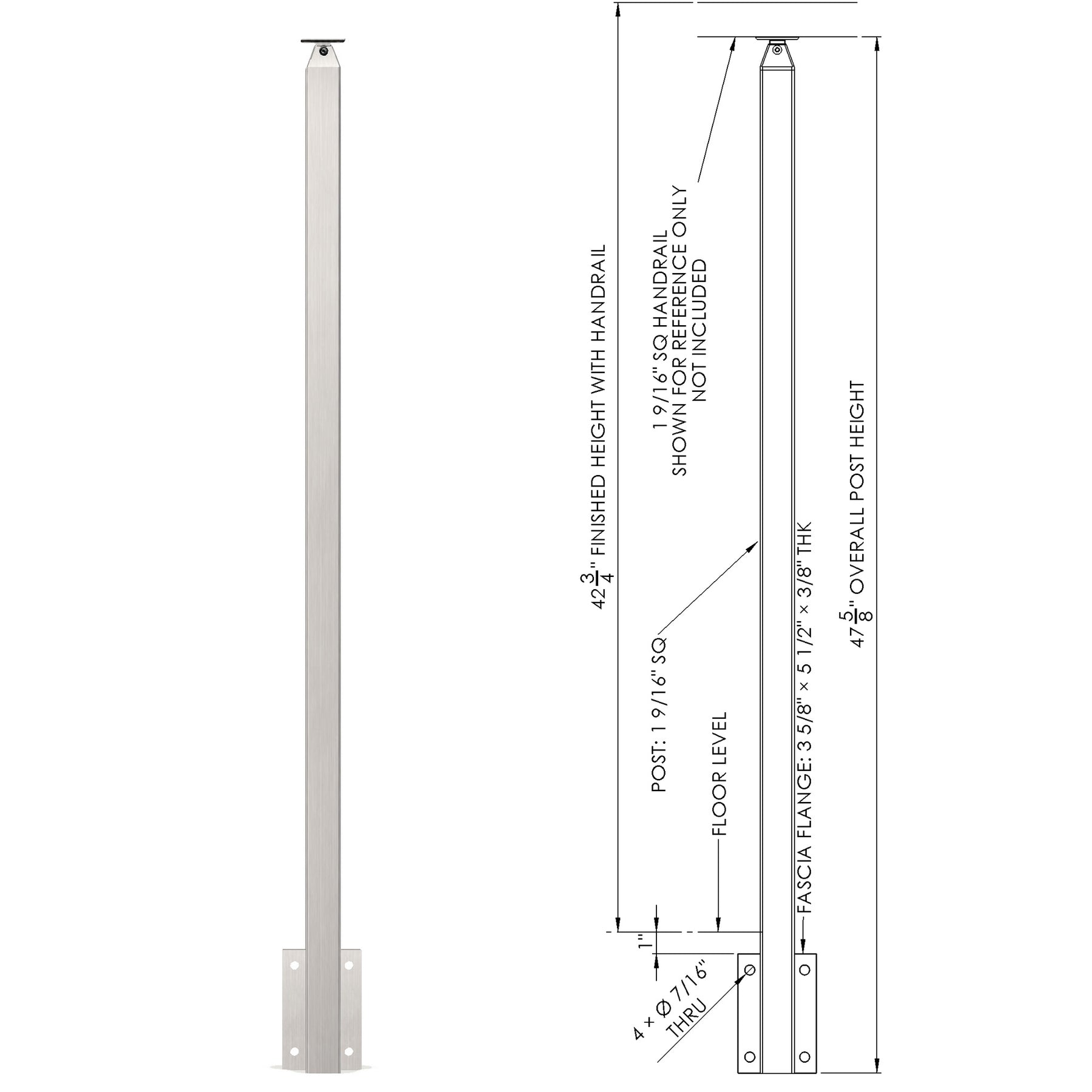

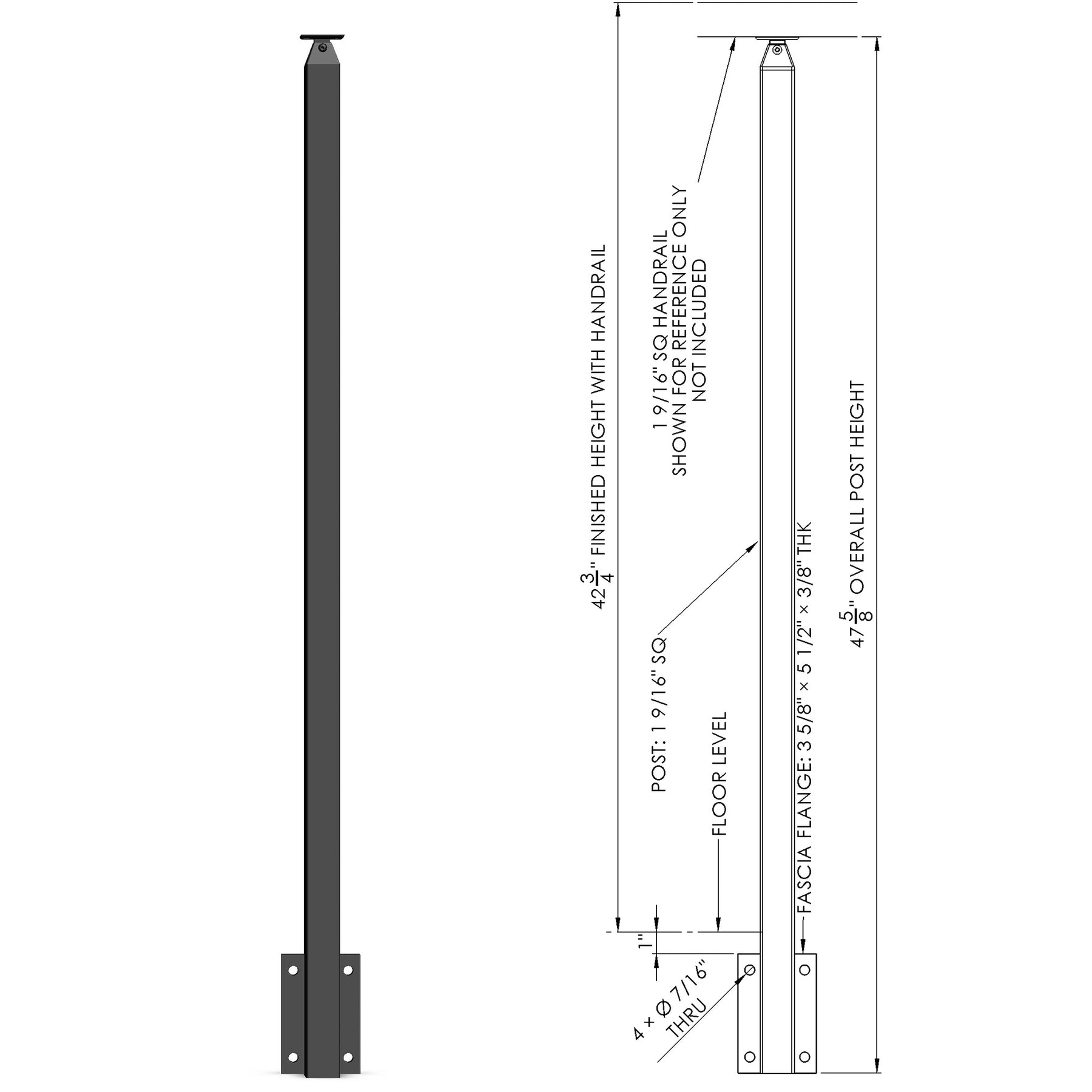

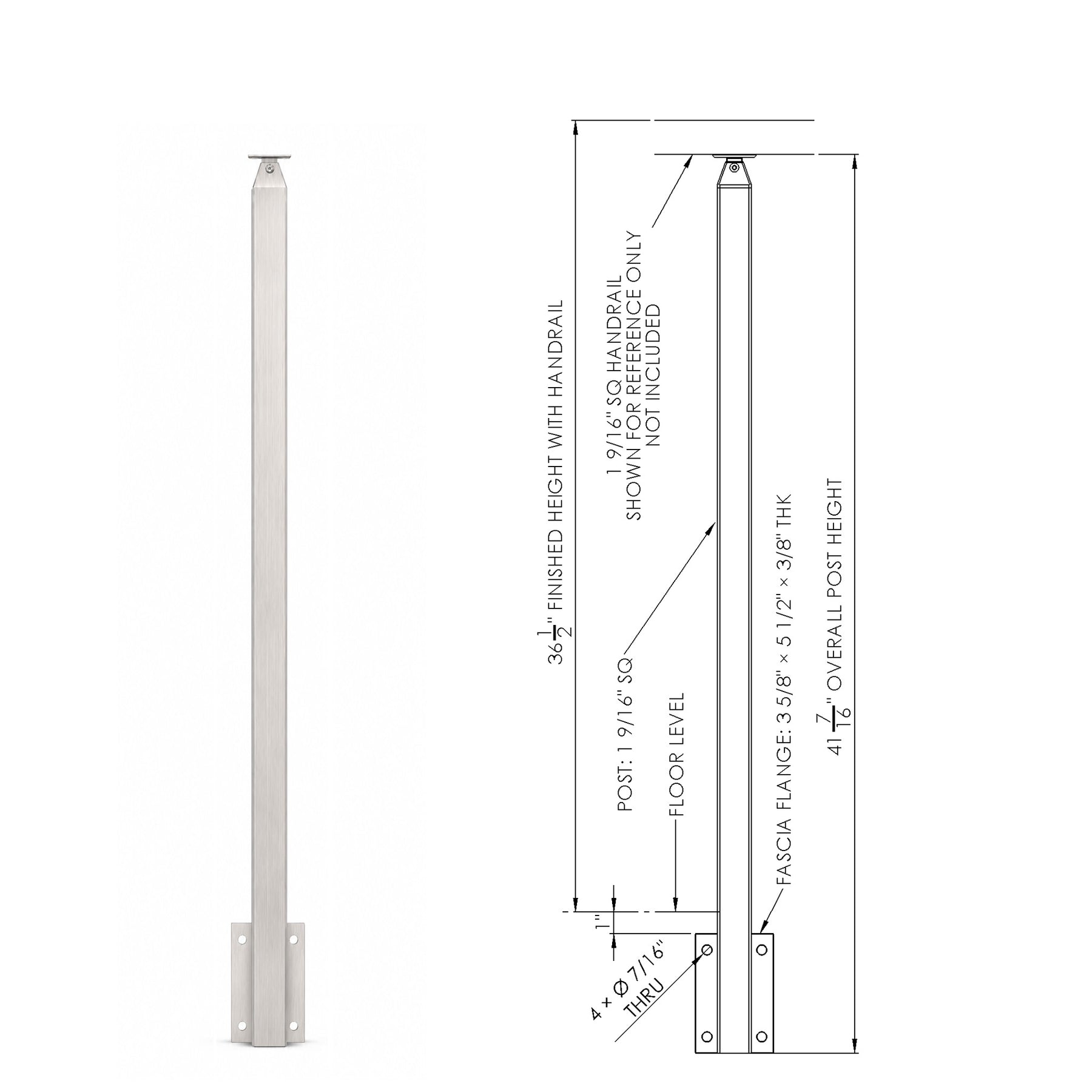

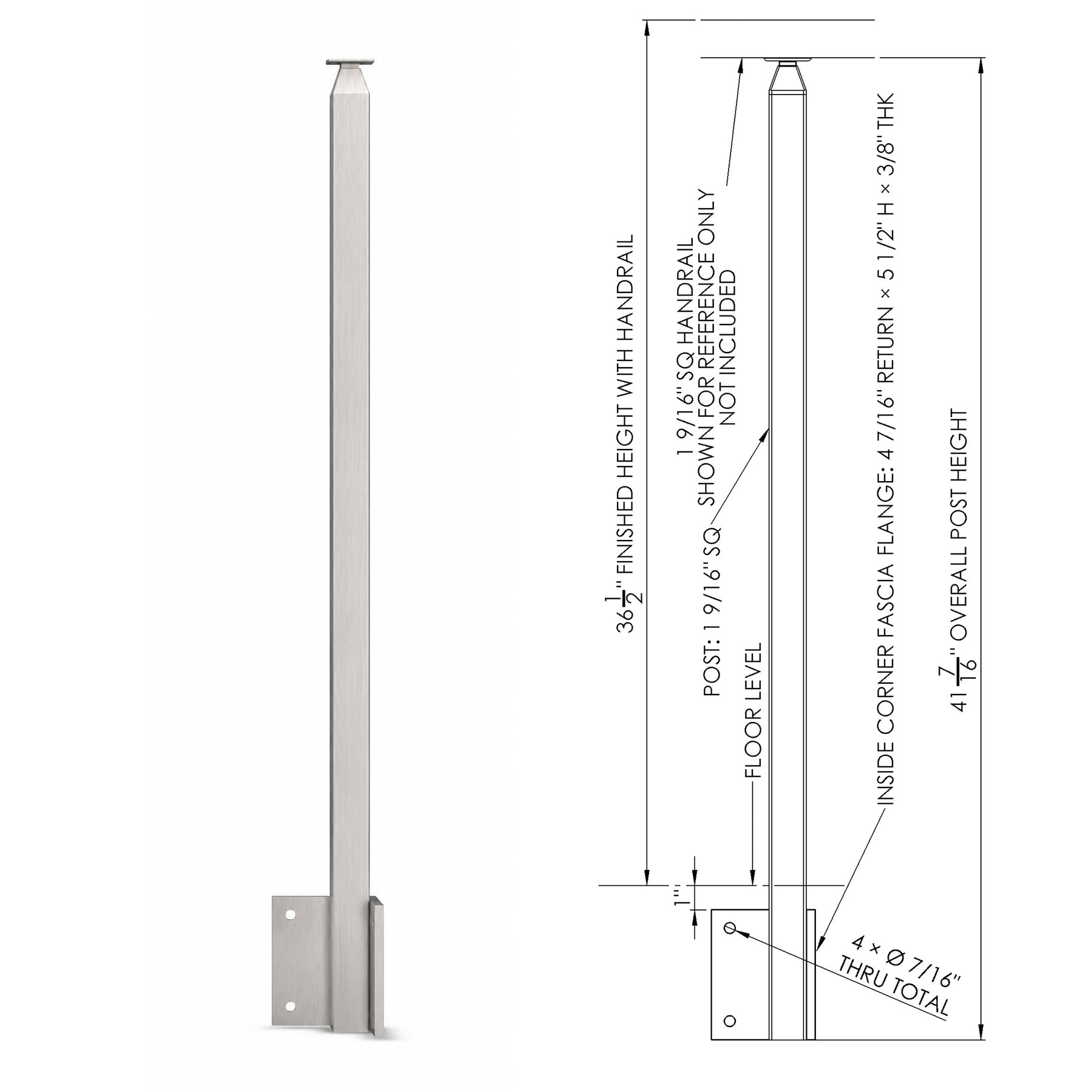

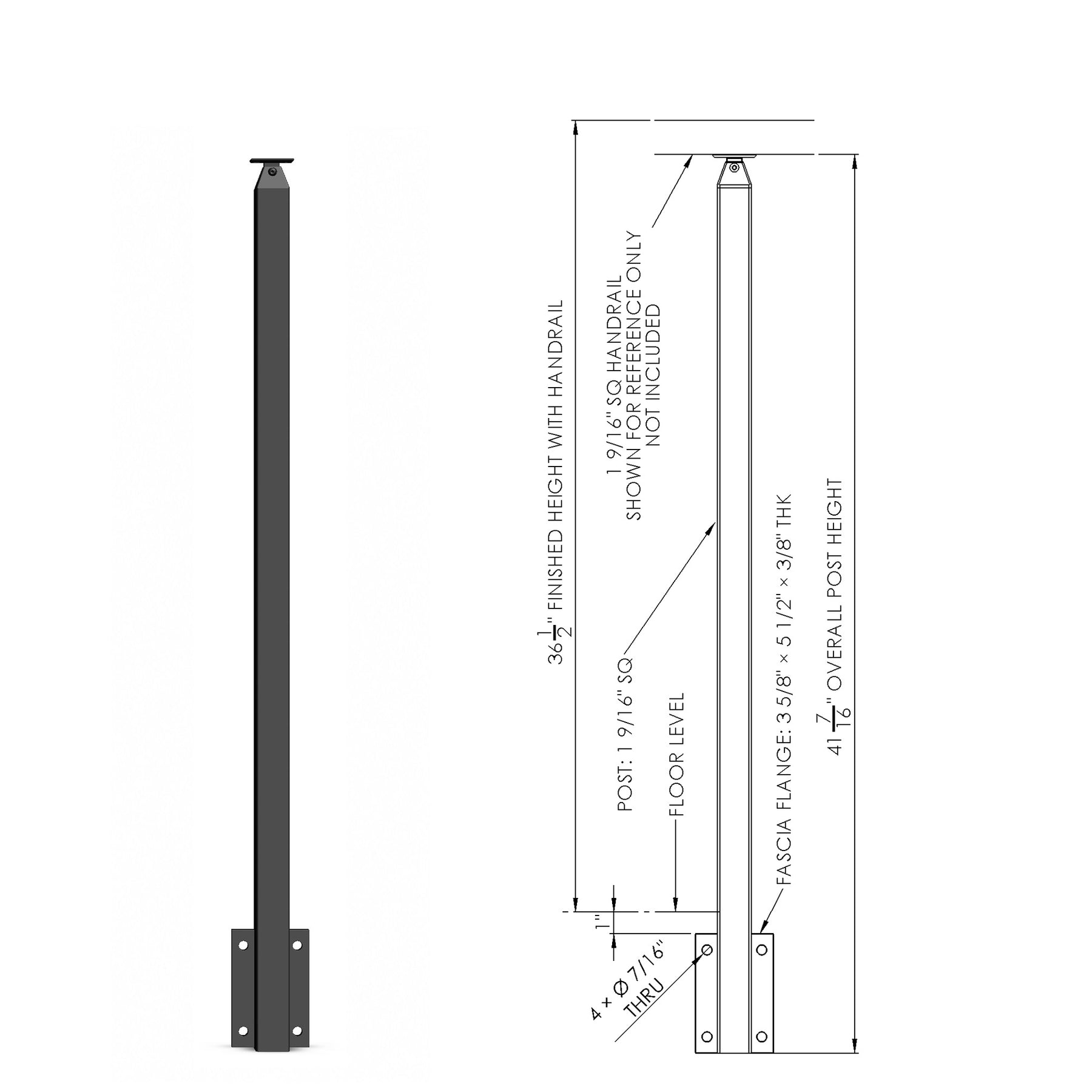

For posts with a pyramid handrail bracket, the selected 36" or 42" height represents the finished railing height with the handrail installed. The handrail shown in the drawings is for reference only and is not included.

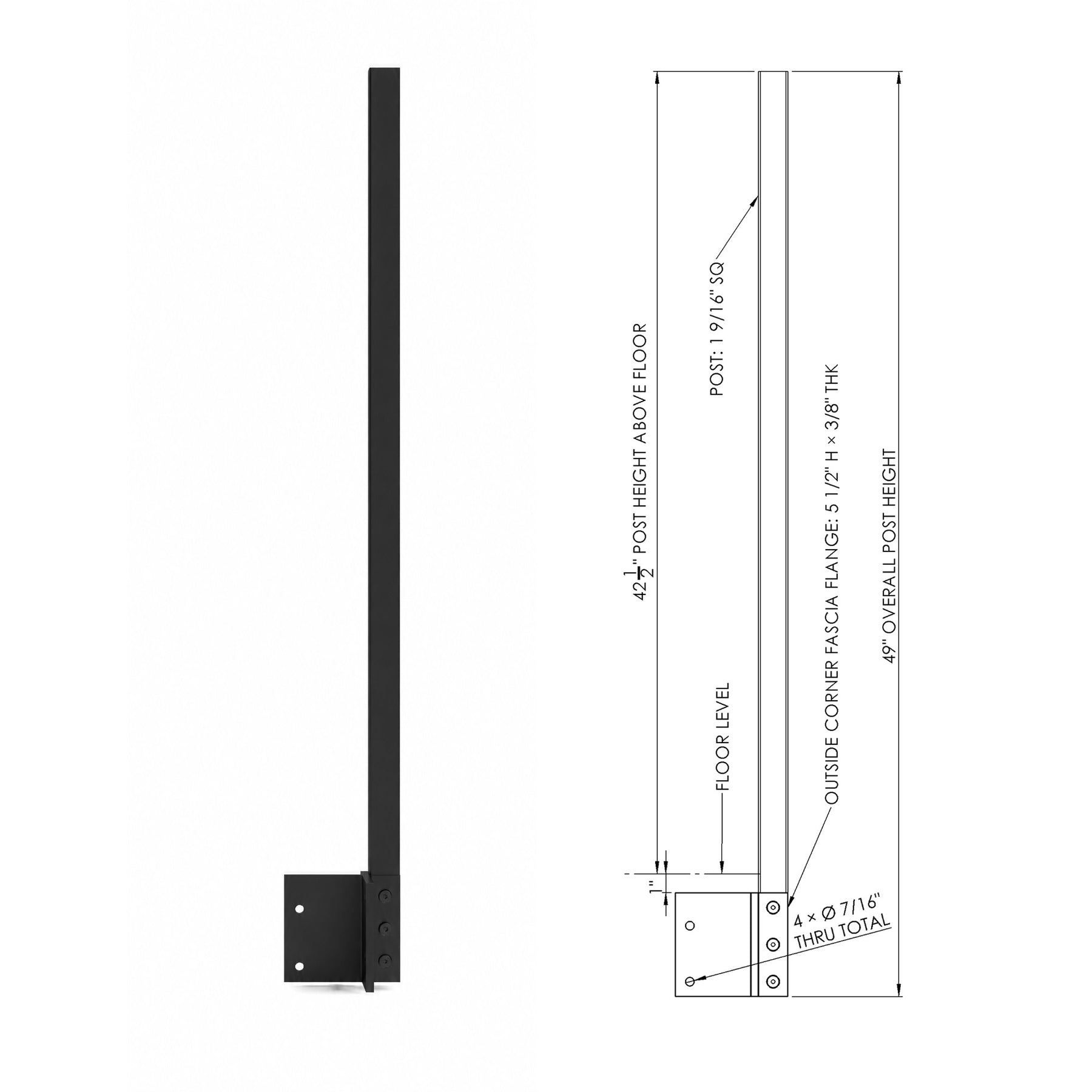

For posts without a top handrail bracket, the stated height represents the post height above the finished floor.

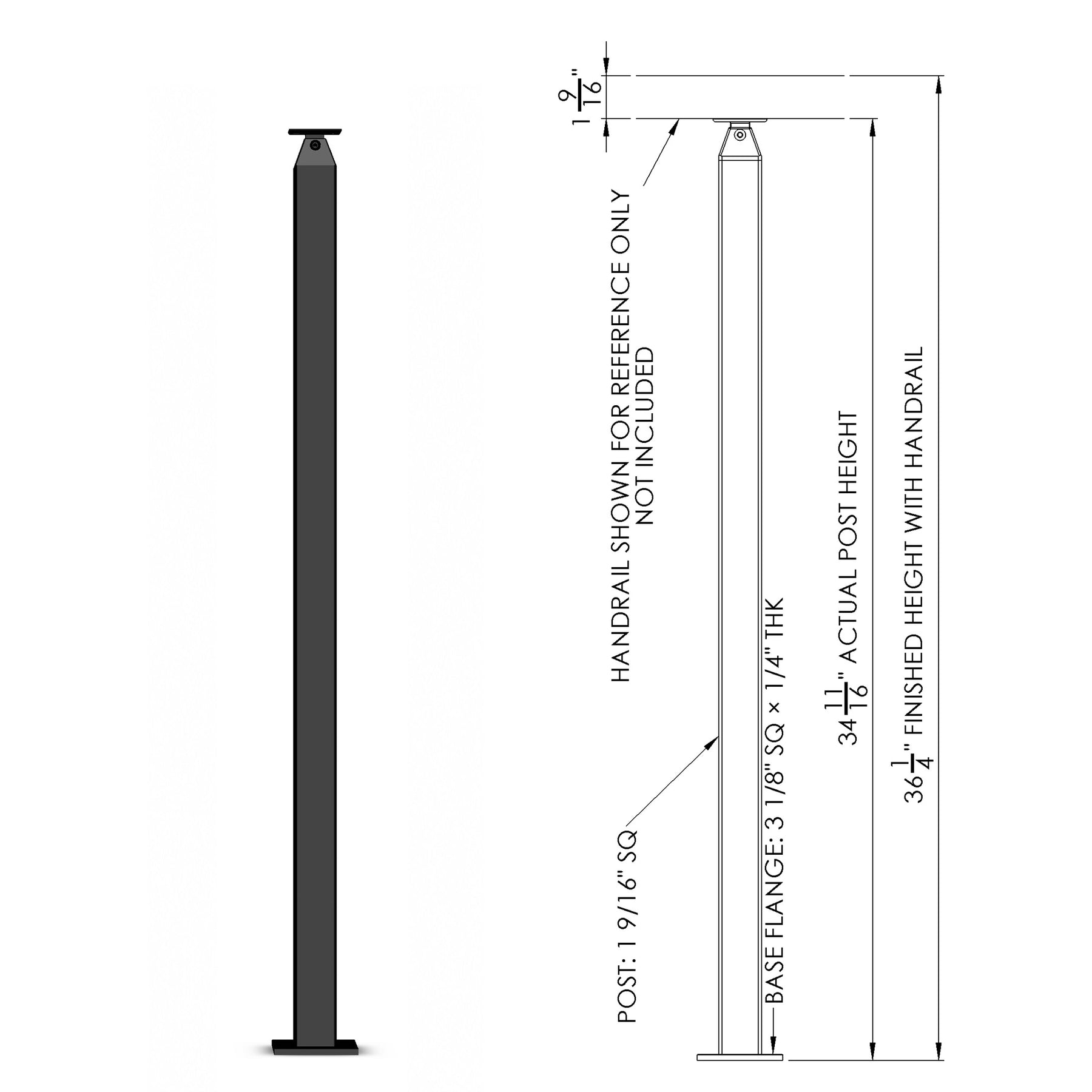

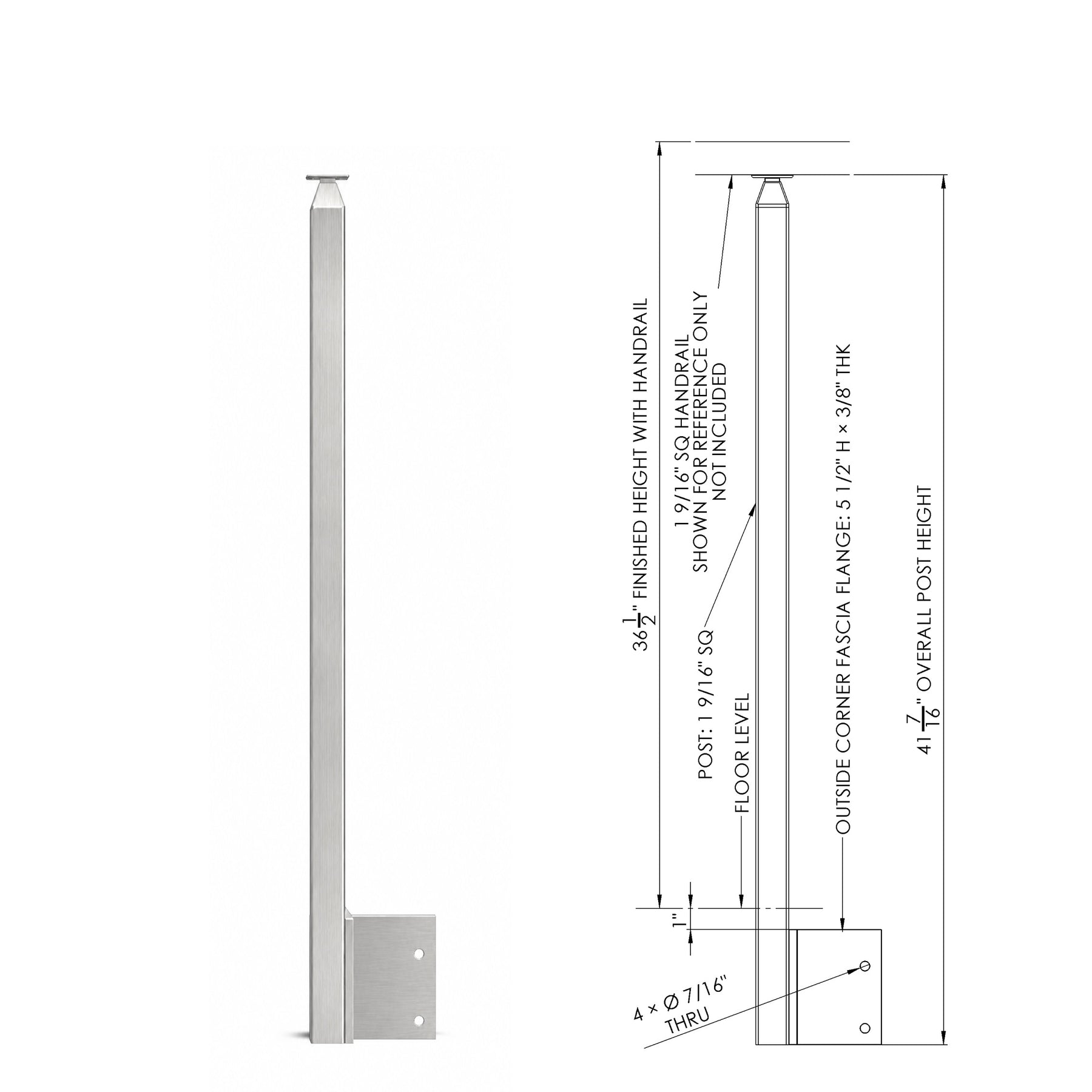

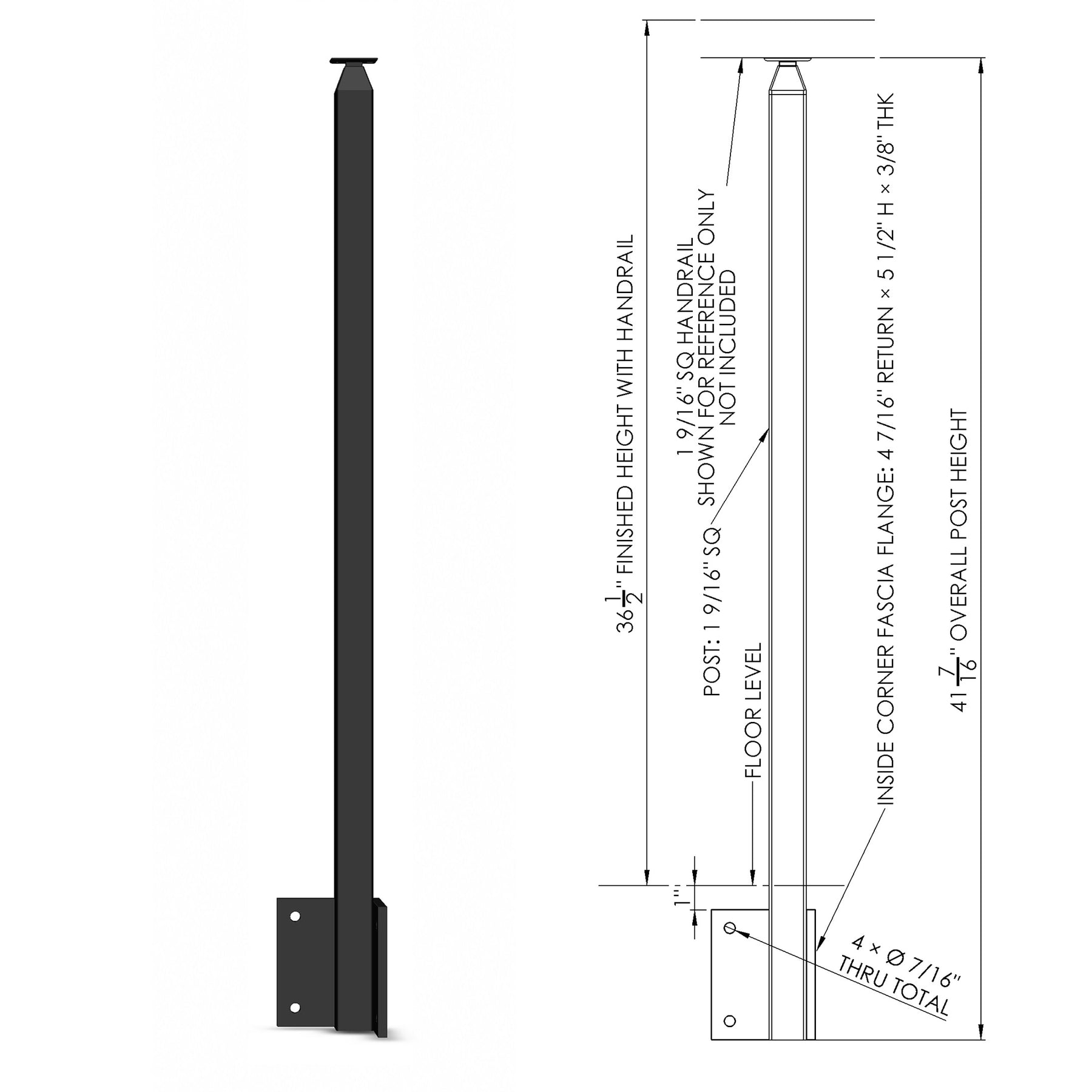

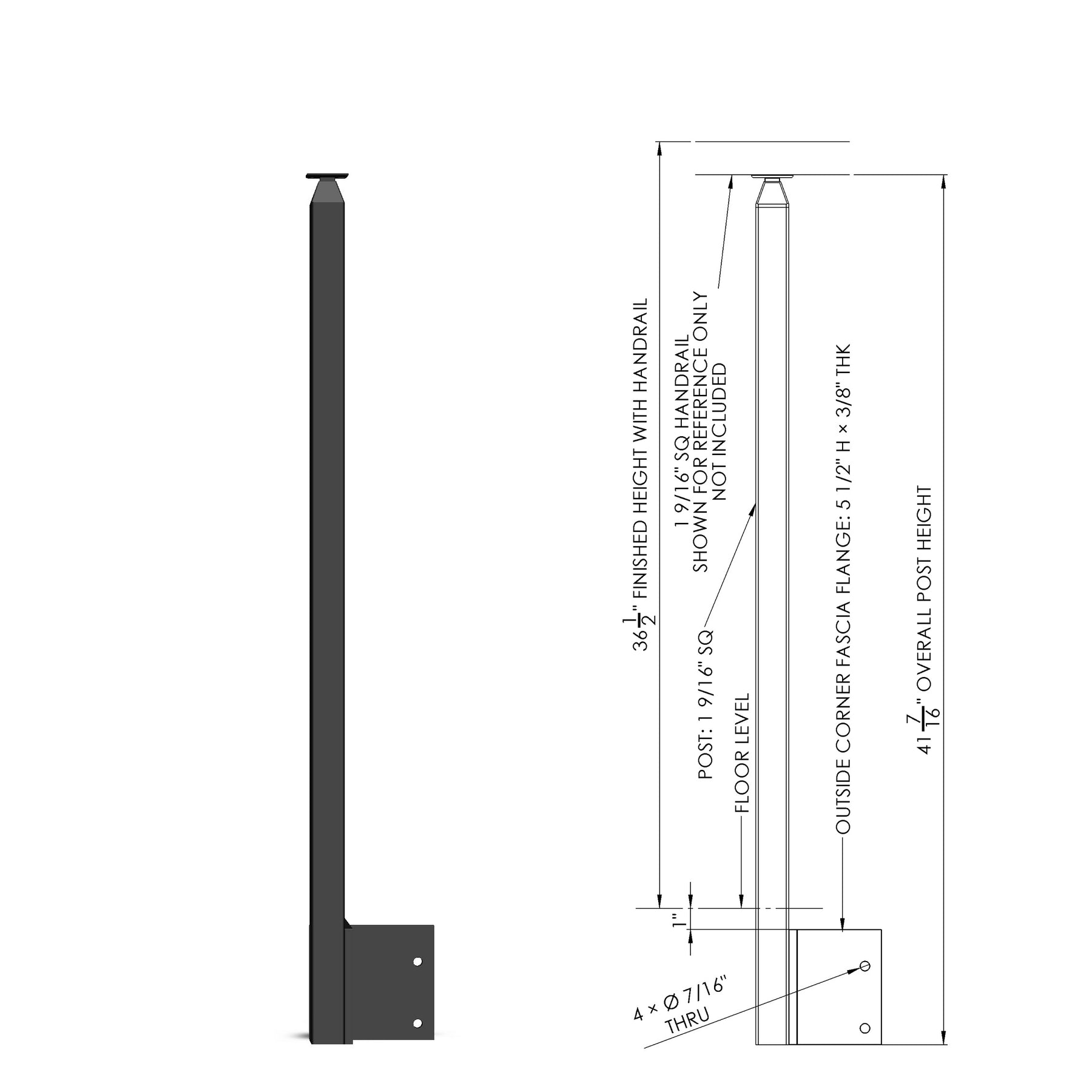

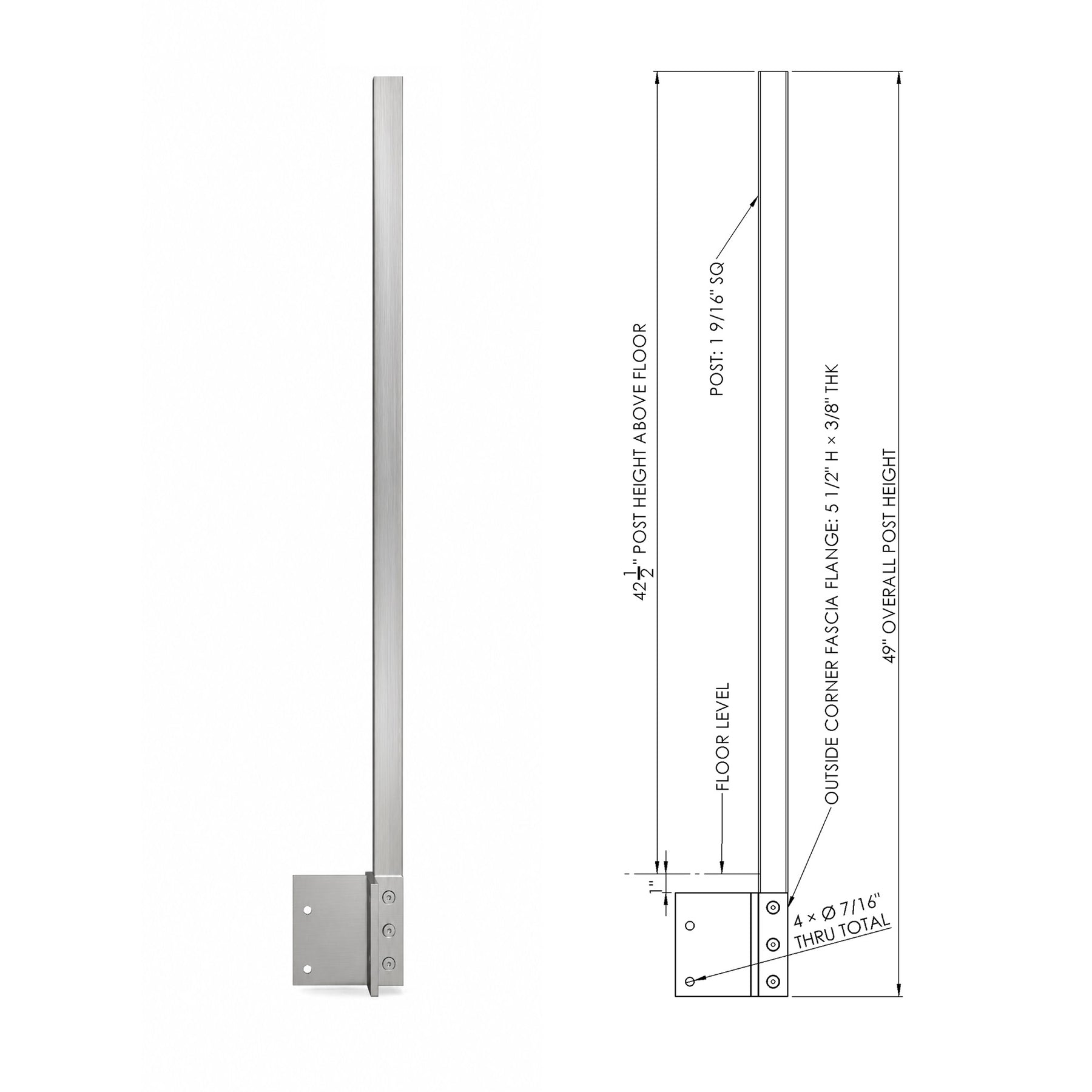

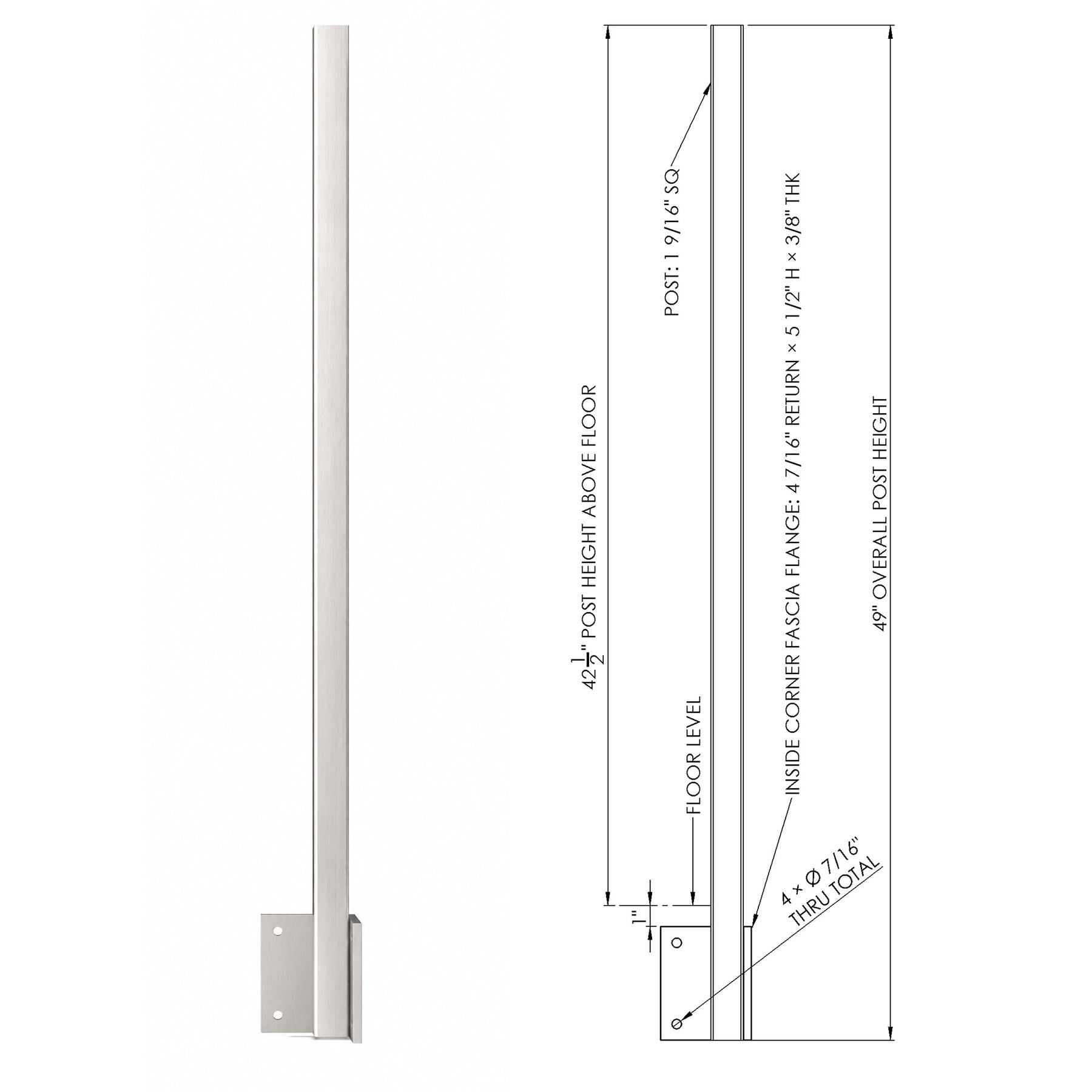

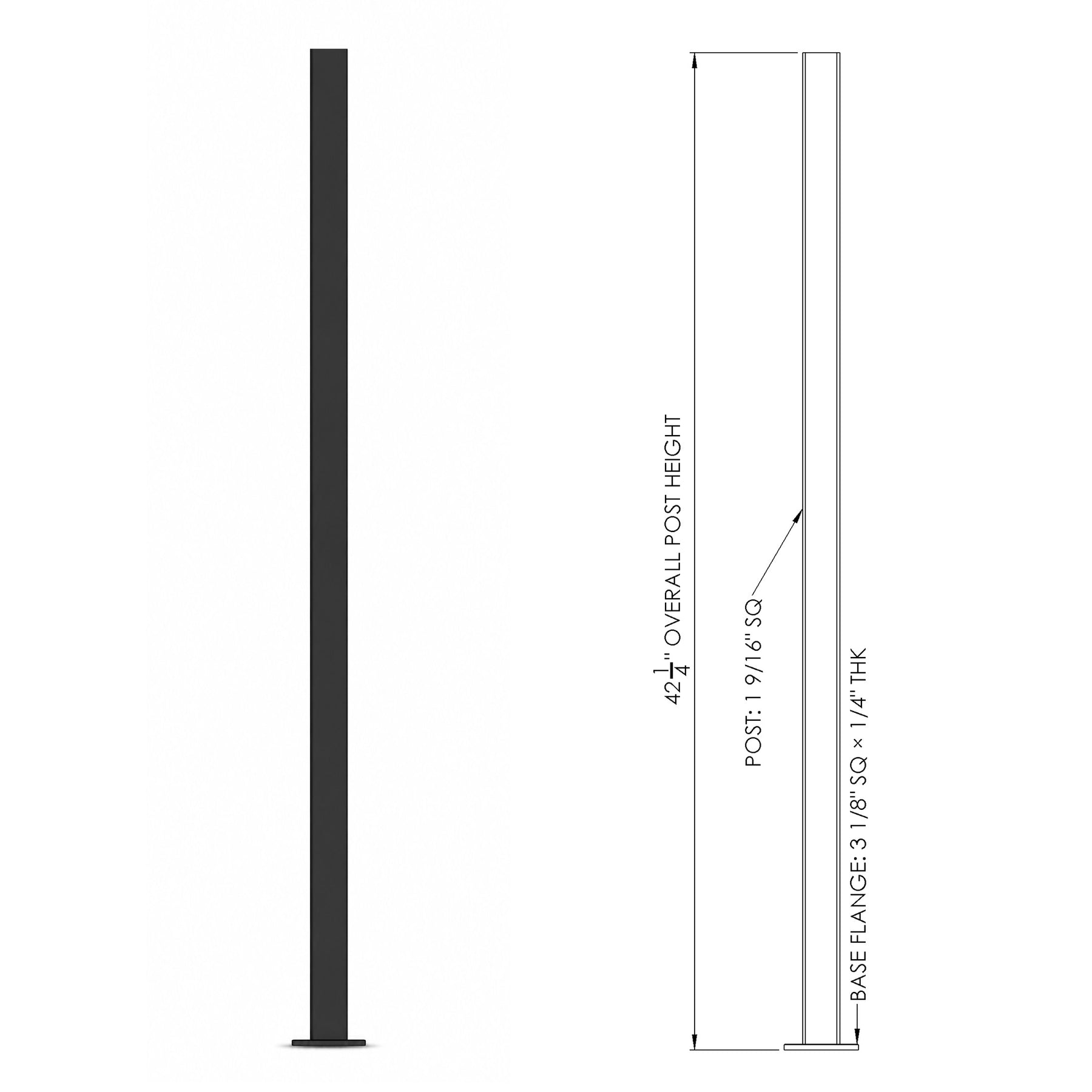

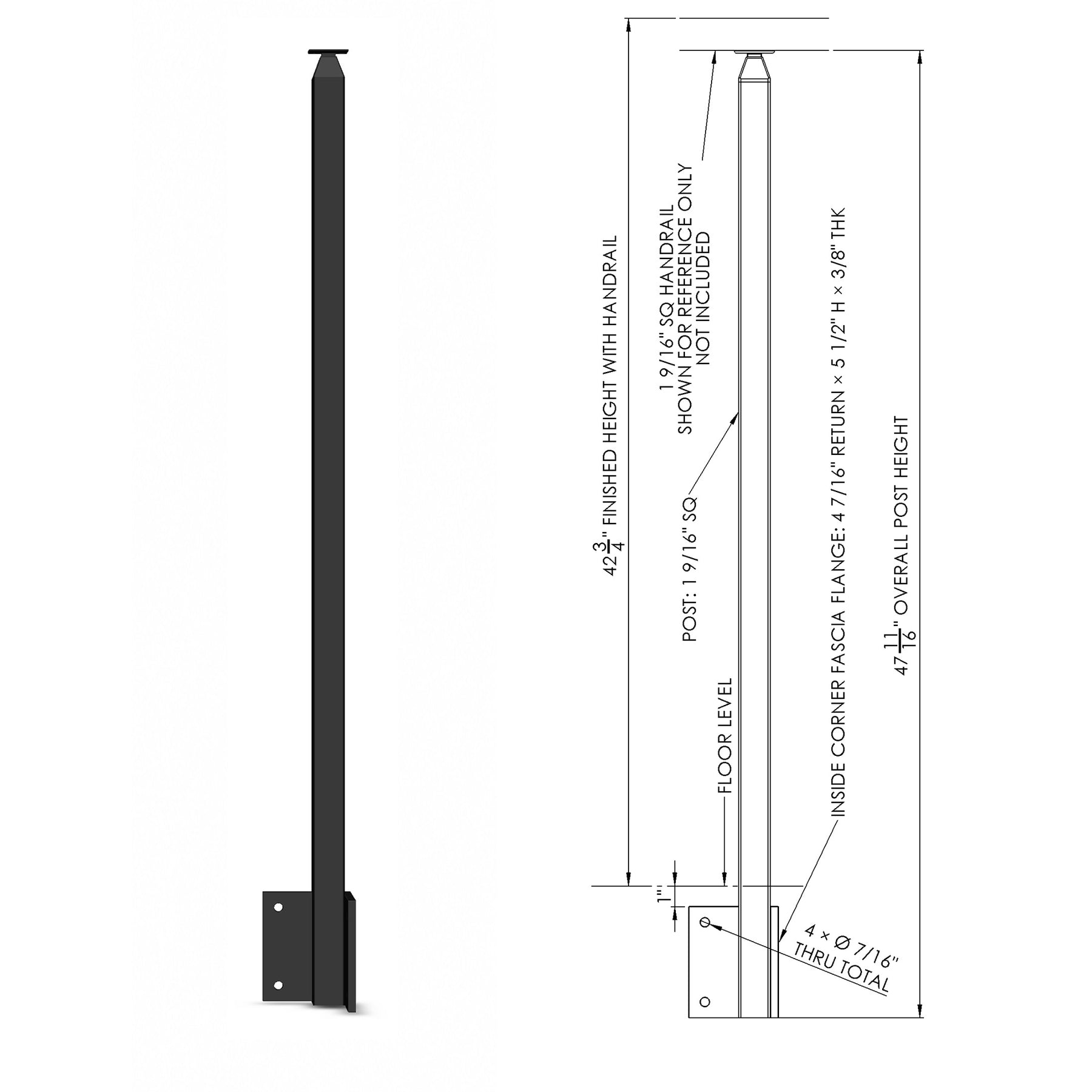

Refer to the product images and technical drawings for the exact:
- Post height
- Finished railing height
- Overall post height
- Floor-level reference
- Base or fascia flange dimensions
- Mounting-hole configuration
Download All Square Barebone Post Technical Drawings (PDF)
Accessories Sold Separately
End caps, base flange covers, handrail brackets, handrails, mounting anchors, and other railing accessories are not included unless specifically stated in the selected variant.
Compatible components can be purchased separately from the Handrail Parts collection.
Installation Responsibility
The appropriate mounting hardware depends on the supporting structure and installation conditions, including concrete, structural steel, wood framing, or engineered blocking.
The installer is responsible for confirming:
- Structural backing and blocking
- Anchor type and required embedment
- Post spacing
- Handrail and infill configuration
- Required guard height
- Compliance with applicable residential or commercial building codes
For stair posts, angled installations, unusual mounting conditions, or complete custom fabrication, contact Inline Design with the project dimensions and drawings before ordering.
