Tip Sheet - Mounting Guidance - Surface Mount

Overview

Due to the variety of floor surfaces, customers must supply the connecting hardware for the base, i.e. screws, bolts, anchor bolts, etc.

This document shows anchoring options into different surface mount options. Please use this document for guidance only.

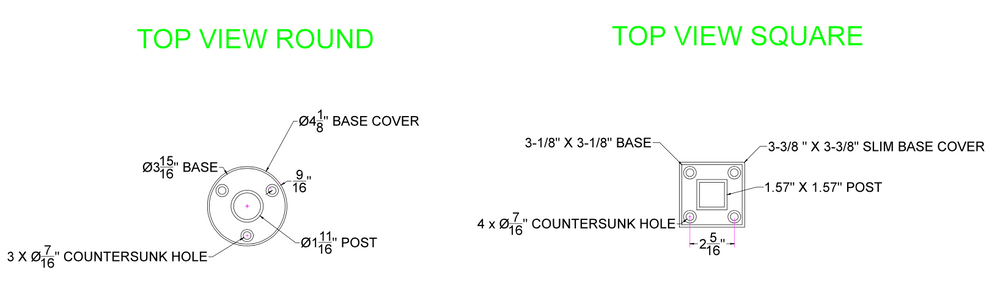

Floor/Surface Mounting Flange



post flange drawing railing

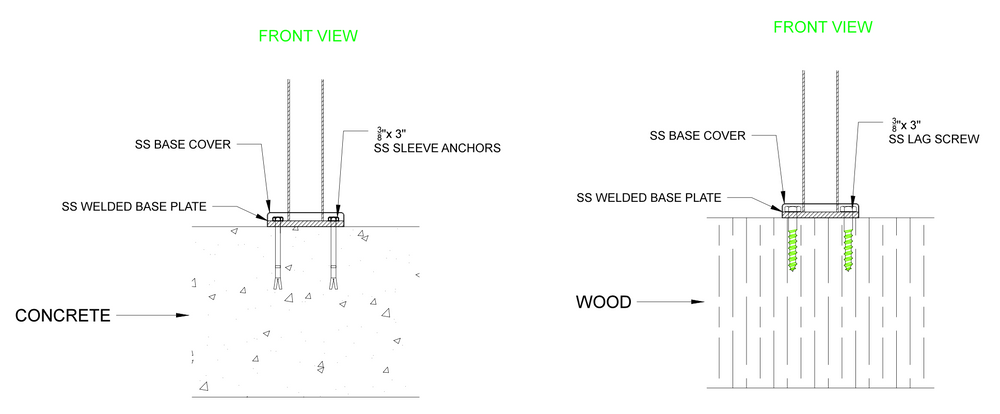

Floor/Surface Mount Anchoring into Concrete and Wood



post flange drawing fastener mounting railing

Customers are responsible to complying with their local building codes and/or architects guidelines therefore Inline Design shall, in no way be liable for any incidental or consequential damages caused.

We strongly suggest the use of the correct Simpson Strong-Tie products when mounting in concrete.  Here is an informational video to help with selecting tyhe the solution.
